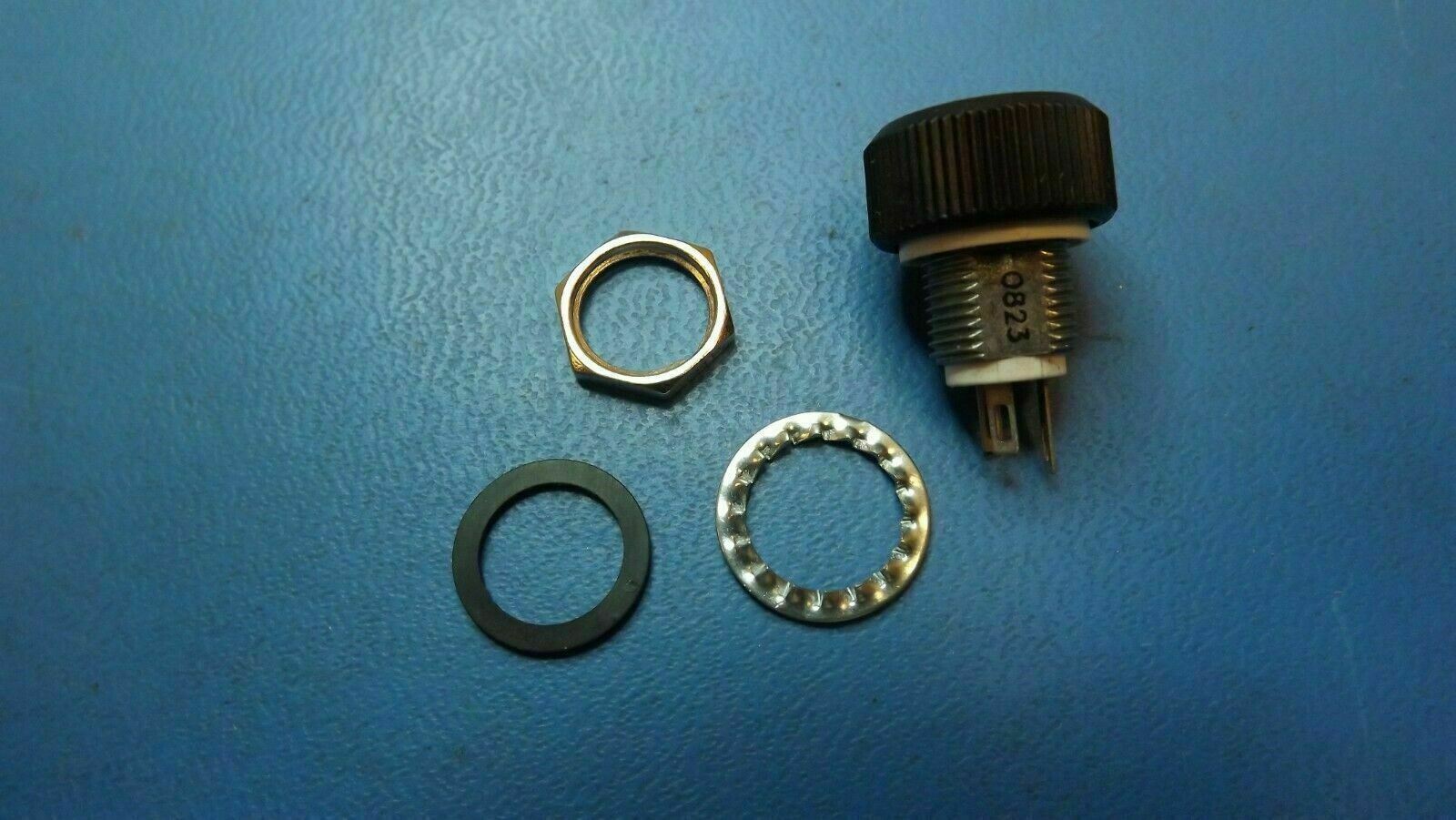

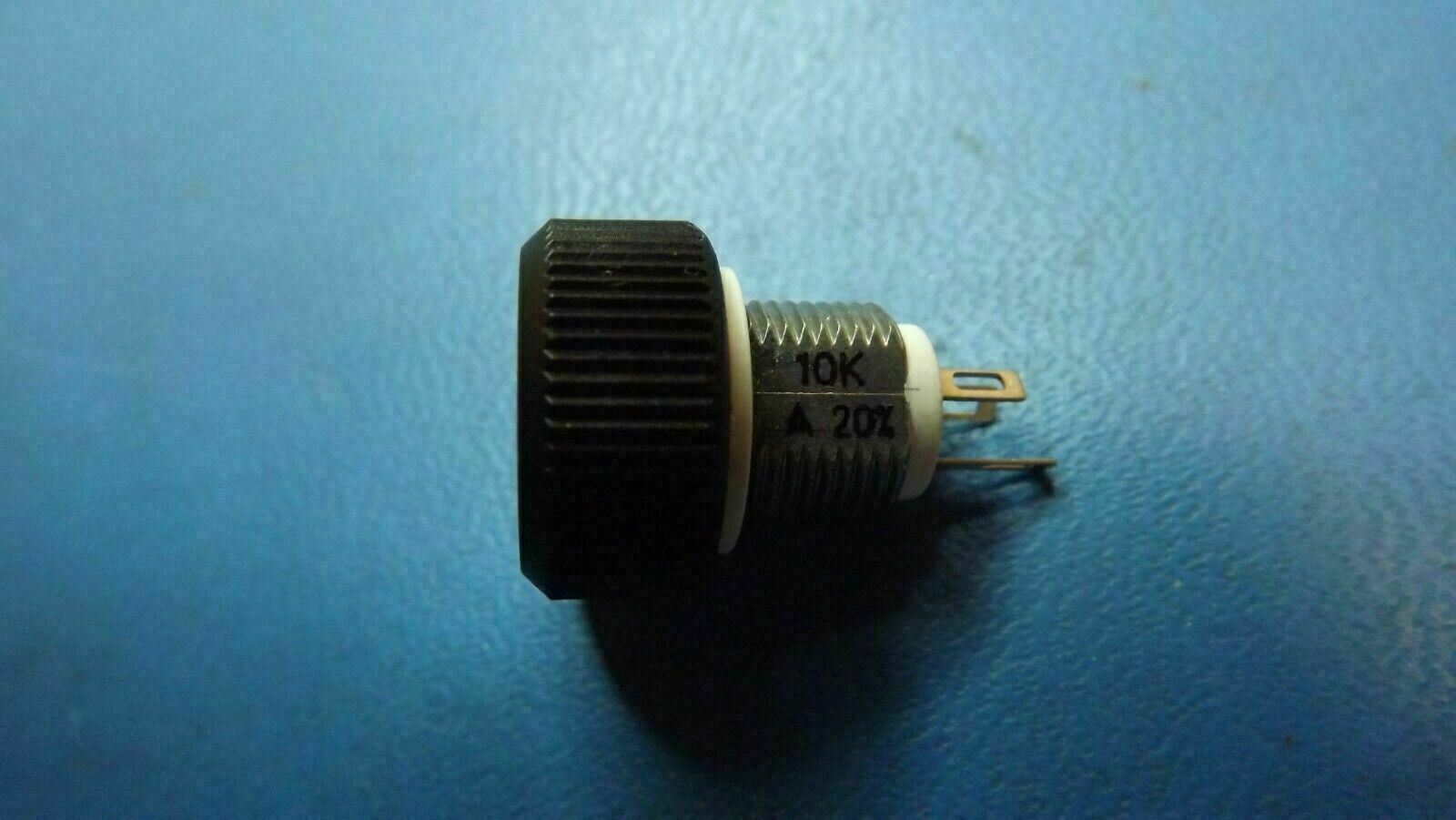

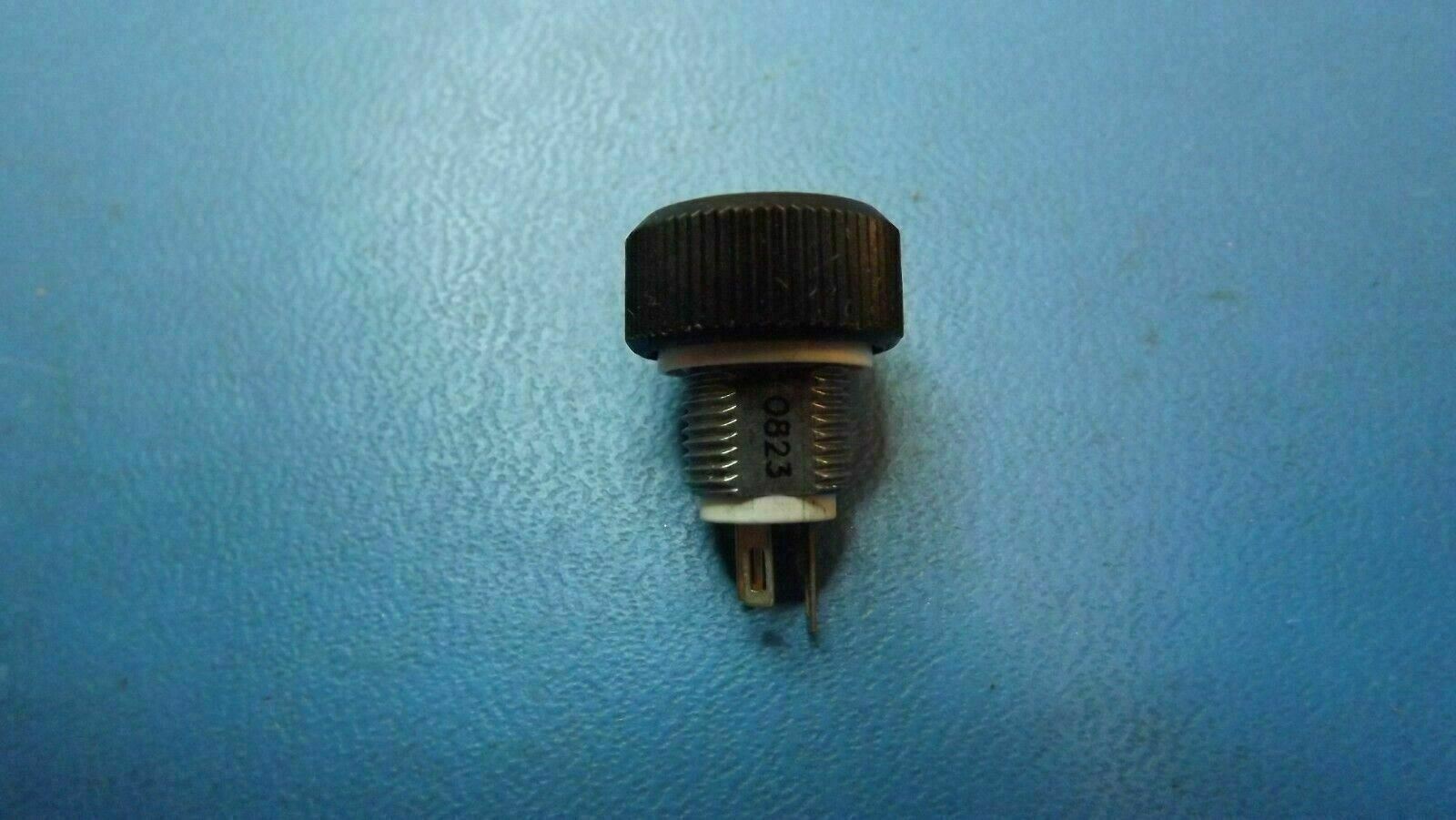

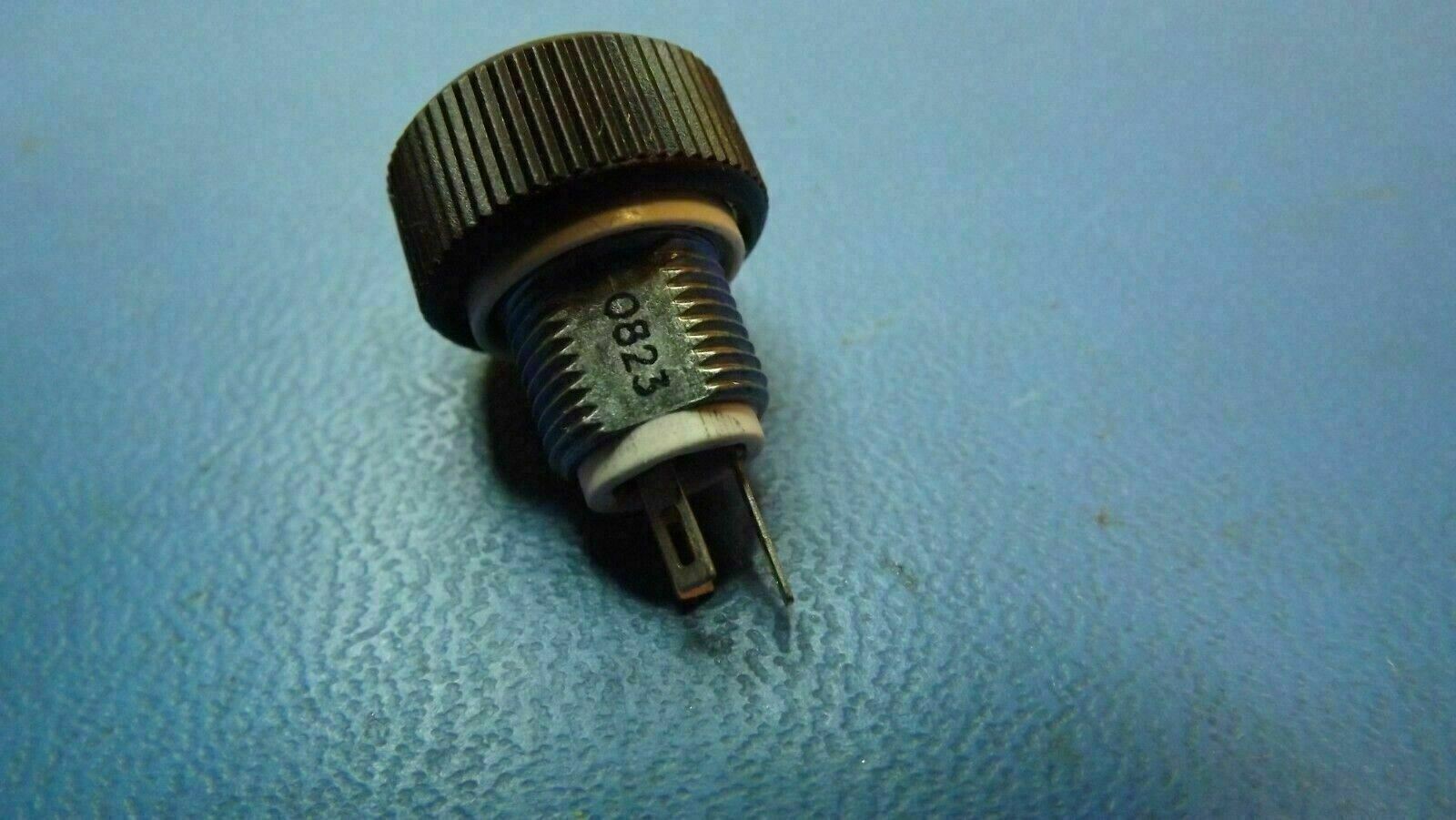

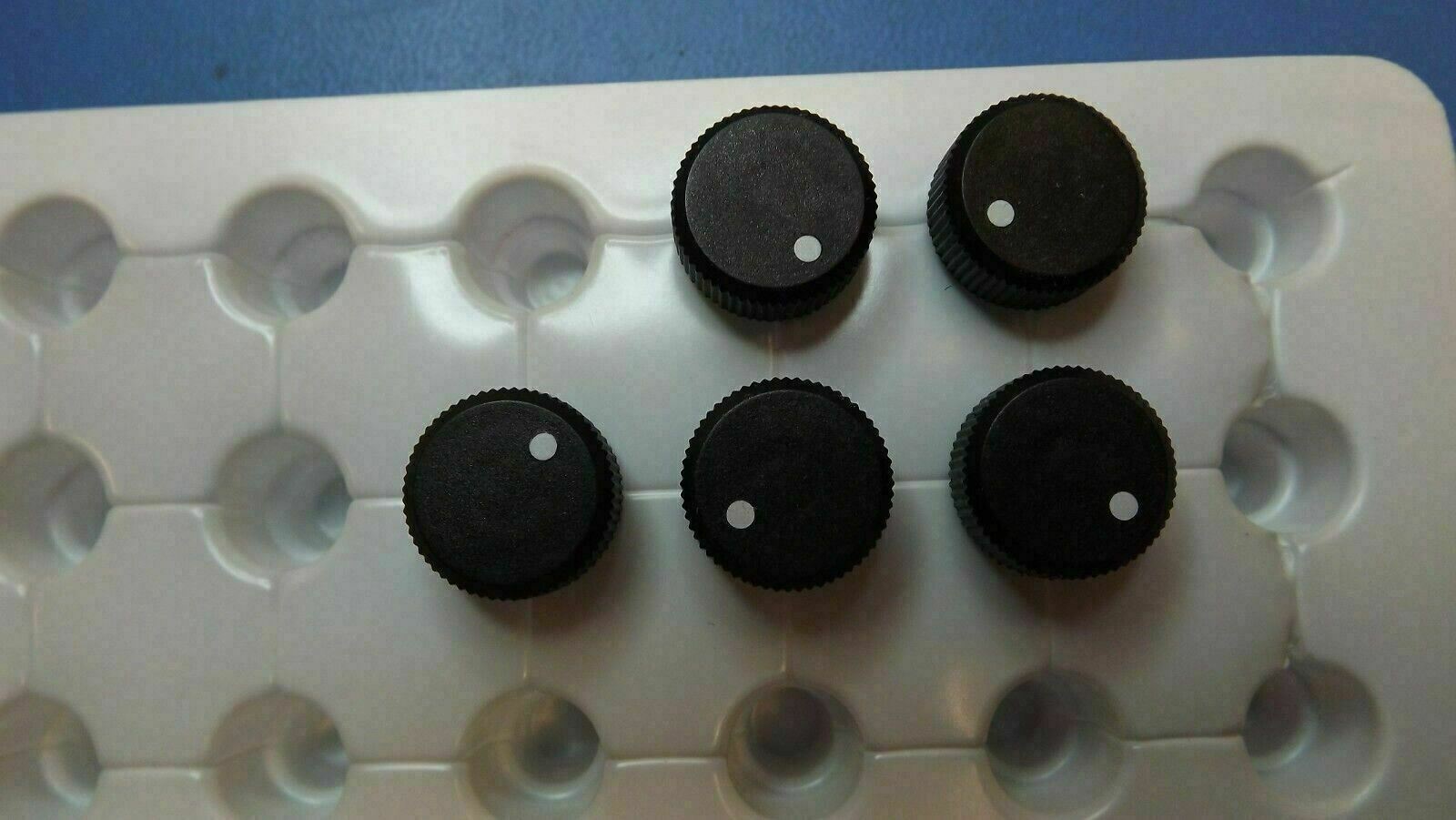

(1PC) P16NP103MAB15 VISHAY POT 10K OHM 1W CERMET LINEAR
Tax included.
THIS LISTING IS FOR (1PC) OF P16NP103MAB15 BY VISHAY
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT |
| EU RoHS Compliant | Yes |
| Status | Active |
| Resistor Type | POTENTIOMETER |
| Actuator Orientation | HORIZONTAL |
| Actuator Type | KNOB |
| Construction | Fully Sealed |
| Manufacturer Series | P16 |
| Mounting Feature | PANEL MOUNT |
| Number of Terminals | 3 |
| Number of Turns | 1 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Diameter | 16.0 mm |
| Package Length | 9.0 mm |
| Package Shape | CIRCULAR PACKAGE |
| Package Style | Panel Mount |
| Packing Method | BULK |
| Rated Power Dissipation (P) | 1.0 W |
| Rated Temperature | 40.0 Cel |
| Reference Standard | CECC41000 |
| Resistance | 10000.0 ohm |
| Resistance Law | LINEAR |
| Rotational Angle | 270.0 deg |
| Series | P16 |
| Sub Category | Variable Resistors |
| Technology | CERMET |
| Temperature Coefficient (ppm/Cel) | -150,150 |
| Terminal Shape | LUG |
| Tolerance | 20.0 % |
| Working Voltage | 100.0 V |
| Additional Feature | STANDARD: IEC60393-1 |
