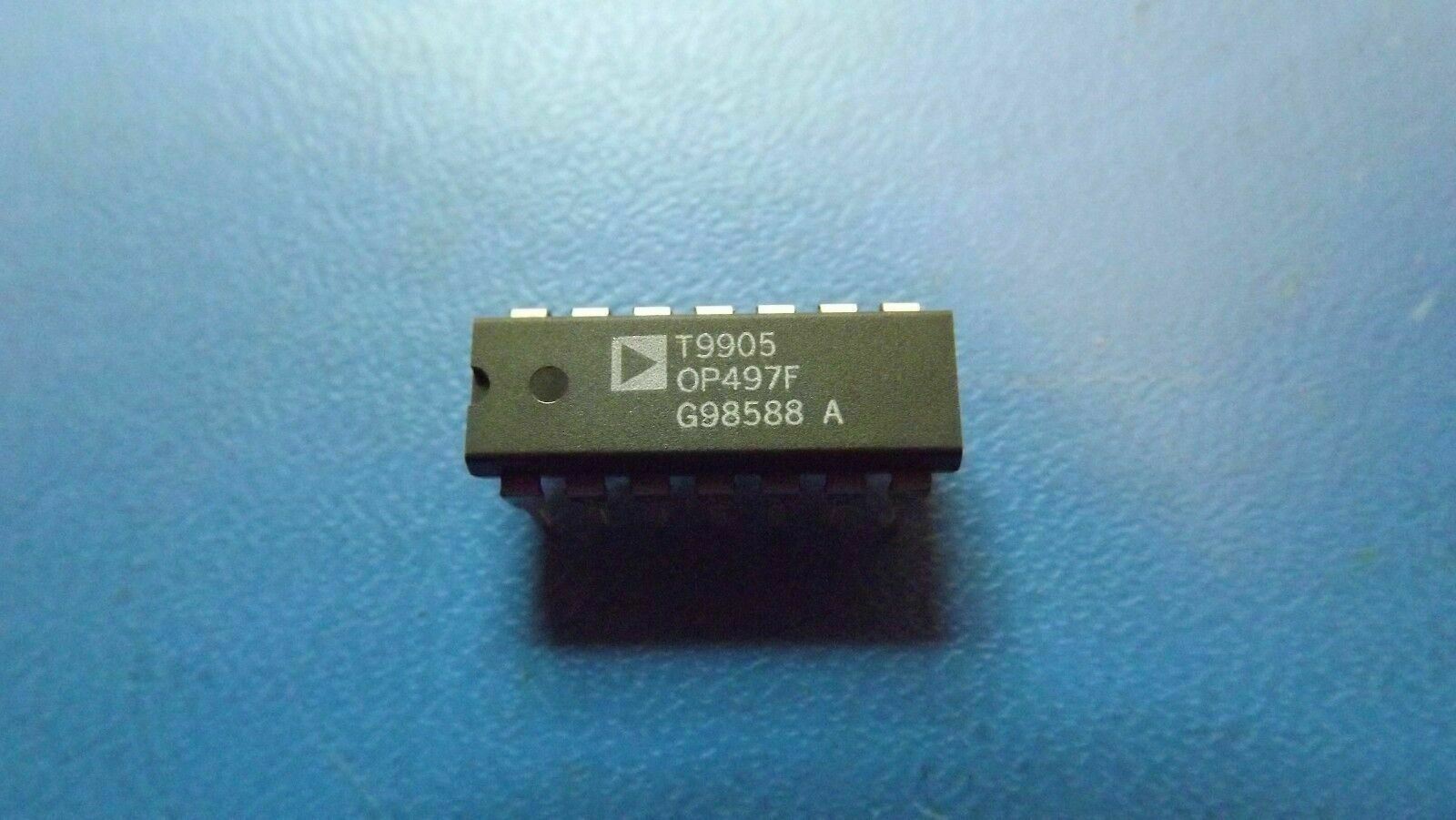

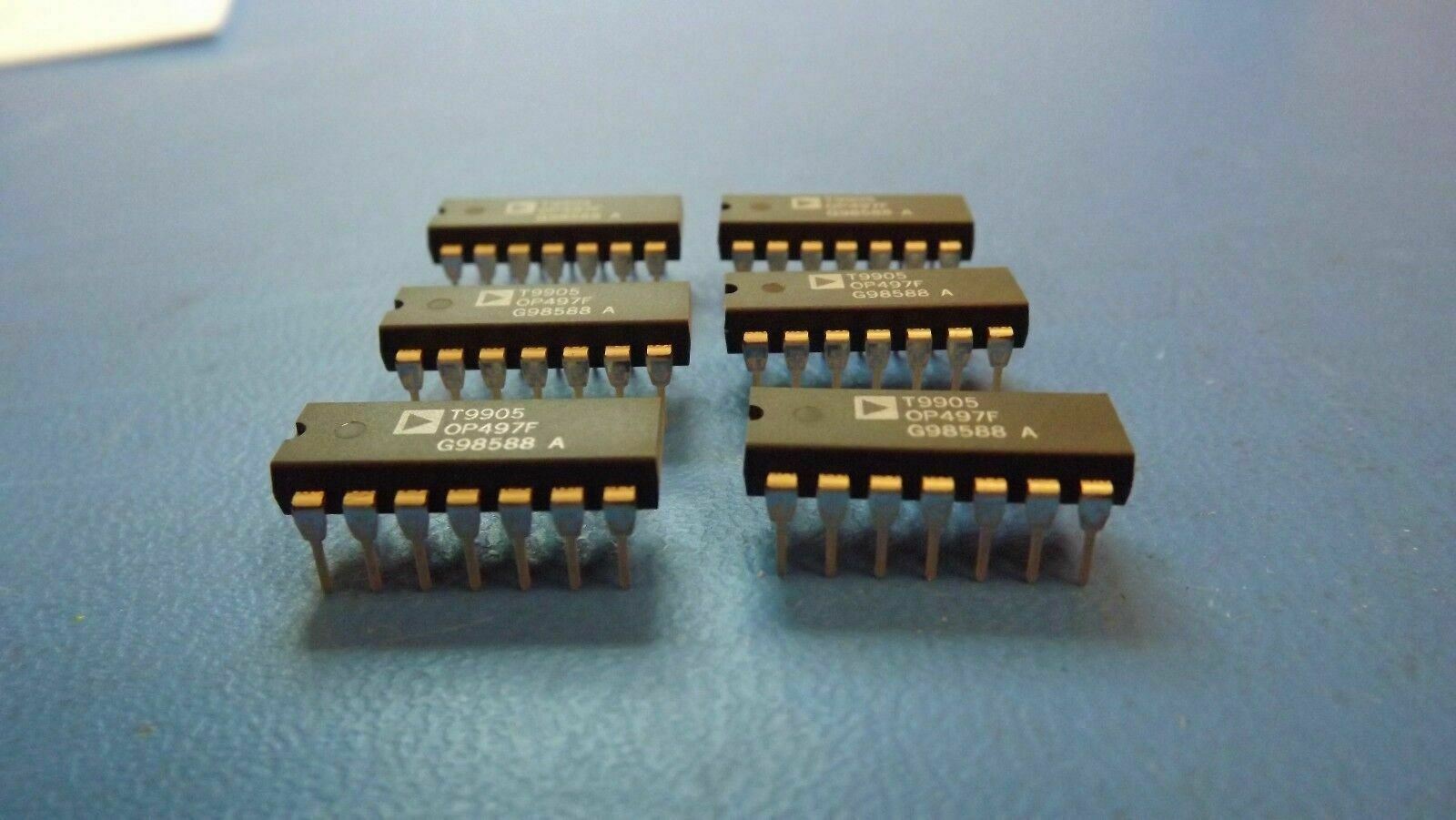

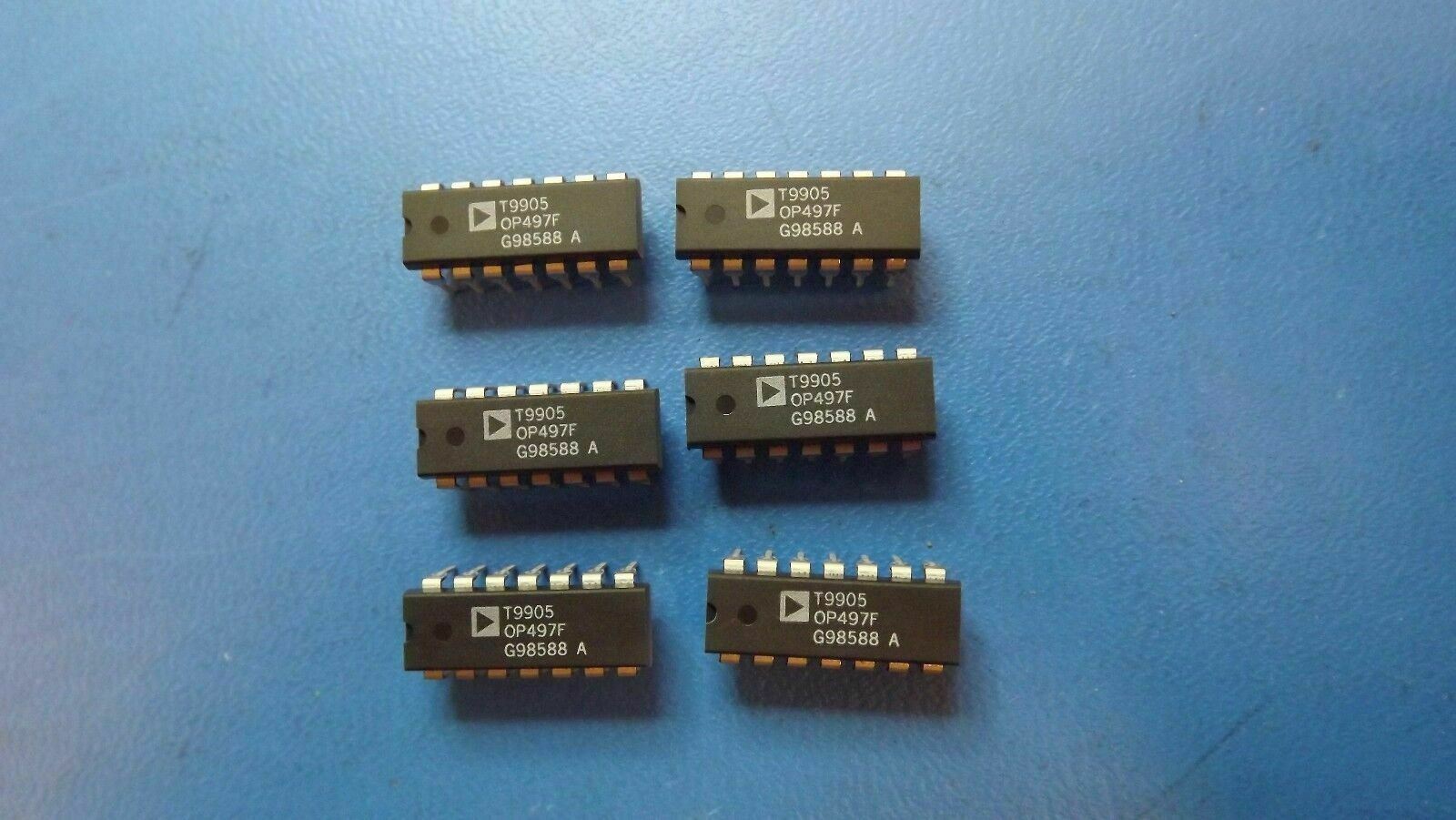

(1PC) OP497FP OP Amp Quad GP ±20V 14-Pin PDIP
Tax included.

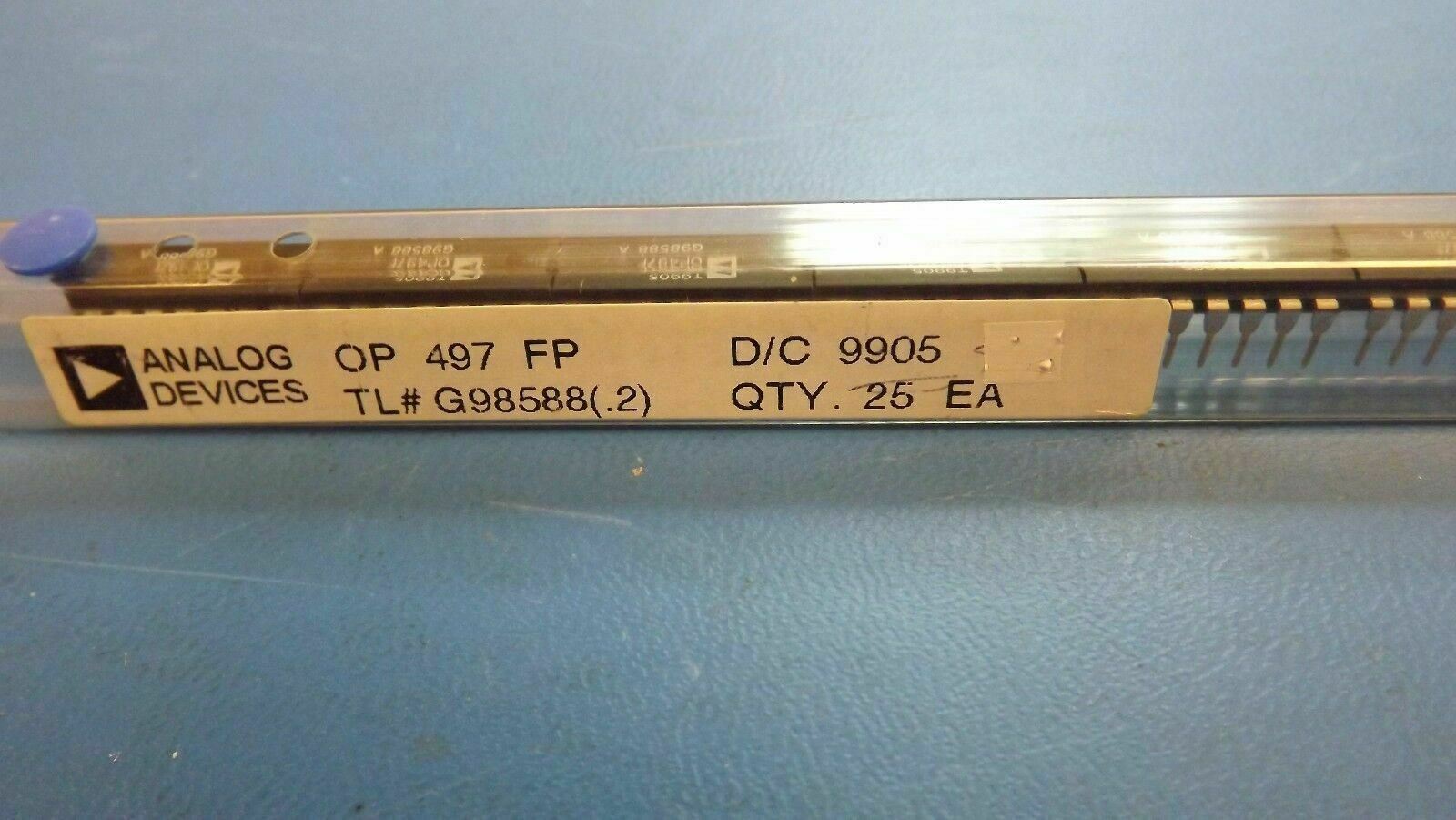

THIS LISTING IS FOR (1PC) OF OP497FP BY ANALOG DEVICES.
OP Amp Quad GP ±20V 14-Pin PDIP
PART INFORMATION
OP497FP PART DETAILS & PARAMETRIC
| EU RoHS | Not Compliant |
| Manufacturer Type | Precision Amplifier |
| Maximum Input Offset Current (uA) | 0.00015@±15V |
| Type | General Purpose Amplifier |
| Number of Channels per Chip | 4 |
| Minimum PSRR (dB) | 114 |
| Technology | Bipolar |
| Rail to Rail | No |
| Power Supply Type | Dual |
| Typical Slew Rate (V/us) | 0.15@±15V |
| Maximum Dual Supply Voltage (V) | ±20 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Input Offset Voltage (mV) | 0.075@±15V |
| Maximum Input Bias Current (uA) | 0.00015@±15V |
| Maximum Supply Current (mA) | 2.5@±15V |
| Typical Gain Bandwidth Product (MHz) | 0.5 |
| Minimum Dual Supply Voltage (V) | ±2 |
| Typical Dual Supply Voltage (V) | ±3|±5|±9|±12|±15|±18 |
| Minimum CMRR (dB) | 114 |
| Typical Voltage Gain (dB) | 132.04 |
| Maximum Operating Temperature (°C) | 85 |
| Mounting | Through Hole |
| Package Height (mm) | 5.33(Max) - 0.38(Min) |
| Package Length (mm) | 20.19(Max) |
| Package Width (mm) | 7.11(Max) |
| PCB | 14 |
| Standard Package Name | DIP |
| Supplier Package | PDIP |
| Pin Count | 14 |
| Lead Shape | Through Hole |
