(1PC) OP495GP Op Amp, 4 Func, 800uV Offset-Max, BICMOS, PDIP14
Tax included.

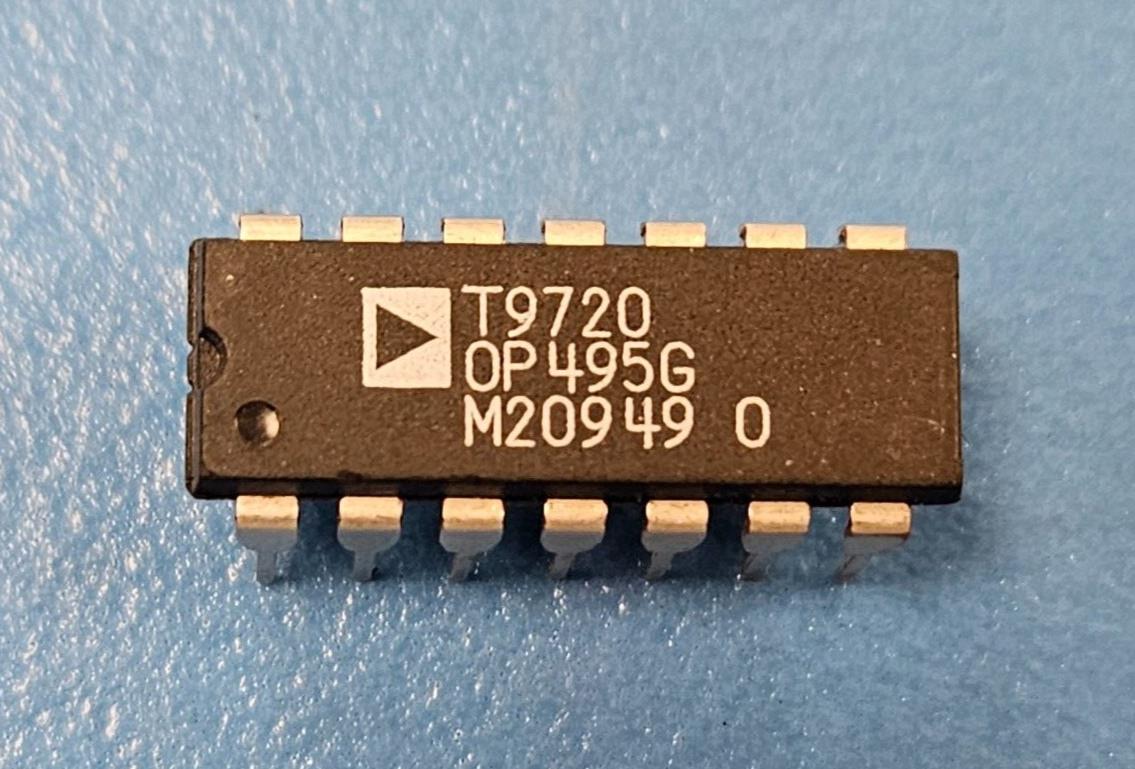

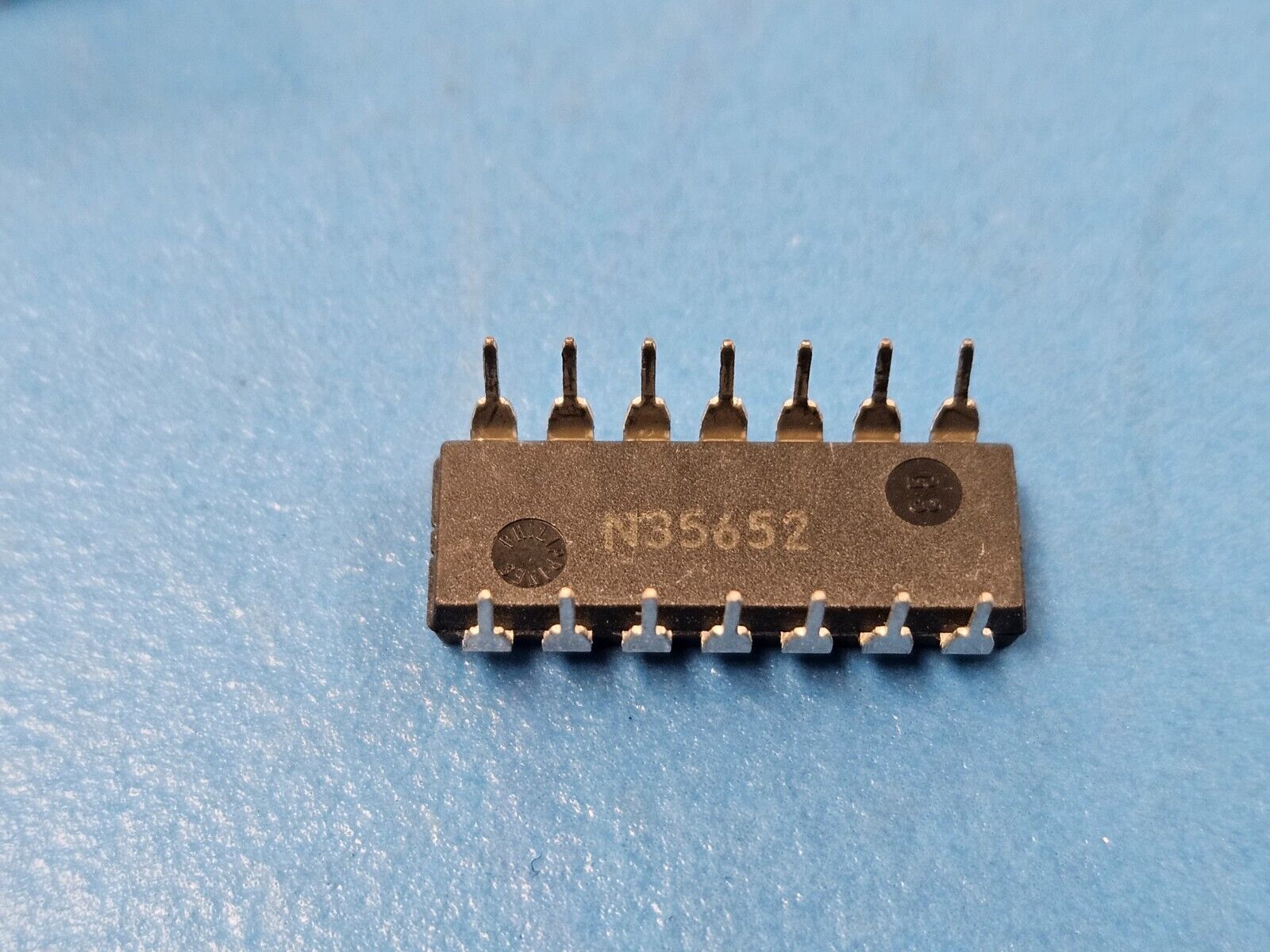

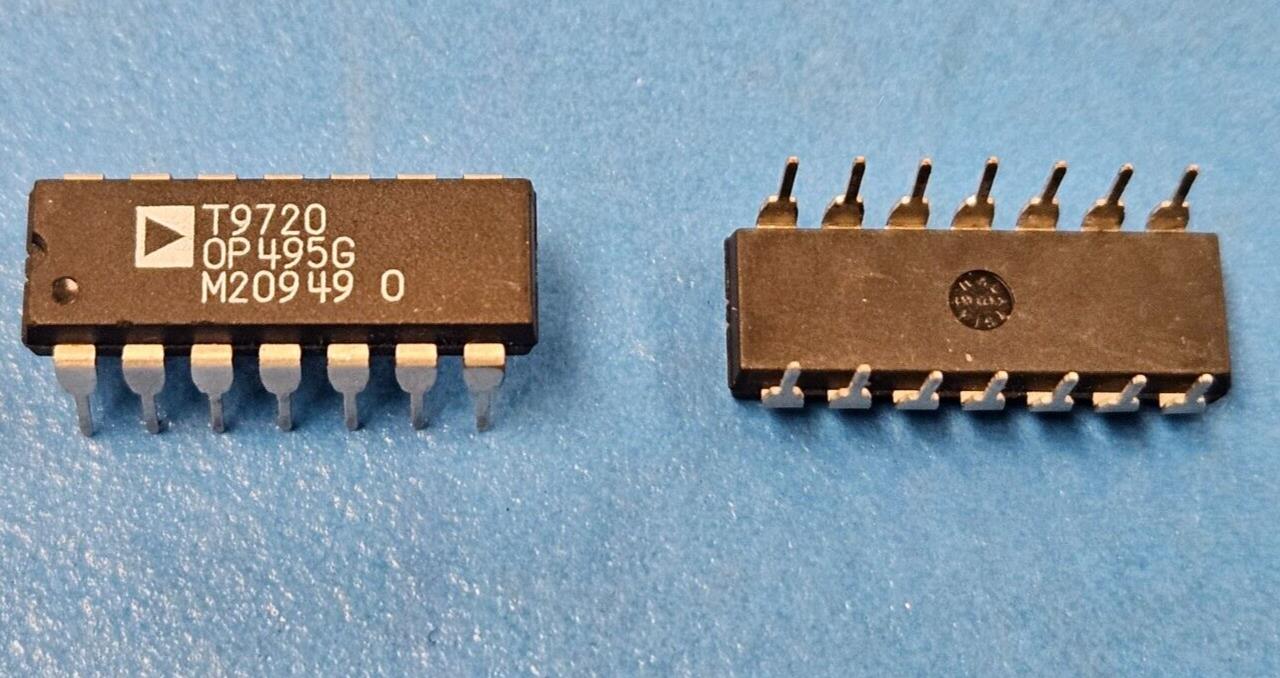

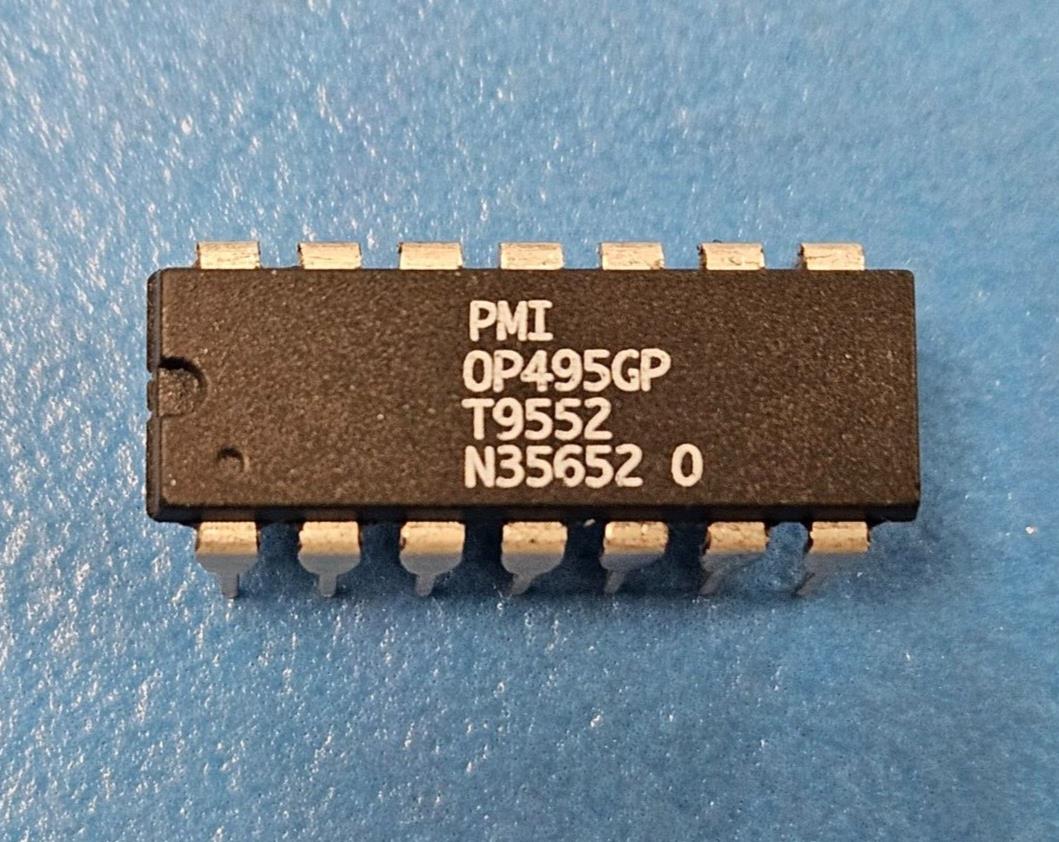

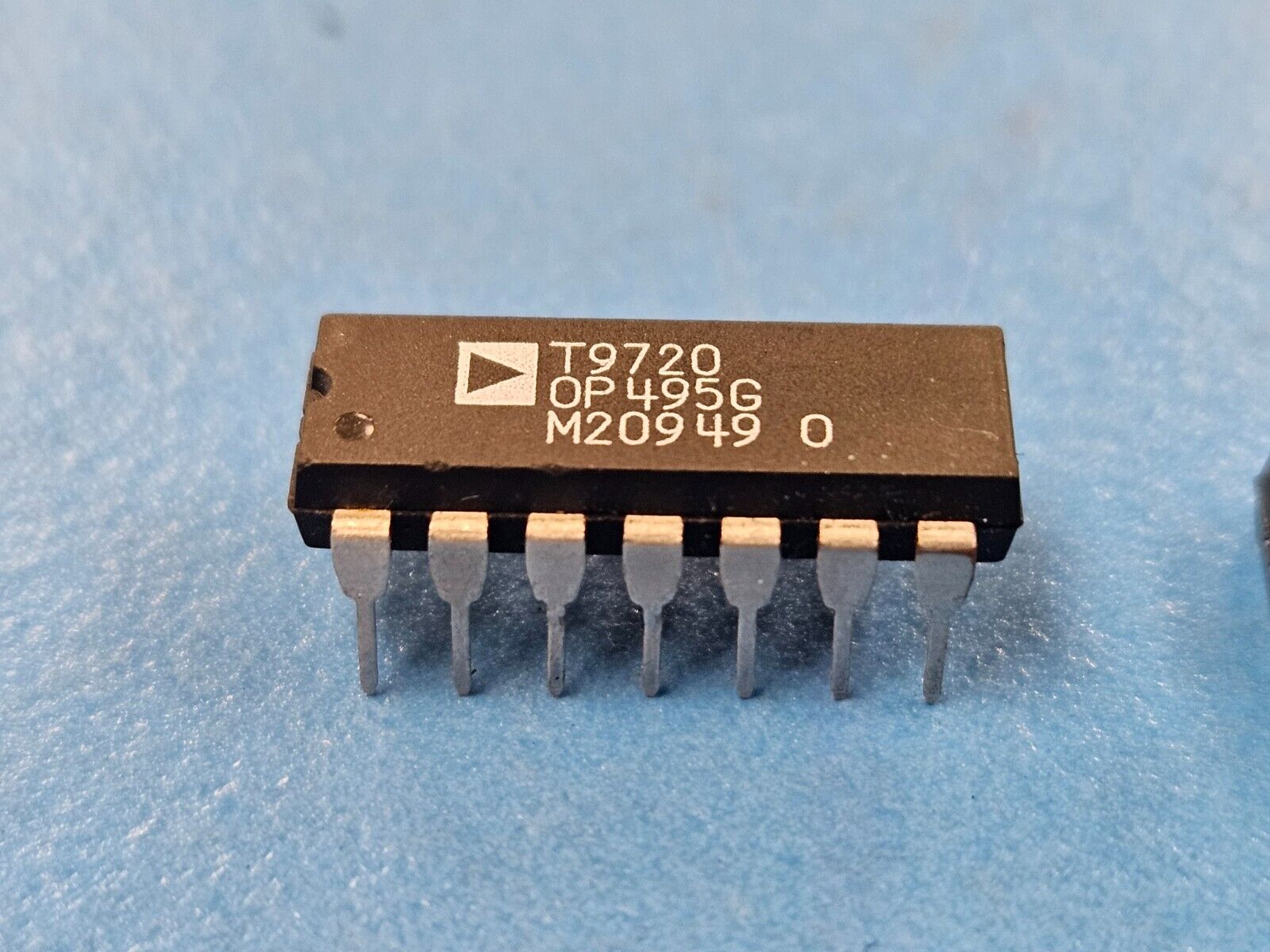

This listing is for (1PC) of OP495GP by Analog Devices and PMI
Mfr Package Description PLASTIC, MS-001AA, DIP-14
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.03 µA
Bias Current-Max (IIB) @25C 0.02 µA
Common-mode Reject Ratio-Nom 110.0 dB
Common-mode Reject Ratio-Min 86.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 800.0 µV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Low-Offset YES
Micropower YES
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Nom 0.03 V/us
Sub Category Operational Amplifier
Supply Current-Max 0.7 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 85.0 kHz
Voltage Gain-Min 500000.0
Length 19.05 mm
Width 7.62 mm
