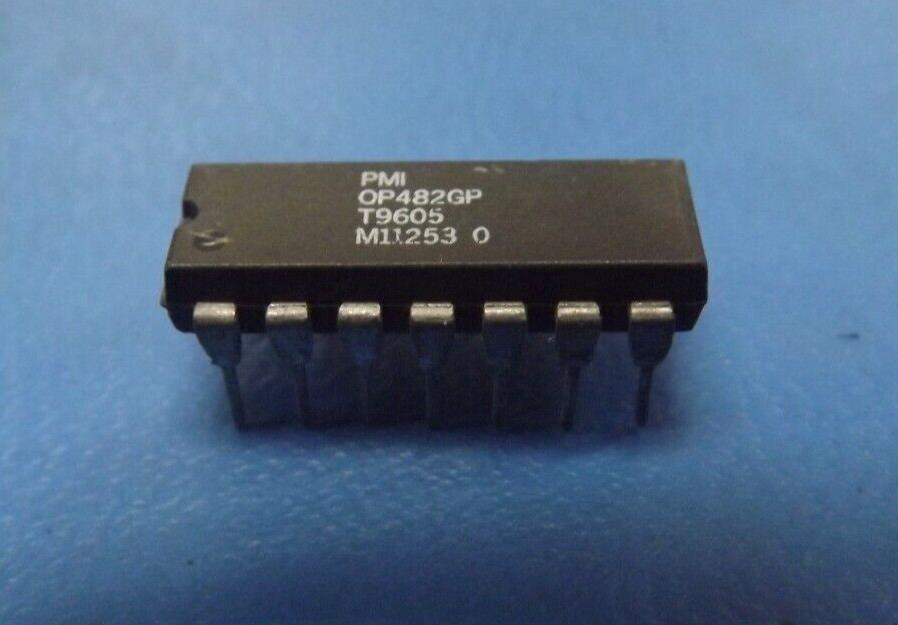

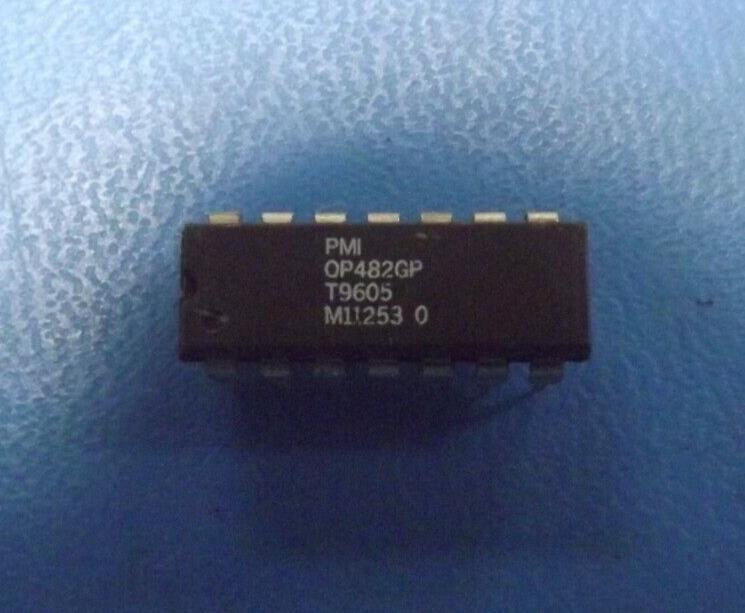

(1PC) OP482GP OP Amp Quad GP ±18V 14-Pin PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF OP482GP BY ANALOG DEVICES
Mfr Package Description PLASTIC, MS-001, DIP-14
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 5.0E-4 µA
Bias Current-Max (IIB) @25C 1.0E-4 µA
Common-mode Reject Ratio-Nom 90.0 dB
Common-mode Reject Ratio-Min 70.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 6000.0 µV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Nom 9.0 V/us
Slew Rate-Min 7.0 V/us
Sub Category Operational Amplifier
Supply Current-Max 1.0 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology JFET
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 4000.0 kHz
Voltage Gain-Min 20000.0
Length 19.05 mm
Width 7.62 mm
