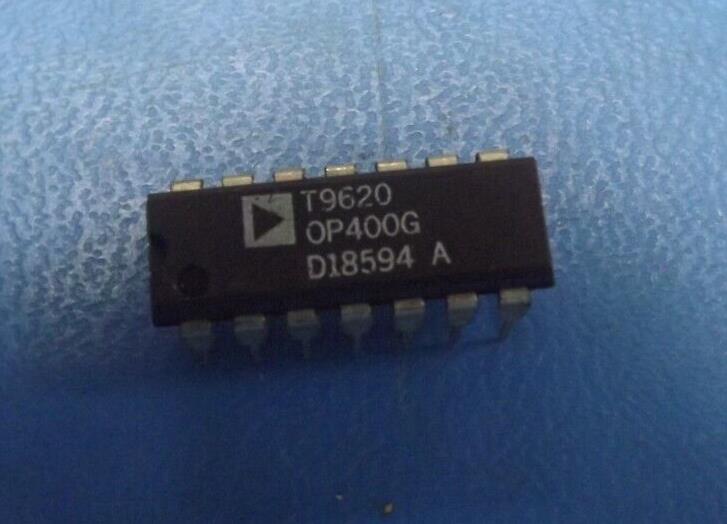

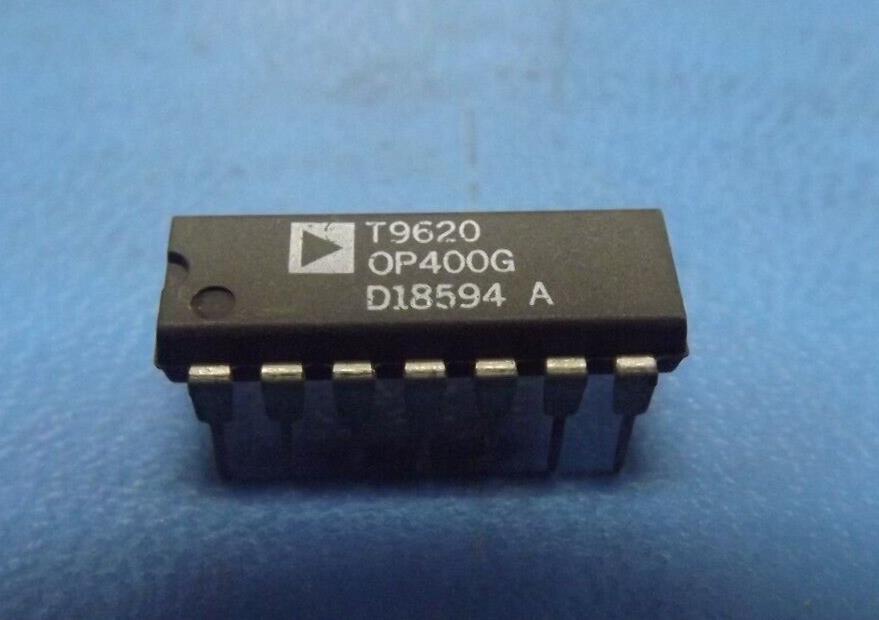

(1PC) OP400GP OP AMP 4 Func, 400uV Offset-Max, BIPolar, PDIP14
Tax included.
THIS LISTING IS FOR (1PC) OF OP400GP BY ANALOG DEVICES
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.012 µA
Bias Current-Max (IIB) @25C 0.007 µA
Common-mode Reject Ratio-Nom 130.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 400.0 µV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Low-Offset YES
Micropower YES
Neg Supply Voltage Limit-Max -20.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Slew Rate-Nom 0.15 V/us
Slew Rate-Min 0.1 V/us
Sub Category Operational Amplifier
Supply Current-Max 3.1 mA
Supply Voltage Limit-Max 20.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
