(1PC) OP37EP Operational Amplifier, 1 Func, 50uV Offset-Max, BIPolar, PDIP8
Tax included.

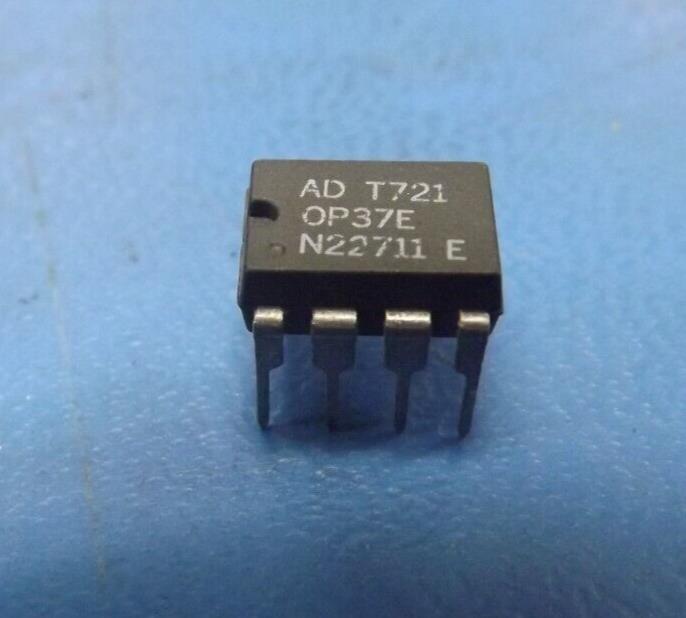

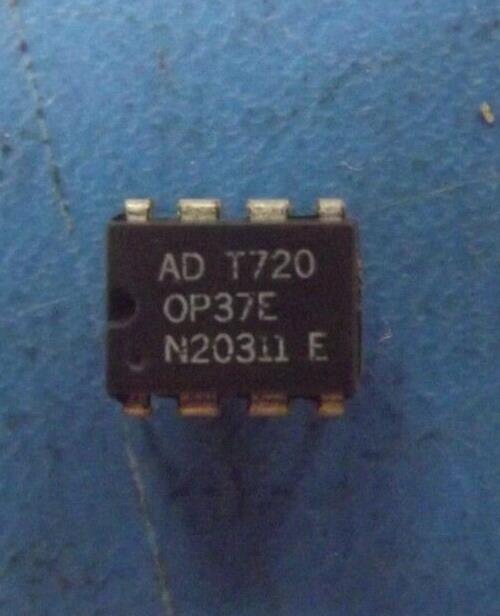

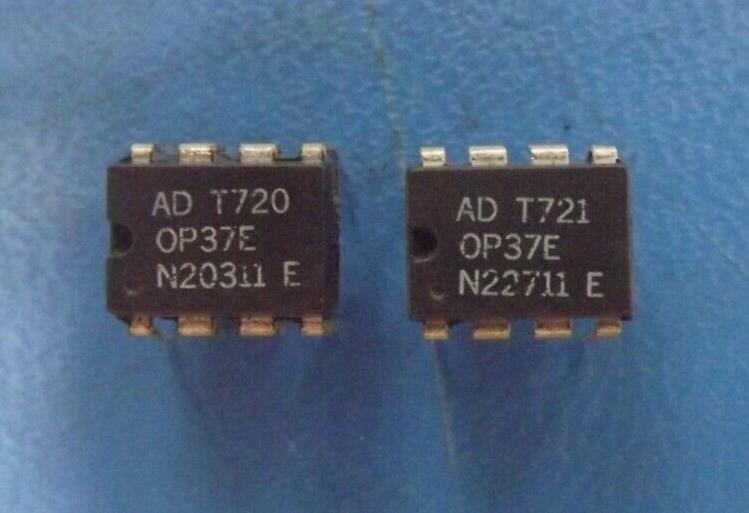

THIS LISTING IS FOR (1PC) OF OP37EP BY ANALOG DEVICES
Mfr Package Description PLASTIC, MO-095AA, DIP-8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.06 µA
Bias Current-Max (IIB) @25C 0.04 µA
Common-mode Reject Ratio-Nom 122.0 dB
Common-mode Reject Ratio-Min 114.0 dB
Frequency Compensation YES (AVCL>=5)
Input Offset Voltage-Max 50.0 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Low-Offset YES
Neg Supply Voltage Limit-Max -22.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Slew Rate-Nom 17.0 V/us
Slew Rate-Min 11.0 V/us
Sub Category Operational Amplifier
Supply Voltage Limit-Max 22.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 63000.0 kHz
Voltage Gain-Min 800000.0
Length 9.27 mm
Width 7.62 mm
