(1PC) OP291GP Operational Amplifier, 2 Func, 1250uV Offset-Max, BICMOS, PDIP8
Tax included.

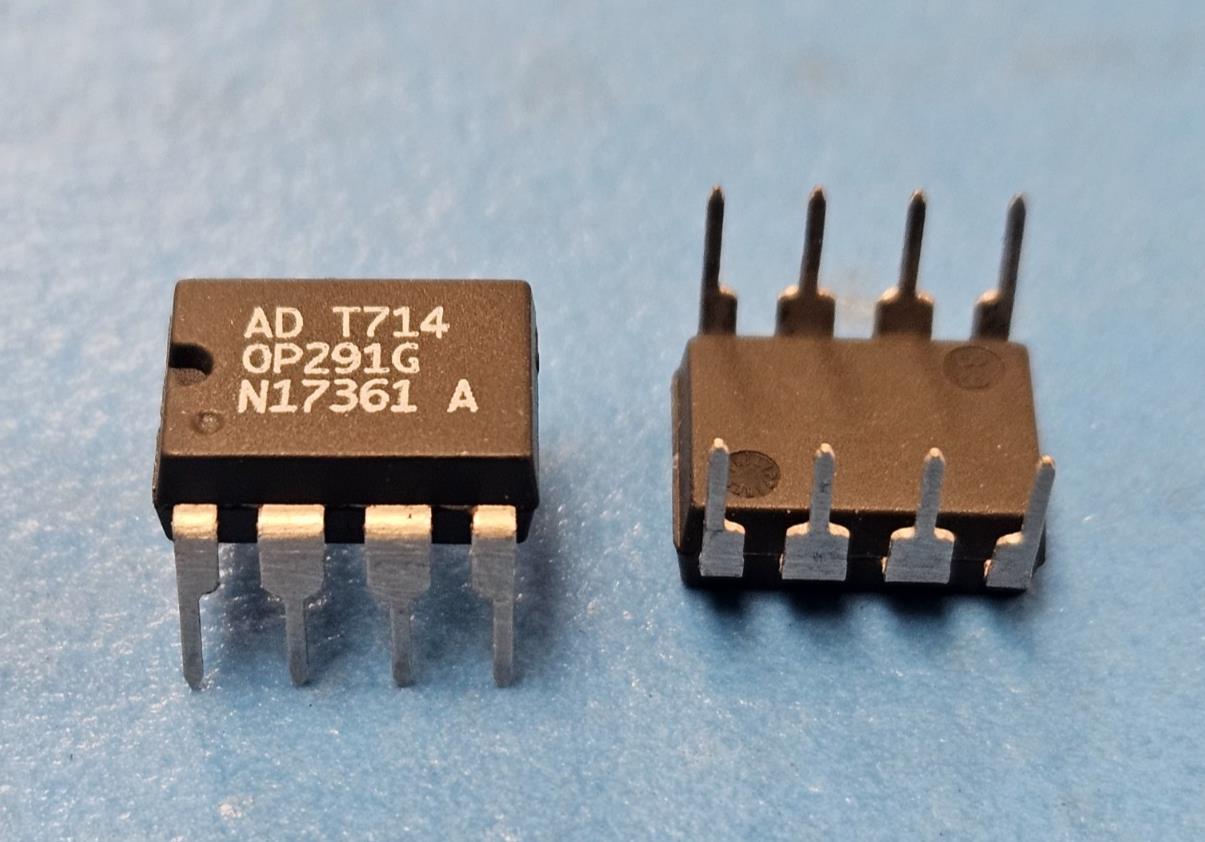

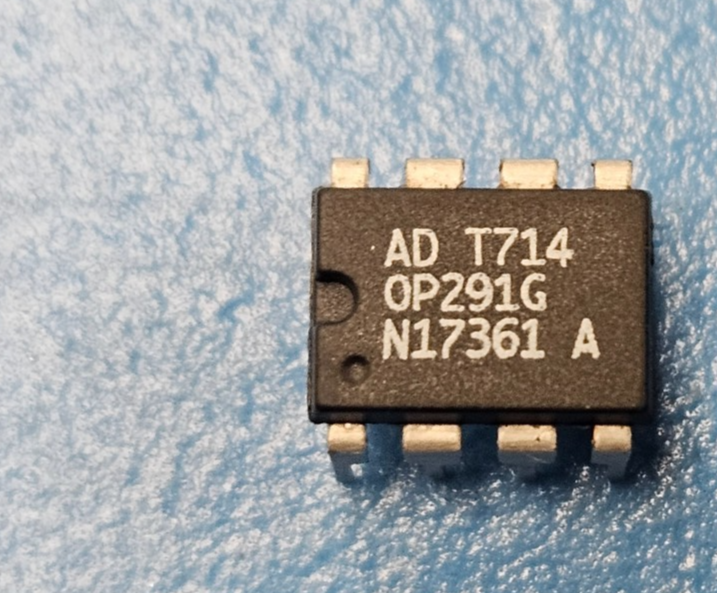

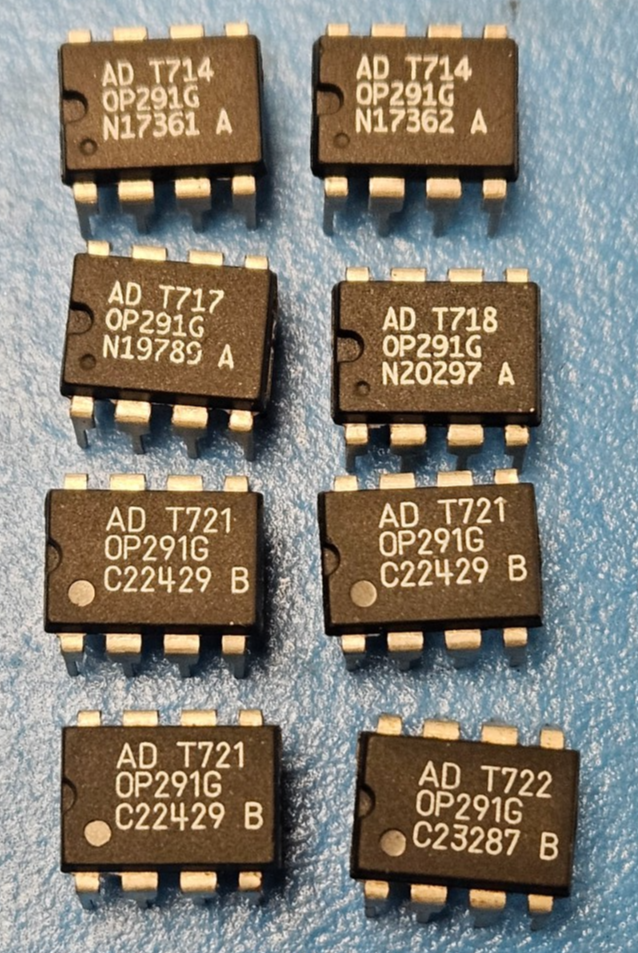

This listing is for (1PC) of OP291GP by Analog Devices
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Amp Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) (uA) 0.0950000000000000
Bias Current-Max (IIB) @25C (uA) 0.0500000000000000
Common-mode Reject Ratio-Min (dB) 65
Common-mode Reject Ratio-Nom (dB) 97
Frequency Compensation YES
Input Offset Voltage-Max (uV) 1250.00000000
JESD-30 Code R-PDIP-T8
J-STD-609 Code e0
Length (mm) 9.8800
Low-Bias NO
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max (V) -8.0000
Negative Supply Voltage-Nom (V) -5.0000
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -40.0000
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power NO
Programmable Power NO
DLA Qualification Not Qualified
Seated Height-Max (mm) 5.3300
Slew Rate-Nom (V/us) 0.50000000
Supply Current-Max (mA) 1.10000000
Supply Voltage Limit-Max (V) 8.0000
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
Unity Gain BW-Nom (kHz) 3000.0000000000000000
Voltage Gain-Min 25000.0000000000000000
Wideband NO
Width (mm) 7.6200
