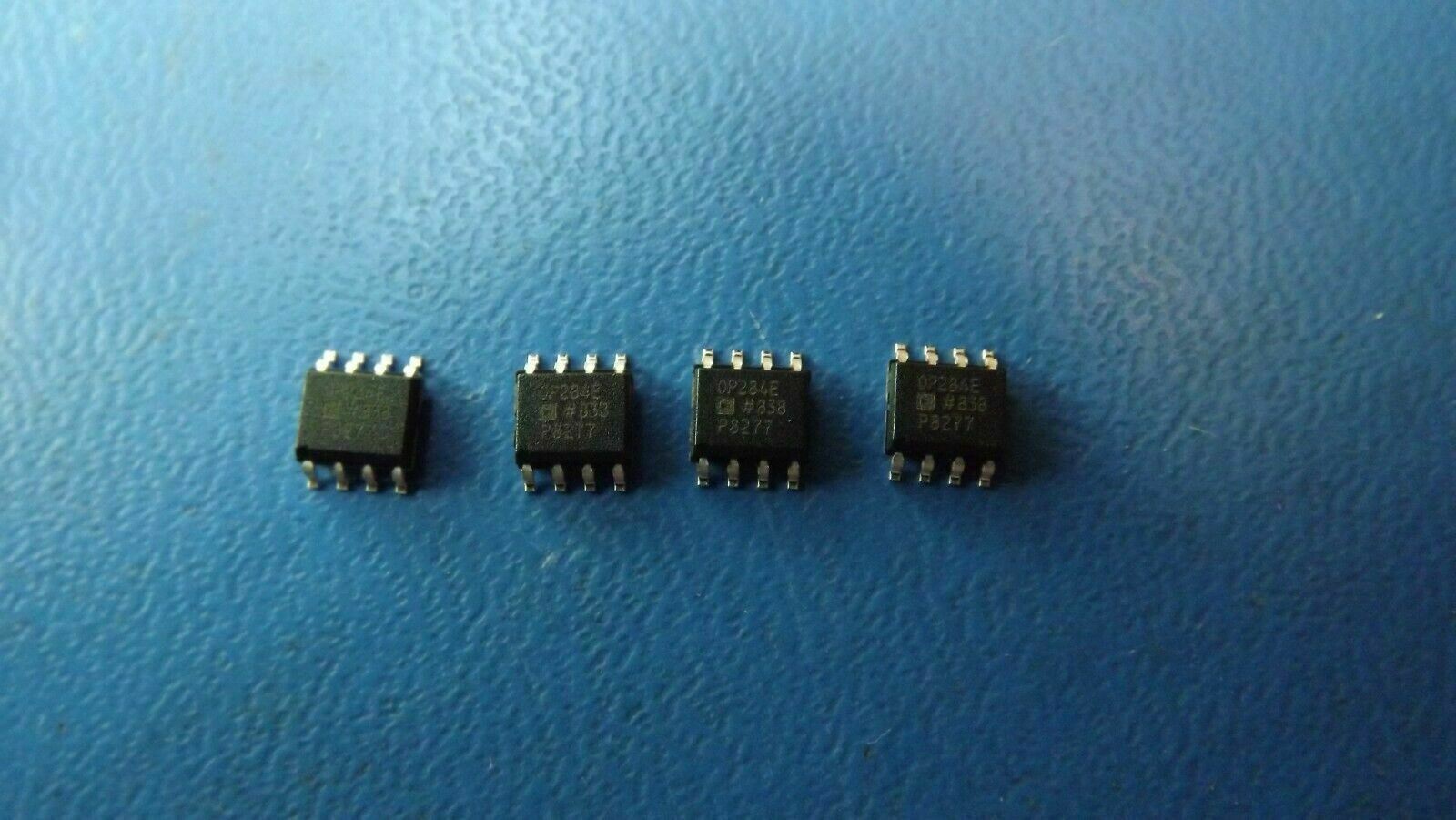

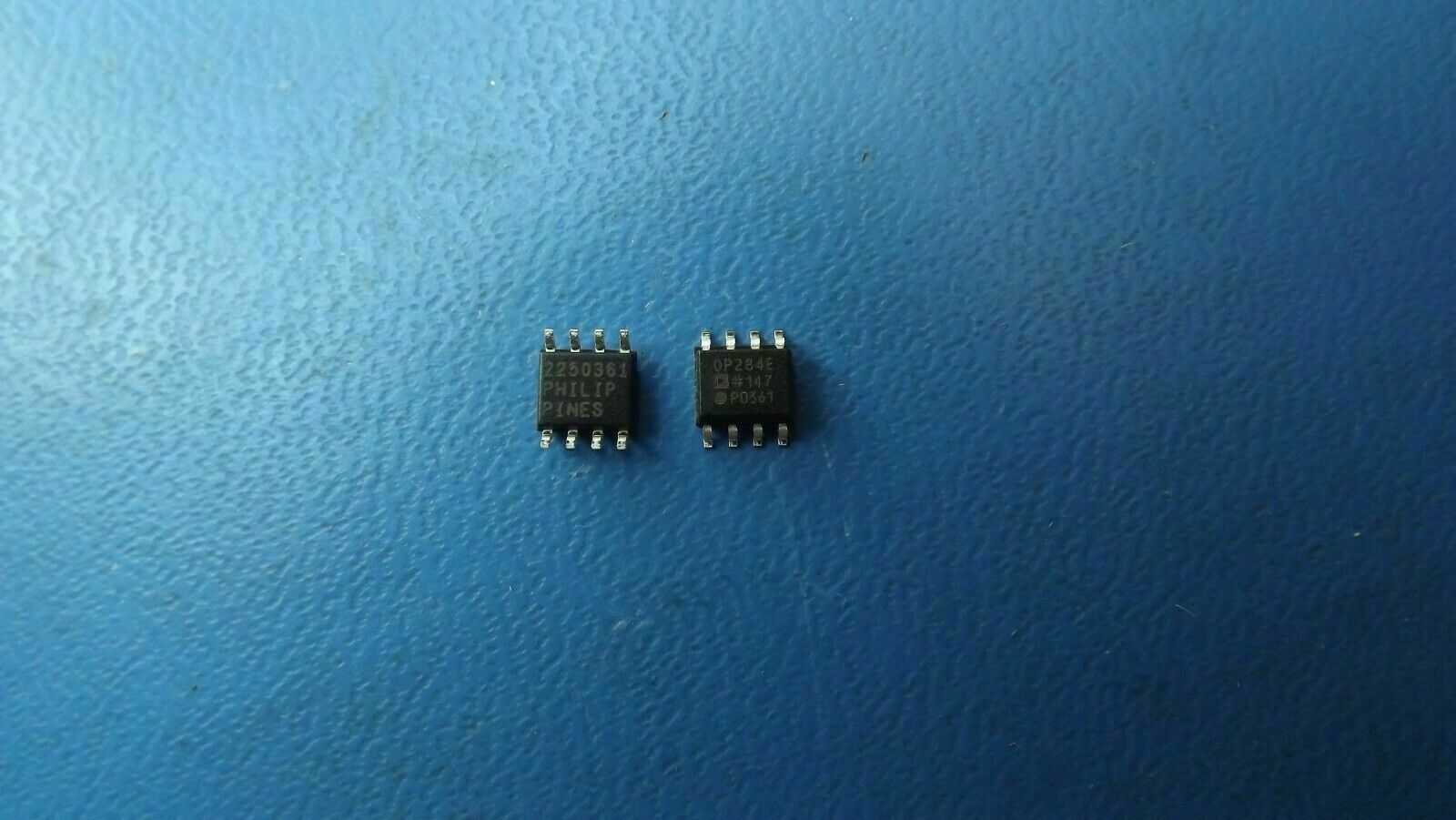

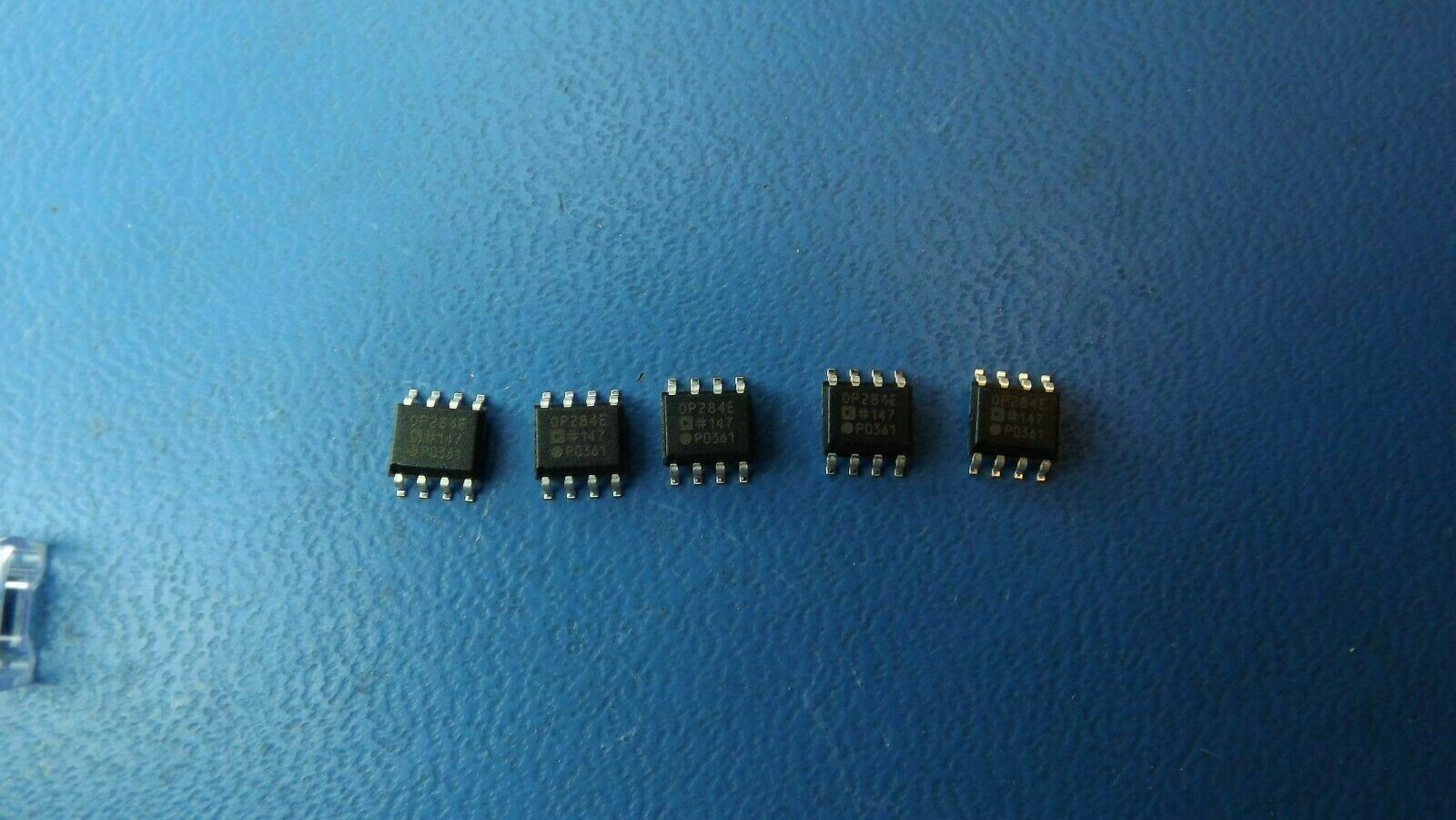

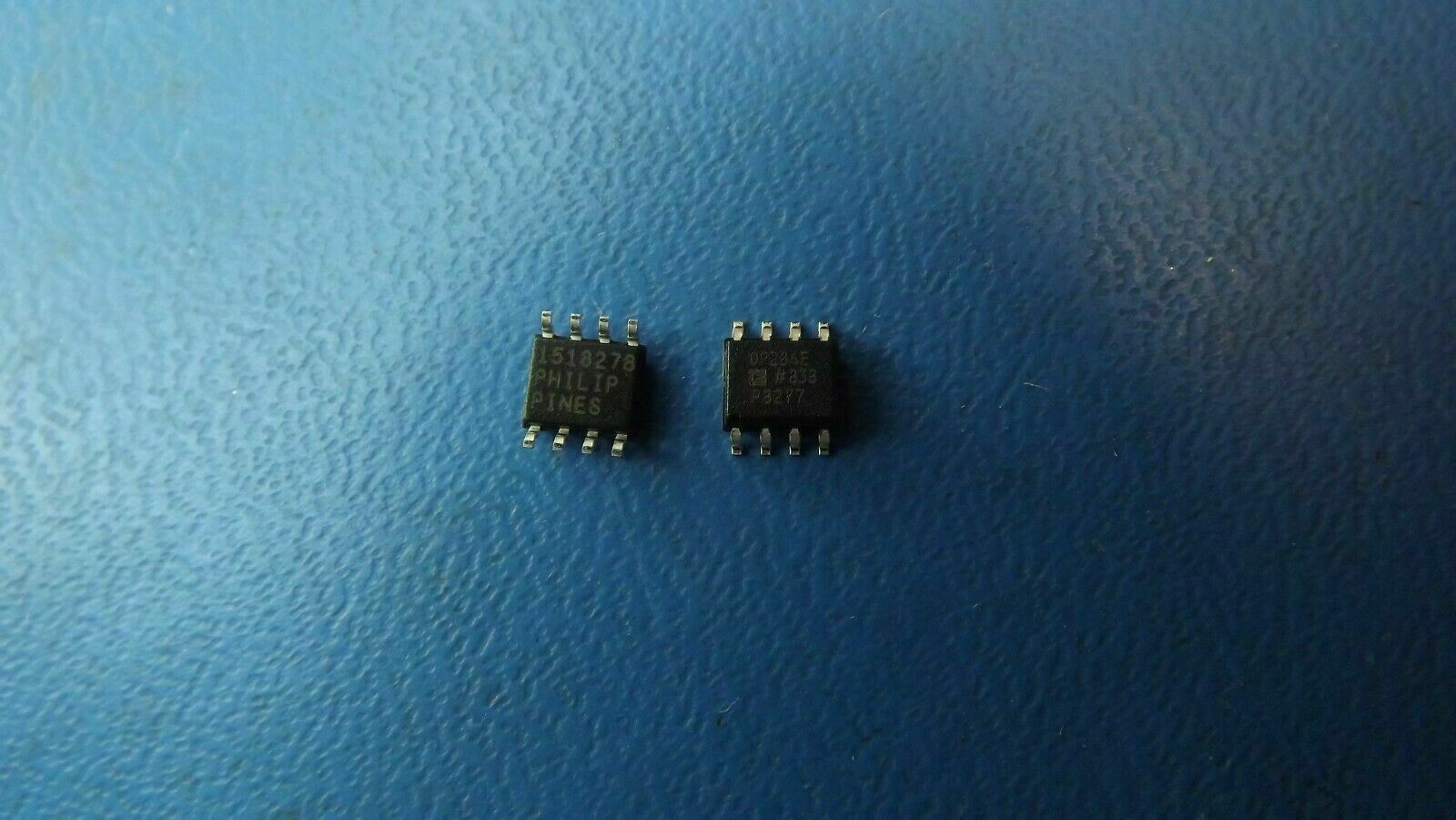

| EU RoHS |
Compliant
|
| ECCN (US) |
EAR99 |
| Part Status |
Active |
| HTS |
8542.33.00.01 |
| Type |
Precision Amplifier |
| Manufacturer Type |
Precision Amplifier |
| Number of Channels per Chip |
2 |
| Rail to Rail |
Rail to Rail Input/Output |
| Process Technology |
Bipolar |
| Maximum Input Offset Voltage (mV) |
0.065@5V |
| Minimum Single Supply Voltage (V) |
3 |
| Typical Single Supply Voltage (V) |
12|24|15|5|28|18|9 |
| Maximum Single Supply Voltage (V) |
36 |
| Minimum Dual Supply Voltage (V) |
±1.5 |
| Typical Dual Supply Voltage (V) |
±12|±3|±5|±15|±9 |
| Maximum Dual Supply Voltage (V) |
±18 |
| Maximum Input Offset Current (uA) |
0.05@5V |
| Maximum Input Bias Current (uA) |
0.45@5V |
| Maximum Supply Current (mA) |
2.9@5V@-40C to 125C |
| Typical Output Current (mA) |
6.5@5V |
| Power Supply Type |
Single|Dual |
| Typical Slew Rate (V/us) |
2.4@5V |
| Typical Input Noise Voltage Density (nV/rtHz) |
3.9@5V |
| Typical Voltage Gain (dB) |
107.6 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) |
0.4@5V |
| Minimum PSRR (dB) |
76 |
| Minimum CMRR (dB) |
60 |
| Minimum CMRR Range (dB) |
60 to 65 |
| Typical Gain Bandwidth Product (MHz) |
3.25 |
| Typical Settling Time (ns) |
2500 |
| Shut Down Support |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Supplier Temperature Grade |
Extended Industrial |
| Packaging |
Tube |
| Pin Count |
8 |
| Supplier Package |
SOIC N |
| Standard Package Name |
SOP |
| Mounting |
Surface Mount |
| Package Height |
1.5(Max) |
| Package Length |
5(Max) |
| Package Width |
4(Max) |
| PCB changed |
8 |
| Lead Shape |
Gull-wing |
