(1PC) OP21FZ Operational Amplifier, 1 Func, 500uV Offset-Max, BIPolar, CDIP8
Tax included.

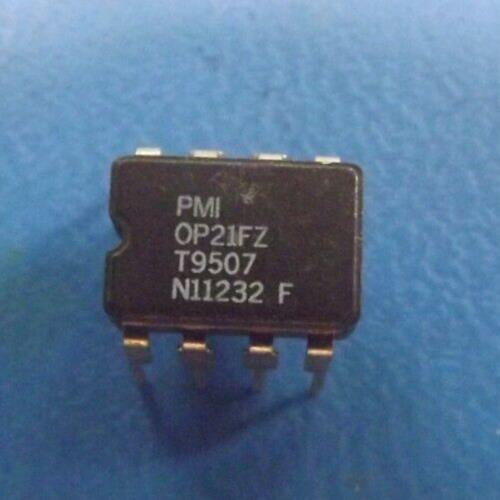

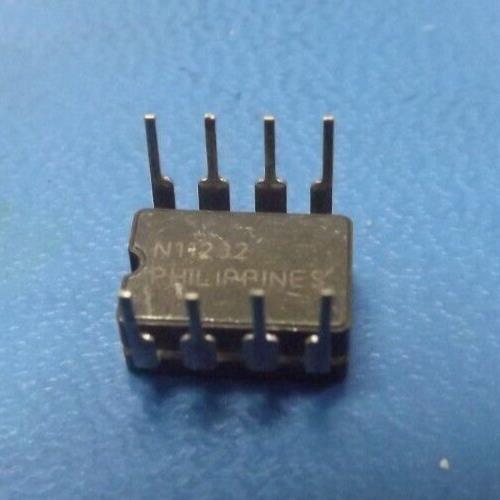

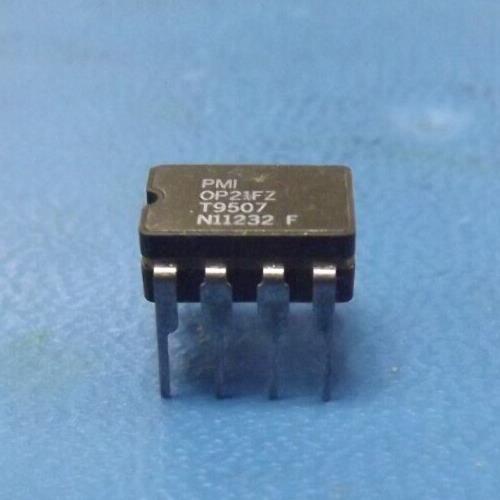

THIS LISTING IS FOR (1PC) OP21FZ BY PMI
Mfr Package Description HERMETIC SEALED, DIP-8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.13 µA
Bias Current-Max (IIB) @25C 0.12 µA
Common-mode Reject Ratio-Nom 100.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 500.0 µV
JESD-30 Code R-GDIP-T8
JESD-609 Code e0
Low-Offset YES
Micropower YES
Neg Supply Voltage Limit-Max -18.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min -25.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Slew Rate-Nom 0.25 V/us
Sub Category Operational Amplifiers
Supply Current-Max 0.43 mA
Supply Voltage Limit-Max 18.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 600.0 kHz
Voltage Gain-Min 250000.0
