(1PC) OP200AZ OP Amp Dual GP ñ20V 8-Pin CDIP Tube
Tax included.

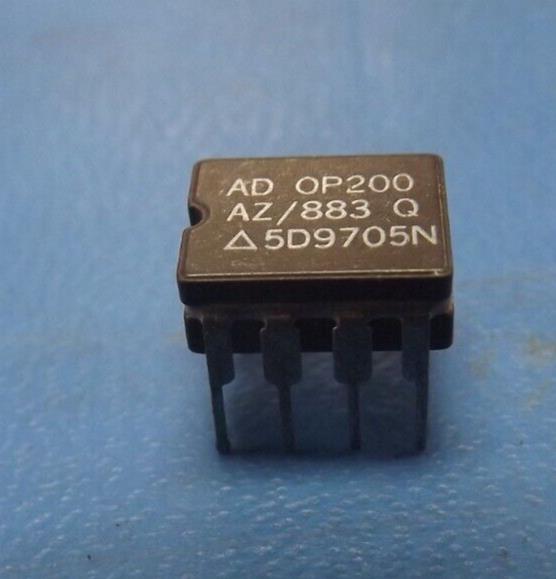

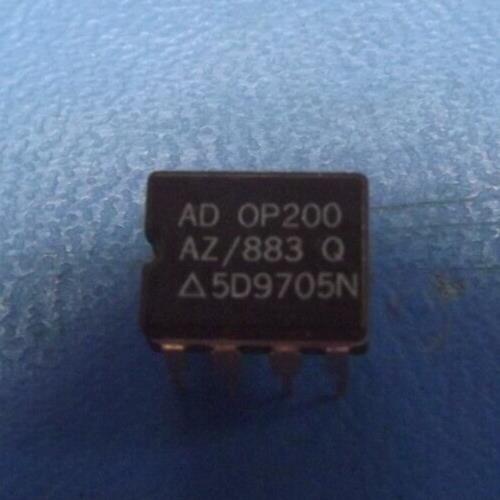

THIS LISTING IS FOR (1PC) OF OP200AZ/883 BY ANALOG DEVICES
Mfr Package Description DIP-8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.005 µA
Bias Current-Max (IIB) @25C 0.002 µA
Common-mode Reject Ratio-Nom 130.0 dB
Common-mode Reject Ratio-Min 115.0 dB
Frequency Compensation YES
Input Offset Current-Max (IIO) 0.001 µA
Input Offset Voltage-Max 125.0 µV
JESD-30 Code R-GDIP-T8
JESD-609 Code e0
Low-Bias NO
Low-Offset YES
Micropower YES
Neg Supply Voltage Limit-Max -20.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power NO
Programmable Power NO
Qualification Status Not Qualified
Screening Level MIL-STD-883
Seated Height-Max 5.08 mm
Slew Rate-Nom 0.15 V/us
Slew Rate-Min 0.1 V/us
Sub Category Operational Amplifier
Supply Current-Max 1.55 mA
Supply Voltage Limit-Max 20.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 500.0 kHz
Voltage Gain-Min 2000000.0
Wideband NO
Length 10.29 mm
Width 7.62 mm
