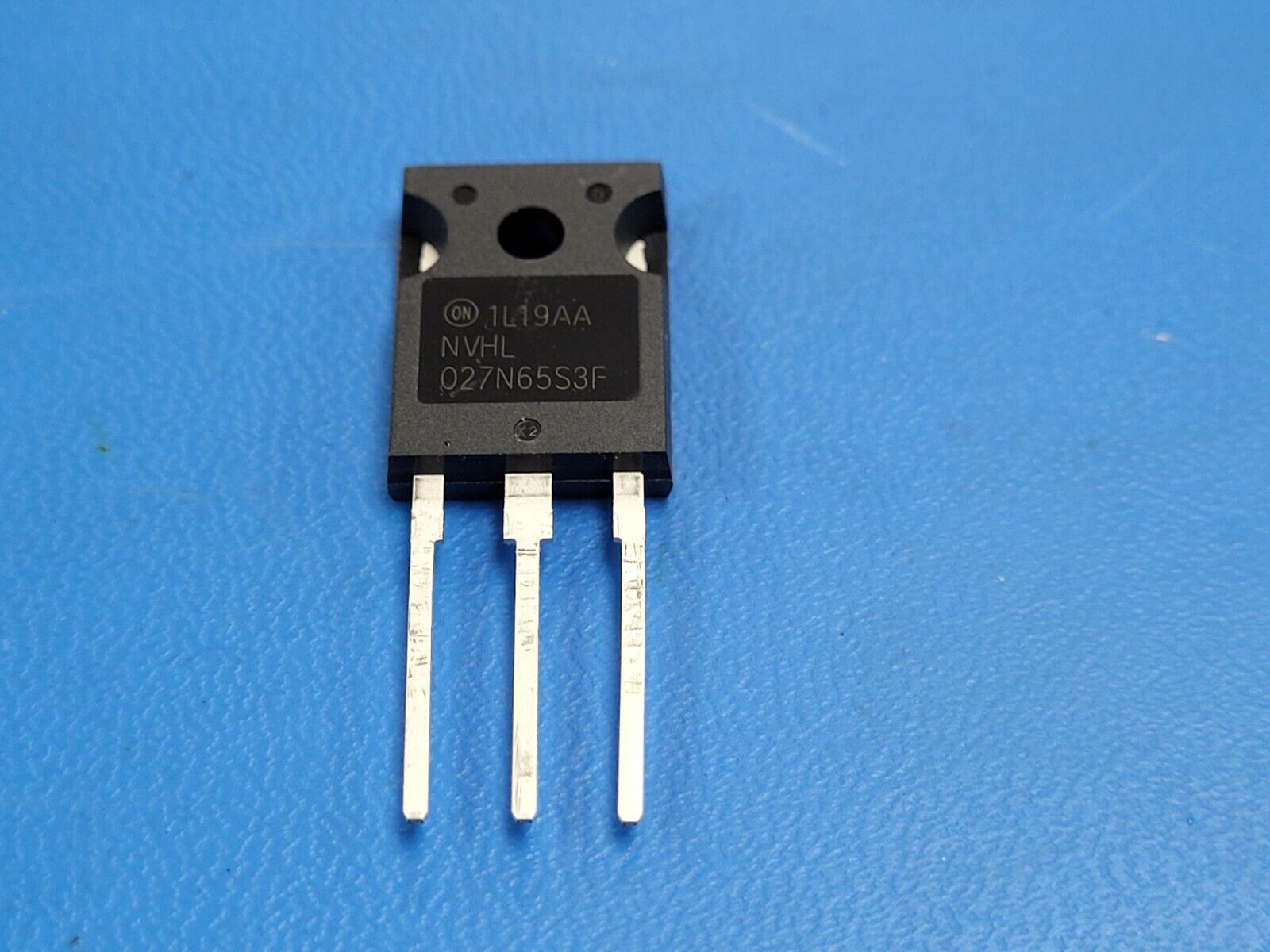

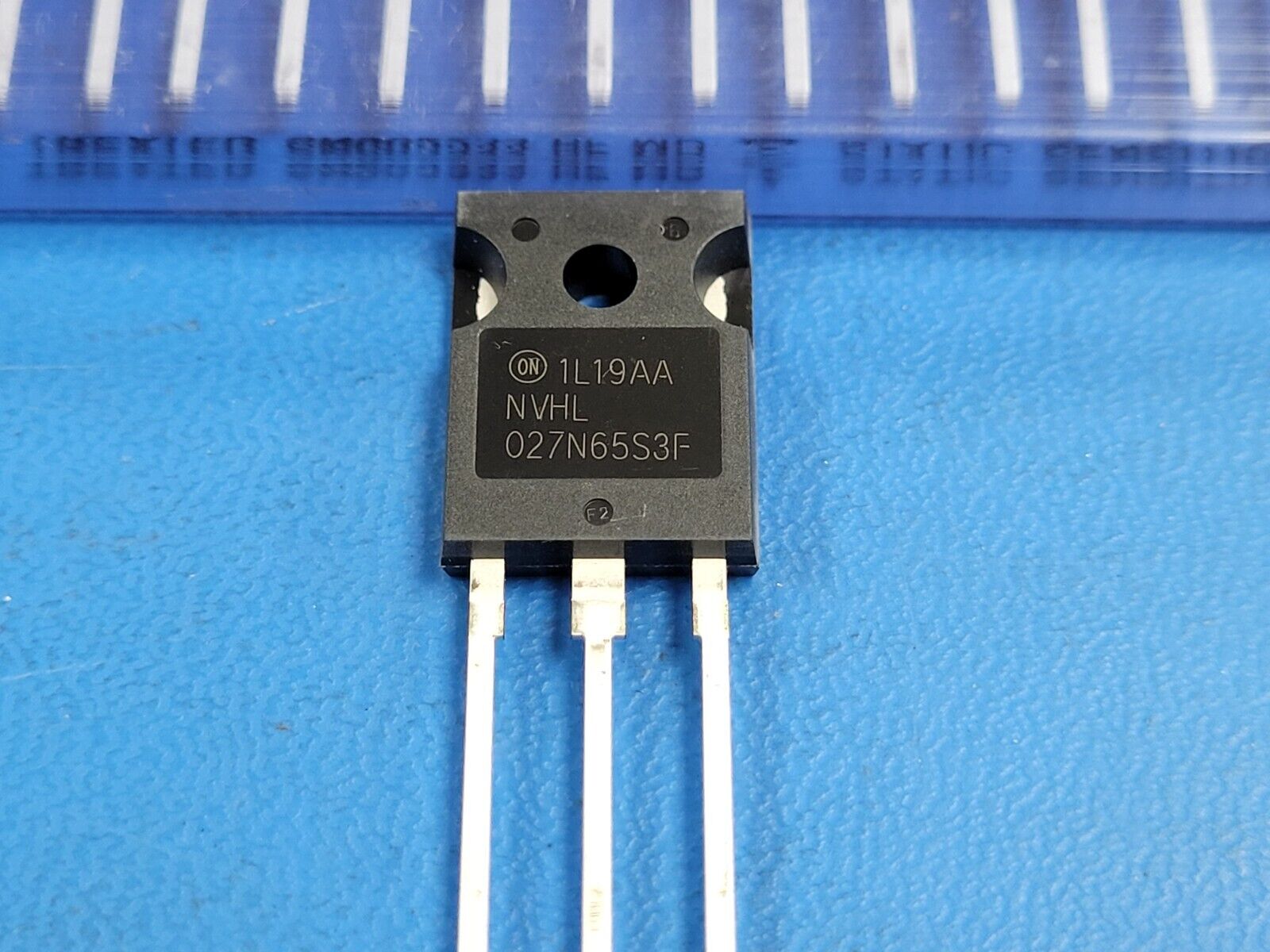

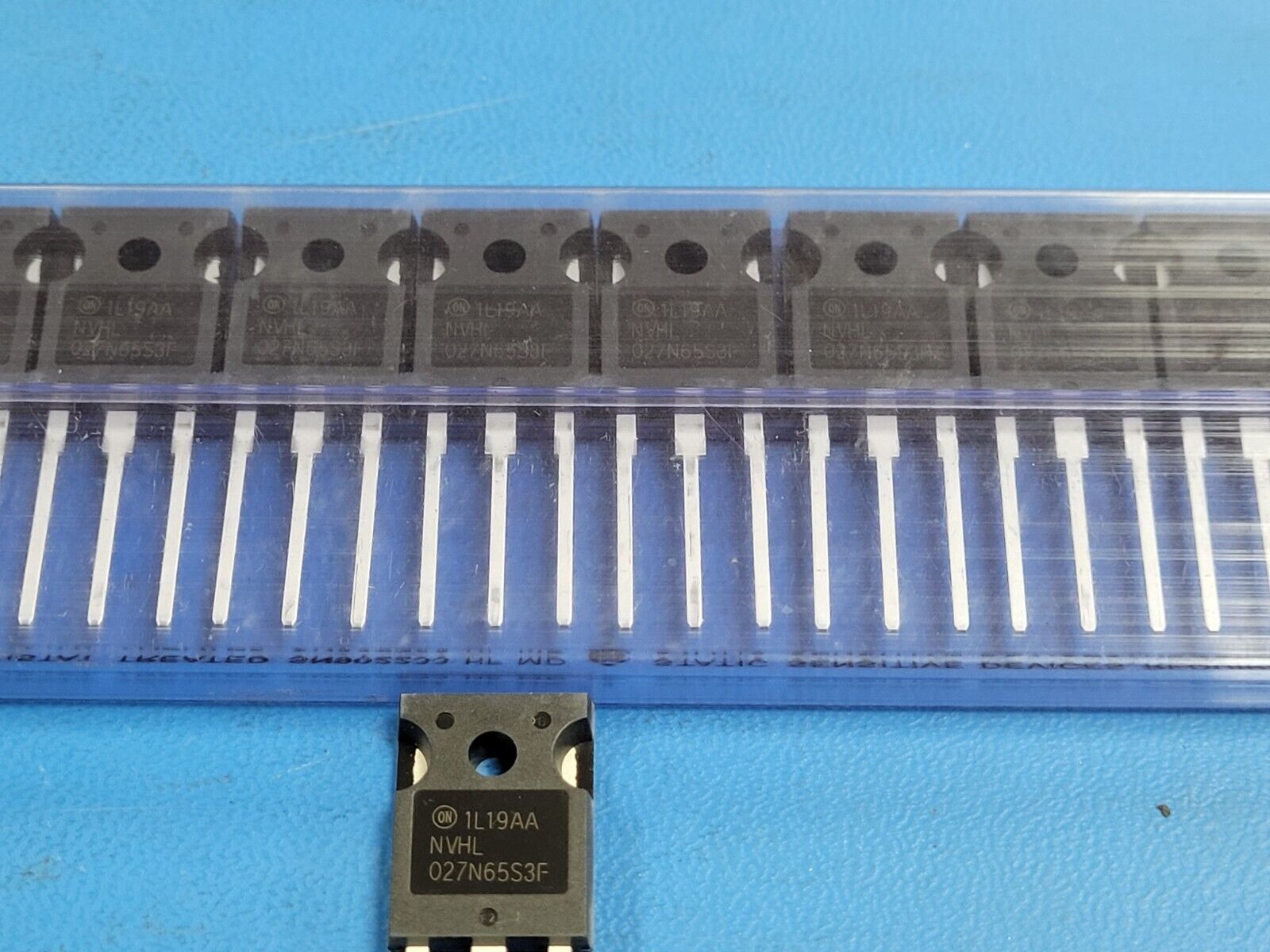

(1PC) NVHL027N65S3F ONSEMI MOSFET N-Channel 650 V 75A (Tc) 595W (Tc) TO-247 ROHS
Tax included.
THIS IS FOR (1PC) OF NVHL027N65S3F BY ONSEMI
MOSFET N-Channel 650 V 75A (Tc) 595W (Tc) TO-247 ROHS
Manufacturer: onsemi
Product Category: MOSFETs
RoHS:
REACH - SVHC:
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 650 V
Id - Continuous Drain Current: 75 A
Rds On - Drain-Source Resistance: 27.4 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 3 V
Qg - Gate Charge: 227 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 595 W
Channel Mode: Enhancement
Qualification: AEC-Q101
Tradename: SuperFET III
Packaging: Tube
Brand: onsemi
Configuration: Single
Fall Time: 42 ns
Forward Transconductance - Min: 57 S
Product Type: MOSFETs
Rise Time: 59 ns
Series: SuperFET3
30
Subcategory: Transistors
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 147 ns
Typical Turn-On Delay Time: 46 ns
