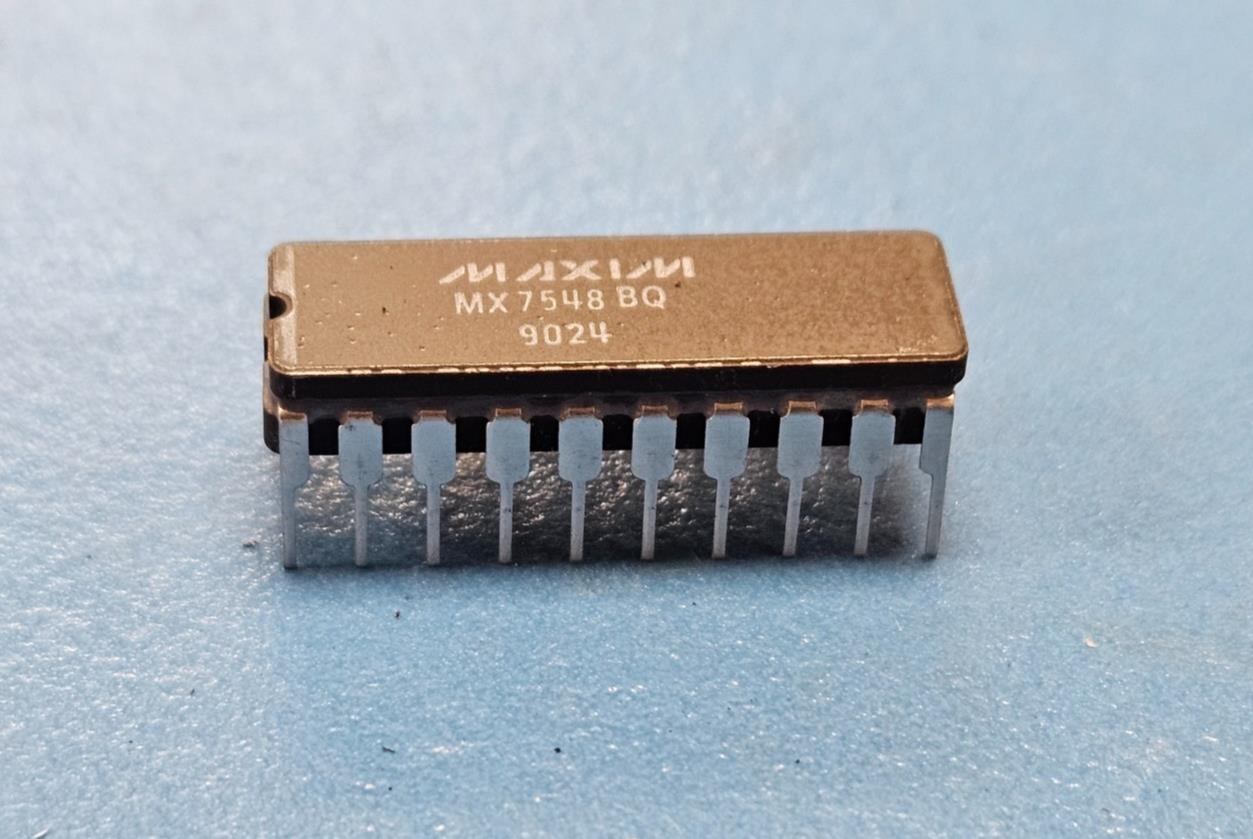

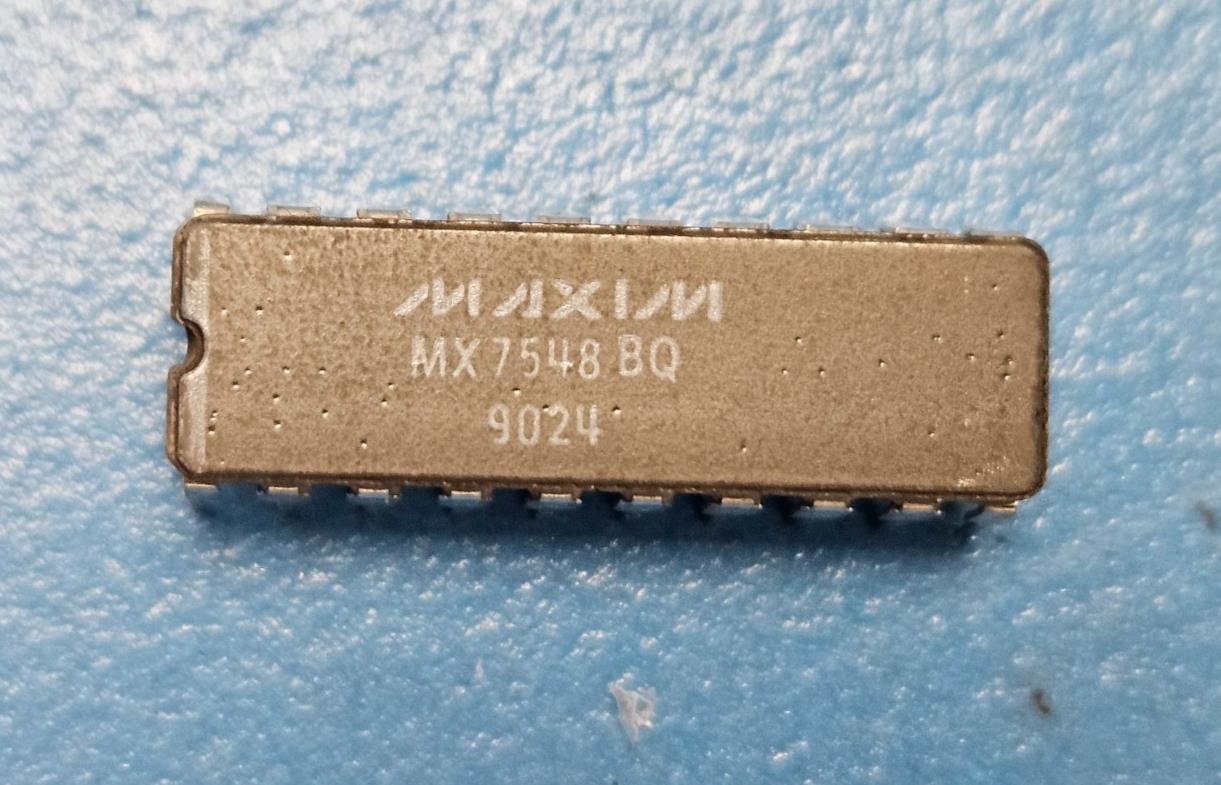

(1PC) MX7548BQ Maxim D/A Converter, 1 Func, Parallel, 8 Bits, CDIP20
Tax included.
This listing is for (1PC) of MX7548BQ by Maxim
Mfr Package Description DIP-20
REACH Compliant Yes
Status Discontinued
Converter Type D/A CONVERTER
Input Bit Code BINARY, OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format PARALLEL, 8 BITS
JESD-30 Code R-CDIP-T20
JESD-609 Code e0
Linearity Error-Max (EL) 0.0122 %
Moisture Sensitivity Level 1
Number of Bits 12
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min -25.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.842 mm
Sub Category Other Converters
Supply Current-Max 3.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 24.638 mm
Width 7.62 mm
