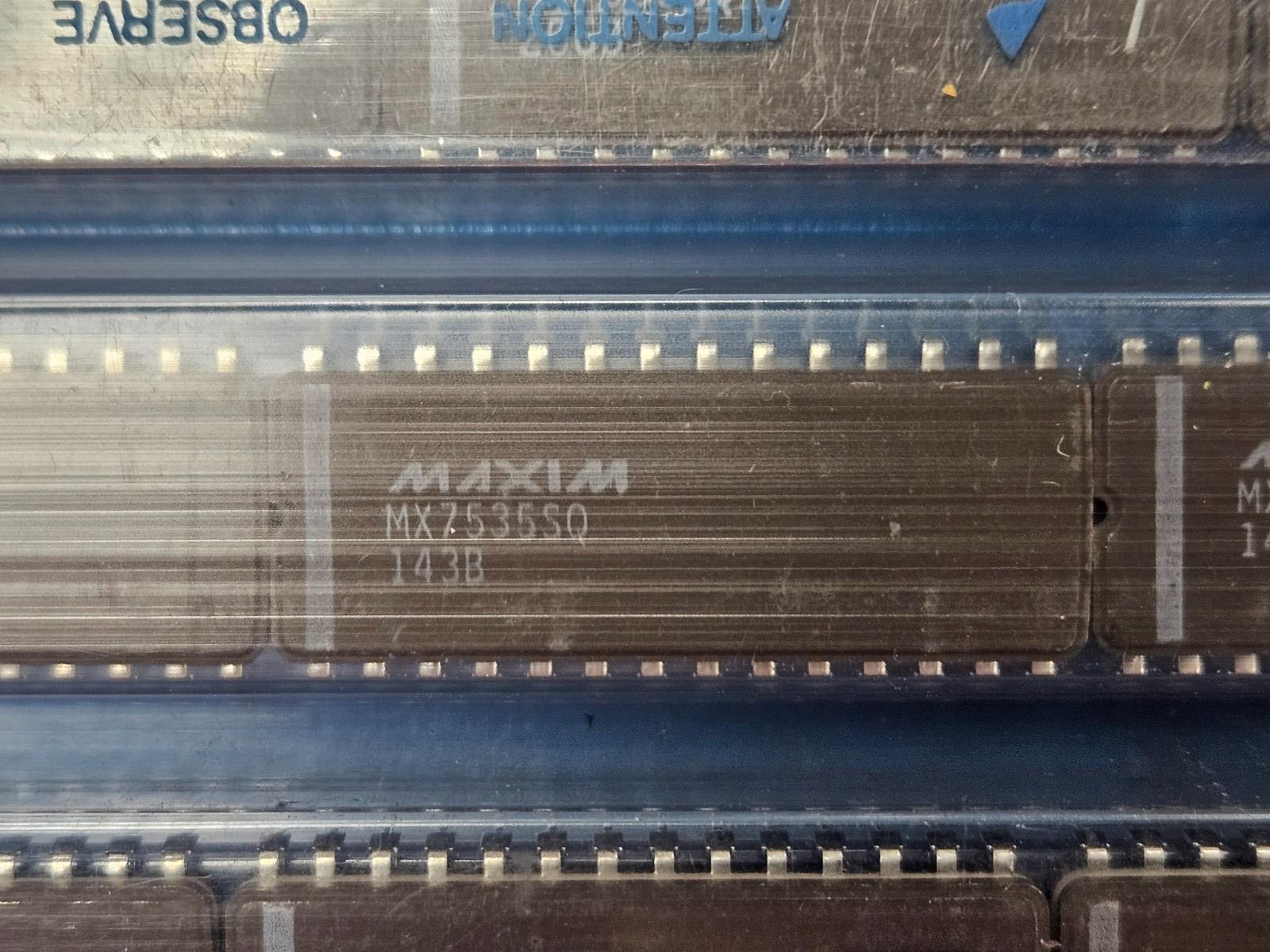

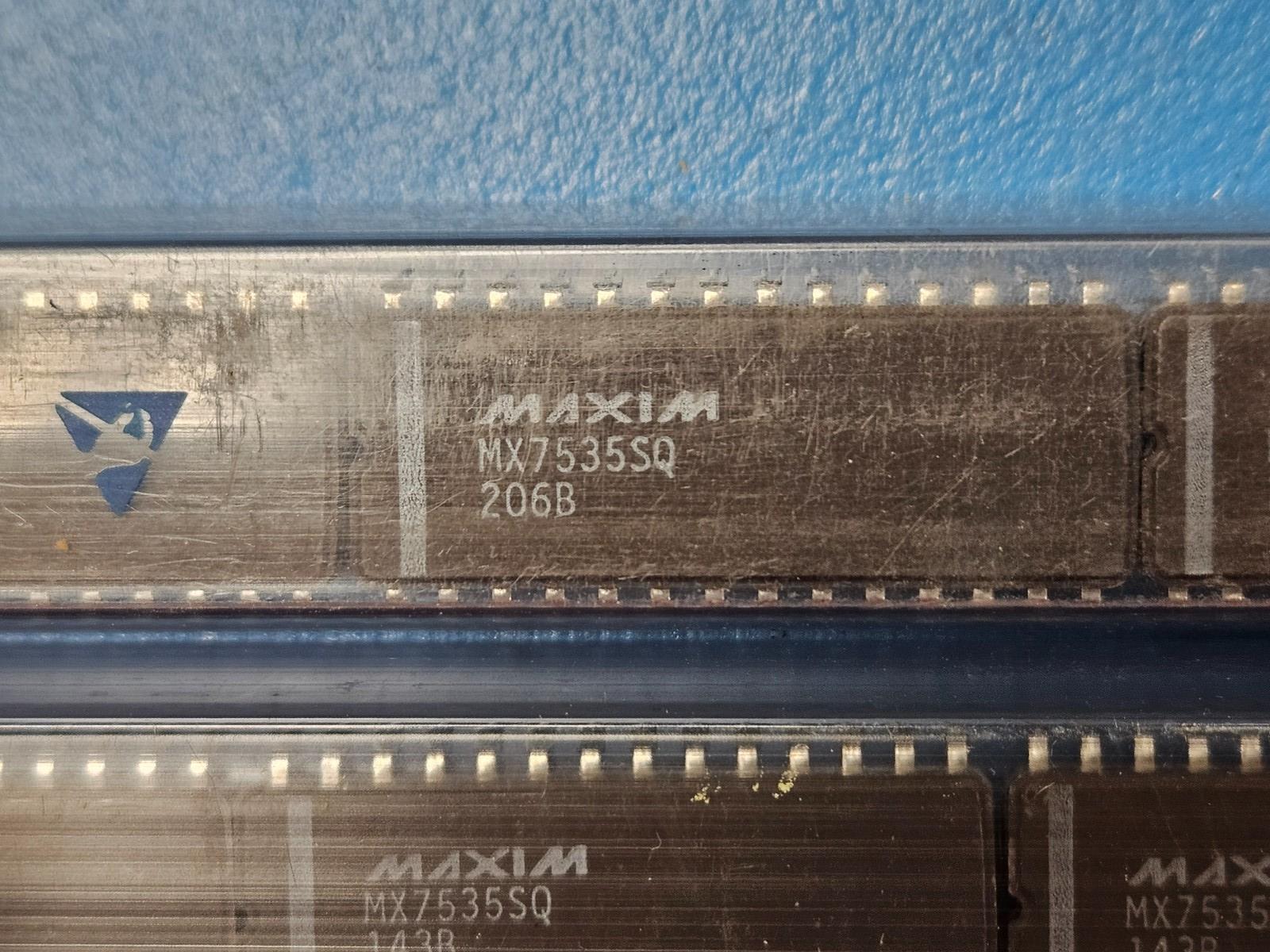

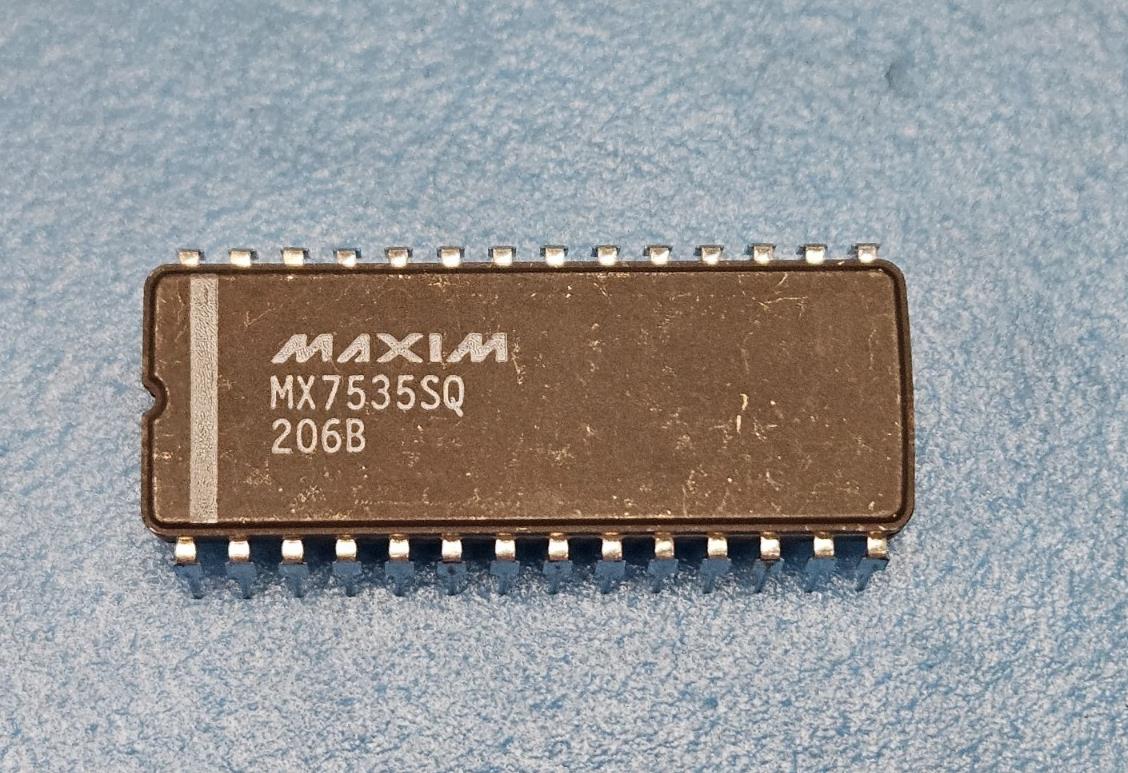

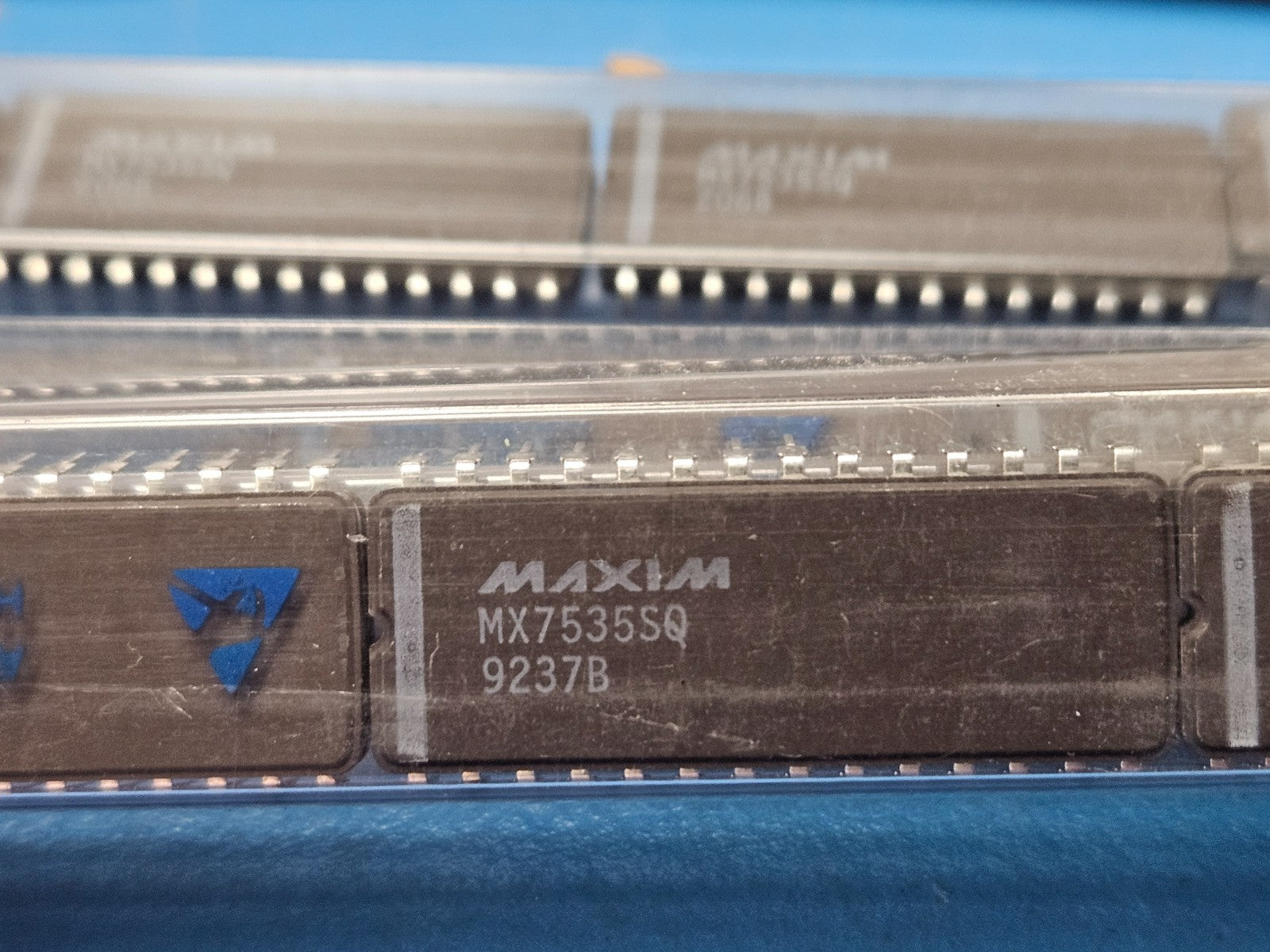

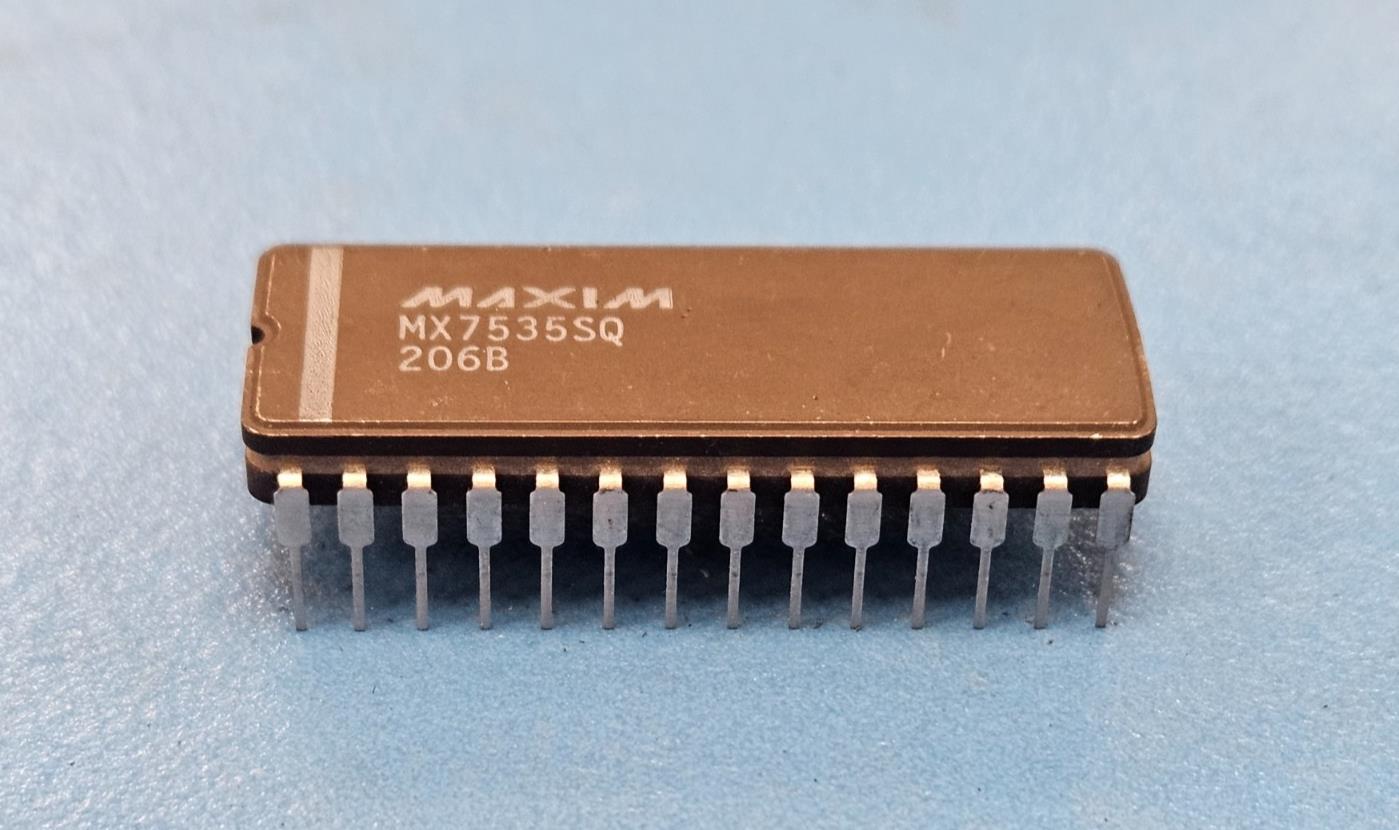

(1PC) MX7535SQ Maxim D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP28
Tax included.
This listing is for (1PC) of MX7535SQ by Maxim
Mfr Package Description CERAMIC, DIP-28
REACH Compliant Yes
Status Discontinued
Converter Type D/A CONVERTER
Analog Output Voltage-Min -10.0 V
Analog Output Voltage-Max 10.0 V
Input Bit Code BINARY, OFFSET BINARY
Input Format PARALLEL, WORD
JESD-30 Code R-GDIP-T28
JESD-609 Code e0
Linearity Error-Max (EL) 0.0122 %
Moisture Sensitivity Level 1
Number of Bits 14
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.89 mm
Settling Time-Max 1.5 µs
Settling Time-Nom (tstl) 0.8 µs
Sub Category Other Converters
Supply Current-Max 4.0 mA
Surface Mount NO
Technology CMOS
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
