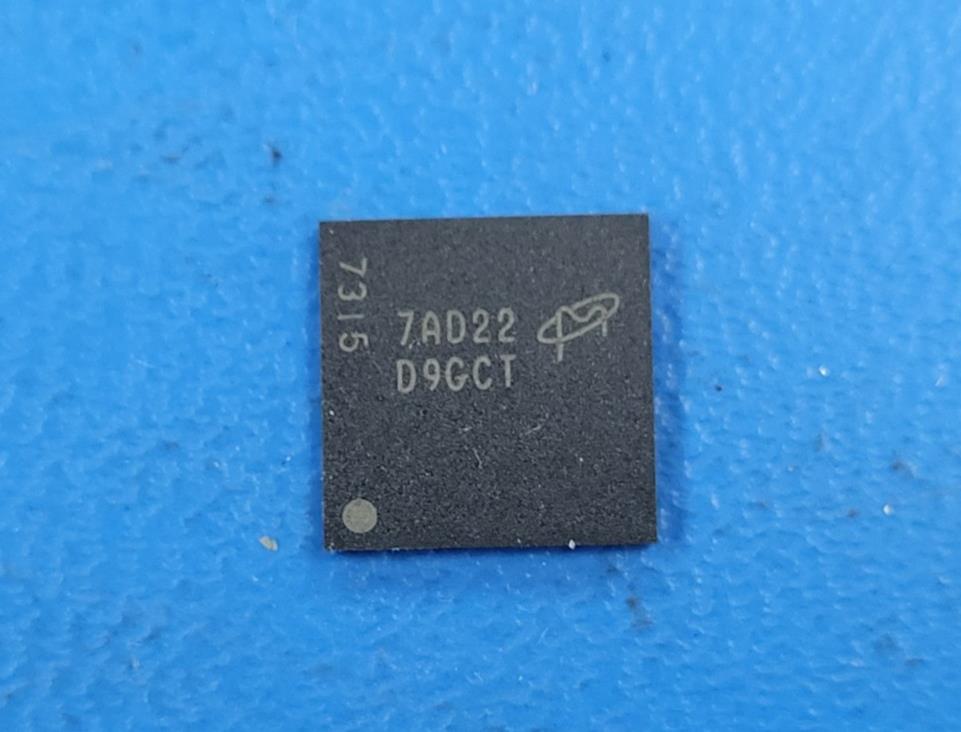

(1PC) MT47H64M8B6-37E:D DDR2 DRAM, 64MX8, 0.5ns, CMOS, PBGA60 D9GCT
Tax included.
This listing is for (1PC) of MT47H64M8B6-37E:D by Micron
Status Discontinued
Access Time-Max (ns) 0.5000000000000000
Clock Frequency-Max (MHz) 267.00000
I/O Type COMMON
Interleaved Burst Length 4,8
JESD-30 Code R-PBGA-B60
J-STD-609 Code e3
Length (mm) 10.0000
Memory Density (bits) 536870912.0000000000000000
Memory IC Type DDR2 DRAM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 60
Number of Words (words) 67108864.0000000000000000
Number of Words Code 64M
Operating Mode SYNCHRONOUS
Memory Organization 64MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code FBGA
Package Equivalence Code BGA60,9X11,32
Package Shape SQUARE
Package Style GRID ARRAY, FINE PITCH
DLA Qualification Not Qualified
Refresh Cycles 8192
Seated Height-Max (mm) 1.2000
Sequential Burst Length 4,8
Standby Current-Max (A) 0.007000000000000
Supply Current-Max (mA) 95.000000000000000
Supply Voltage-Max (V) 1.90000
Supply Voltage-Min (V) 1.70000
Supply Voltage-Nom (V) 1.8
Surface Mount YES
Technology CMOS
Terminal Finish MATTE TIN
Terminal Form BALL
Terminal Pitch (mm) 0.800
Terminal Position BOTTOM
Width (mm) 10.0000
