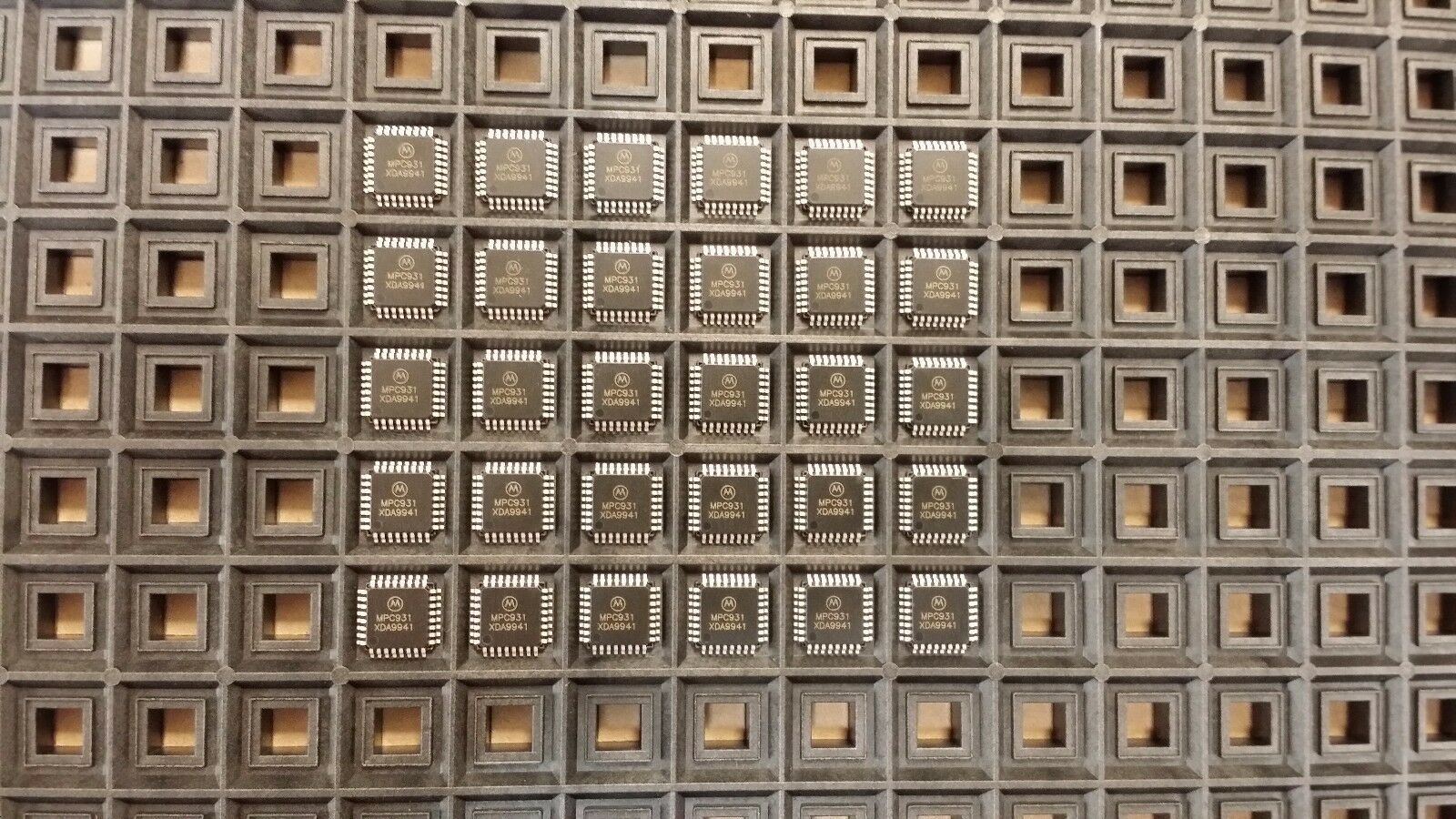

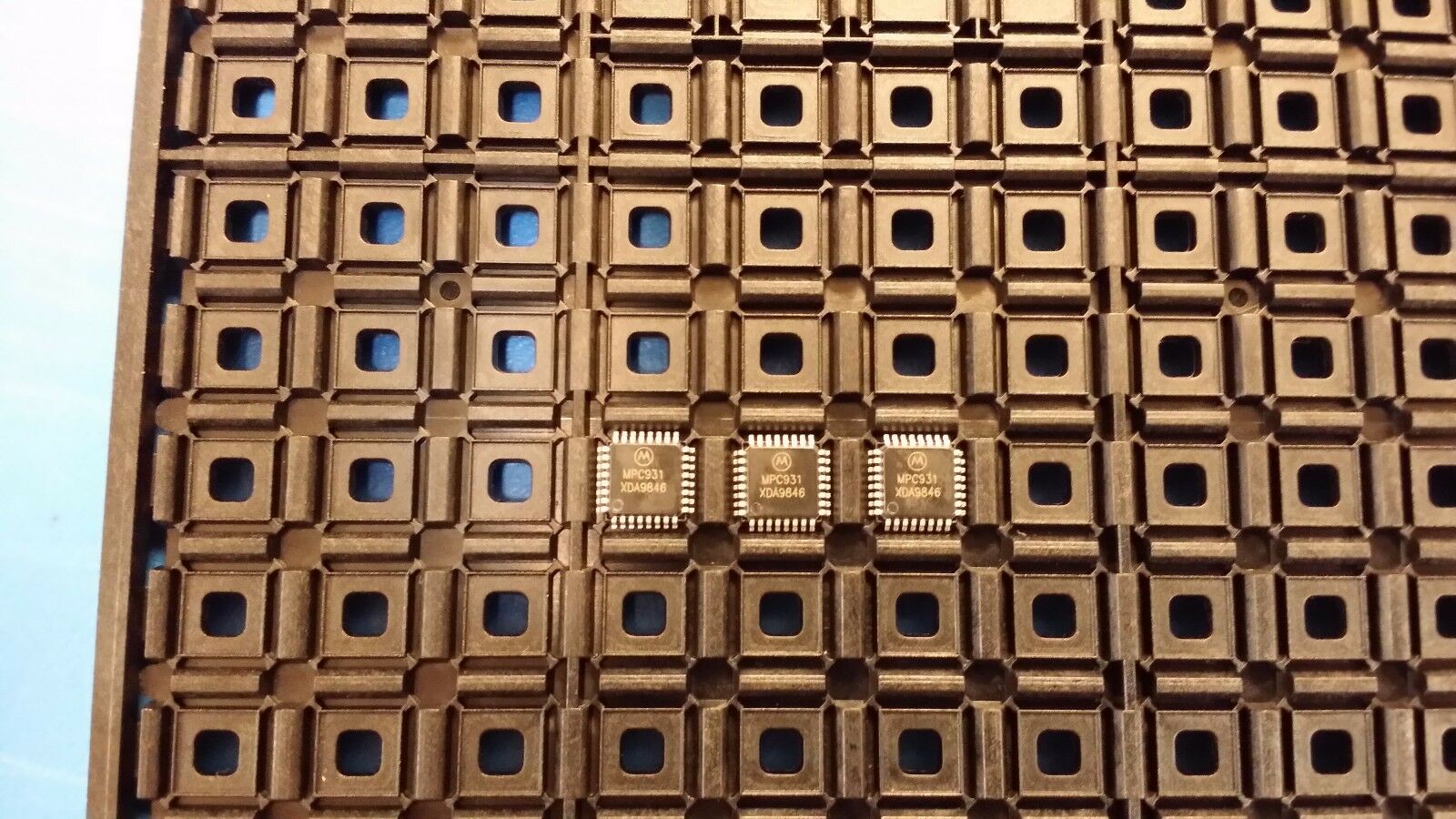

(1PC) MPC931FA MOTOROLA PLL BASED CLOCK DRIVER, 6 TRUE OUTPUT(S) PQFP32

  • $4.50
    Unit price per
Tax included.

Only 33 left!

THIS LISTING IS FOR (1PC) OF MPC931FA BY MOTOROLA

931 SERIES, PLL BASED CLOCK DRIVER, 6 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PQFP32

SPECIFICATIONS

Mfr Package Description TQFP-32
REACH Compliant Yes
Status Active
Logic IC Type CLOCK DRIVER
Family 931
fmax-Min 31.25 MHz
Input Conditioning DIFFERENTIAL MUX
JESD-30 Code S-PQFP-G32
JESD-609 Code e0
Moisture Sensitivity Level NOT SPECIFIED
Number of Functions 1
Number of Inverted Outputs 0.0
Number of Terminals 32
Number of True Outputs 6
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70 Cel
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 225
Qualification Status COMMERCIAL
Same Edge Skew-Max (tskwd) 0.6000 ns
Seated Height-Max 1.6 mm
Supply Voltage-Nom (Vsup) 3.3
Supply Voltage-Min (Vsup) 3.14 V
Supply Voltage-Max (Vsup) 3.46 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.8000 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 7 mm
Width 7 mm
Additional Feature WITH POWER-ON RESET; RESET & OUTPUT ENABLE ON THE SAME LINE; MEETS POWER PC SKEW REQUIREMENTS
