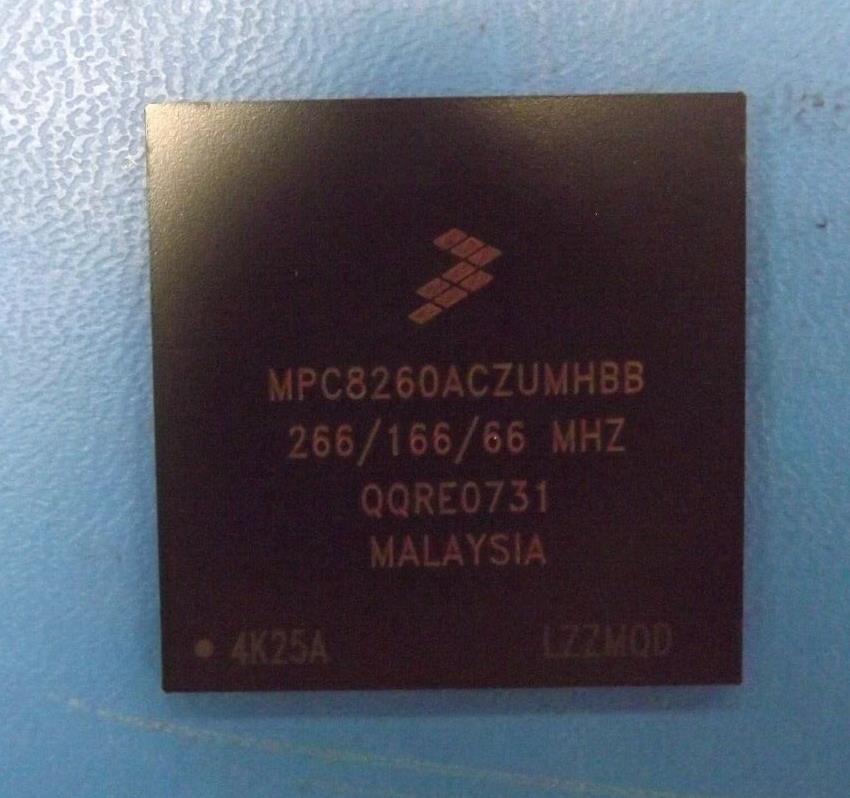

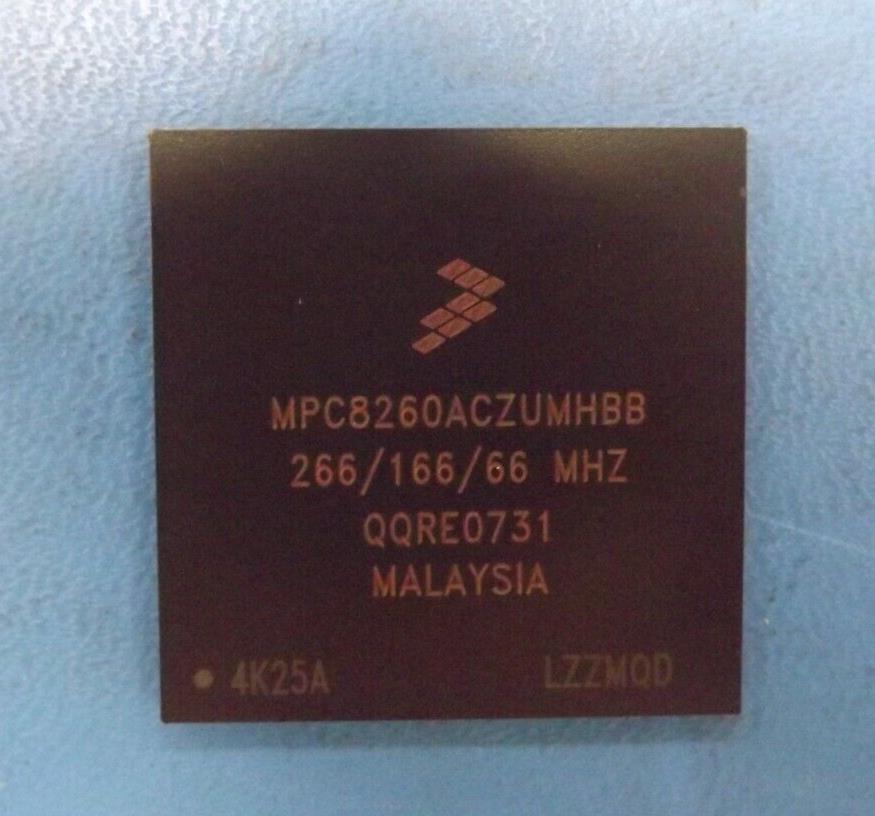

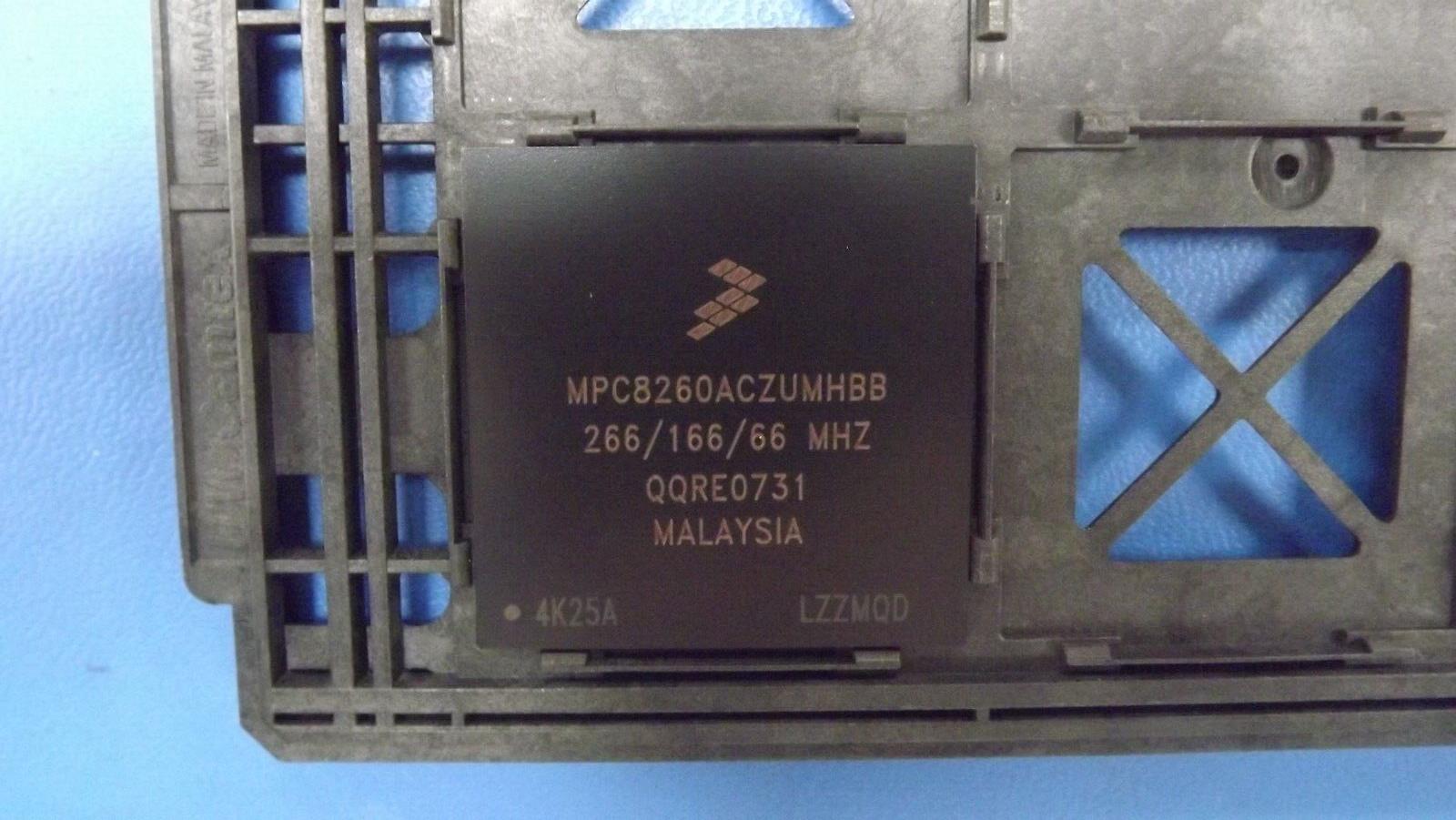

(1PC) MPC8260ACZUMHBB RISC Microprocessor, 32-Bit, 266MHz, CMOS, PBGA480
Tax included.
THIS LISTING IS FOR (1PC) OF MPC8260ACZUMHBB BY FREESCALE
Mfr Package Description 37.50 X 37.50 MM, 1.55 MM HEIGHT, 1.27 MM PITCH, TBGA-480
Status Transferred
Address Bus Width 32.0
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 66.66 MHz
External Data Bus Width 64.0
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B480
JESD-609 Code e0
Low Power Mode NO
Moisture Sensitivity Level 3
Number of Terminals 480
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 105.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA480,29X29,50
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) 220
Power Supplies 2,3.3
Qualification Status Not Qualified
Seated Height-Max 1.65 mm
Speed 266.0 MHz
Sub Category Microprocessors
Supply Voltage-Nom 2.0 V
Supply Voltage-Min 1.9 V
Supply Voltage-Max 2.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)

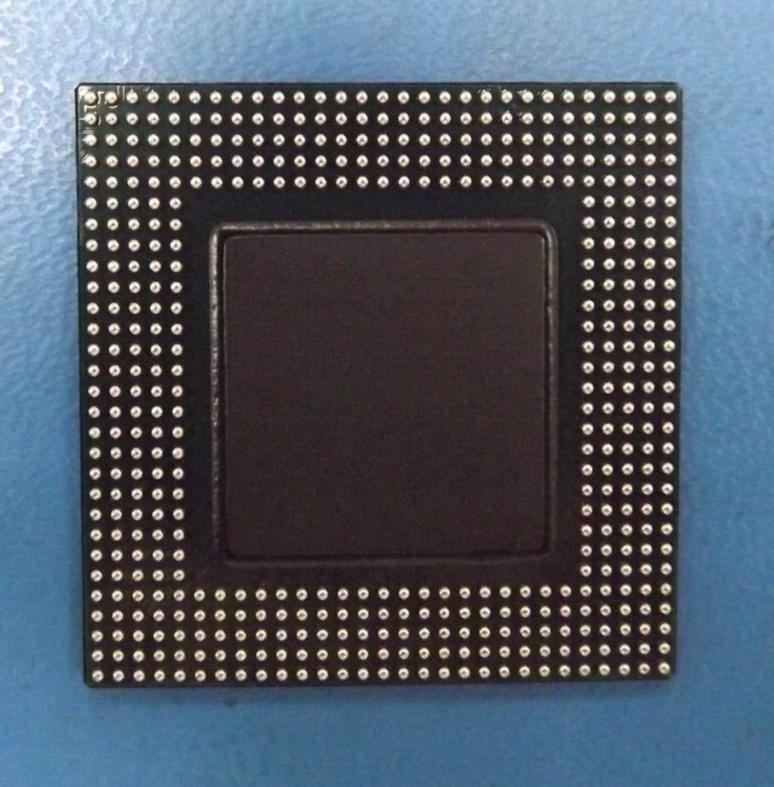

Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Length 37.5 mm
Width 37.5 mm
