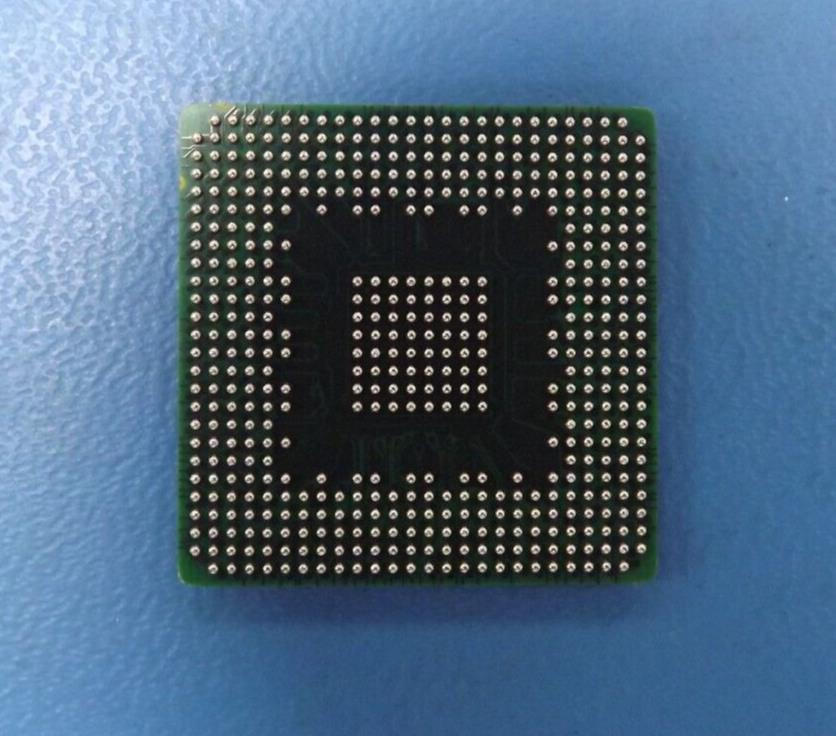

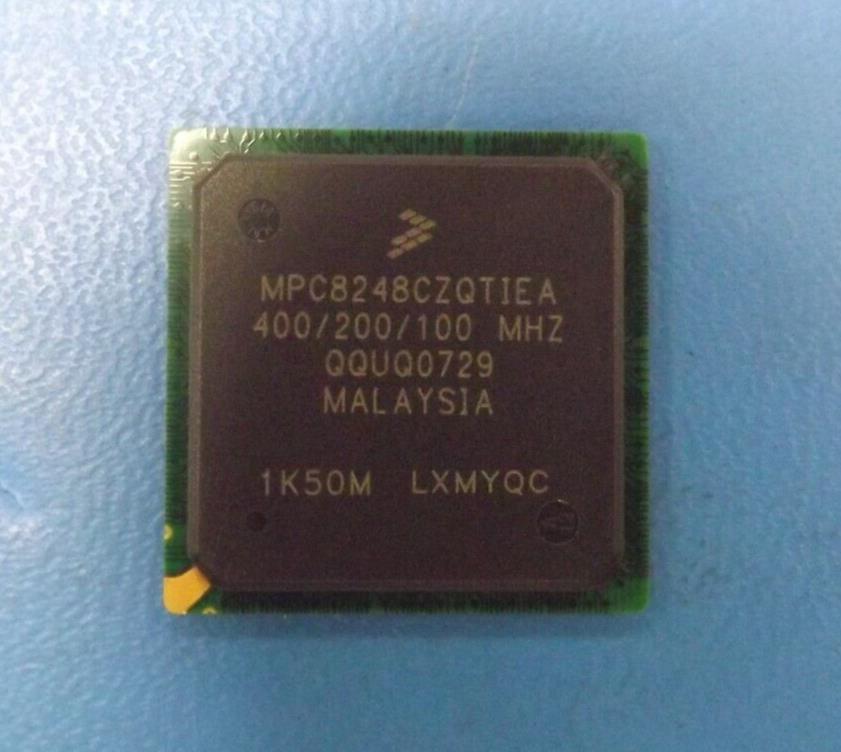

(1pc) MPC8248CZQTIEA RISC Microcontroller, 32-Bit, 400MHz, CMOS, PBGA516
Tax included.
THIS LISTING IS FOR (1PC) OF MPC8248CZQTIEA BY FREESCALE
Status Discontinued
ADC Channels NO
Address Bus Width 30.0
Bit Size 32
Clock Frequency-Max 66.7 MHz
DMA Channels YES
External Data Bus Width 64.0
JESD-30 Code S-PBGA-B516
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of I/O Lines 57.0
Number of Terminals 516
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA516,26X26,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 245
Power Supplies 1.5,3.3
PWM Channels NO
Qualification Status Not Qualified
Speed 400.0 MHz
Sub Category Other uPs/uCs/Peripheral ICs
Supply Voltage-Nom 1.5 V
Supply Voltage-Min 1.425 V
Supply Voltage-Max 1.575 V
Surface Mount YES
Technology CMOS
Terminal Finish TIN LEAD
Terminal Form BALL
Terminal Pitch 1.0 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Length 27.0 mm
Width 27.0 mm
