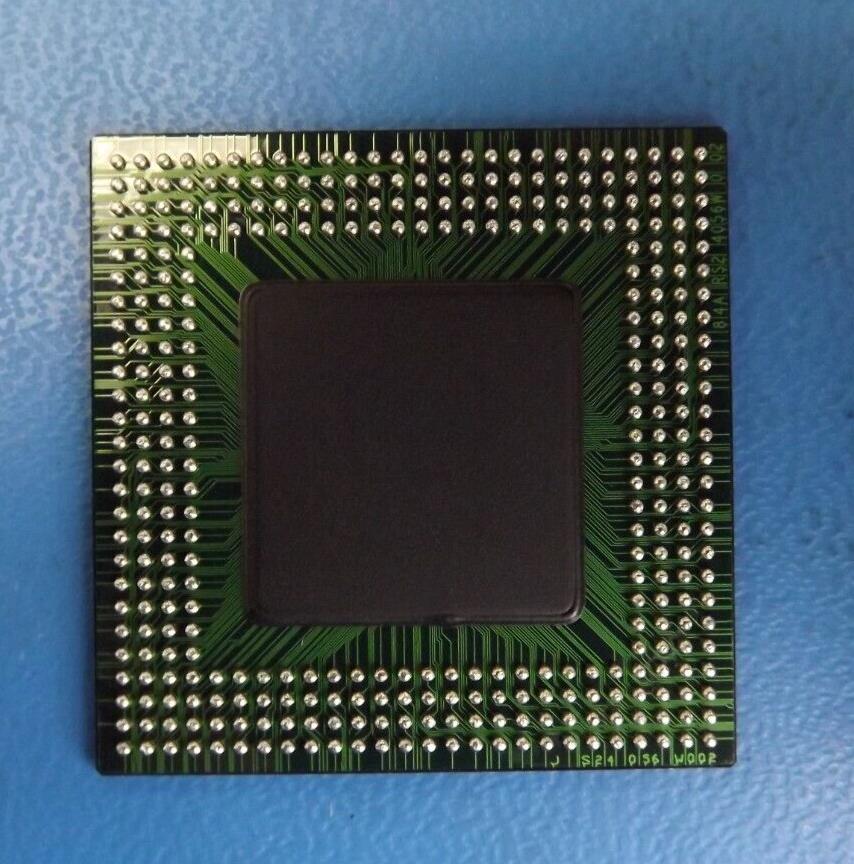

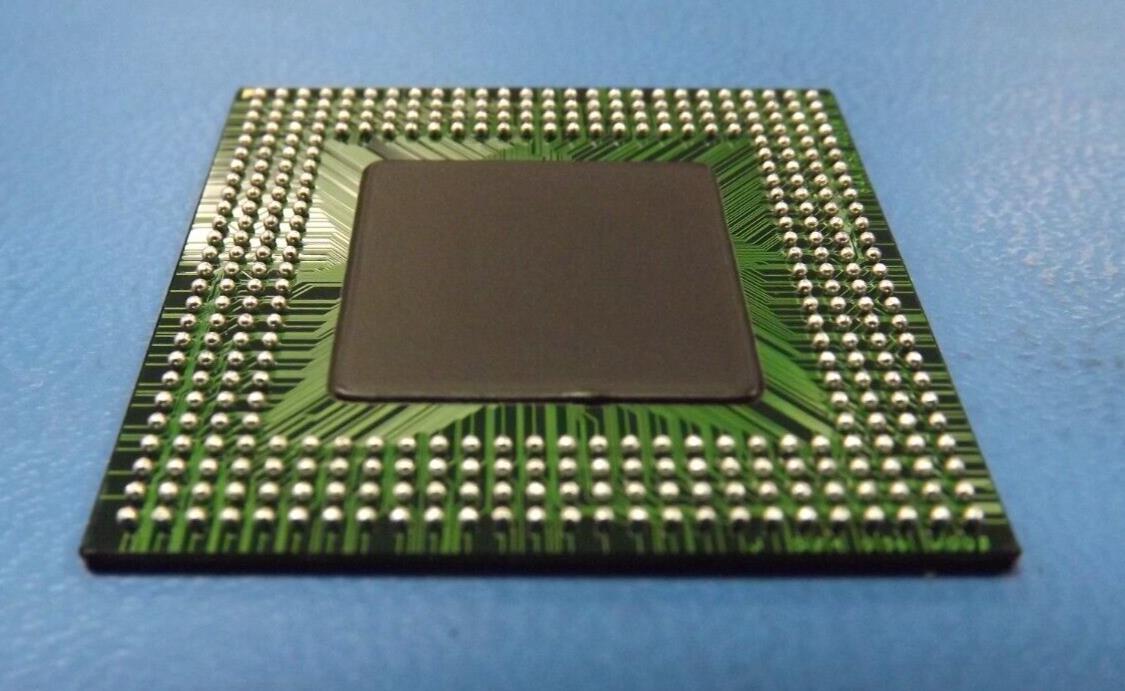

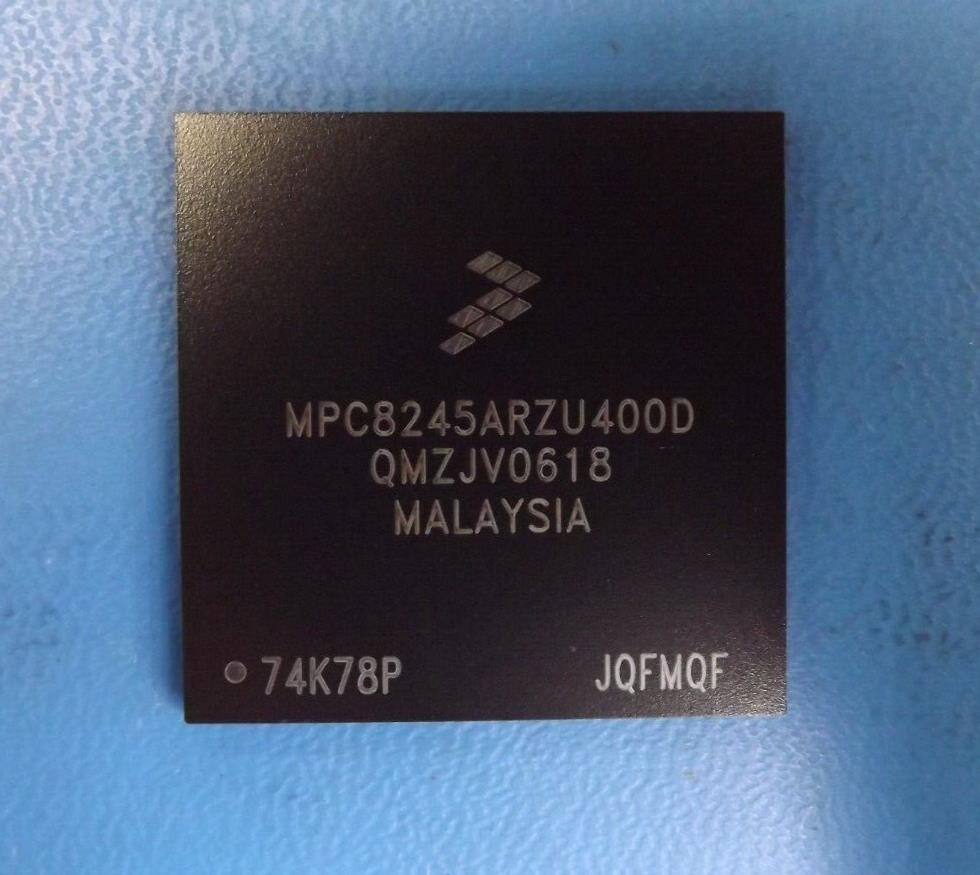

(1PC) MPC8245ARZU400D RISC 64-Bit 0.25um 400MHz 3.3V TBGA352
Tax included.
THIS LISTING IS FOR (1PC) OF MPC8245ARZU400D BY FREESCALE SEMICONDUCTOR
Mfr Package Description TBGA-352
Status Transferred
Bit Size 32
Format FLOATING POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B352
Low Power Mode YES
Number of Terminals 352
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA352,26X26,50
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 2,3.3
Qualification Status Not Qualified
Seated Height-Max 1.65 mm
Speed 400.0 MHz
Sub Category Microprocessors
Supply Voltage-Nom 2.1 V
Supply Voltage-Min 2.0 V
Supply Voltage-Max 2.2 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
