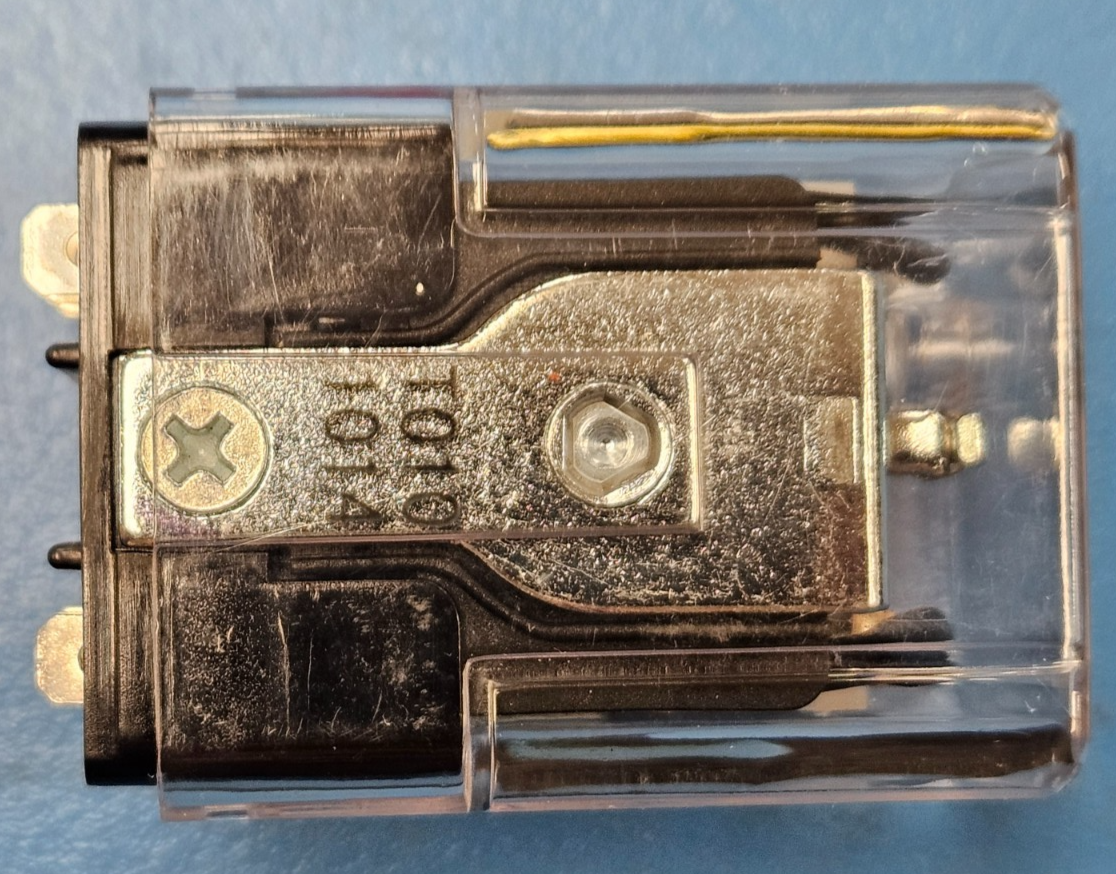

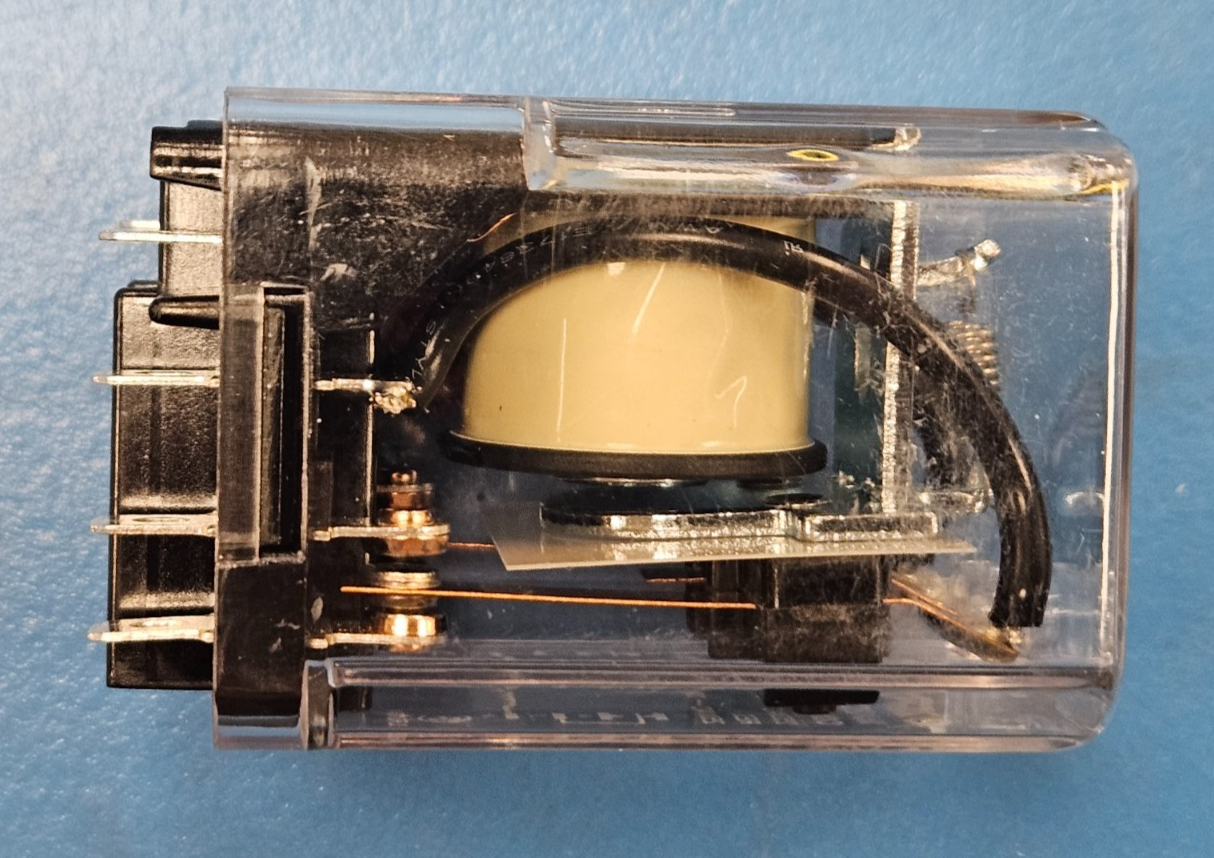

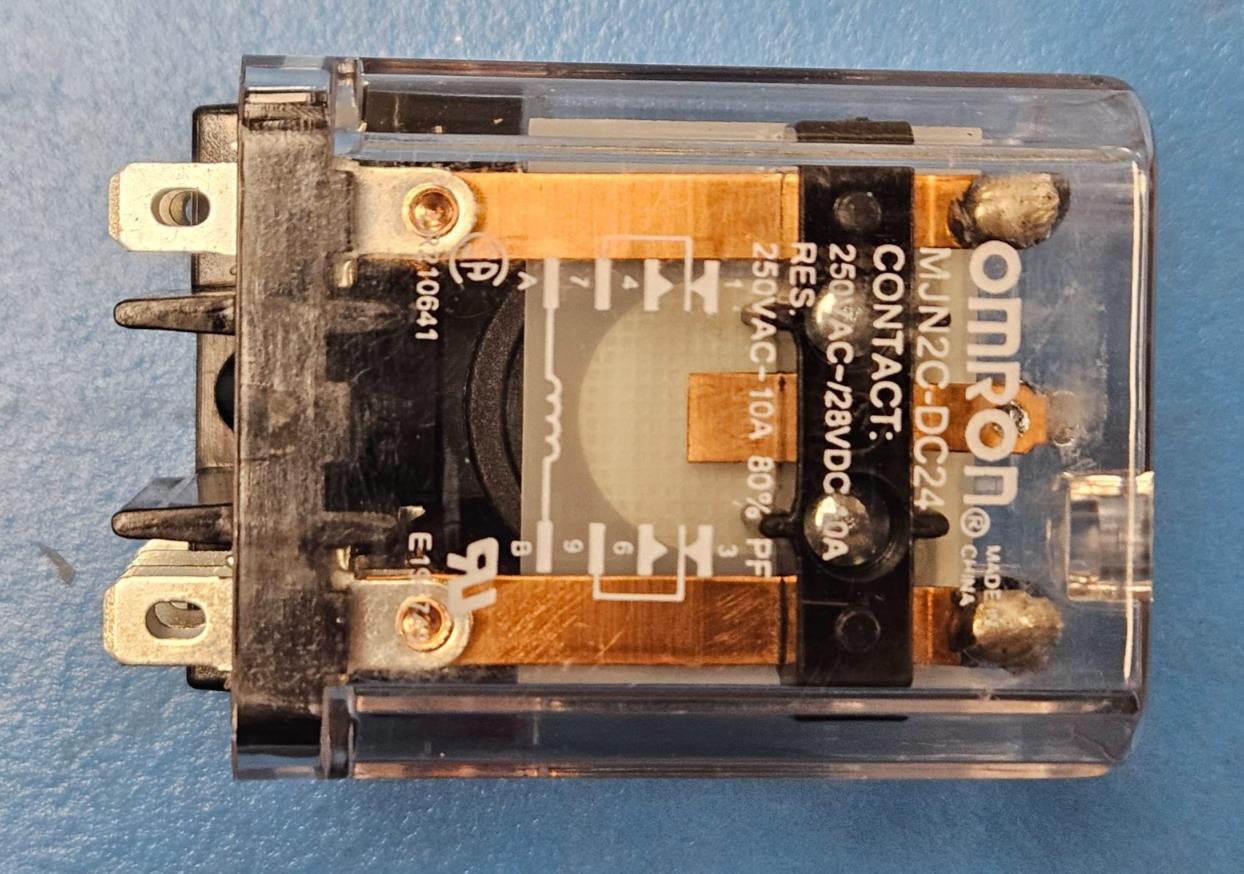

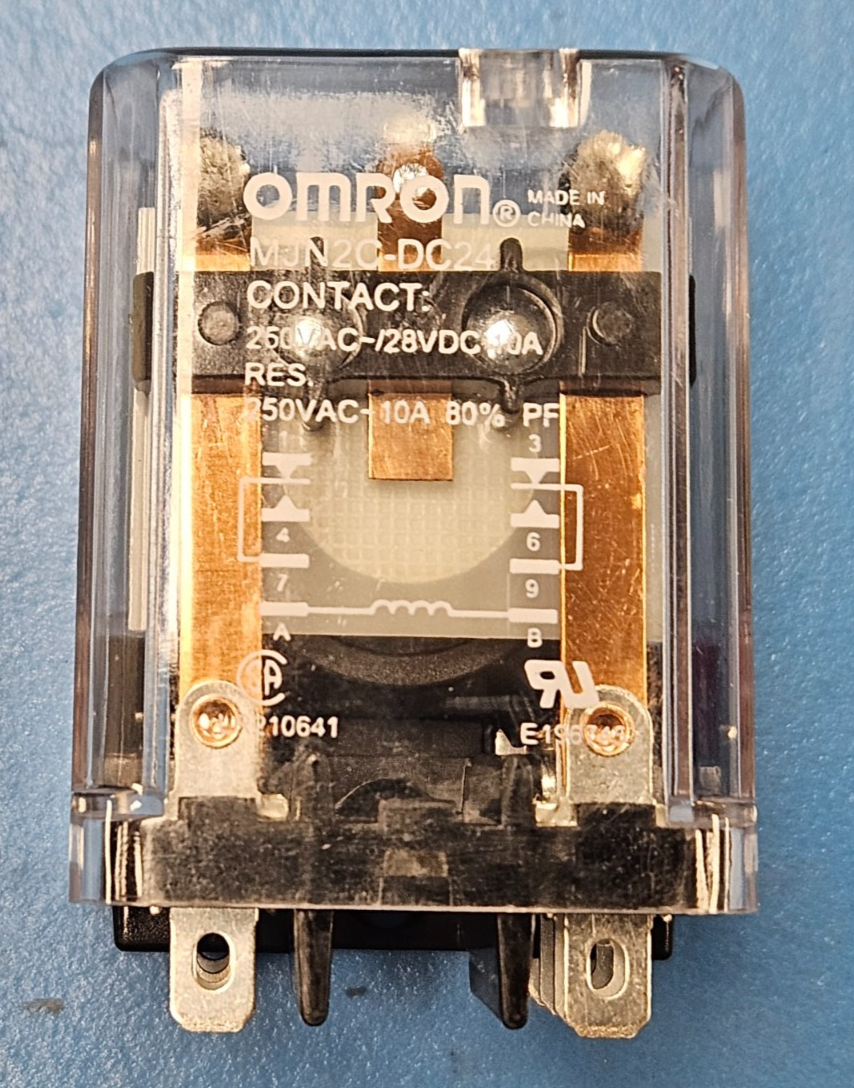

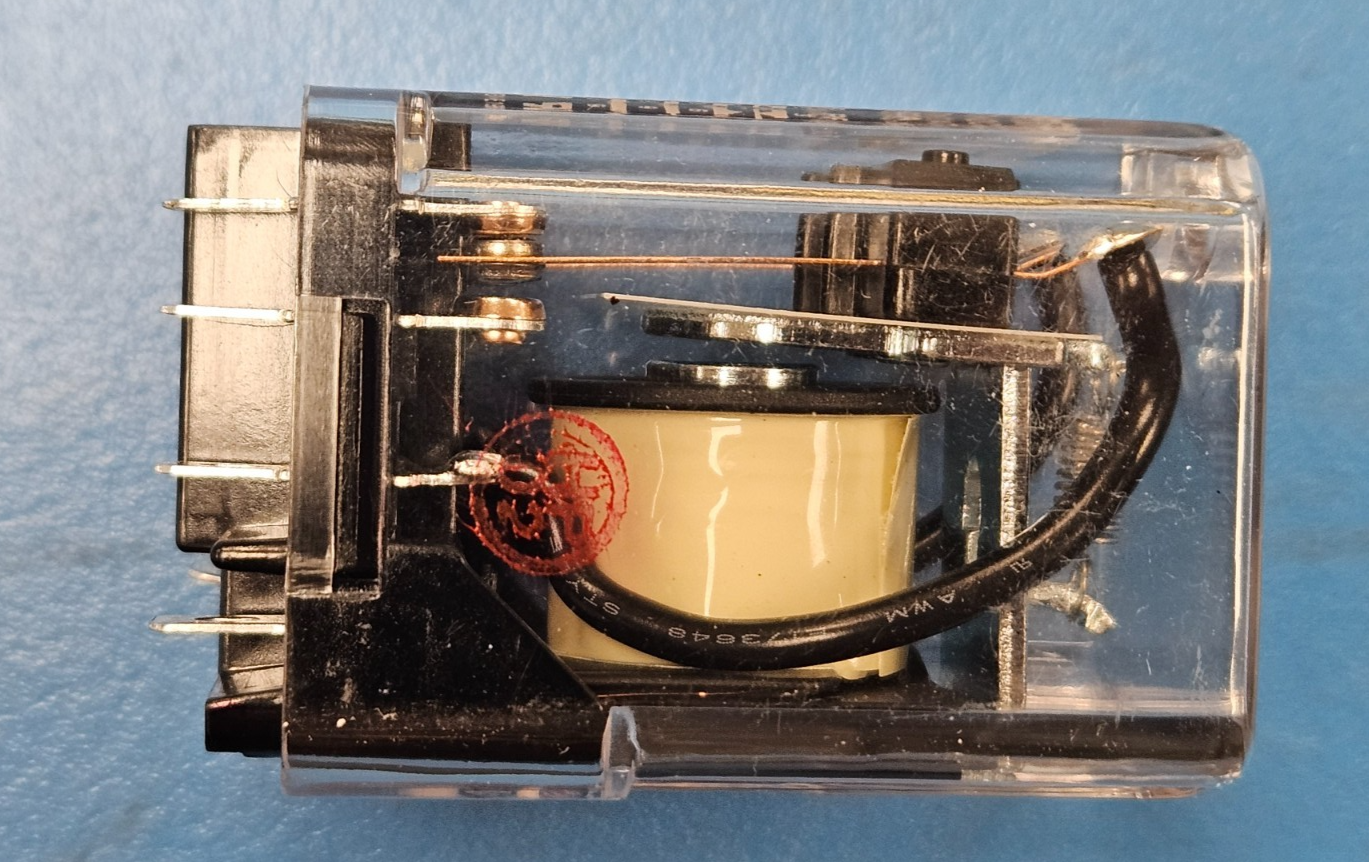

(1PC) MJN2C-DC24 OMRON Electromechanical Relay DPDT 10A 24VDC 470Ohm
Tax included.
This listing is for (1PC) of MJN2C-DC24 by OMRON
Status Active
Coil Current(DC)-Max (A) 0.05000000
Coil Operate Voltage(DC) (V) 18.00000000
Coil Power (mW) 1200
Coil Resistance (ohm) 470.0000
Coil Voltage(DC)-Max (V) 24.00000000
Coil/Input Supply Type DC
Contact AC Max Rating R Load 10A@240VAC
Contact Current(AC)-Max (A) 10.00000000
Contact Current(DC)-Max (A) 10.00000000
Contact DC Max Rating R Load 10A@28VDC
Contact Voltage(AC)-Max (V) 240.00000000
Contact Voltage(DC)-Max (V) 28.00000000
Contact/Output Supply Type AC/DC
Electrical Life (Cycle(s)) 100000
Mounting Feature PANEL MOUNT
Operate Time (ms) 20.0000
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -45
Screening Level / Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time (ms) 10.0000
Termination Type QUICK CONNECT
