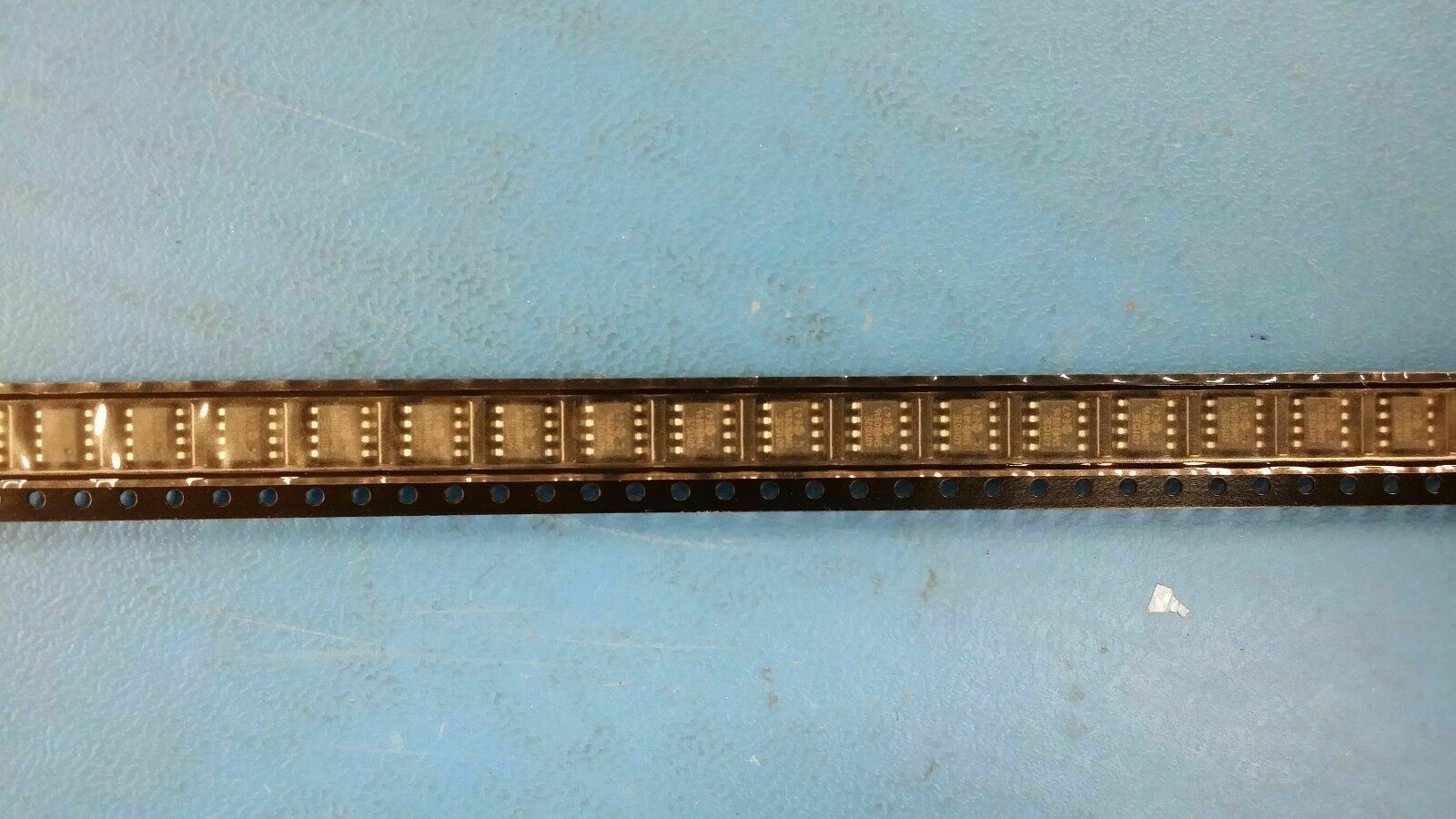

(5PCS) MCP4011-502E/SN Digital Potentiometer 64POS 5KOhm Single 8-Pin SOIC

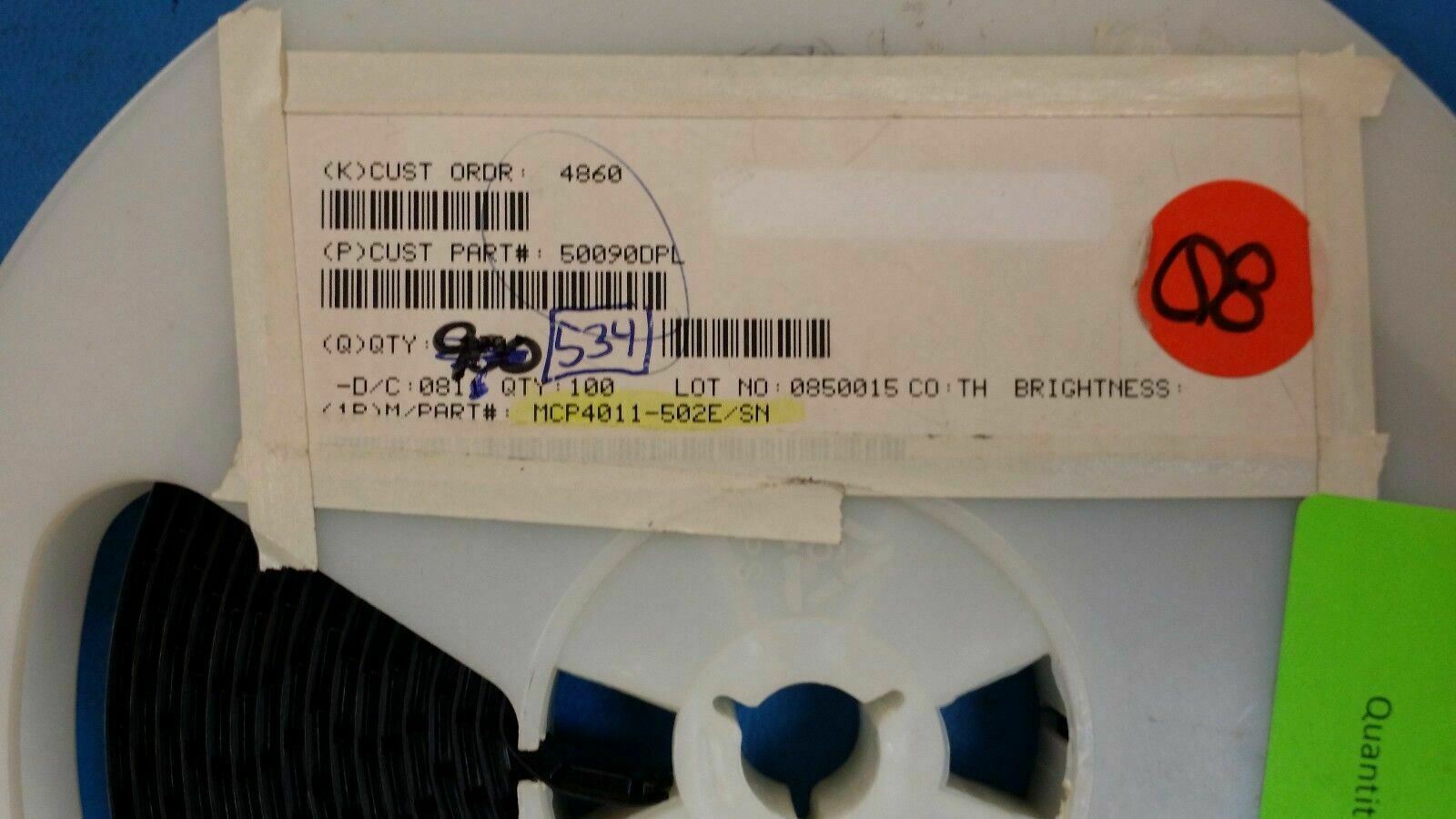

THIS LISTING IS FOR (5PCS) OF MCP4011-502E/SN BY MICROCHIP TECHNOLOGY

REACH Compliant    Yes
EU RoHS Compliant    Yes
China RoHS Compliant    Yes
Status    Active
Converter Type    DIGITAL POTENTIOMETER
Bandwidth-Nom    2.0  MHz
Control Interface    INCREMENT/DECREMENT
JESD-30 Code    R-PDSO-G8
JESD-609 Code    e3
Moisture Sensitivity Level    1
Number of Functions    1
Number of Positions    64
Number of Terminals    8
Operating Temperature-Min    -40.0  Cel
Operating Temperature-Max    125.0  Cel
Package Body Material    PLASTIC/EPOXY
Package Code    SOP
Package Equivalence Code    SOP8,.23
Package Shape    RECTANGULAR
Package Style    SMALL OUTLINE
Peak Reflow Temperature (Cel)    260
Qualification Status    Not Qualified
Resistance Law    LINEAR
Resistance Tolerance-Max    20.0  %
Resistor Terminal Voltage-Min    0.0  V
Resistor Terminal Voltage-Max    5.0  V
Screening Level    TS 16949
Seated Height-Max    1.75  mm
Sub Category    Digital Potentiometers
Supply Current-Max    0.45  mA
Supply Voltage-Nom    5.0  V
Surface Mount    YES
Technology    CMOS
Temperature Coefficient-Nom    150.0  ppm/Cel
Temperature Grade    AUTOMOTIVE
Terminal Finish    MATTE TIN
Terminal Form    GULL WING
Terminal Pitch    1.27  mm
Terminal Position    DUAL
Time@Peak Reflow Temperature-Max (s)    30
Total Resistance-Nom    5000.0  ohm
Length    4.9  mm
Width    3.9  mm
