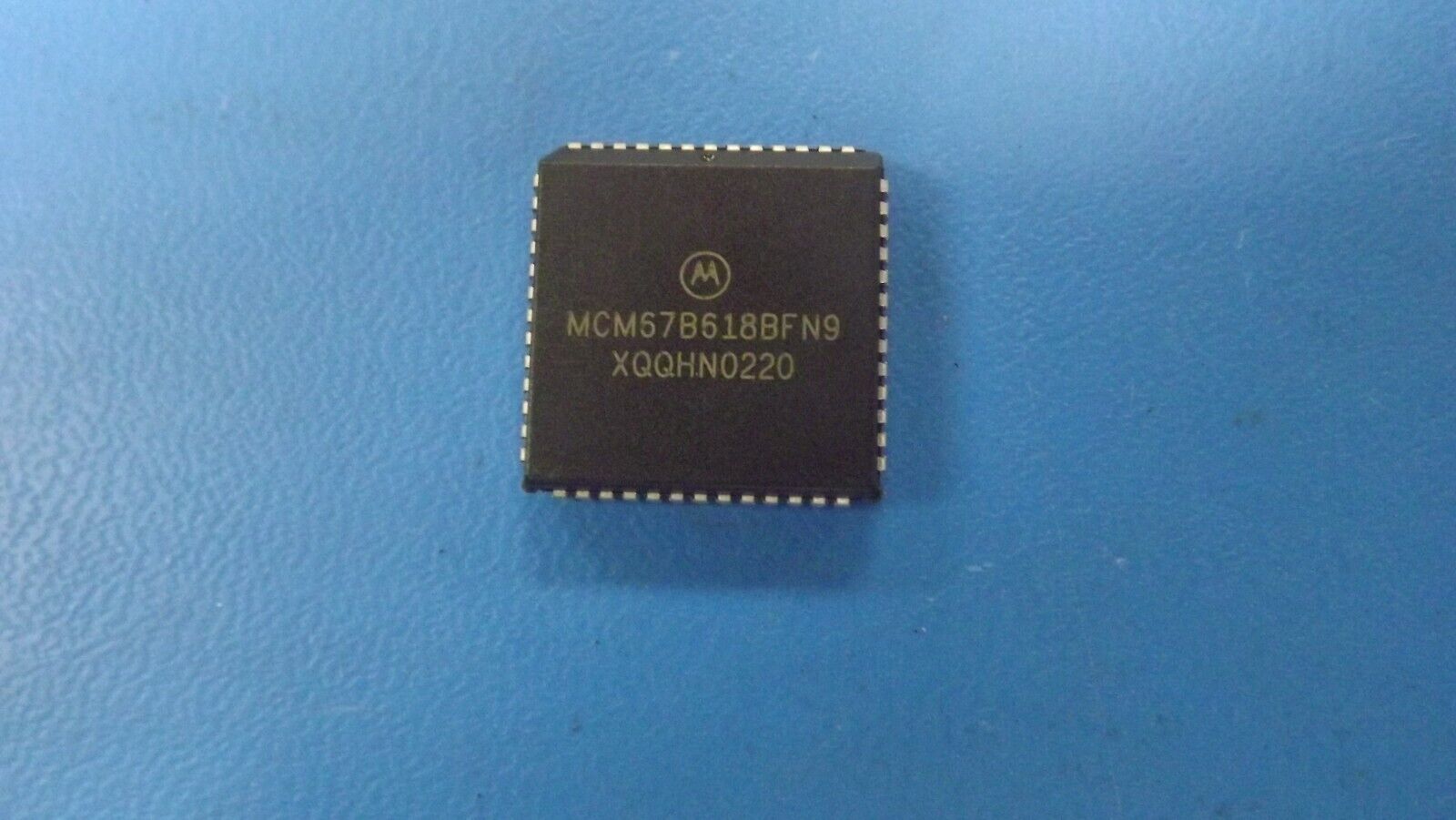

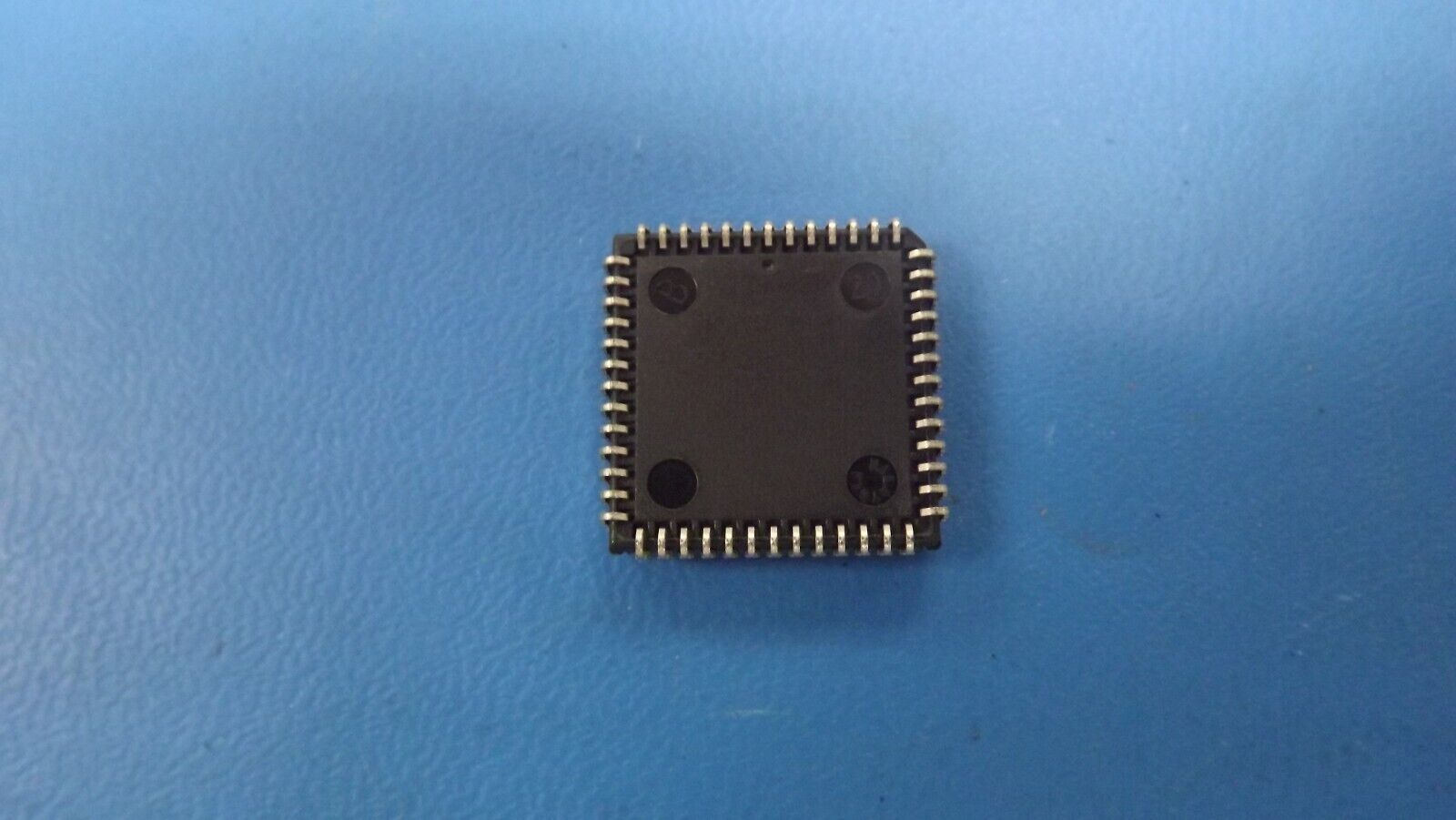

(1PC) MCM67B618BFN9 SRAM Chip Sync Single 5V 1.125M-Bit 64K x 18 9ns 52-Pin PLCC
Tax included.
THIS LISTING IS FOR (1PC) OF MCM67B618FN9 BY MOTOROLA
Mfr Package Description PLASTIC, LCC-52
Status Discontinued
Sub Category SRAMs
Access Time-Max 9.0 ns
I/O Type COMMON
JESD-30 Code S-PQCC-J52
JESD-609 Code e0
Memory Density 1179648.0 bit
Memory IC Type CACHE SRAM
Memory Width 18
Number of Functions 1
Number of Ports 1
Number of Terminals 52
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64KX18
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC52,.8SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Standby Current-Max 0.095 Amp
Standby Voltage-Min 4.75 V
Supply Current-Max 0.275 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 19.1262 mm
Width 19.1262 mm
