(1PC) MC9S12HZ256VPV Microcontroller, 16-Bit, FLASH, CPU12, 25MHz, CMOS, PQFP112
Tax included.

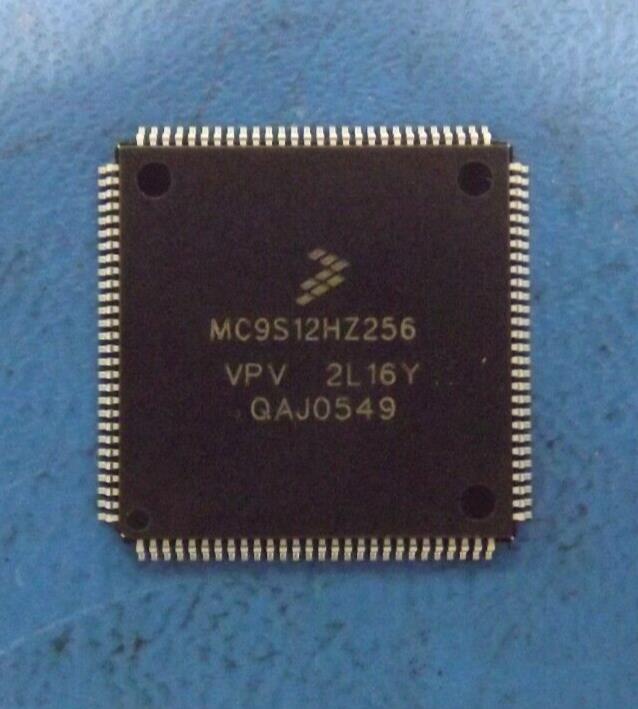

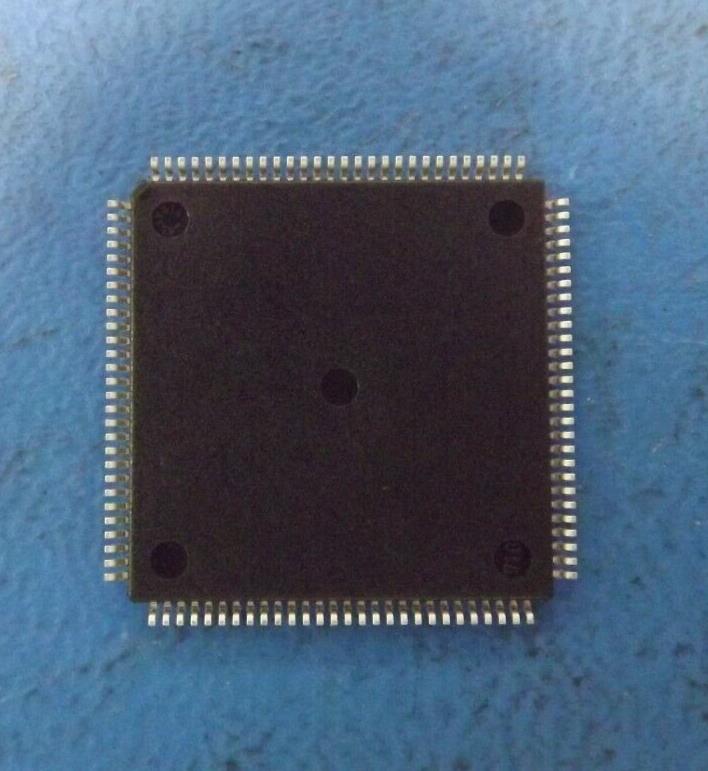

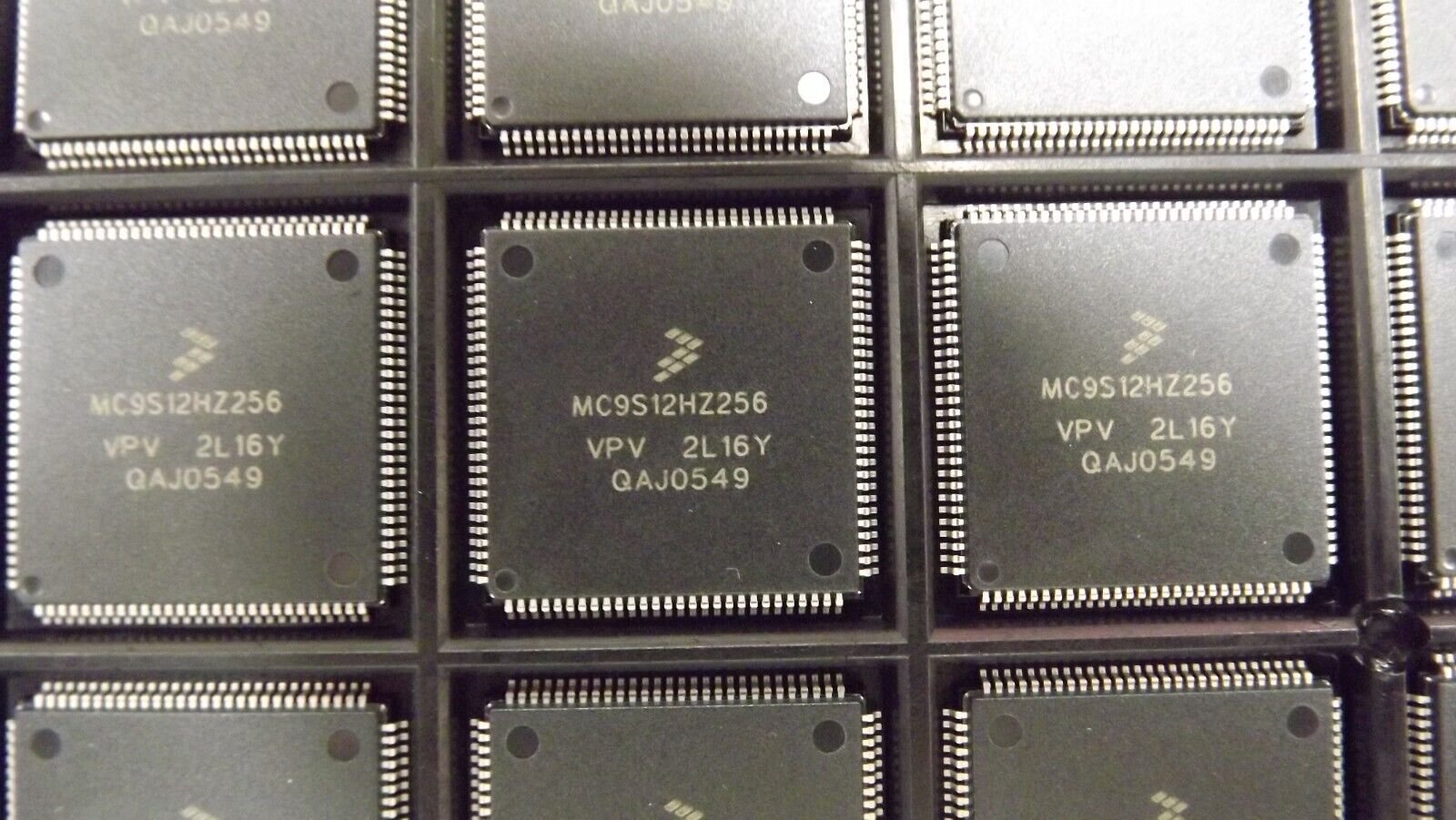

This listing is for (1PC) of MC9S12HZ256VPV by Freescale Semiconductor
Mfr Package Description LQFP-112
Status Discontinued
ADC Channels YES
Address Bus Width 18.0
Bit Size 16
Clock Frequency-Max 50.0 MHz
CPU Family CPU12
DAC Channels NO
DMA Channels NO
External Data Bus Width 16.0
JESD-30 Code S-PQFP-G112
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of I/O Lines 85.0
Number of Terminals 112
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 105.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP112,.87SQ
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Peak Reflow Temperature (Cel) 220
Power Supplies 2.5,5
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 12288.0
ROM Programmability FLASH
ROM (words) 262144
Seated Height-Max 1.6 mm
Speed 25.0 MHz
Sub Category Microcontrollers
Supply Current-Max 65.0 mA
Supply Voltage-Nom 2.5 V
Supply Voltage-Min 2.35 V
Supply Voltage-Max 2.75 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 20.0 mm
Width 20.0 mm
Additional Feature ALSO REQUIRES 5V SUPPLY
