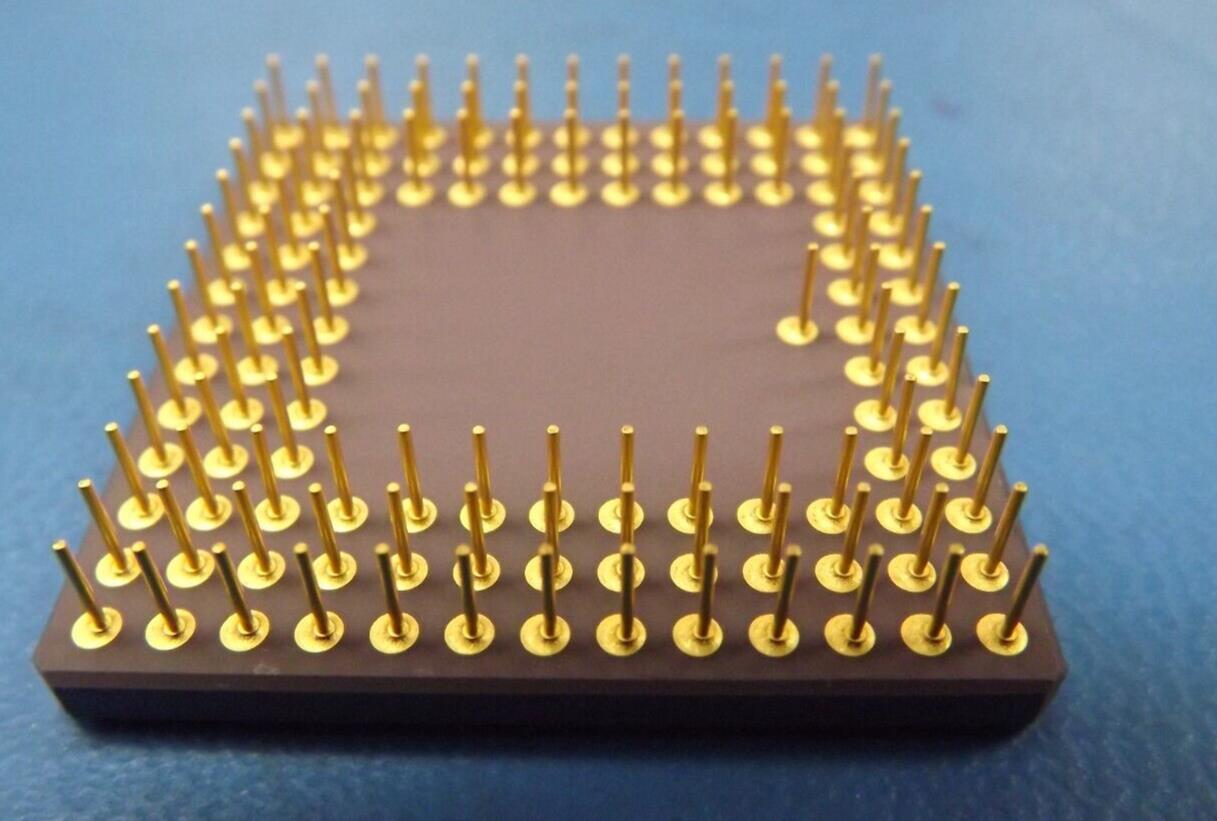

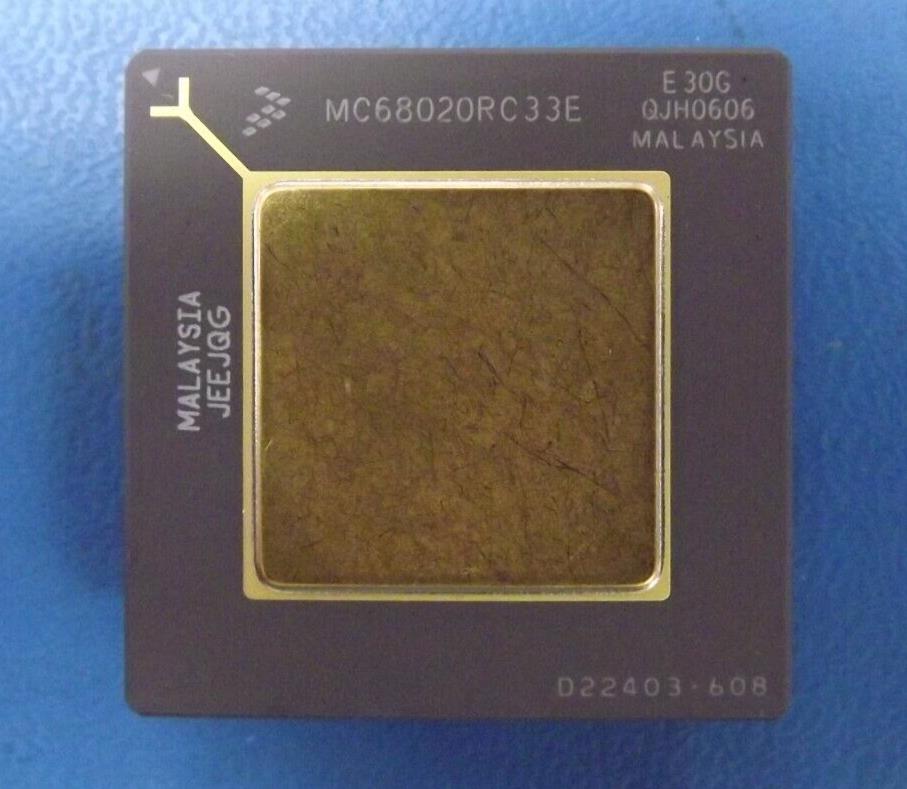

(1PC) MC68020RC33E MPU M68000 RISC 32-Bit HCMOS 33.33MHz 114-Pin PGA RoHS
Tax included.
THIS LISTING IS FOR (1PC) OF MC68020RC33E BY FREESCALE SEMICONDUCTOR
Mfr Package Description PGA-114
EU RoHS Compliant Yes
Status Discontinued
Address Bus Width 32.0
Bit Size 32
Boundary Scan NO
Clock Frequency-Max 33.0 MHz
External Data Bus Width 32.0
Format FIXED POINT
Integrated Cache YES
JESD-30 Code S-CPGA-P114
Low Power Mode NO
Number of Terminals 114
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Equivalence Code PGA114,13X13MOD
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 3.81 mm
Speed 33.0 MHz
Sub Category Microprocessors
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology HCMOS
Temperature Grade COMMERCIAL
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position PERPENDICULAR
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 34.545 mm
Width 34.545 mm
