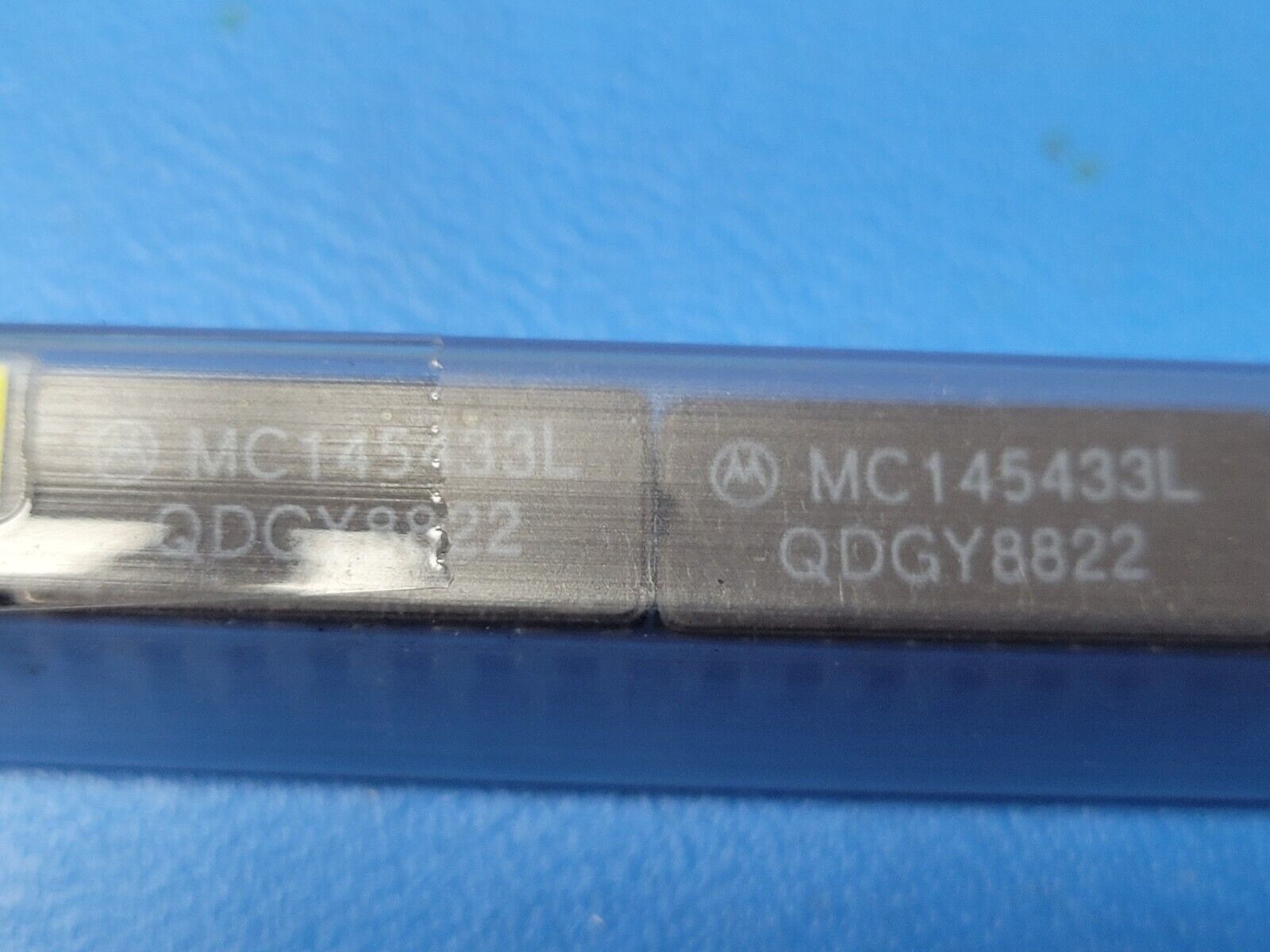

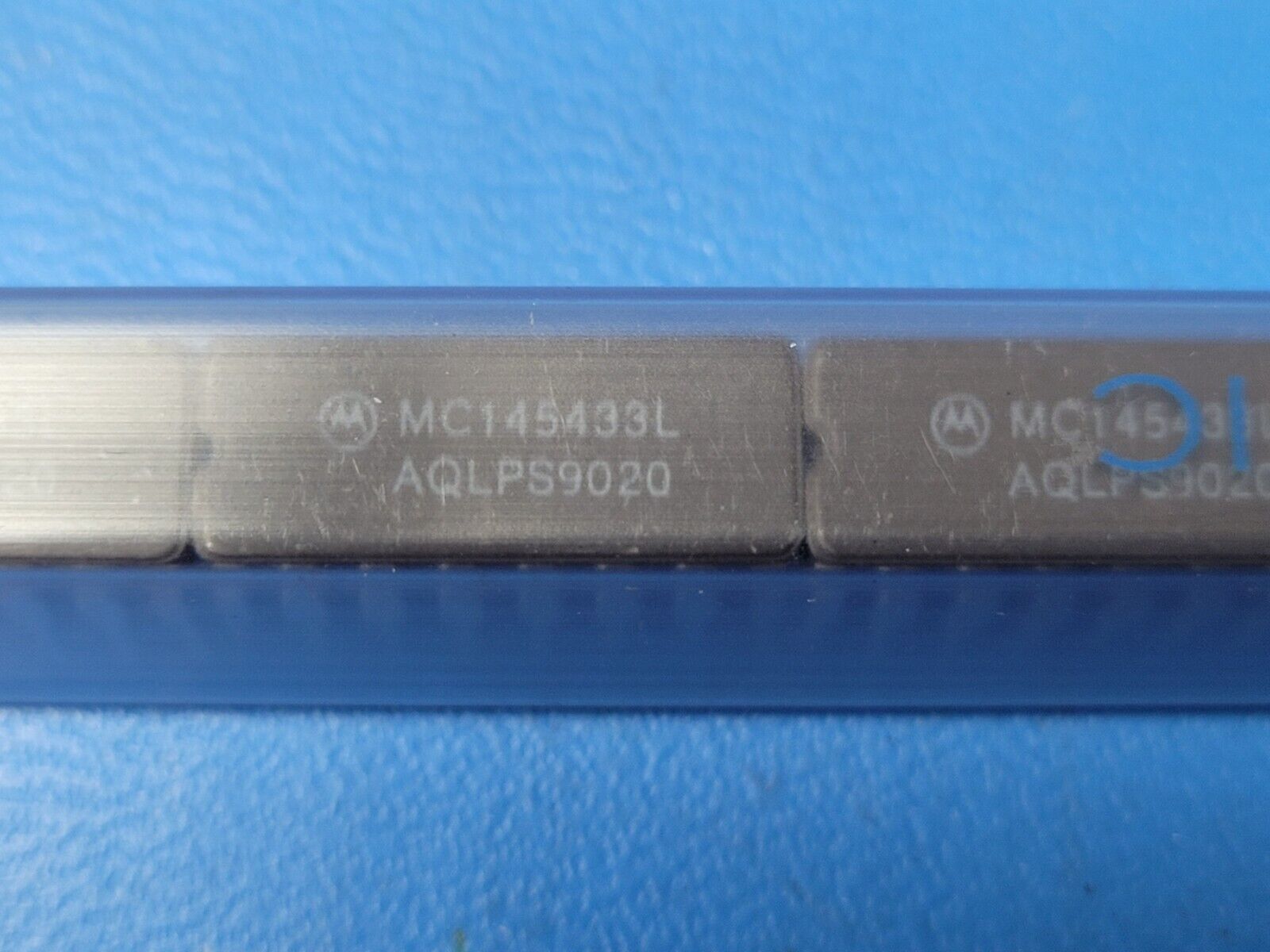

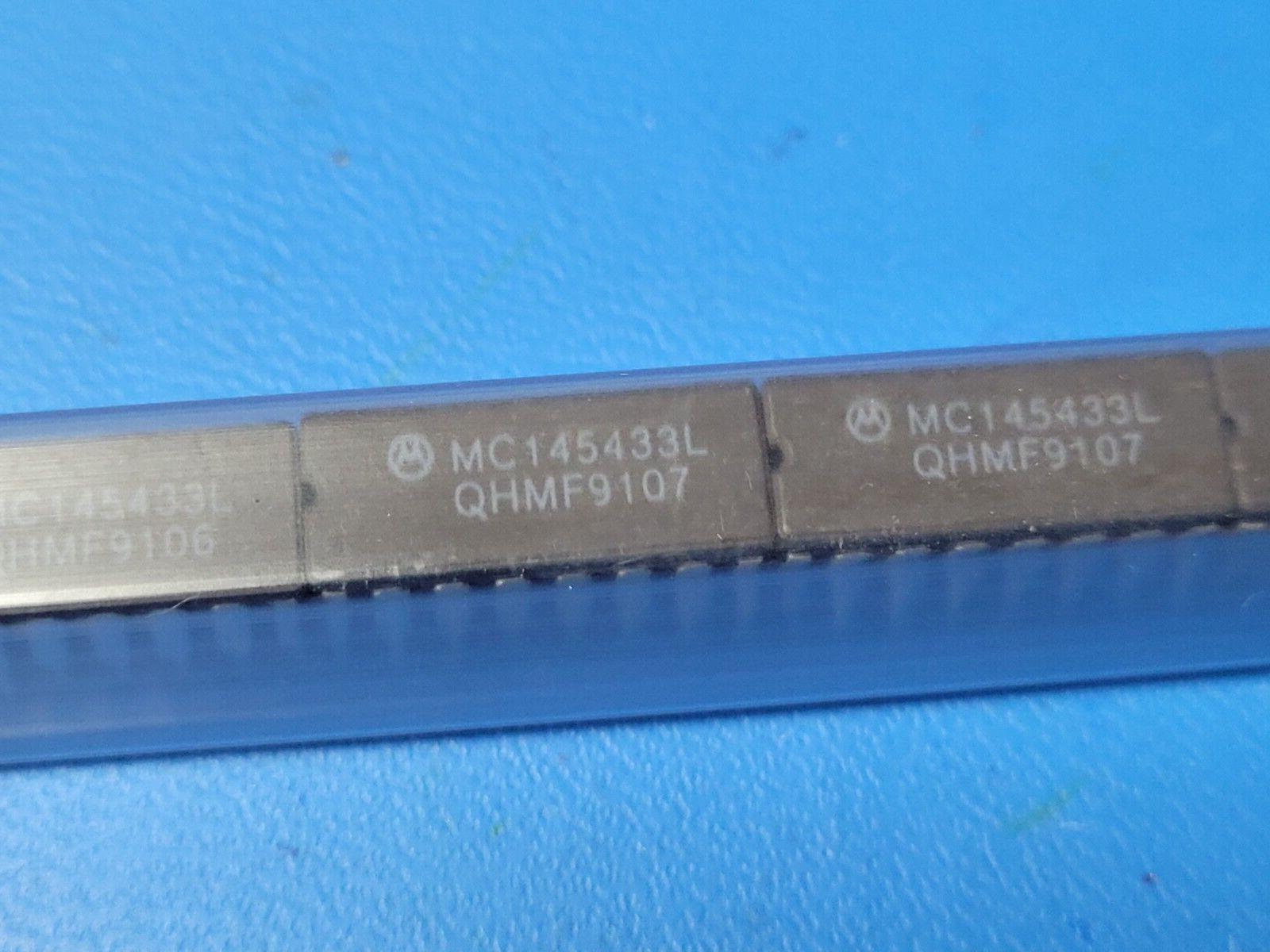

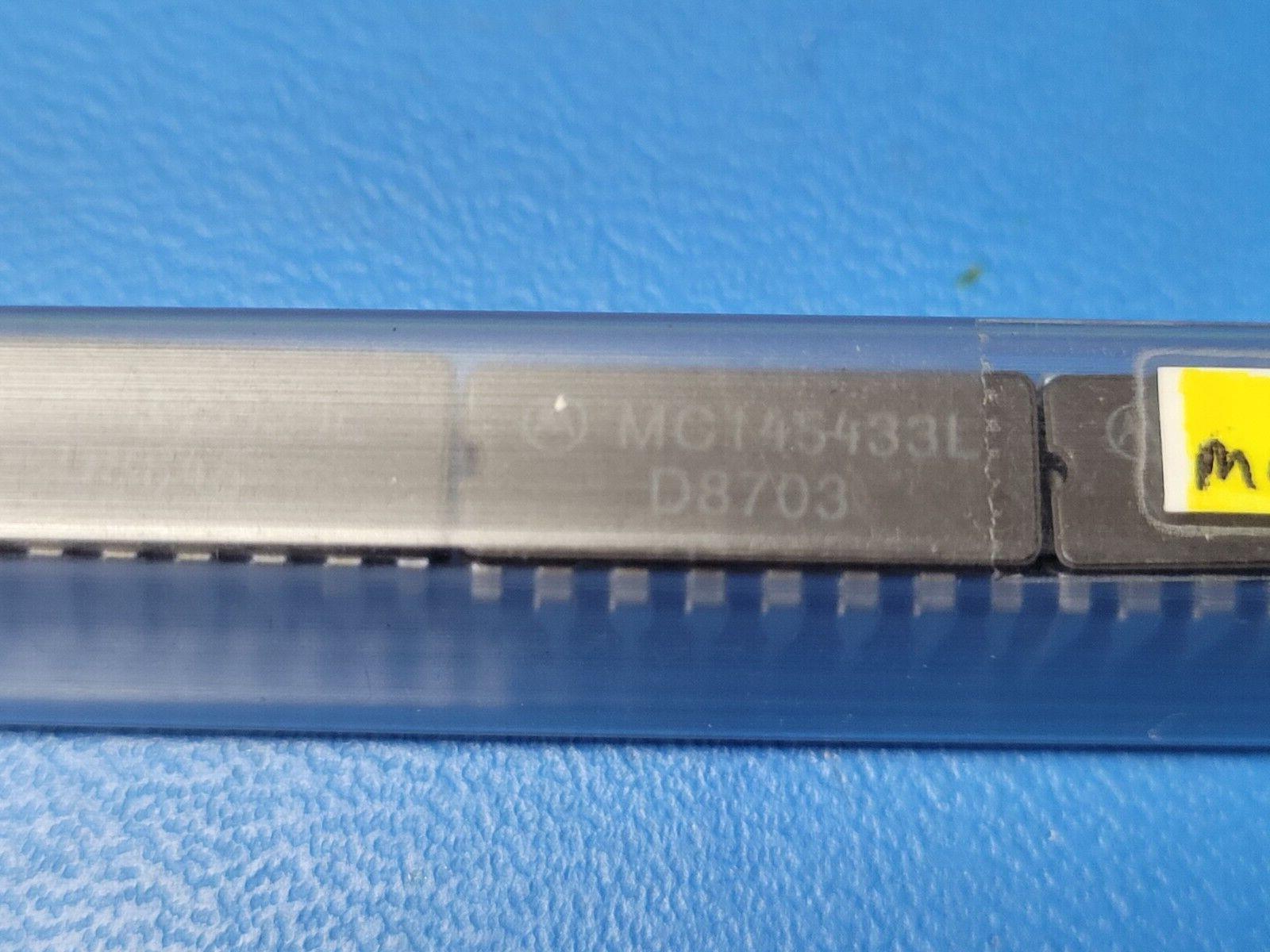

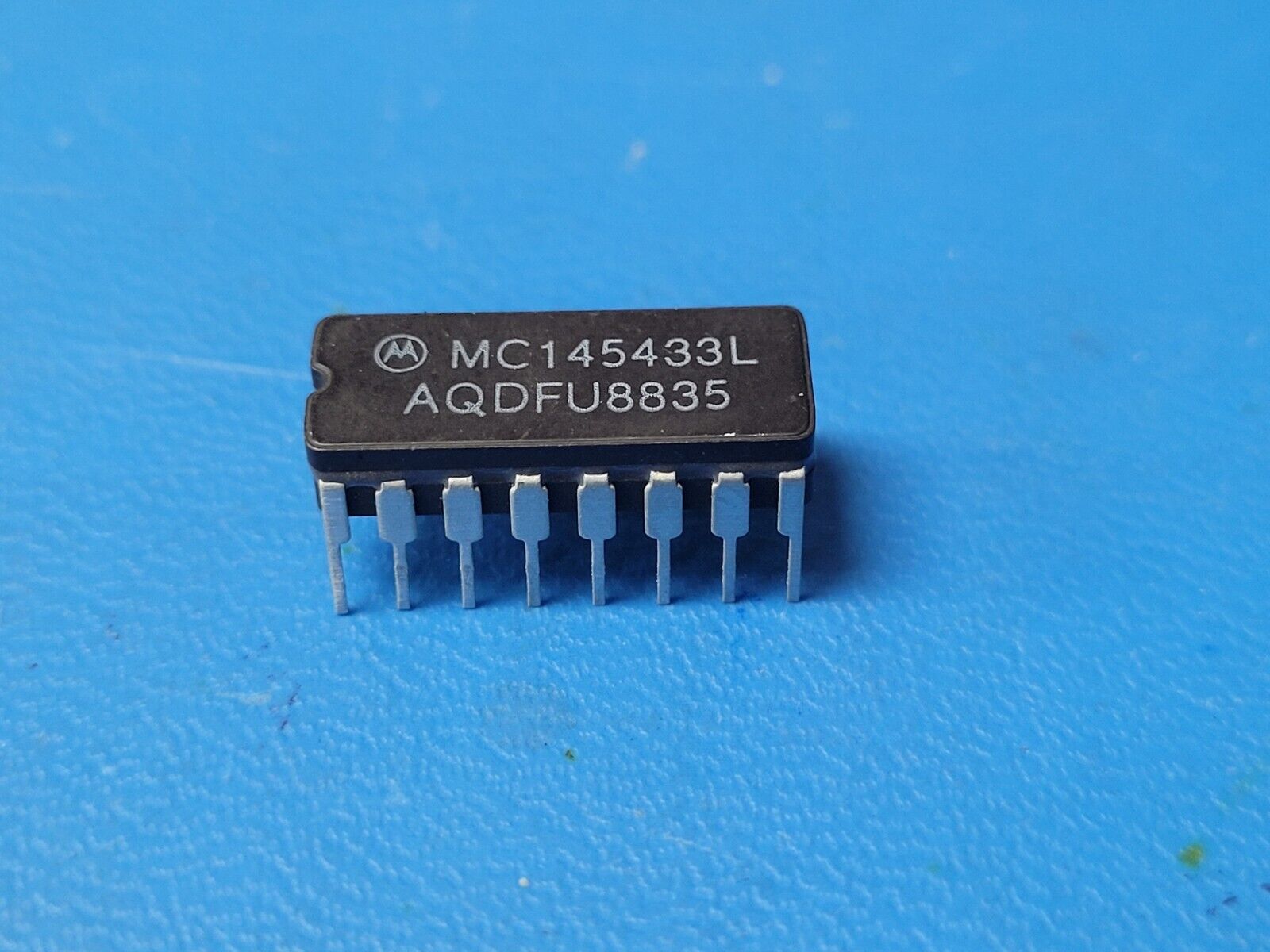

THIS IS FOR (1PC) OF MC145433L BY MOT
Continuous Time Filter 1 Func Bandpass/Notch CMOS CDIP16

Part #: MC145433L
Part Category: Active Filters
Manufacturer: Motorola Solutions, Inc.
Description: Continuous Time Filter, 1 Func, Bandpass/Notch, CMOS, CDIP16

Mfr Package Description 620-09
Status Discontinued
Active Filter Type CONTINUOUS TIME FILTER
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Order 4TH,6TH
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Poles and Zeros 6 AND 0
Response BANDPASS/NOTCH
Sub Category Active Filters
Supply Current-Max (Isup) 22.0  mA
Supply Voltage-Nom (Vsup) 15
Supply Voltage-Min (Vsup) 9.5  V
Supply Voltage-Max (Vsup) 16.0  V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Seated Height-Max 4.19  mm
Length 19.3  mm
Width 7.62  mm
