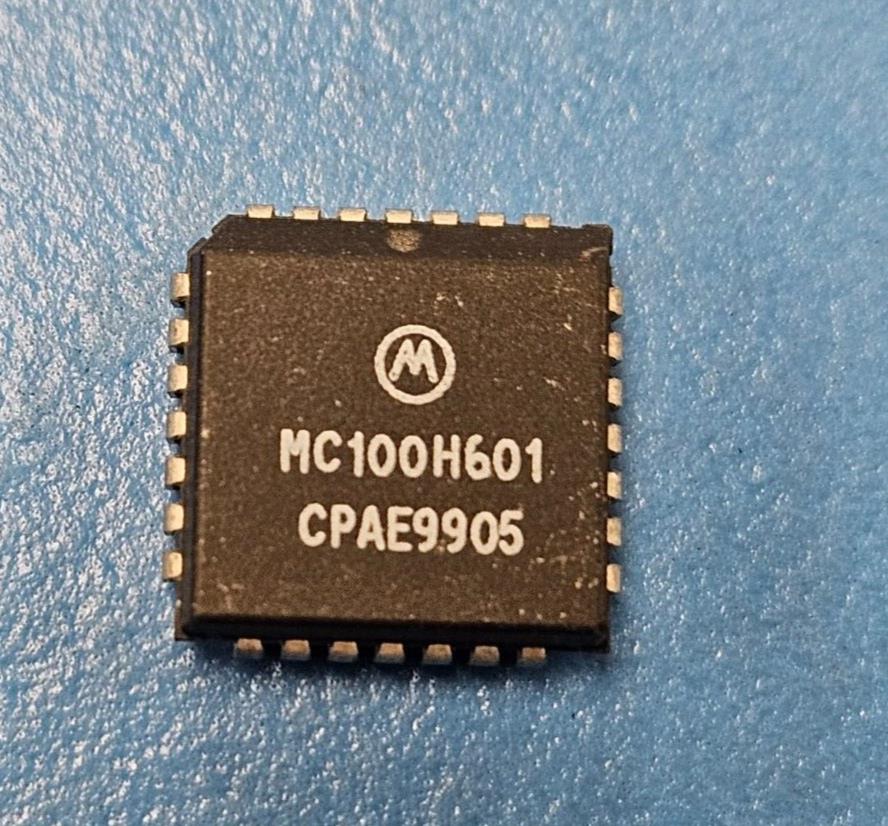

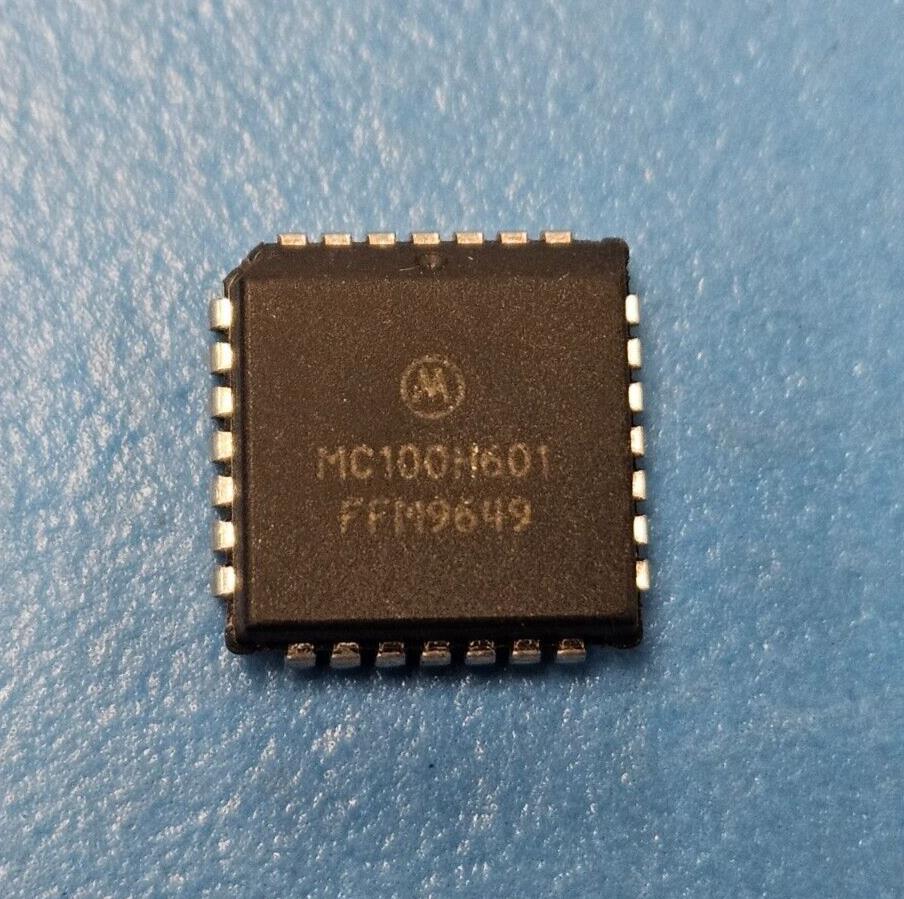

(1PC) MC100H601FN Motorola ECL to TTL Translator, 1 Func, BIPolar, PLCC28
Tax included.
This listing is for (1PC) of MC100H601FN by Motorola
Mfr Package Description PLASTIC, LCC-28
Status Transferred
Interface IC Type ECL TO TTL TRANSLATOR
Delay-Max 9.6 ns
Input Characteristics STANDARD
JESD-30 Code S-PQCC-J28
JESD-609 Code e0
Number of Bits 9
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Output Characteristics 3-STATE
Output Latch or Register NONE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC28,.5SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Level Translators
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 11.5062 mm
Width 11.5062 mm
