(1PC) MB2011SS2G30-CA SWITCH PUSH SPDT 0.4VA 28V
Tax included.

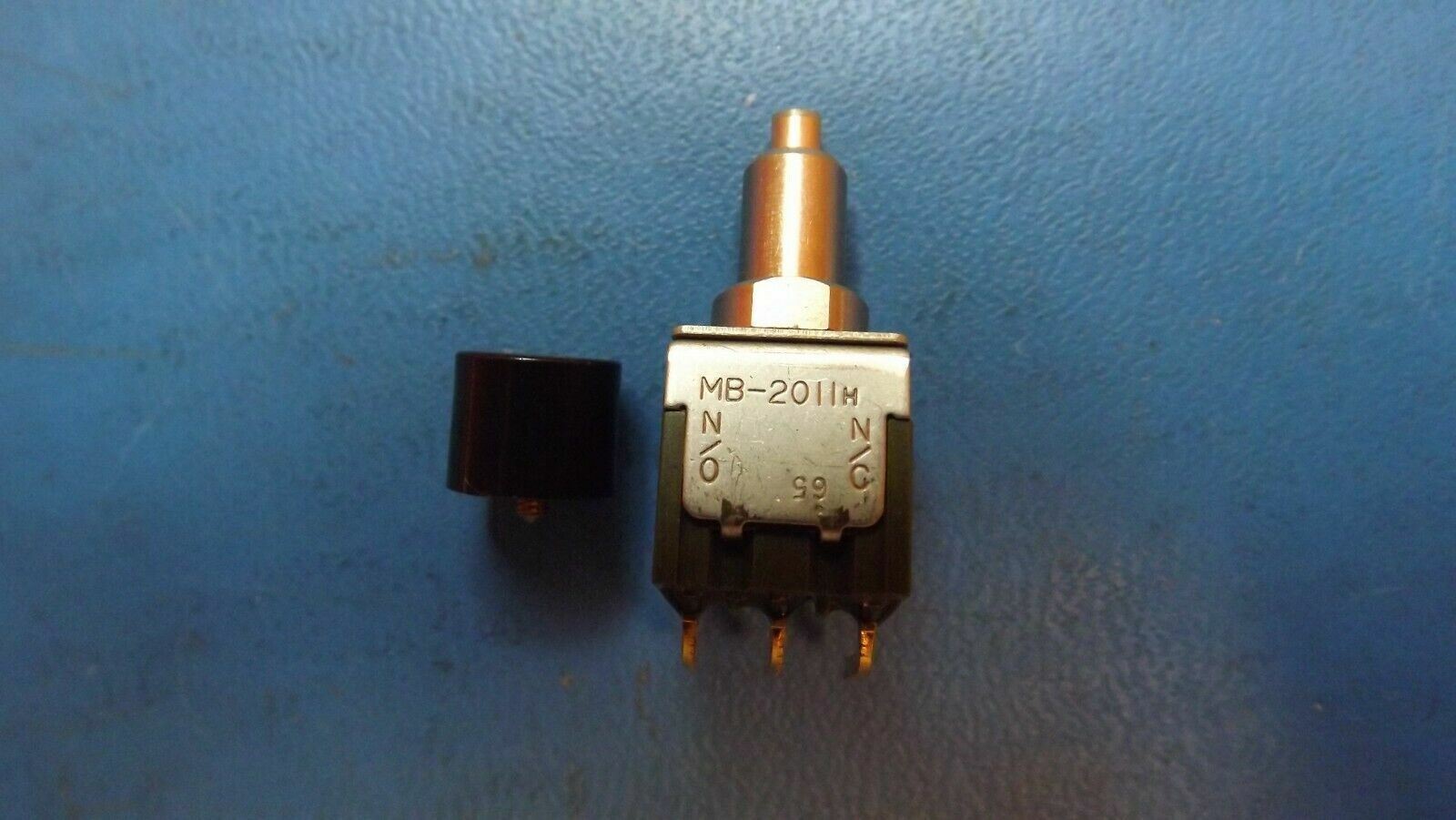

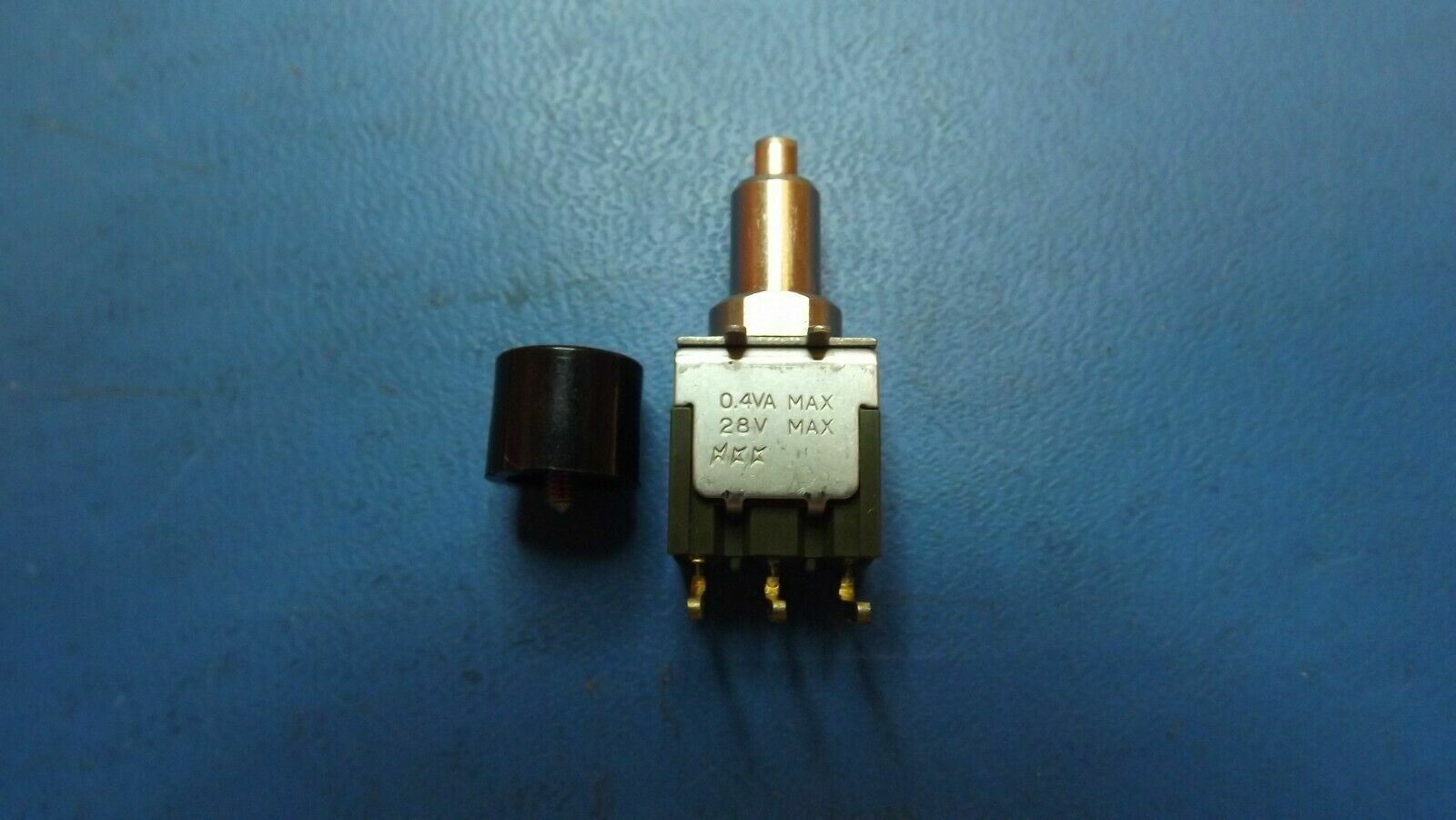

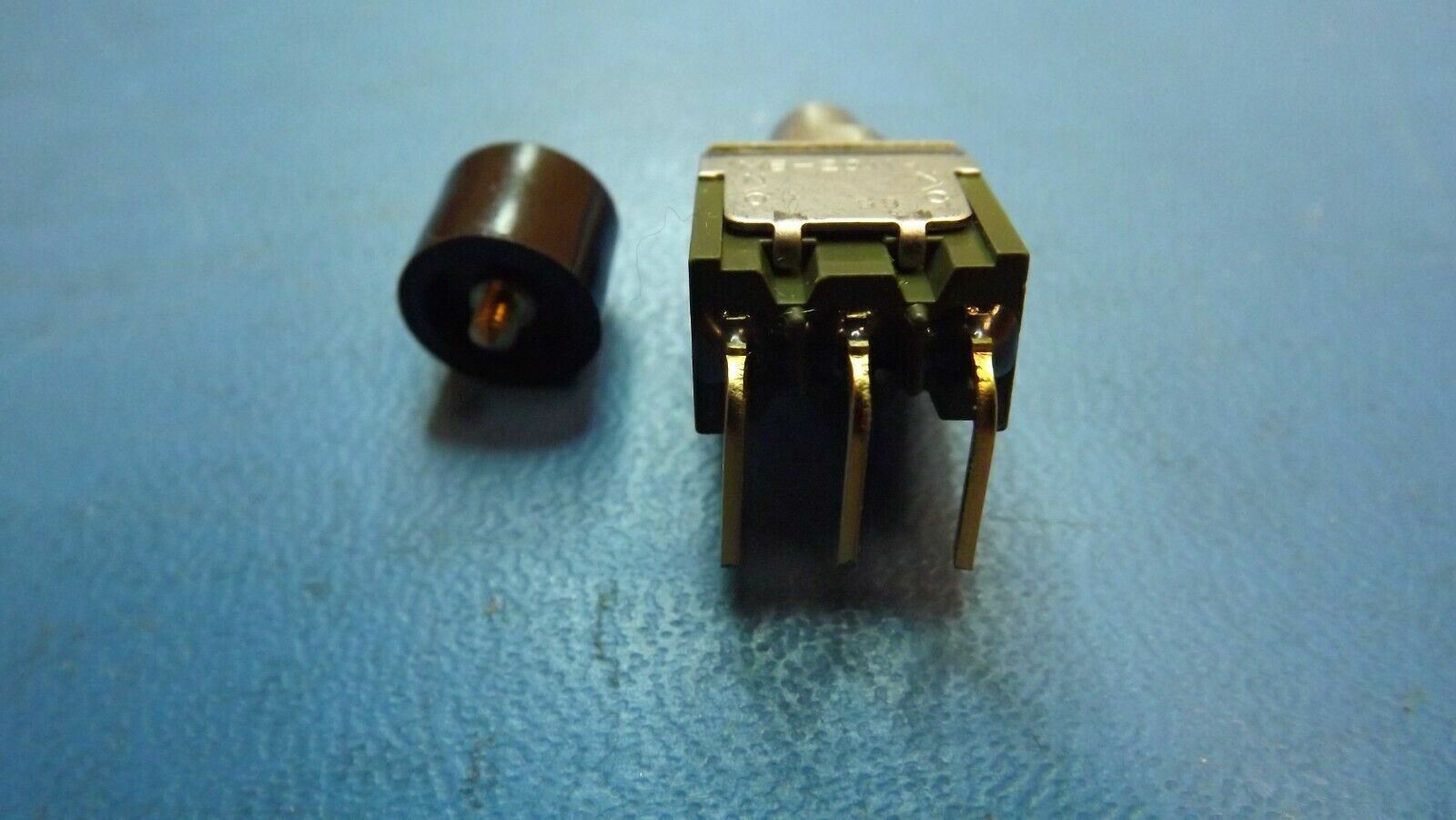

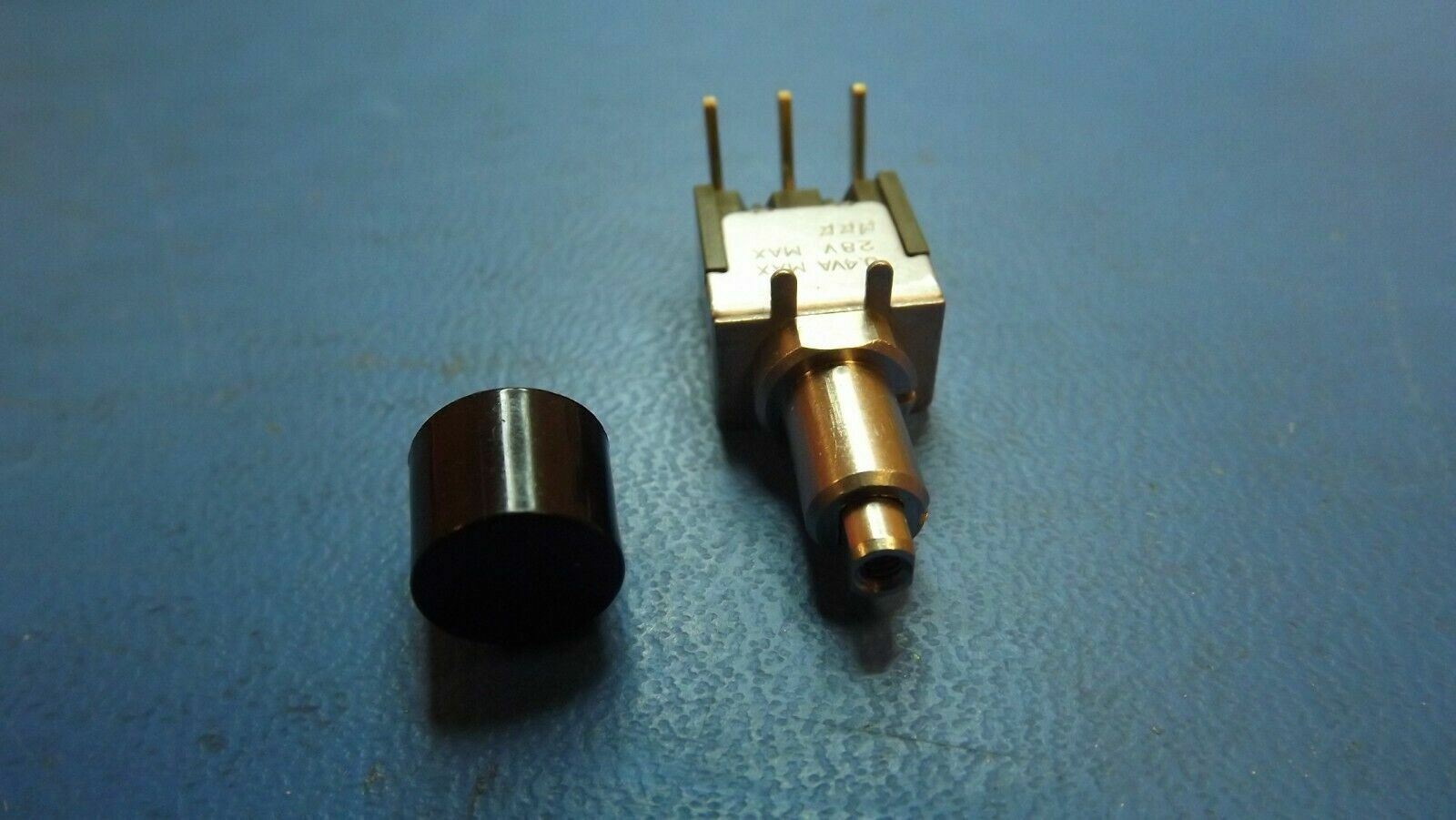

THIS LISTING IS FOR (1PC) OF MB2011SS2G30-CA BY NKK SWITCHES
SPECIFICATIONS
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Switch Type | PUSHBUTTON SWITCH |
| Actuator Angle | 0.0 deg |
| Actuator Color | BLACK |
| Actuator Length | 0.406 inch |
| Actuator Material | POLYSTYRENE |
| Actuator Travel (mm) | 1.8034 |
| Actuator Type | PUSHBUTTON |
| Body Breadth | 7.8994 mm |
| Body Height | 39.116 mm |
| Body Length or Diameter | 13.0048 mm |
| Bushing Diameter | 0.244 inch |
| Bushing Length | 0.335 inch |
| Bushing Type | UNTHREADED |
| Center Contact Plating | GOLD OVER NICKEL |
| Contact DC Max Power Rating R Load | 0.4VA@28VDC |
| Contact Function | ON-(ON) |
| Contact Resistance | 0.02 ohm |
| Contact Timing | SLOW-MAKE/-BREAK |
| Dielectric Withstand Volts (V) | 1500VAC |
| Electrical Life | 50000.0 Cycle(s) |
| End Contact Material | COPPER ALLOY |
| End Contact Plating | GOLD OVER NICKEL |
| Housing Material | STAINLESS STEEL |
| Insulation Resistance | 1.0E9 ohm |
| Insulator Material | DIALLYL PHTHALATE |
| JESD-609 Code | e4 |
| Manufacturer Series | M |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE |
| Operating Temperature-Min | -15.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| PCB Hole Count | 5.0 |
| Solderability | WAVE |
| Switch Action | MOMENTARY |
| Switch Function | SPDT |
| Terminal Finish | GOLD |
| Terminal Length | 0.169 inch |
| Terminal Material | COPPER ALLOY |
| Termination Type | SOLDER |
