(1PC) MAX691EWE MAXIM Supervisor Push-Pull, Push-Pull 1 Channel 16-SOIC
Tax included.

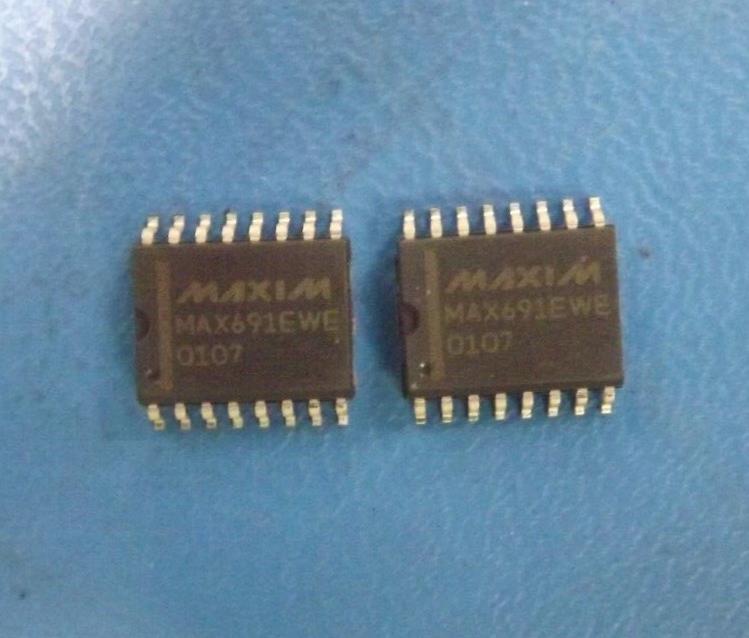

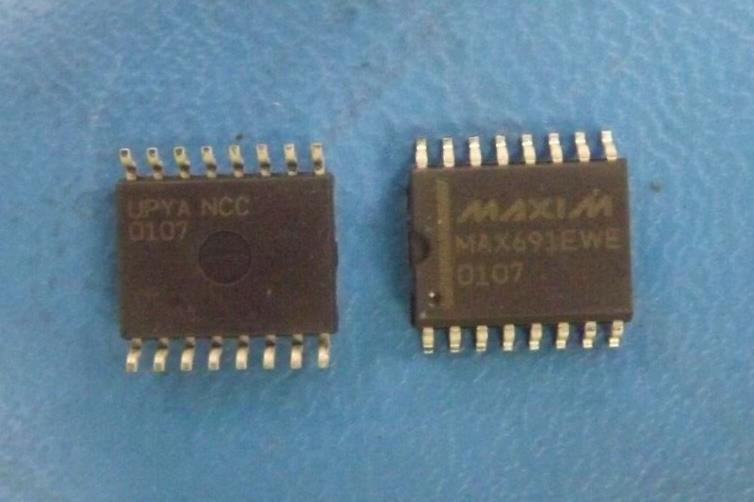

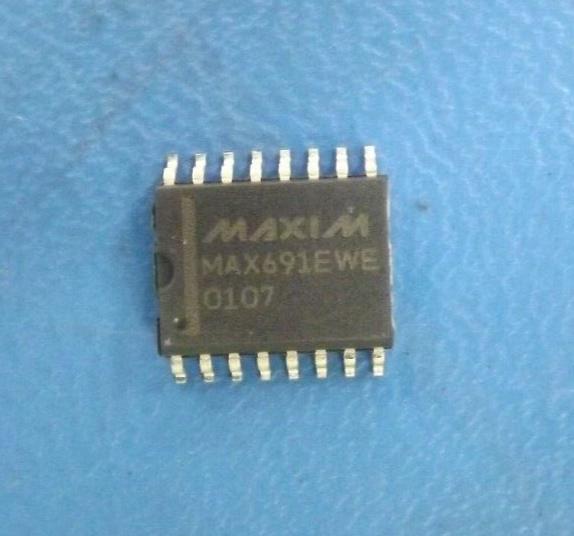

THIS LISTING IS FOR (1PC) OF MAX691EWE BY MAXIM
Mfr Package Description SOP-16
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type POWER SUPPLY MANAGEMENT CIRCUIT
Adjustable Threshold NO
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Channels 1
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Current-Max (Isup) 10.0 mA
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Length 10.3 mm
Width 7.5 mm
Additional Feature RESET THRESHOLD VOLTAGE IS 4.65V
