(1PC) MAX526BCNG D/A Converter, 4 Func, Parallel, Word Input Loading, PDIP24
Tax included.

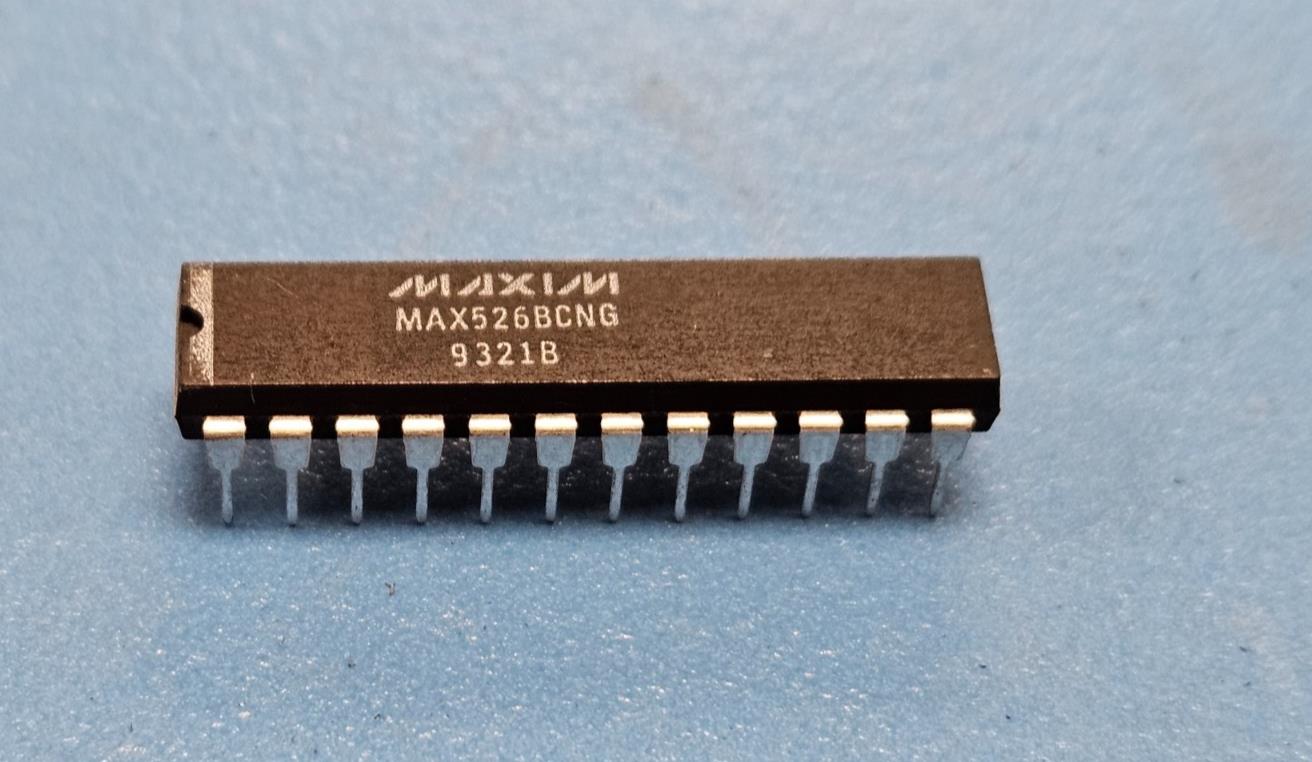

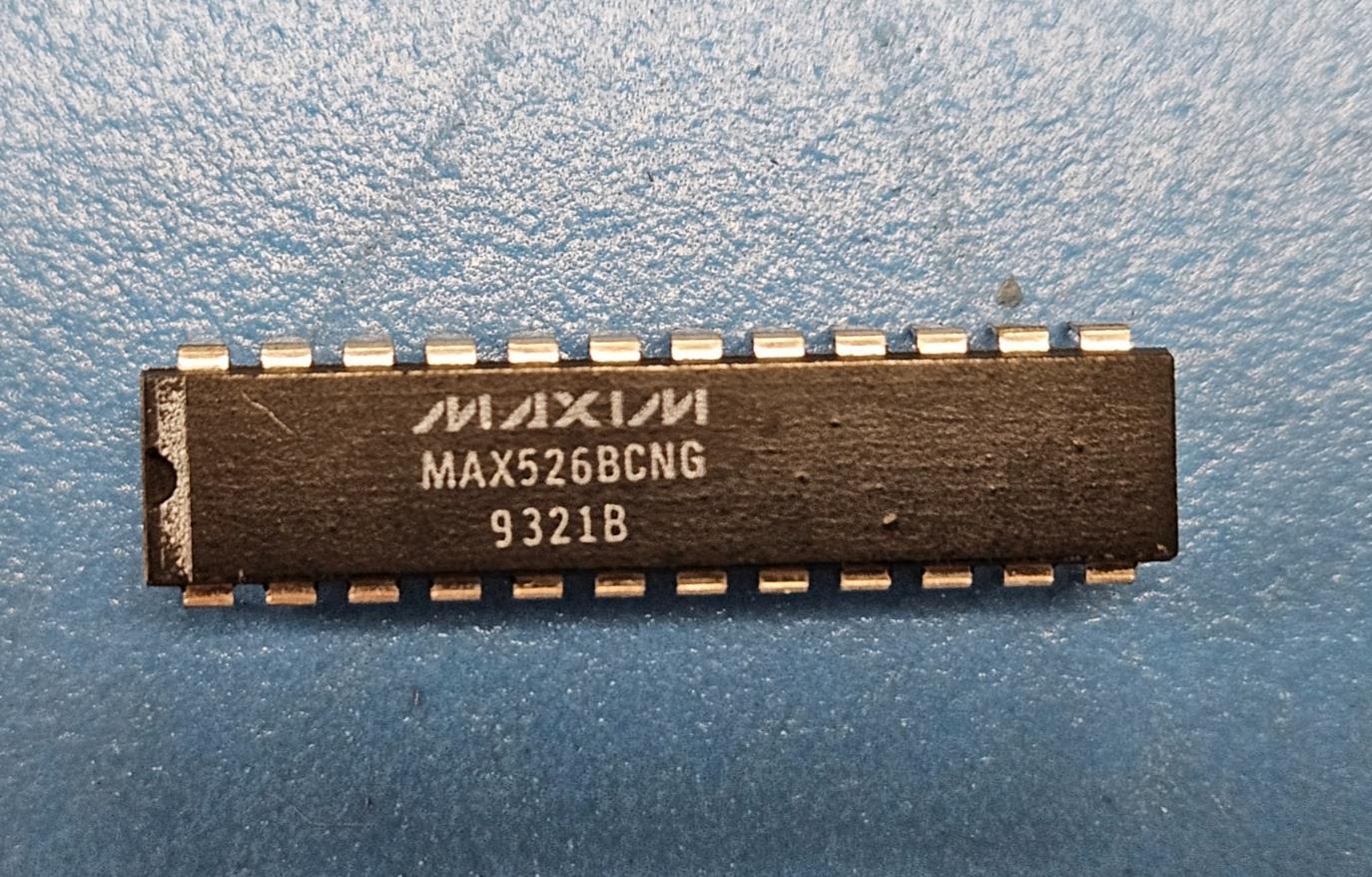

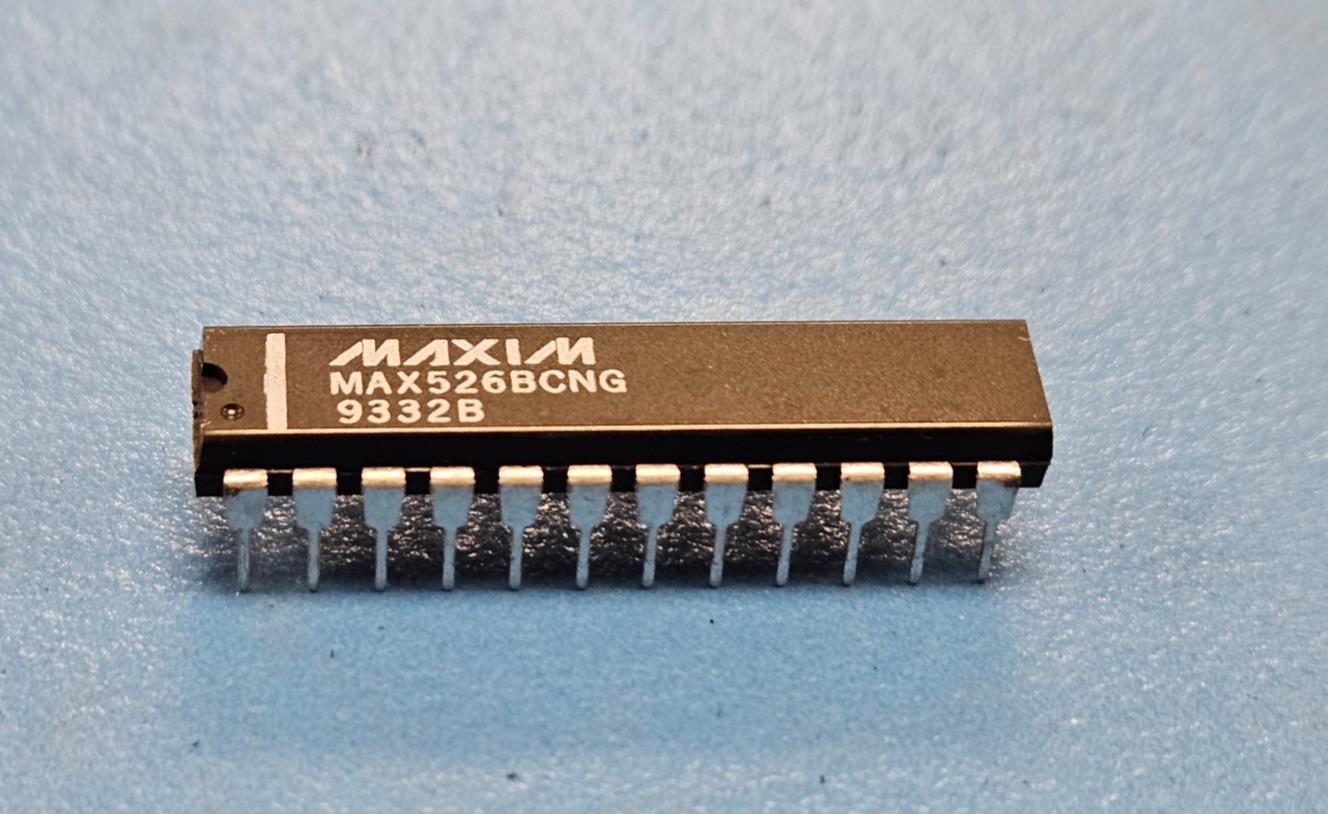

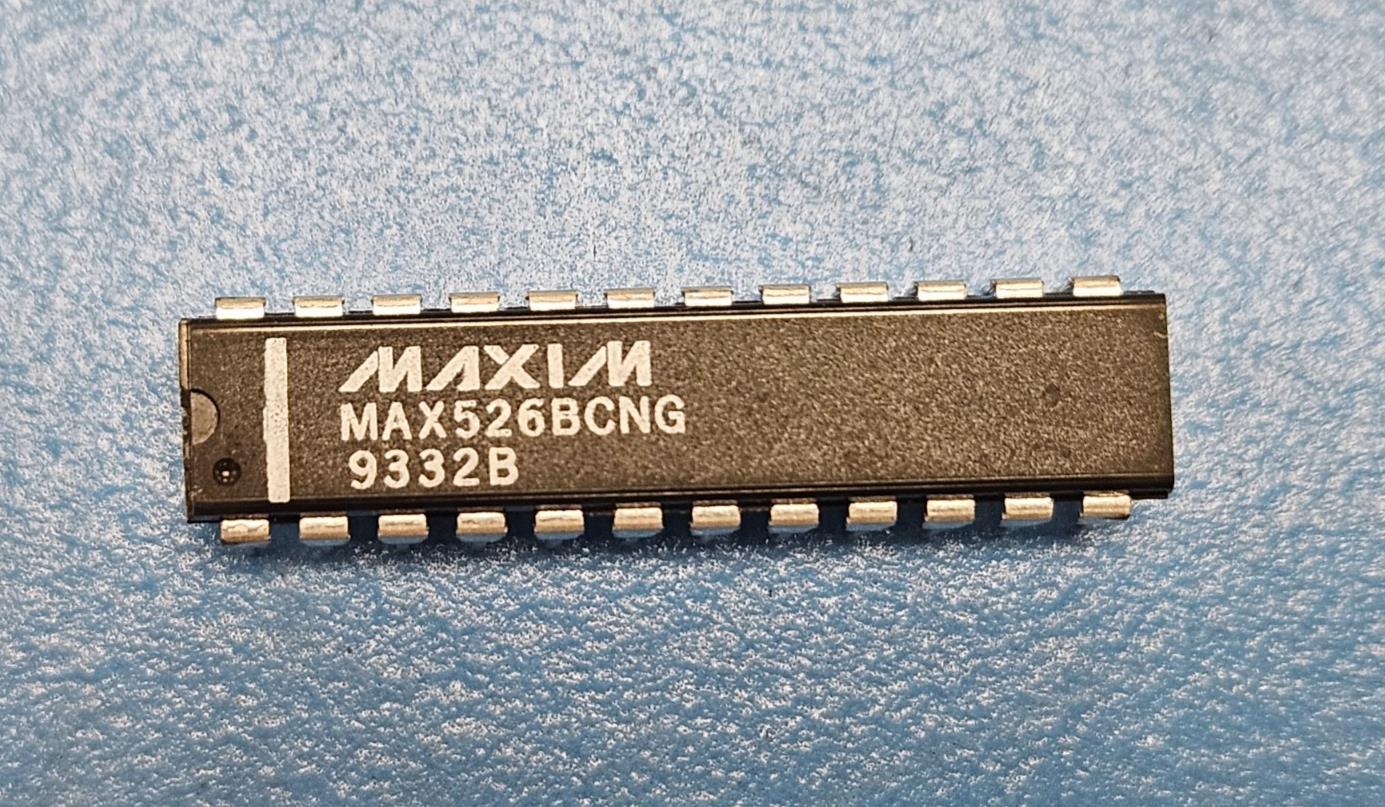

This listing is for (1PC) by MAX526BCNG by Maxim
Mfr Package Description 0.300 INCH, PLASTIC, DIP-24
Status Discontinued
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format PARALLEL, WORD
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Linearity Error-Max (EL) 0.0244 %
Negative Supply Voltage-Nom -5.0 V
Number of Bits 12
Number of Functions 4
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Settling Time-Nom (tstl) 3.0 µs
Sub Category Other Converters
Supply Current-Max 28.0 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
