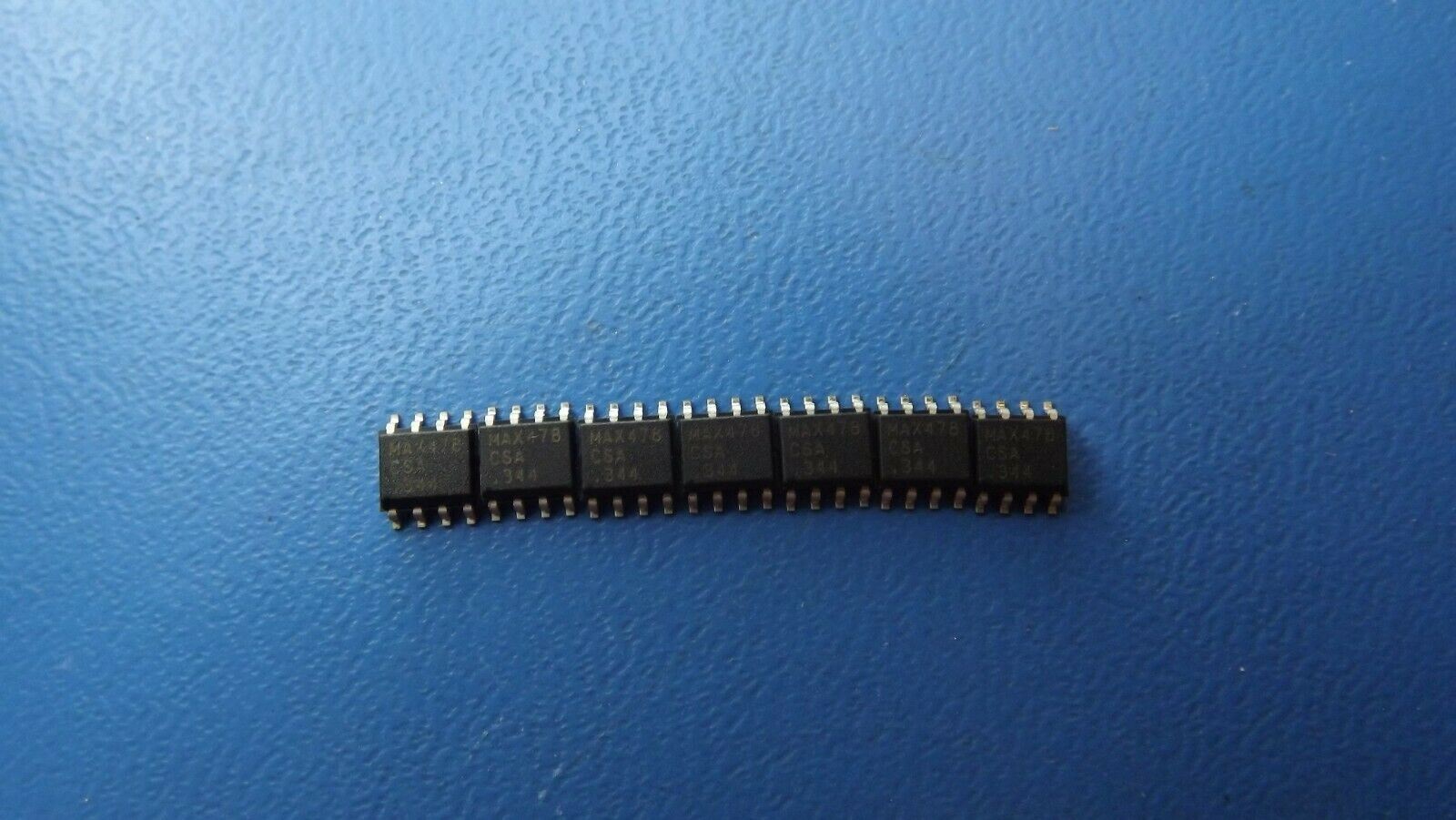

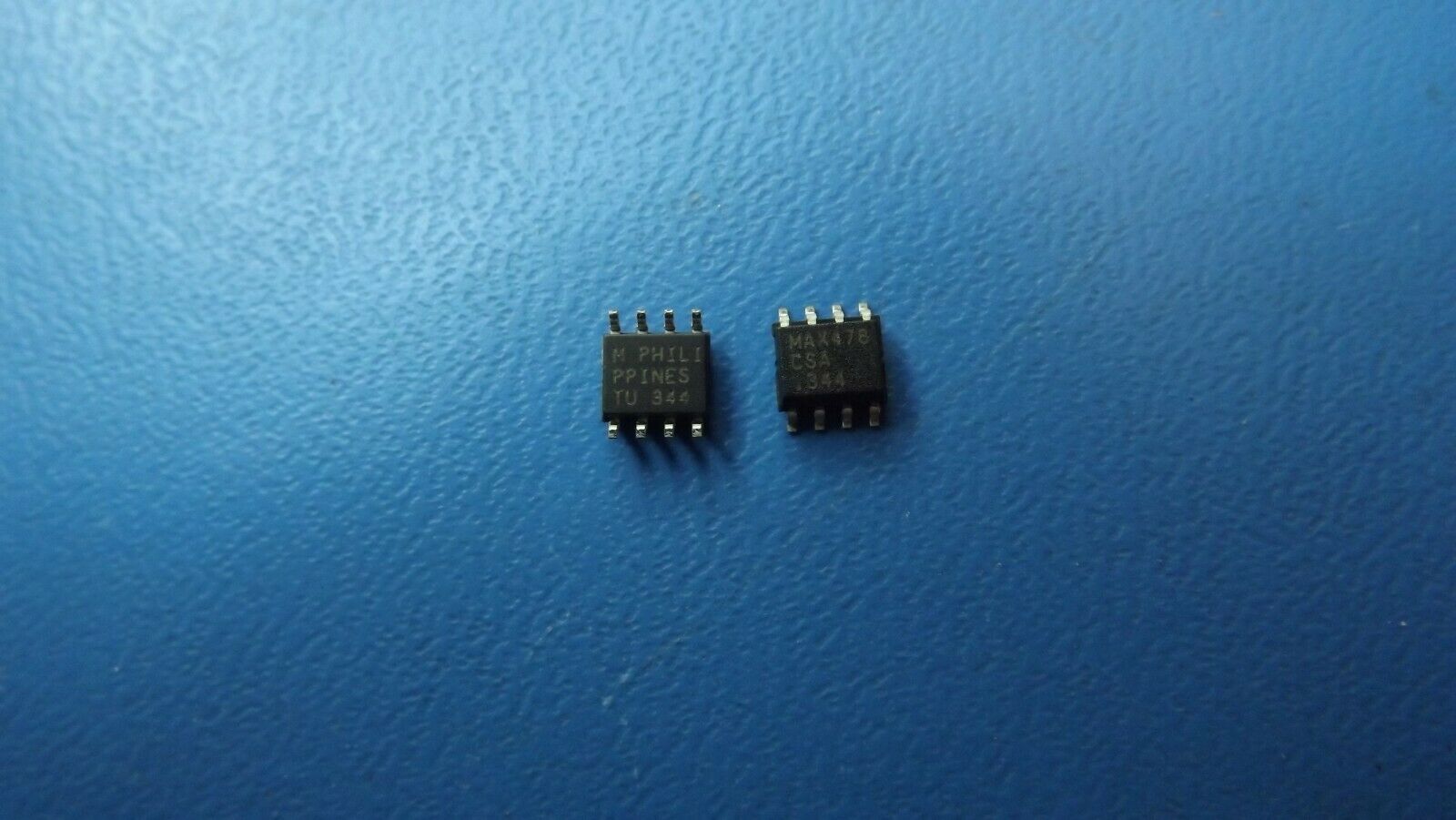

(1PC) MAX478CSA MAXIM IC OPAMP GP 85KHZ 8SOIC

  • $4.95
    Unit price per
Tax included.

Only 7 left!

THIS LISTING IS FOR (1PC) OF MAX478CSA BY MAXIM

Number of Channels: 2 Channel
GBP - Gain Bandwidth Product: 60 kHz
SR - Slew Rate: 0.025 V/us
CMRR - Common Mode Rejection Ratio: 90 dB
Ib - Input Bias Current: 0.006 uA
Vos - Input Offset Voltage: 0.18 mV
en - Input Voltage Noise Density: 50 nV/sqrt Hz
Supply Voltage - Max: 44 V
Supply Voltage - Min: 2.2 V
Operating Supply Current: 42 uA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Amplifier Type: Precision Amplifier
Height: 1.5 mm (Max)
Length: 5 mm (Max)
Product: Precision Amplifiers
Supply Type: Single or Dual
Width: 4 mm (Max)
Brand: Maxim Integrated
Dual Supply Voltage: +/- 3 V or +/- 5 V or +/- 9 V
In - Input Noise Current Density: 0.03 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 22 V
Minimum Dual Supply Voltage: +/- 1.1 V
Operating Supply Voltage: 3 V or 5 V or 9 V or 12 V
Product Type: Precision Amplifiers
PSRR - Power Supply Rejection Ratio: 92 dB
Subcategory: Amplifier ICs
Voltage Gain dB: 116.9 dB
Part # Aliases: MAX478
Unit Weight: 0.006596 oz
