(1PC) MAX297CWE Switched Capacitor Filter, 1 Func, Elliptic, Lowpass, 16-SOIC
Tax included.

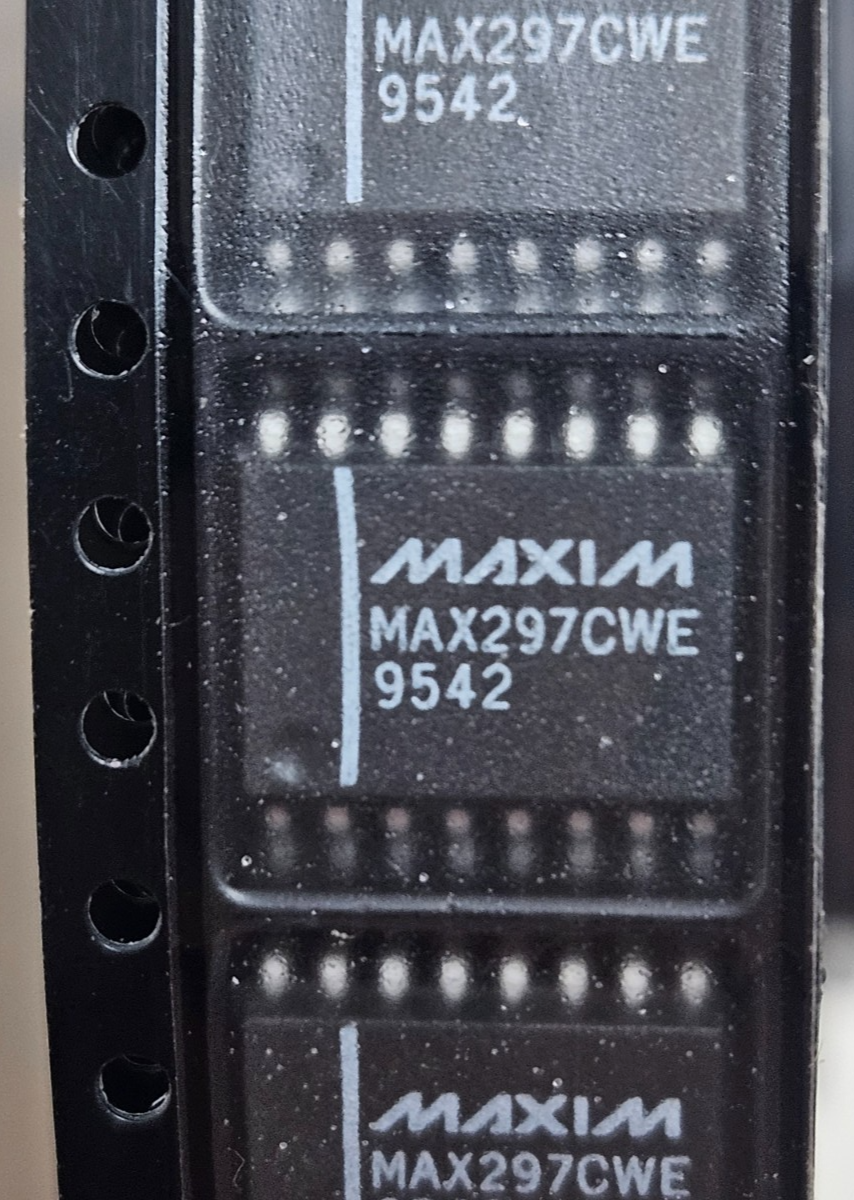

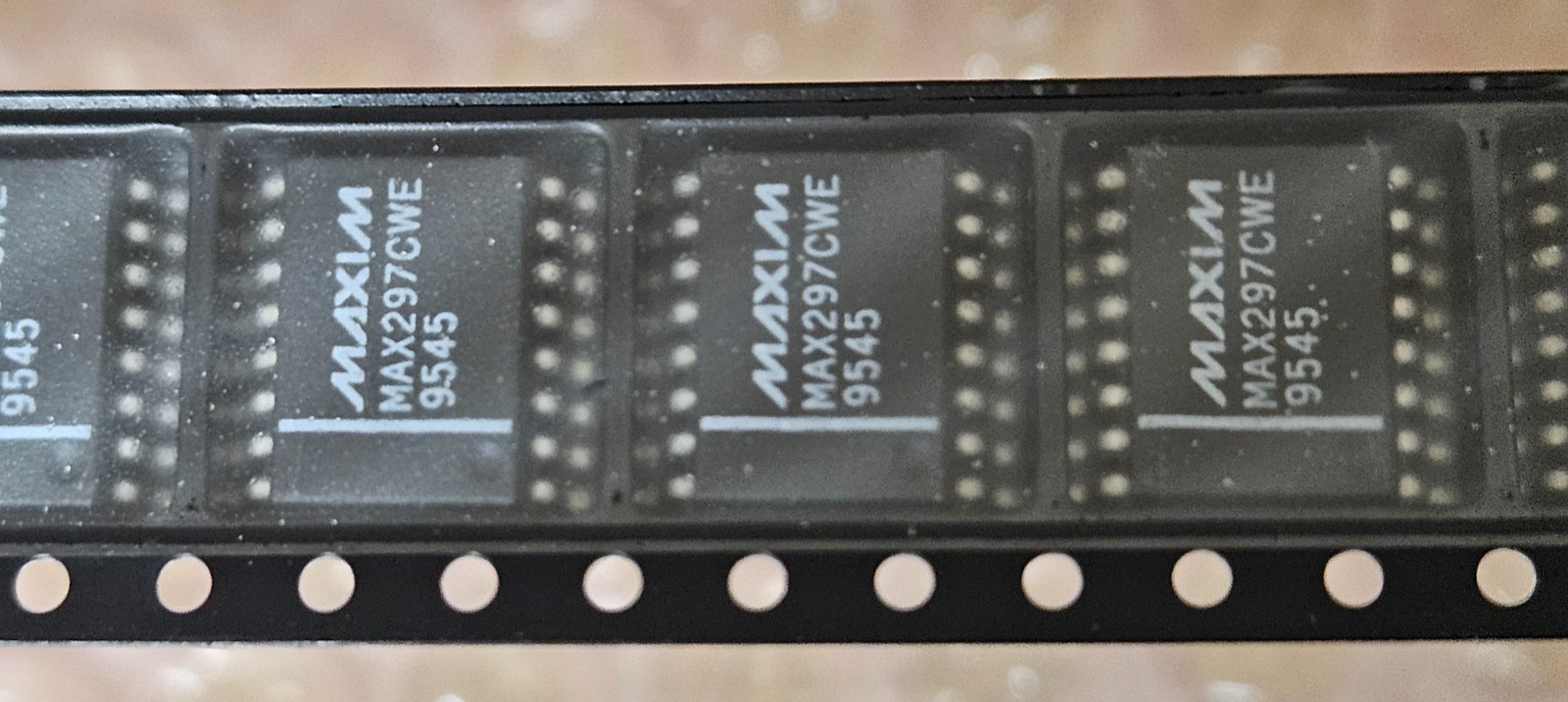

This listing is for (1PC) of MAX297CWE by Maxim
Status Discontinued
Active Filter Type SWITCHED CAPACITOR FILTER
Center or Cutoff Freq Rng-Max (kHz) 50.0000000000000000
Center or Cutoff Freq Rng-Min (kHz) 0.0001000000000000
JESD-30 Code R-PDSO-G16
J-STD-609 Code e0
Length (mm) 10.3000
Moisture Sensitivity Level 1
Negative Supply Voltage-Max (V) -5.5000000000000000
Negative Supply Voltage-Min (V) -2.3750000000000000
Negative Supply Voltage-Nom (V) -5.0000000000000000
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) 0
Order 8TH
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Poles and Zeros 8 AND 0
DLA Qualification Not Qualified
Response LOWPASS
Seated Height-Max (mm) 2.6500
Supply Current-Max (mA) 22.000000000000000
Supply Voltage-Max (V) 5.5000000000000000
Supply Voltage-Min (V) 2.3750000000000000
Supply Voltage-Nom (V) 5
Surface Mount YES
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Transfer Characteristics ELLIPTIC
Width (mm) 7.5000
