(1PC) MAX251EJD Maxim Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, CDIP14
Tax included.

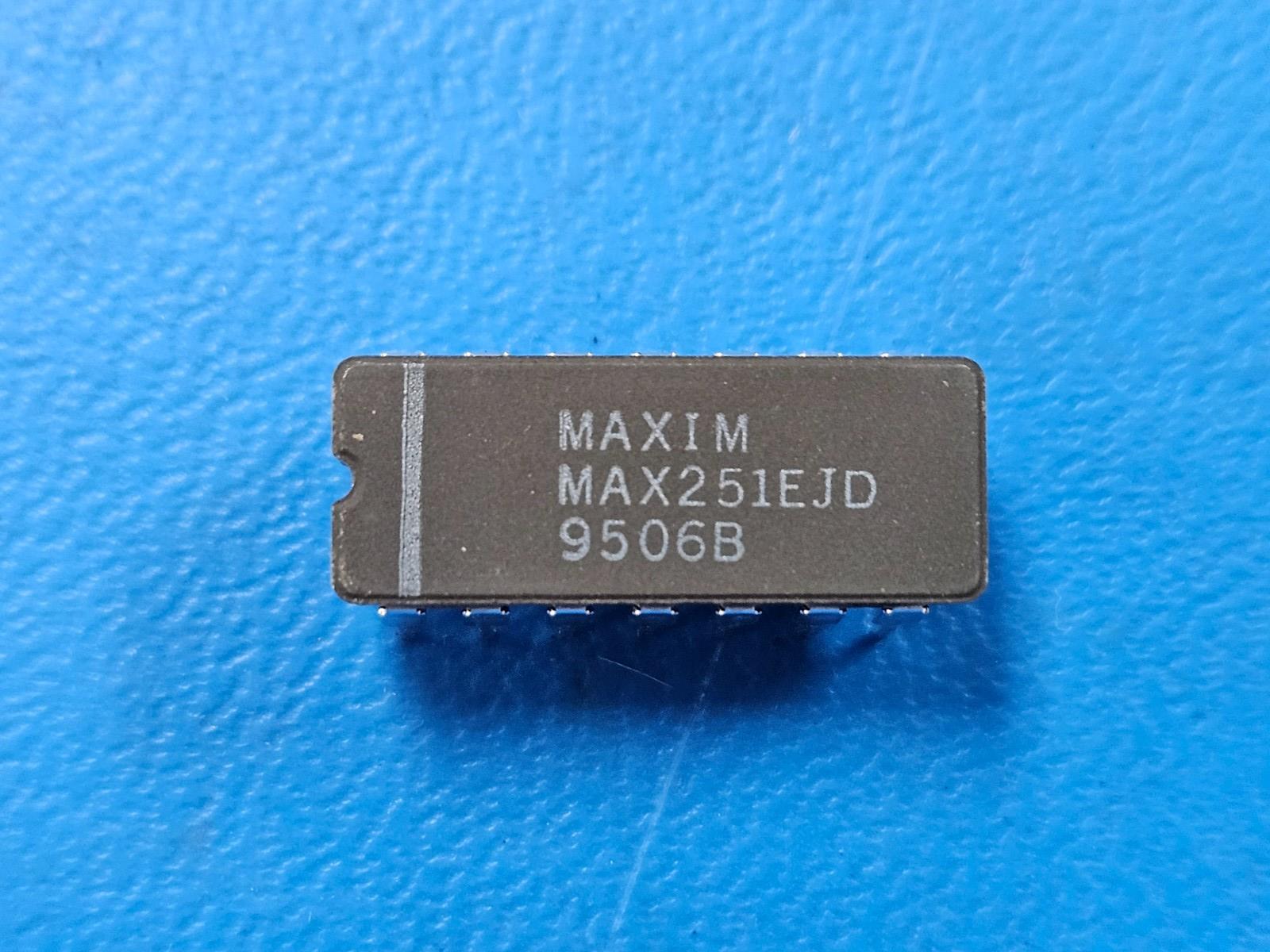

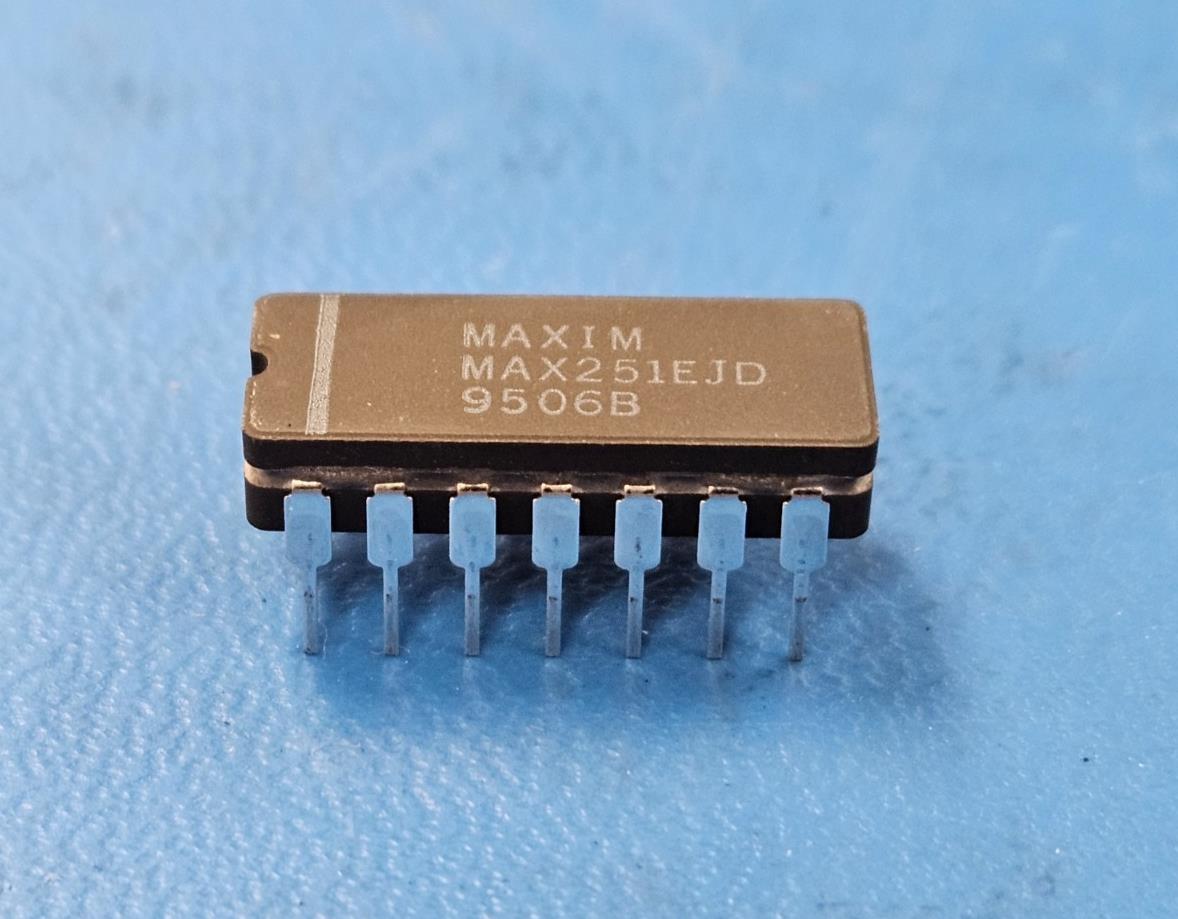

This listing is for (1) MAX251EJD by Maxim
Mfr Package Description CERDIP-14
REACH Compliant Yes
Status Discontinued
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 2.0
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-C; V.28
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Moisture Sensitivity Level 1
Negative Supply Voltage-Nom -10.0 V
Number of Functions 1
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Out Swing-Min 10.0 V
Output Characteristics TOTEM-POLE
Output Low Current-Max 0.0032 Amp
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 0.0 ns
Receiver Number of Bits 2.0
Seated Height-Max 5.842 mm
Sub Category Line Driver or Receivers
Supply Current-Max 2.5 mA
Supply Voltage-Nom 10.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
