(1PC) MAX239CNG Maxim Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, CMOS, PDIP24

$8.95
Unit price per

Tax included.

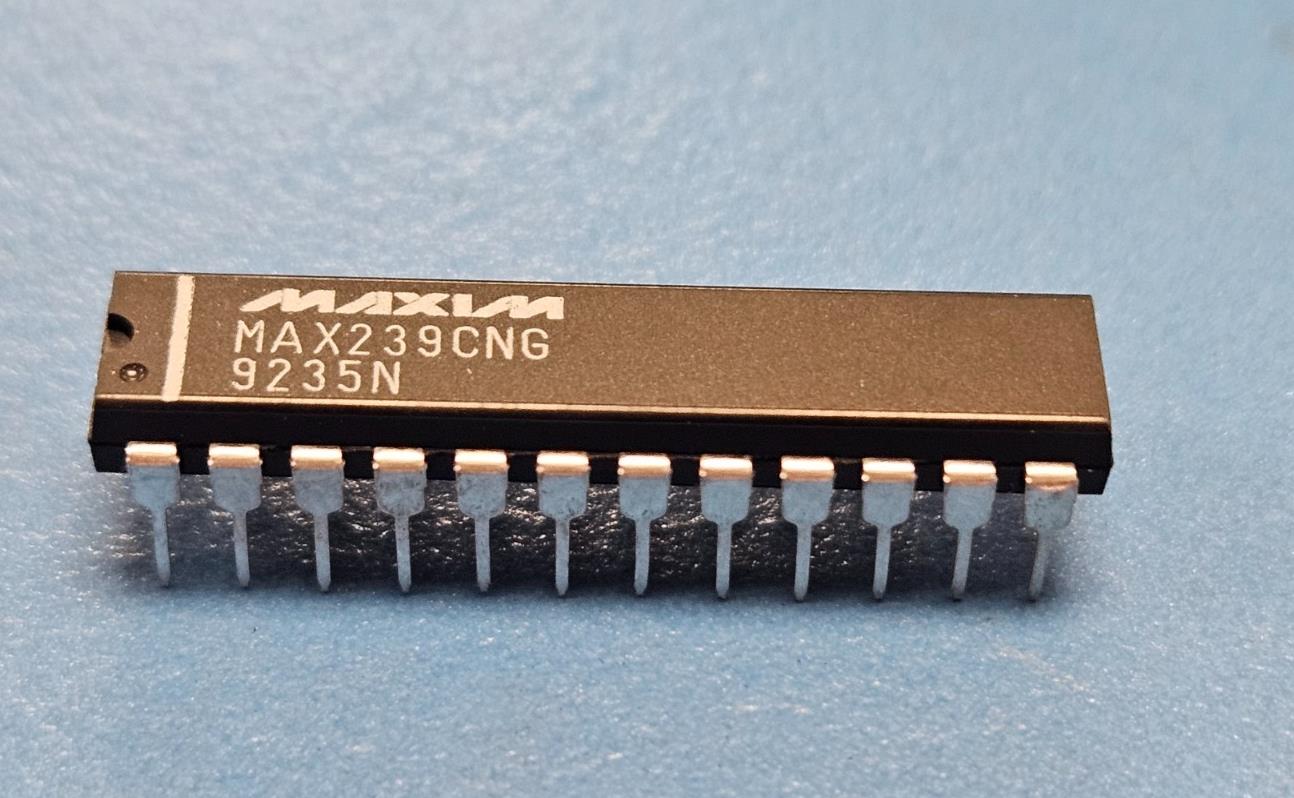

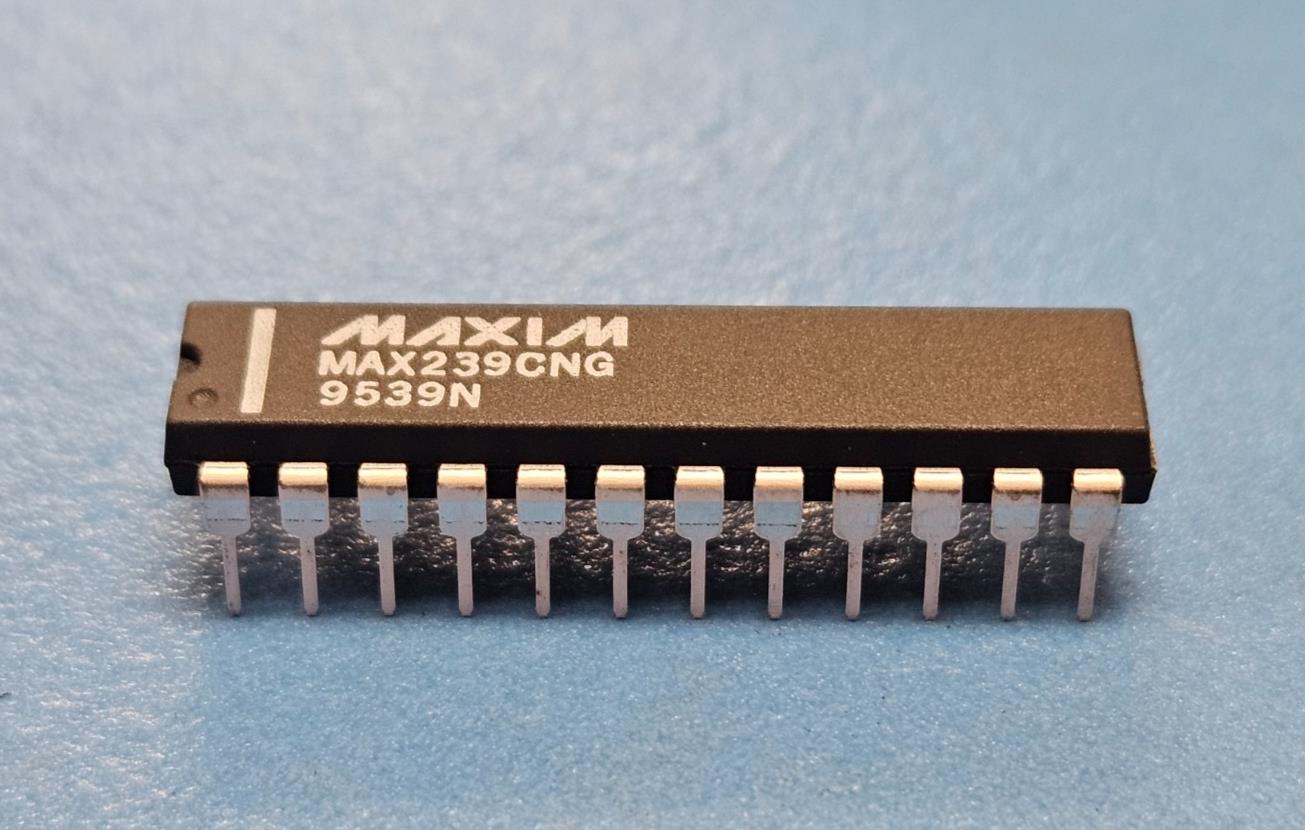

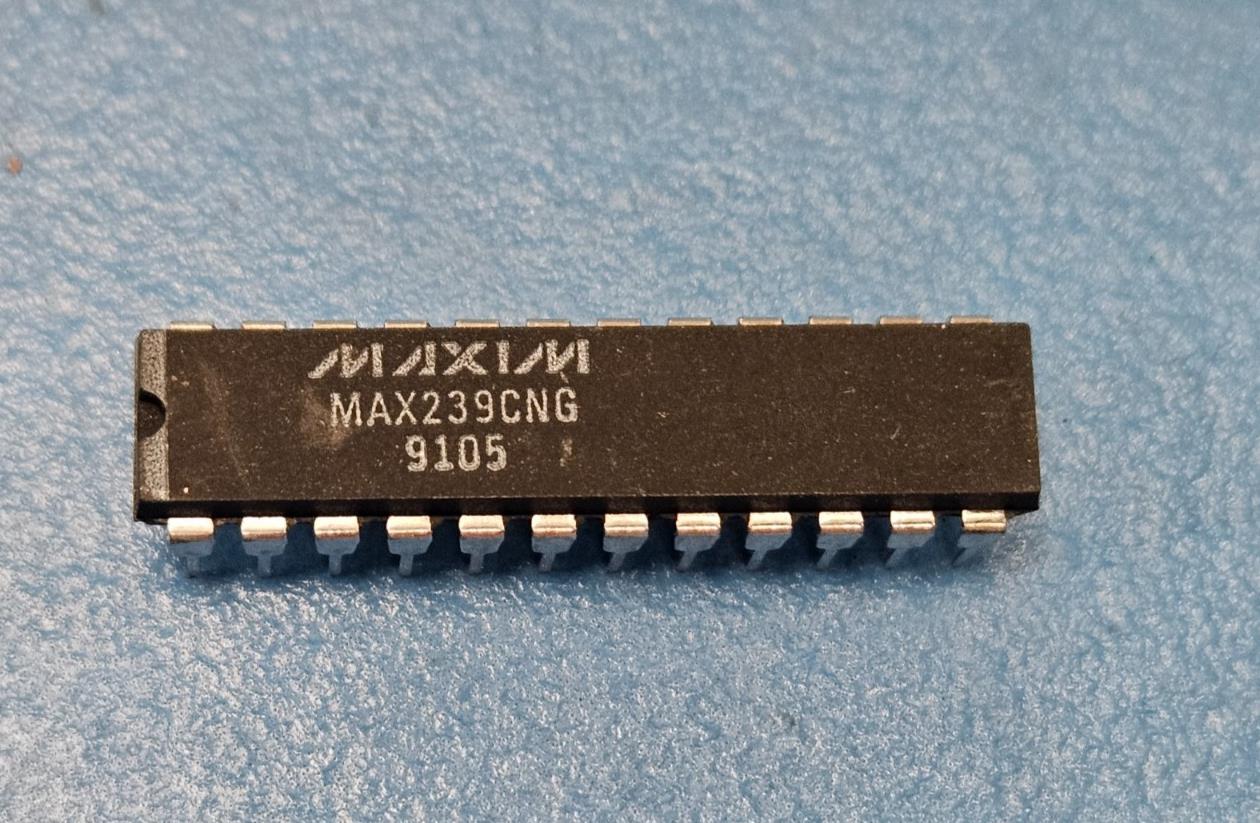

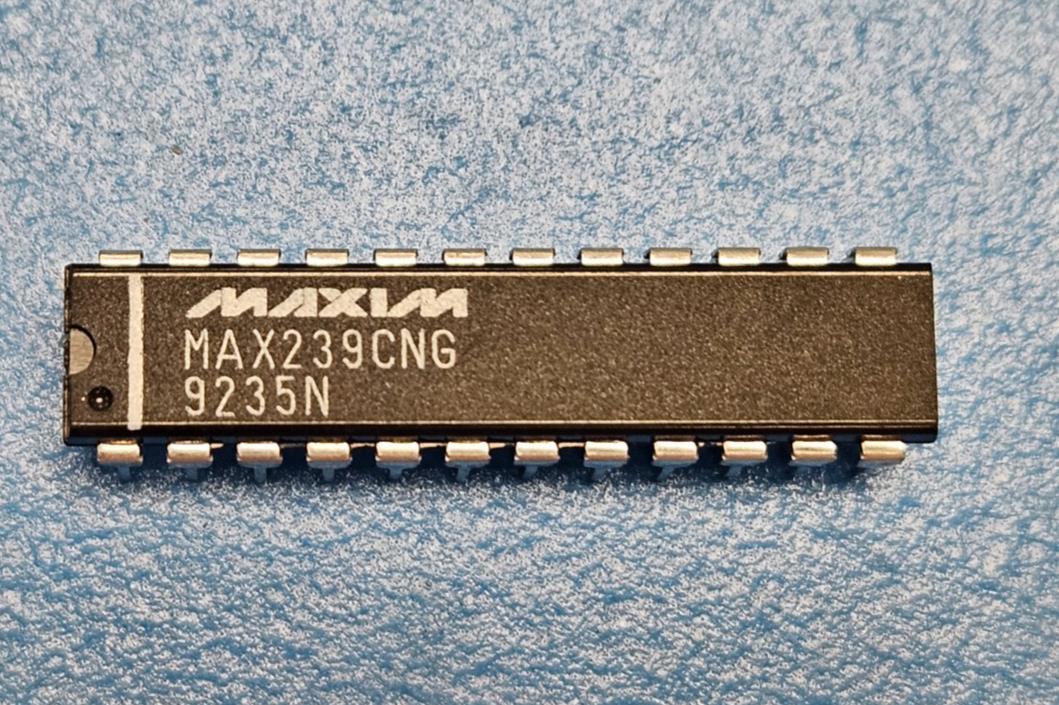

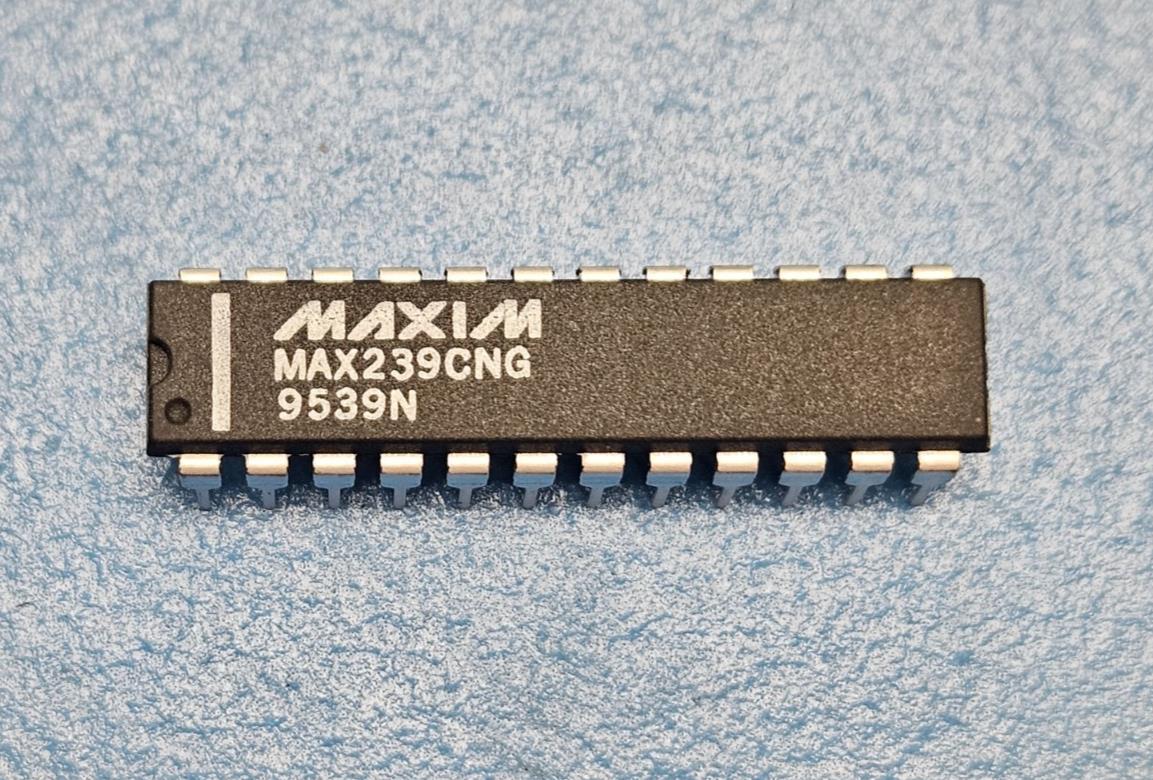

This listing is for (1) MAX239CNG by Maxim

Mfr Package Description PLASTIC, DIP-24

REACH Compliant Yes

Status Discontinued

Interface IC Type LINE TRANSCEIVER

Differential Output NO

Driver Number of Bits 3.0

Input Characteristics SCHMITT TRIGGER

Interface Standard EIA-232-E; TIA-232-E; V.28; V.24

JESD-30 Code R-PDIP-T24

JESD-609 Code e0

Moisture Sensitivity Level 1

Number of Functions 3

Number of Terminals 24

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Out Swing-Min 10.0 V

Output Characteristics TOTEM-POLE

Output Low Current-Max 0.0016 Amp

Output Polarity INVERTED

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP24,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Qualification Status Not Qualified

Receive Delay-Max 10000.0 ns

Receiver Number of Bits 5.0

Seated Height-Max 4.572 mm

Sub Category Line Driver or Receivers

Supply Voltage-Nom 5.0 V

Supply Voltage-Min 4.5 V

Supply Voltage-Max 5.5 V

Surface Mount NO

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Transmit Delay-Max 10000.0 ns
