(1PC) MAX235CPG Line Transceiver, 5 Func, 5 Driver, 5 Rcvr, PDIP24
Tax included.

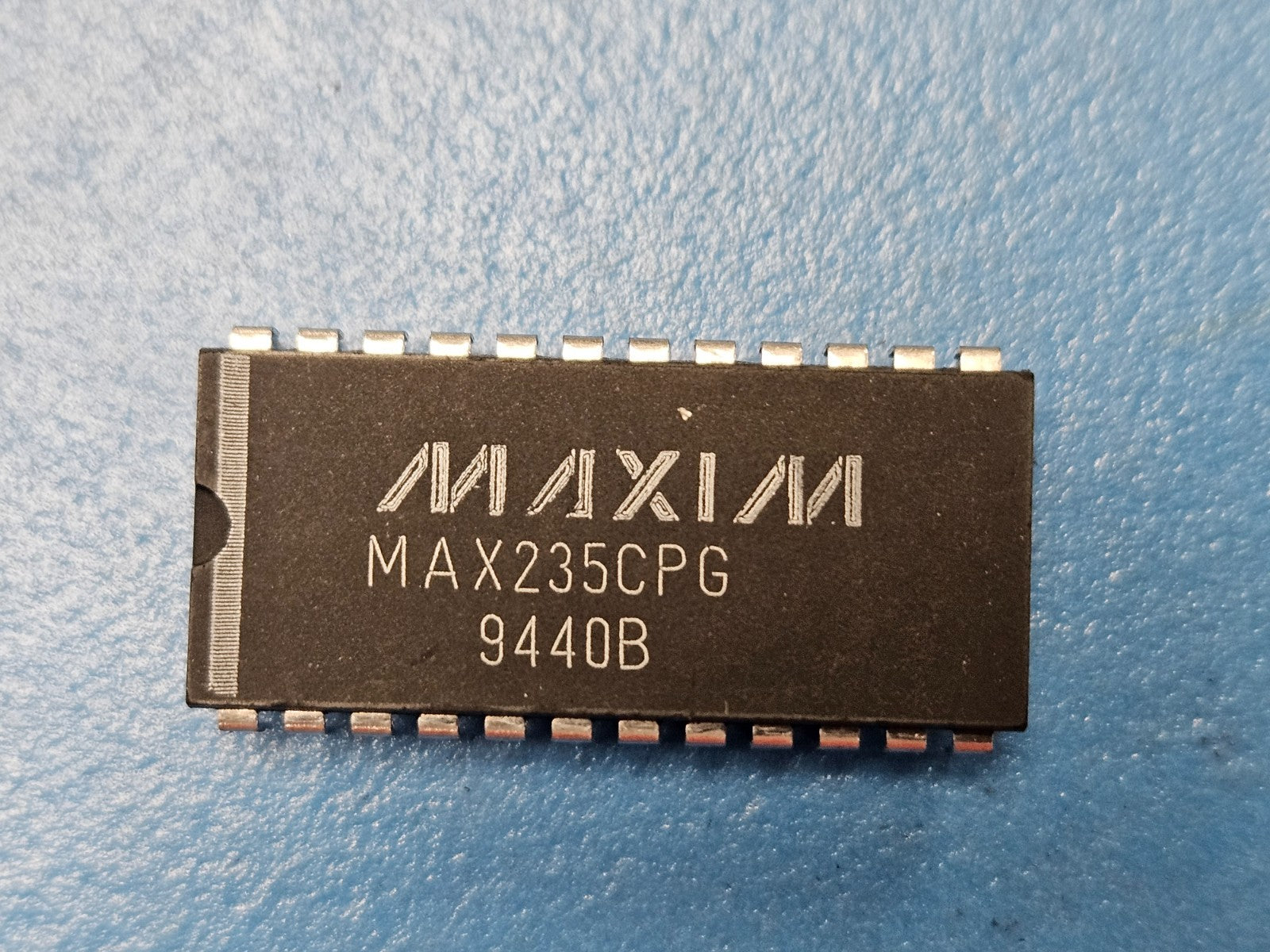

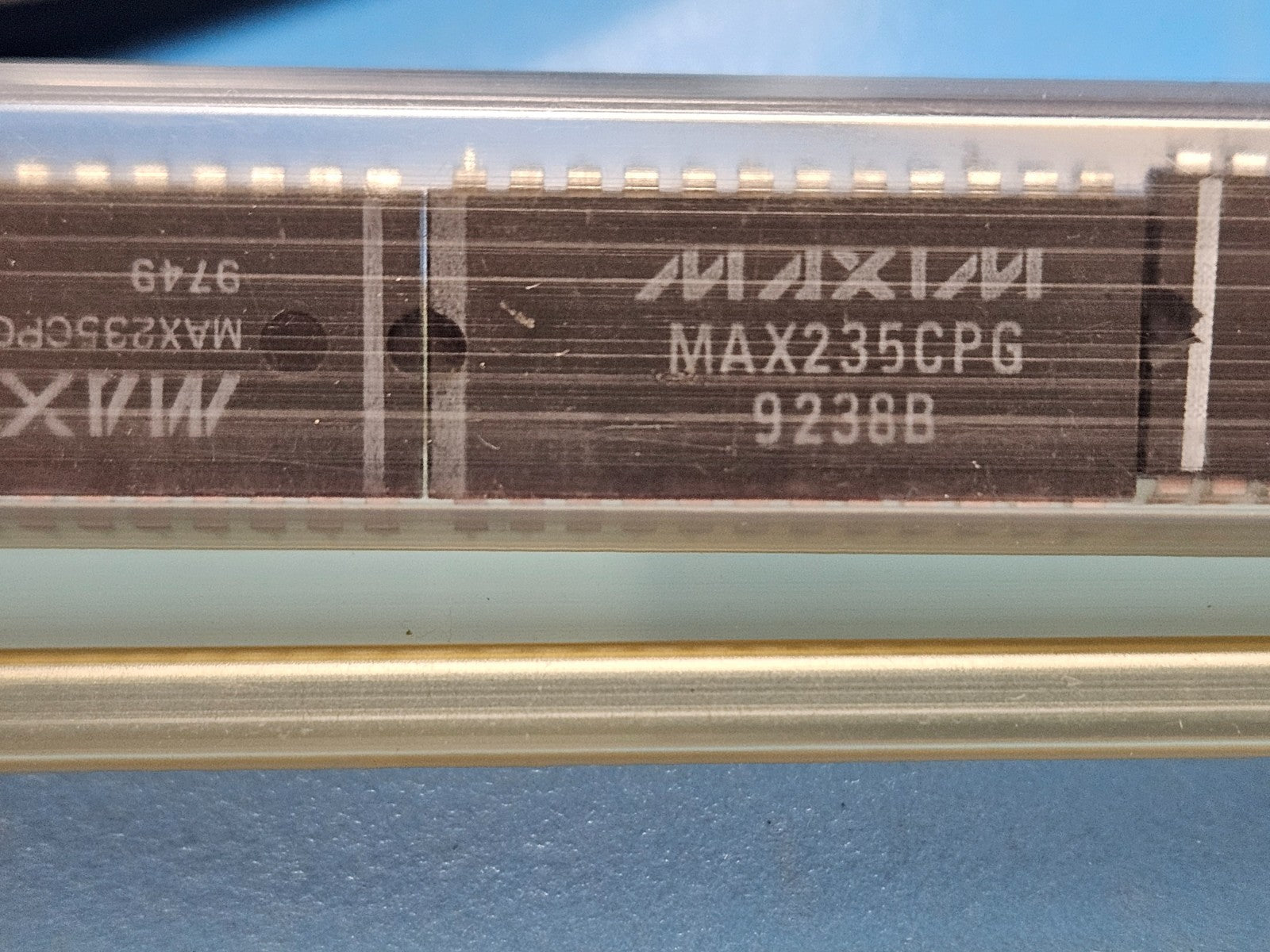

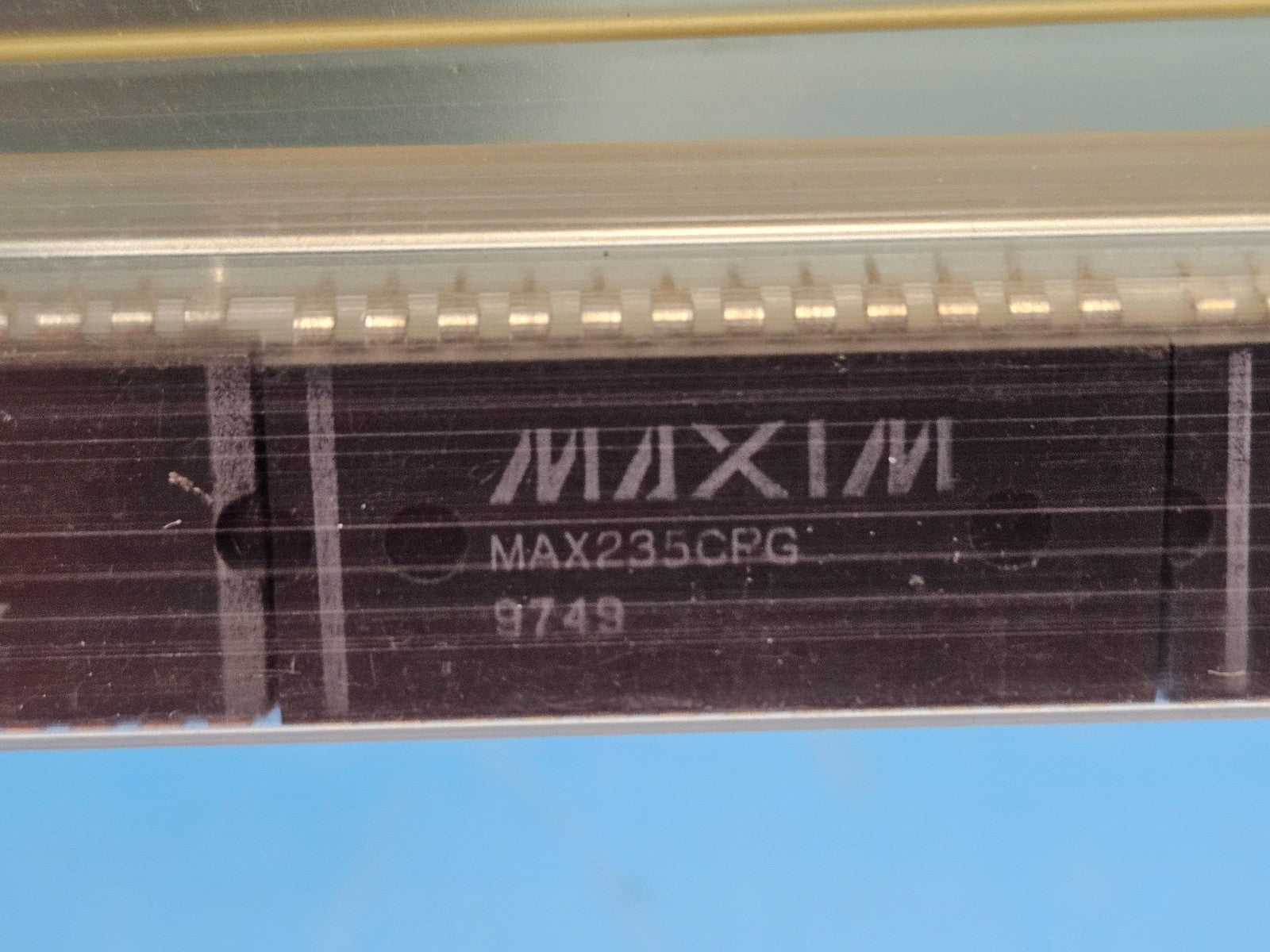

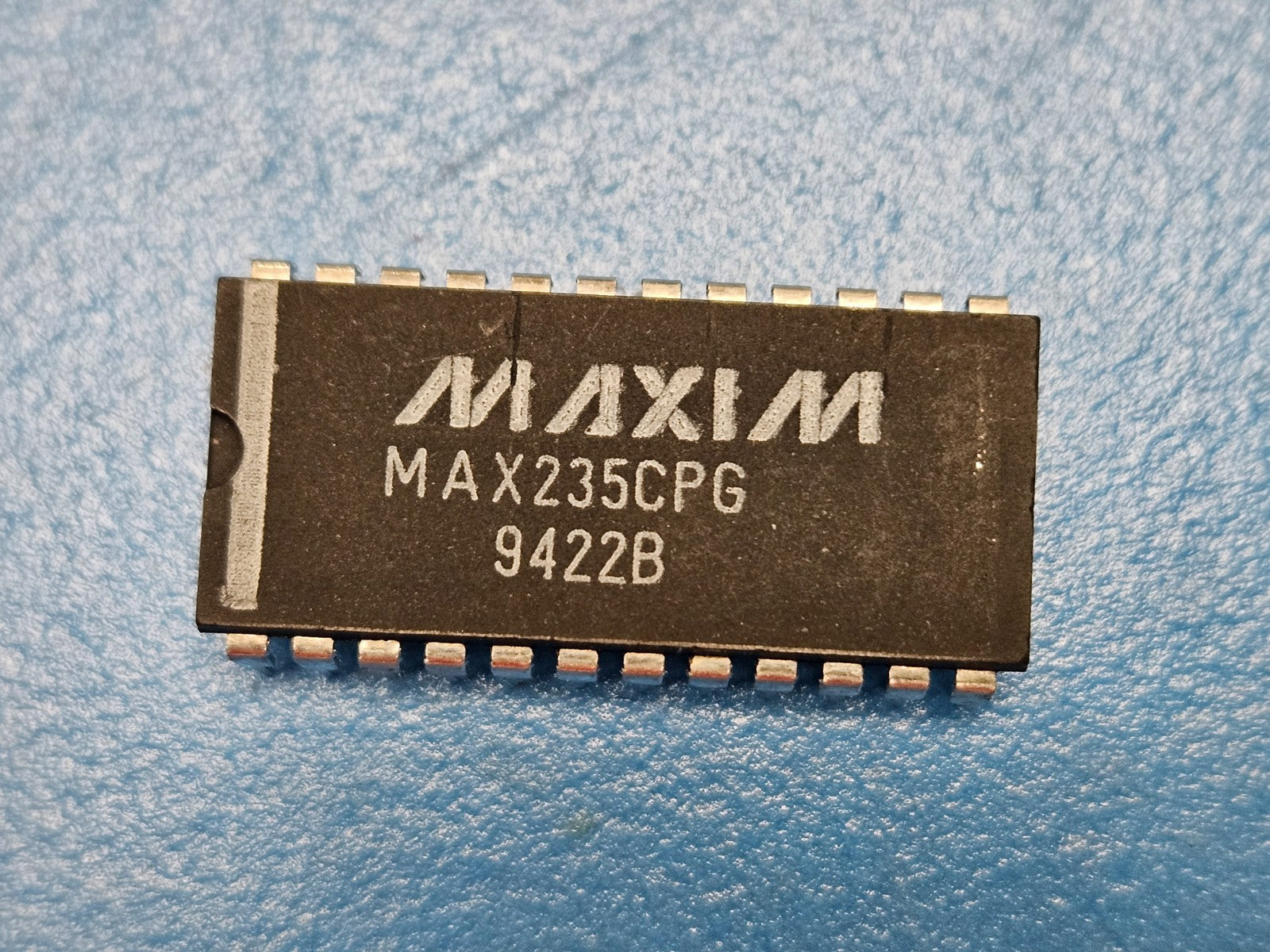

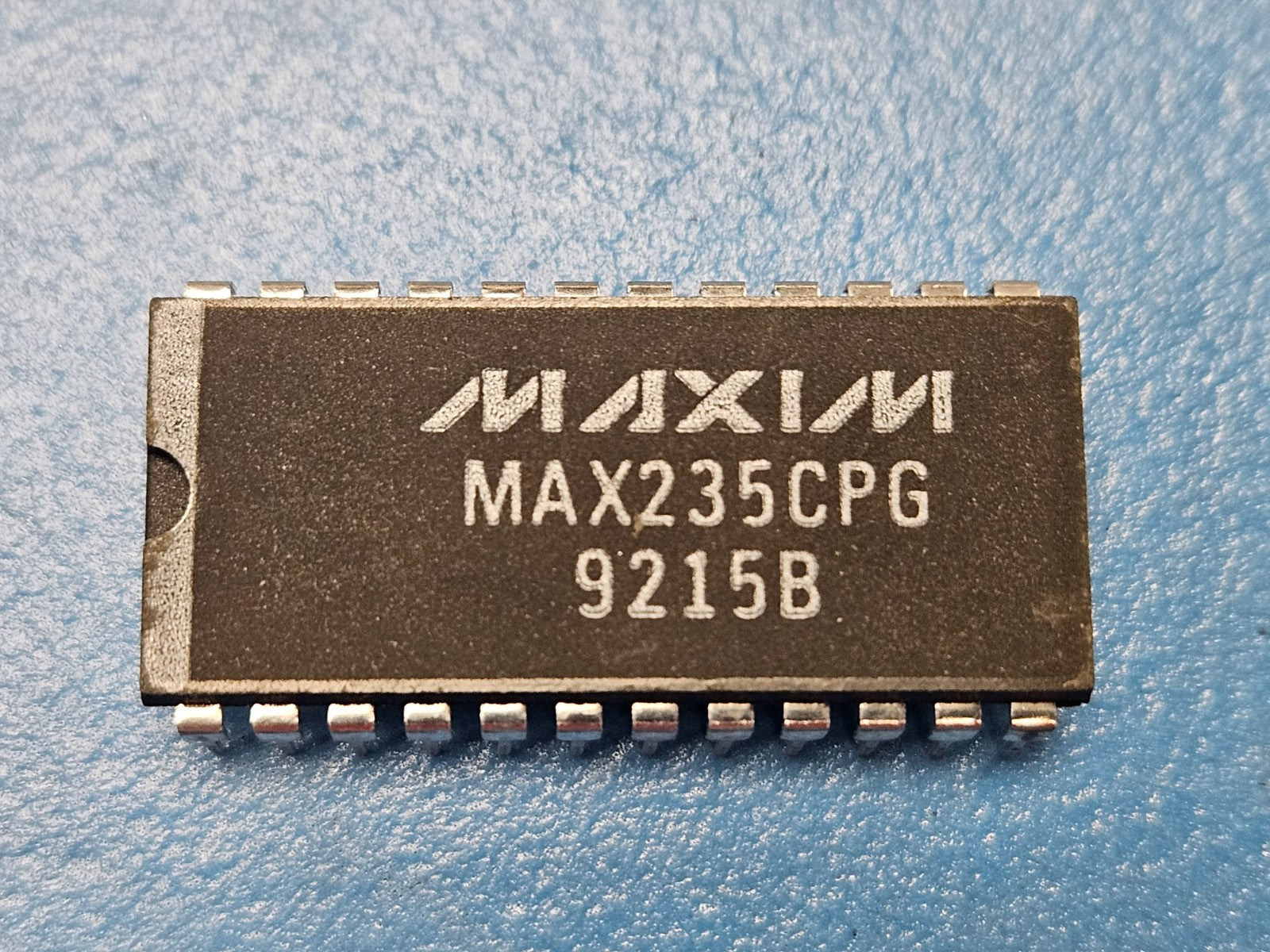

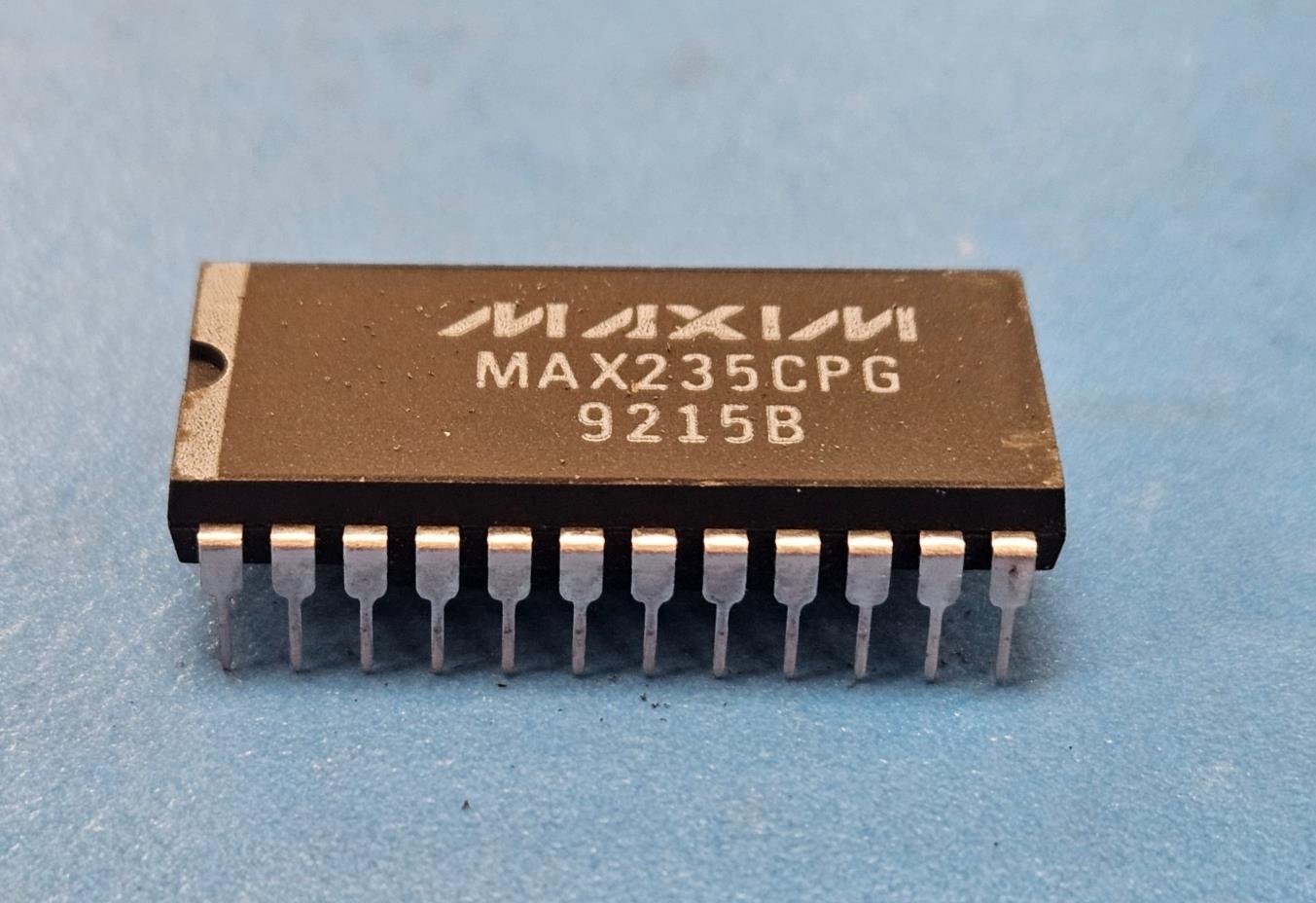

This listing is for (1PC) of MAX235CPG by Maxim
Mfr Package Description PLASTIC, DIP-24
Status Discontinued
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 5.0
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-E; TIA-232-E; V.28; V.24
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Functions 5
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Out Swing-Min 10.0 V
Output Characteristics 3-STATE
Output Low Current-Max 0.0016 Amp
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 10000.0 ns
Receiver Number of Bits 5.0
Seated Height-Max 5.08 mm
Sub Category Line Driver or Receivers
Supply Current-Max 15.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Transmit Delay-Max 10000.0 ns
