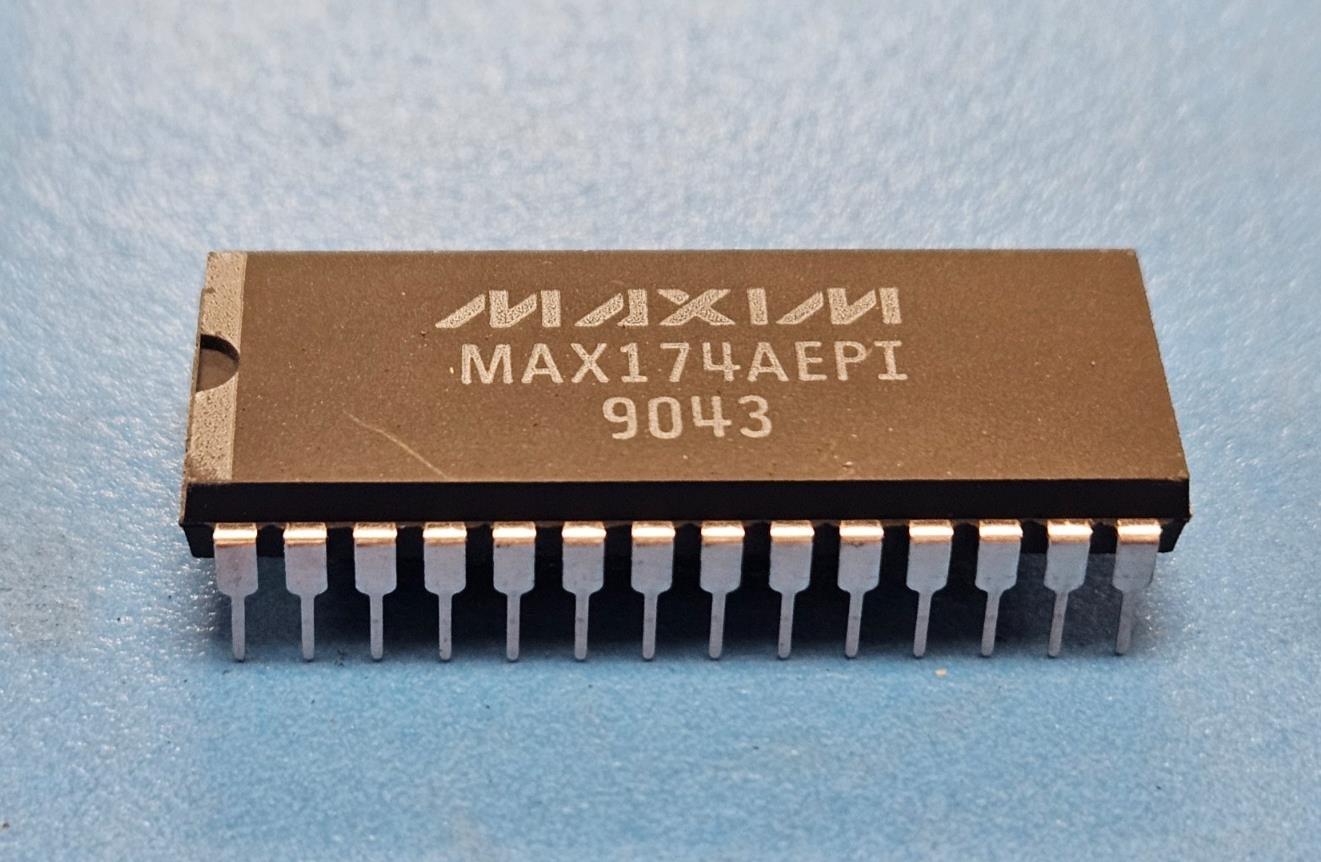

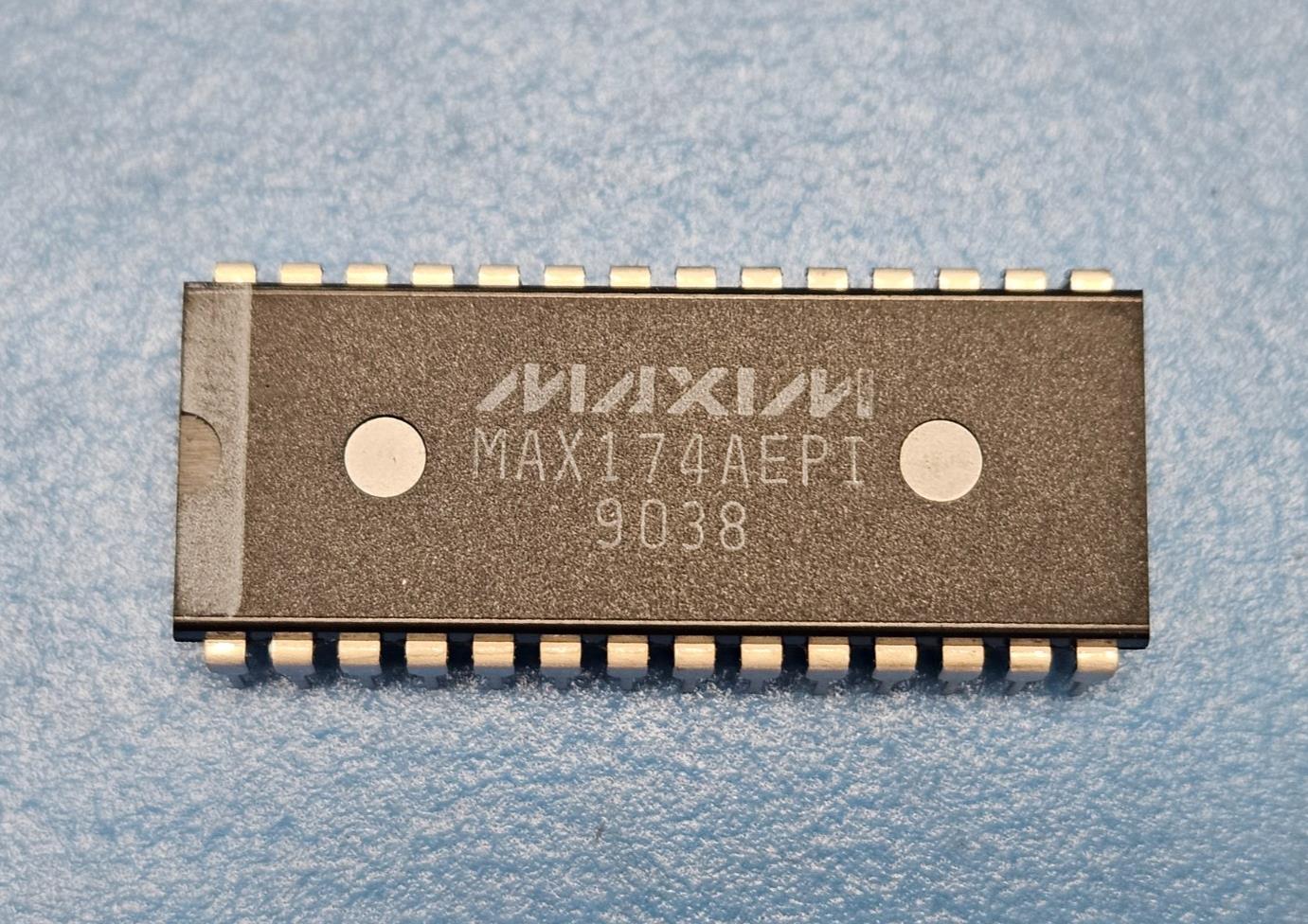

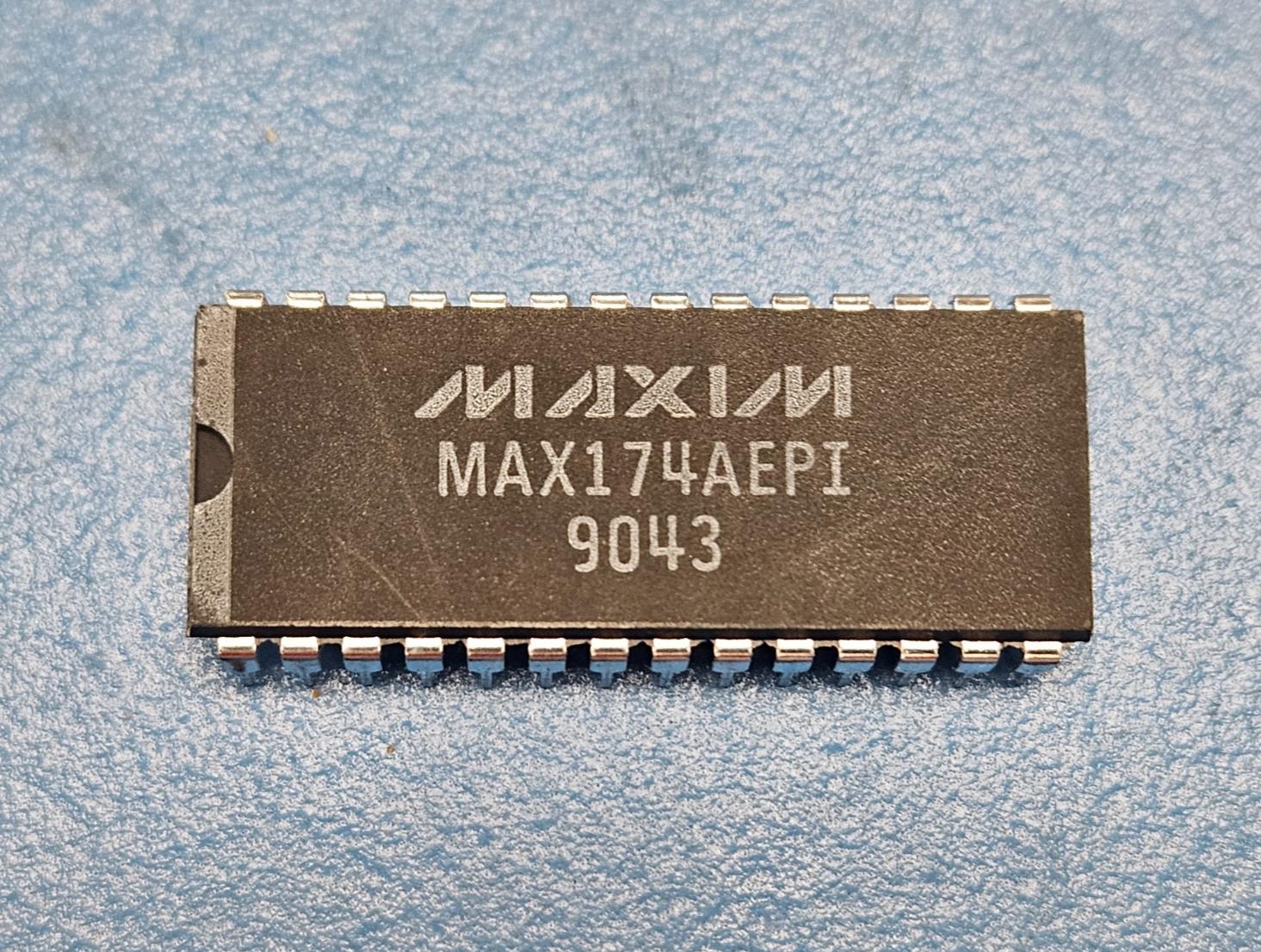

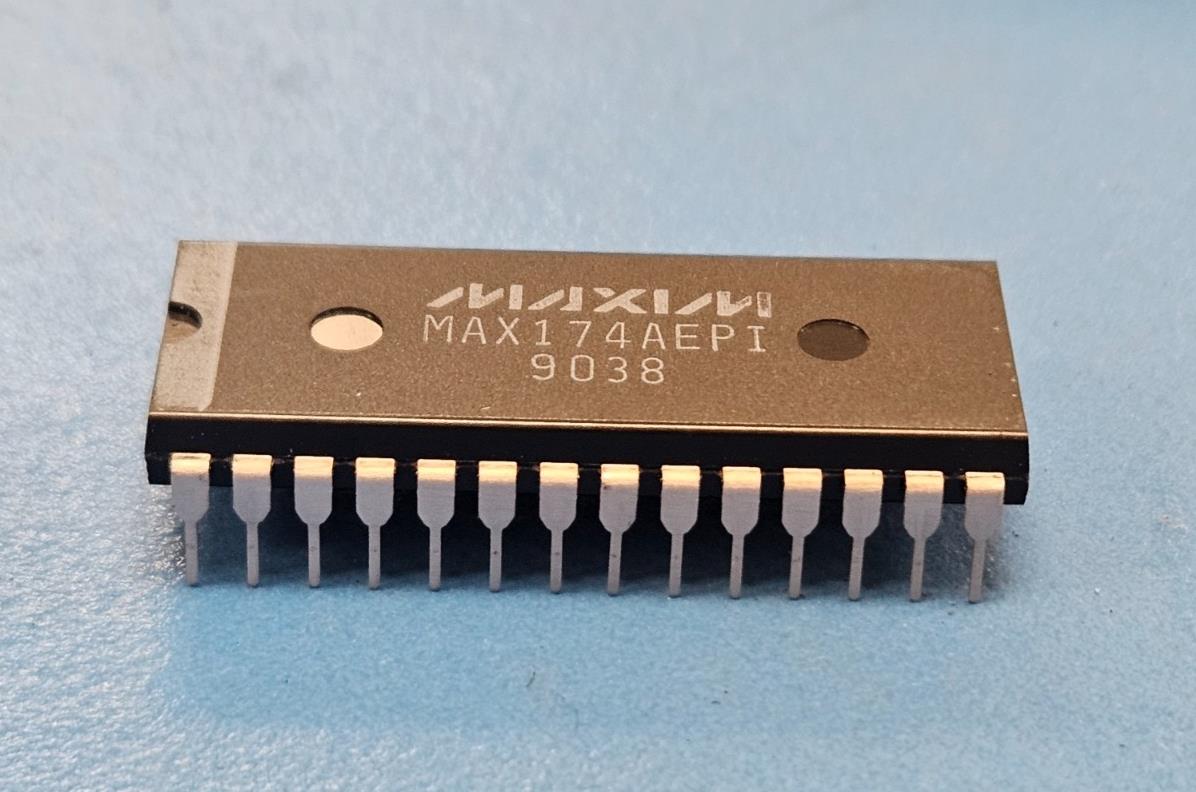

(1PC) MAX174AEPI Maxim ADC, 12-Bit, 1 Func, 1 Channel, Parallel, BICMOS, 28-PDIP
Tax included.
This listing is for (1PC) of MAX174AEPI by Maxim
Mfr Package Description PLASTIC, DIP-28
REACH Compliant Yes
Status Discontinued
Converter Type ADC, SUCCESSIVE APPROXIMATION
Analog Input Voltage-Min -10.0 V
Analog Input Voltage-Max 10.0 V
Conversion Time-Max 8.0 µs
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Linearity Error-Max (EL) 0.012 %
Moisture Sensitivity Level 1
Negative Supply Voltage-Nom -15.0 V
Number of Analog In Channels 1.0
Number of Bits 12
Number of Functions 1
Number of Terminals 28
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Bit Code BINARY, OFFSET BINARY
Output Format PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Analog to Digital Converters
Supply Current-Max 10.0 mA
Supply Voltage-Nom 15.0 V
Surface Mount NO
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
