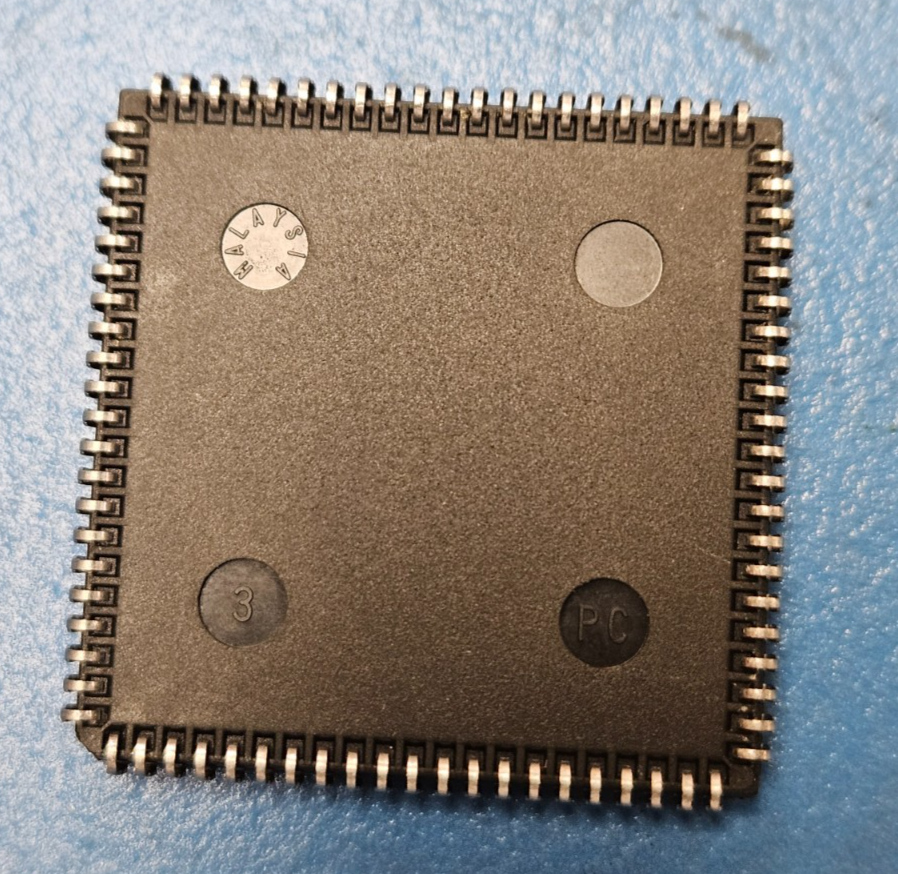

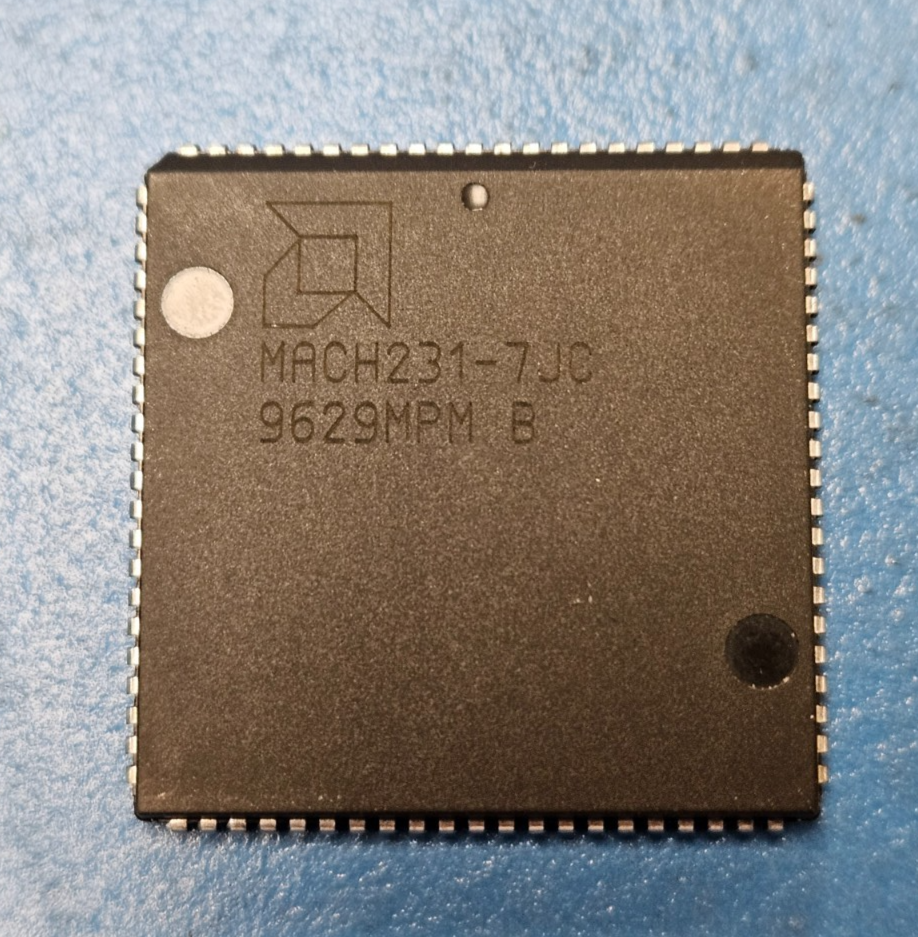

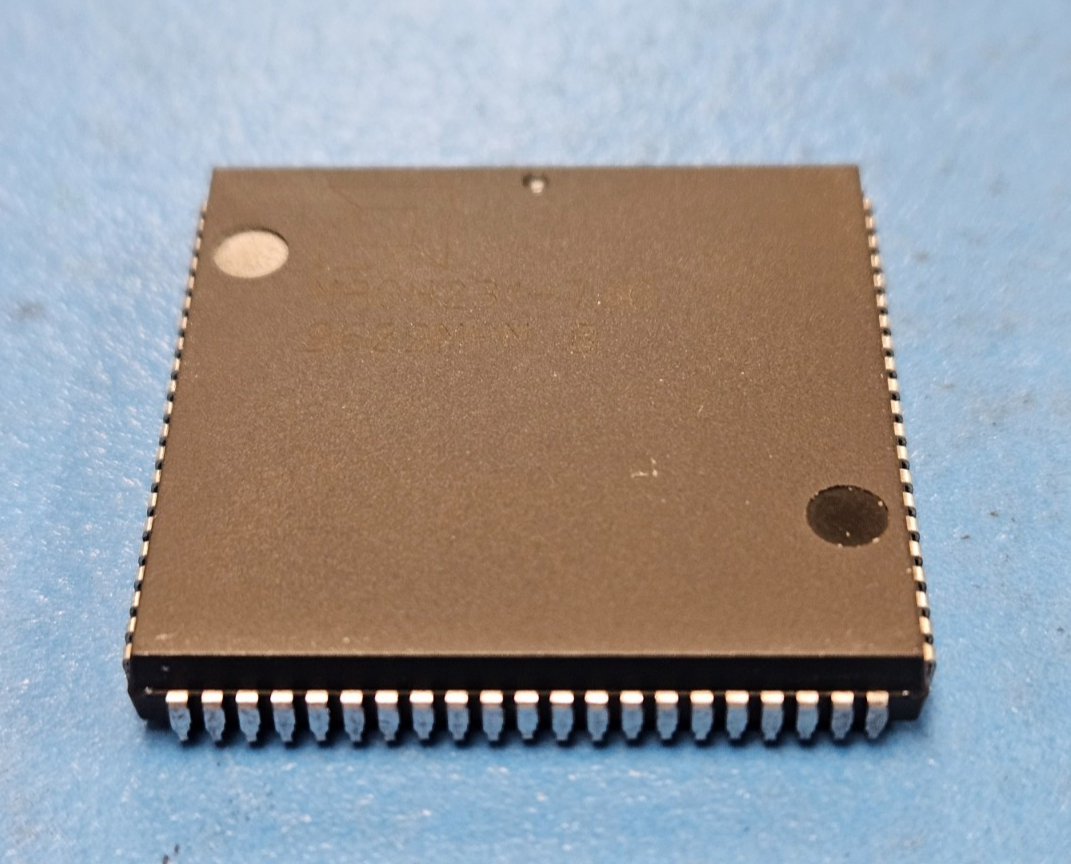

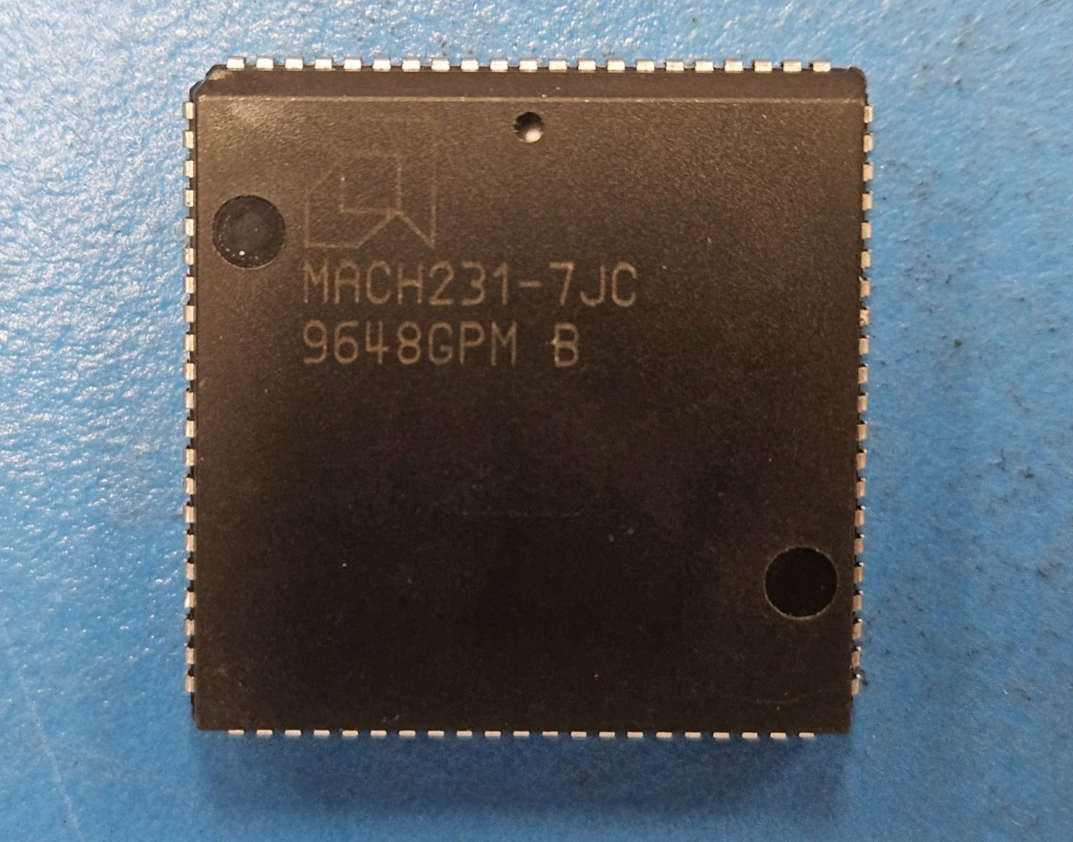

(1PC) MACH231-7JC AMD EE PLD, 12.5ns, 128-Cell, CMOS, PLCC84
Tax included.
This listing is for (1PC) of MACH231-7JC by AMD
Status Discontinued
Additional Feature BURIED MACROCELLS; 4 EXTERNAL CLOCKS; SHARED INPUT/CLOCK
Clock Frequency-Max (MHz) 95.00000
In-System Programmable NO
JESD-30 Code S-PQCC-J84
J-STD-609 Code e0
JTAG BST NO
Length (mm) 29.2862
Number of Dedicated Inputs 2
Number of I/O Lines 64
Number of Macro Cells 128
Number of Terminals 84
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Organization 2 DEDICATED INPUTS, 64 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC84,1.2SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Programmable Logic Type EE PLD
Propagation Delay (ns) 12.500
DLA Qualification Not Qualified
Seated Height-Max (mm) 4.5700
Supply Voltage-Max (V) 5.25000
Supply Voltage-Min (V) 4.75000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Width (mm) 29.2862
