(1PC) MACH110-15JC EE PLD, 15ns, 32-Cell, CMOS, PLCC44
Tax included.

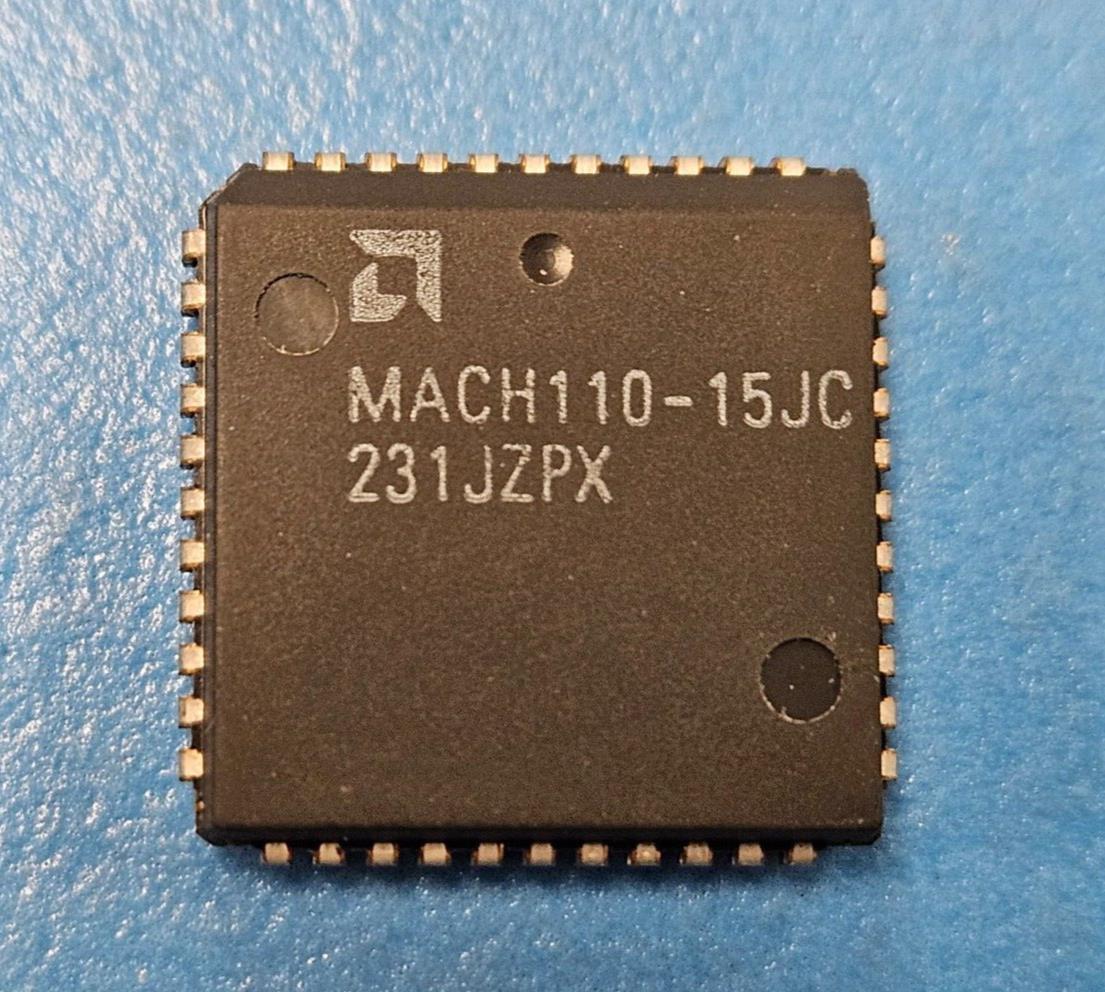

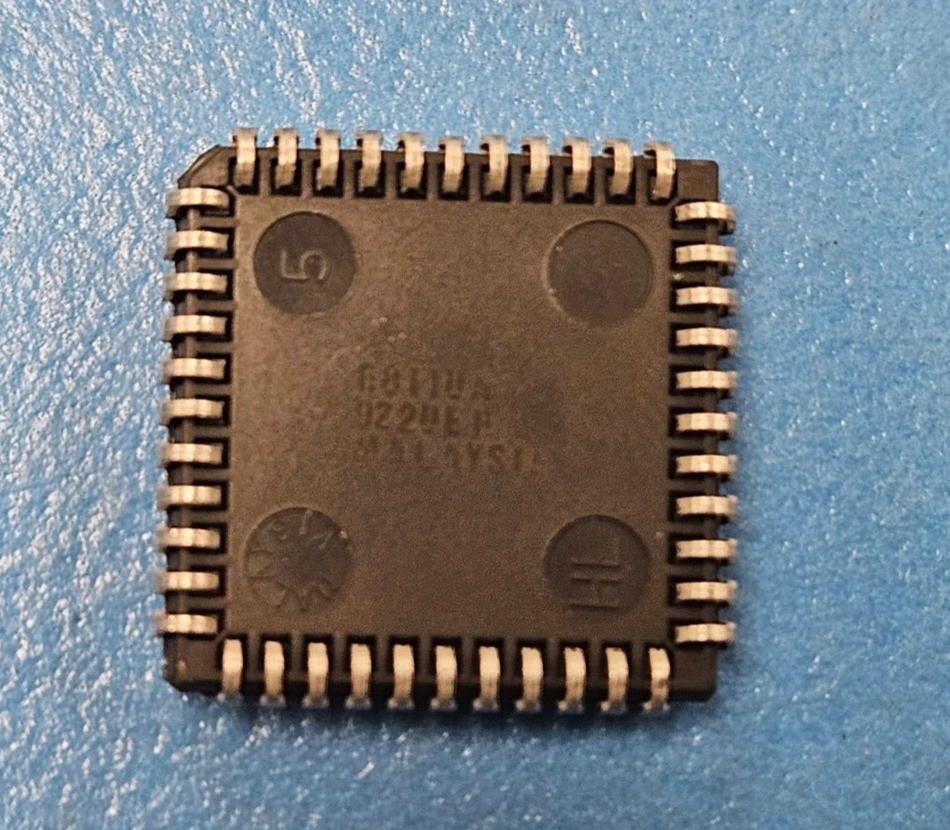

This listing is for (1PC) of MACH110-15JC by AMD
Mfr Package Description PLASTIC, LCC-44
Status Discontinued
Programmable Logic Type EE PLD
Clock Frequency-Max 47.6 MHz
In-System Programmable NO
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
JTAG BST NO
Number of Dedicated Inputs 4.0
Number of I/O Lines 32.0
Number of Macro Cells 32.0
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4 DEDICATED INPUTS, 32 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 16.5862 mm
Width 16.5862 mm
Additional Feature PAL BLOCKS INTERCONNECTED BY PIA; 2 PAL BLOCKS; 2 EXTERNAL CLOCKS
