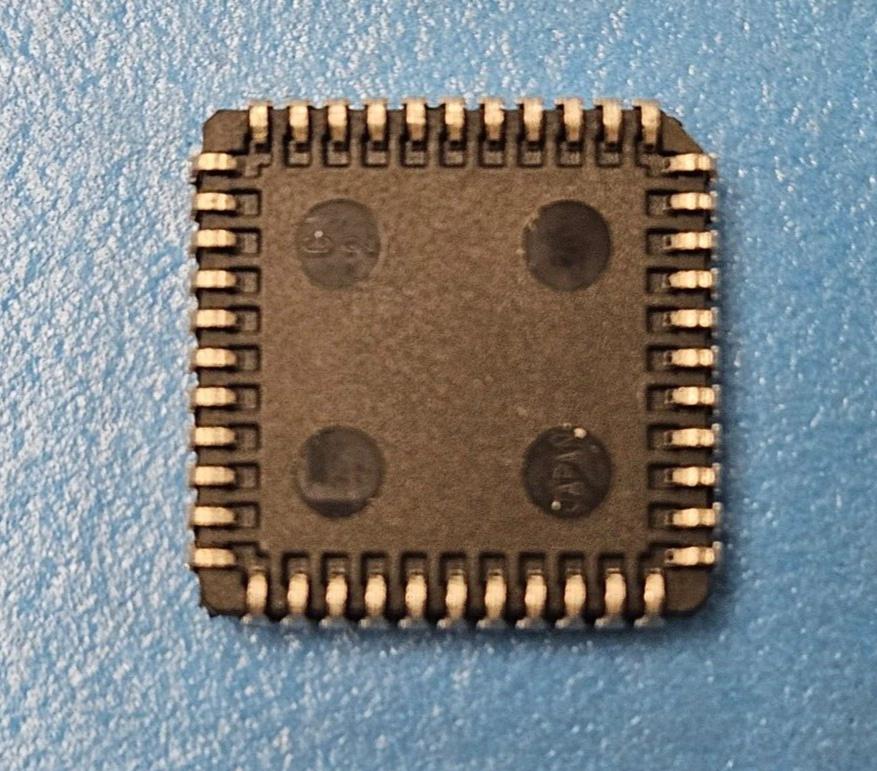

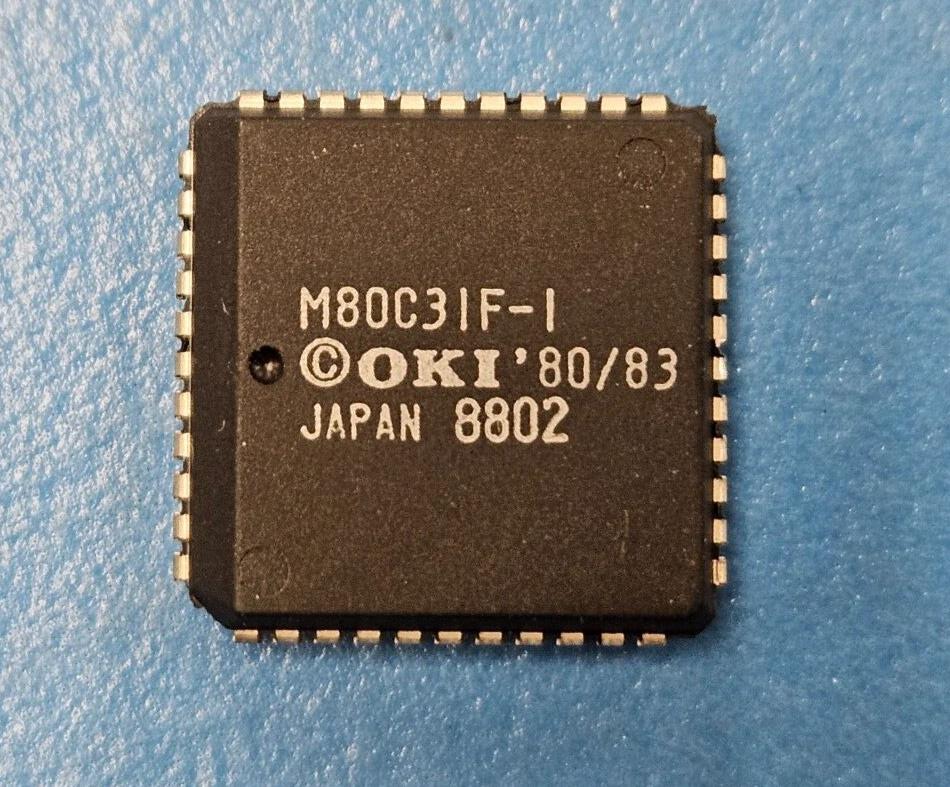

(1PC) M80C31F-1 MSM80C31F-1JS Microcontroller, 8-Bit, 16MHz, CMOS, PLCC44
Tax included.
This listing is for (1PC) of MSM80C31F-1JS by OKI
Mfr Package Description 0.650 INCH, PLASTIC, LCC-44
Status Discontinued
ADC Channels NO
Address Bus Width 16.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 16.0 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQCC-J44
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 2.0
Number of I/O Lines 32.0
Number of Serial I/Os 1.0
Number of Terminals 44
Number of Timers 2.0
On Chip Data RAM Width 8
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Shape SQUARE
Package Style CHIP CARRIER
PWM Channels NO
Qualification Status Not Qualified
RAM (words) 128
Seated Height-Max 4.55 mm
Speed 16.0 MHz
Supply Current-Max 23.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 2.5 V
Supply Voltage-Max 6.0 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 16.59 mm
Width 16.59 mm
