(1PC) M5M4V18165DTP6S DRAM, 1MX16, 60ns, CMOS, PDSO44
Tax included.

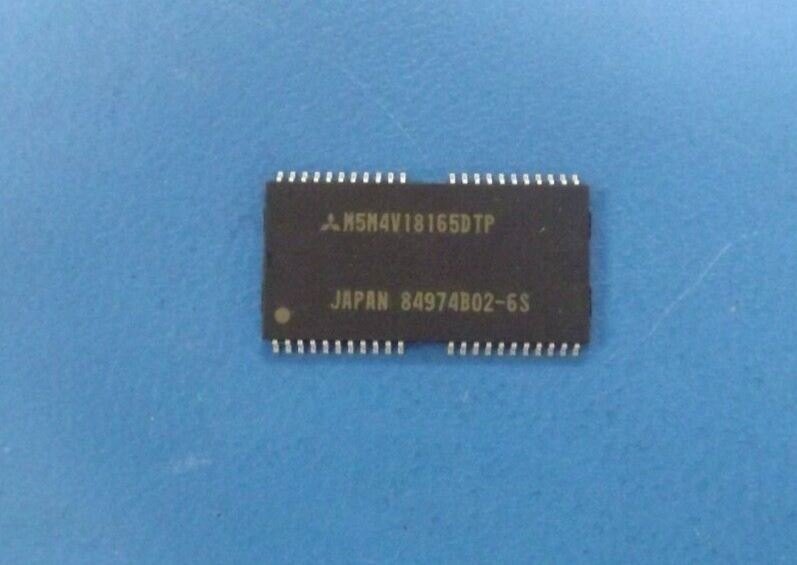

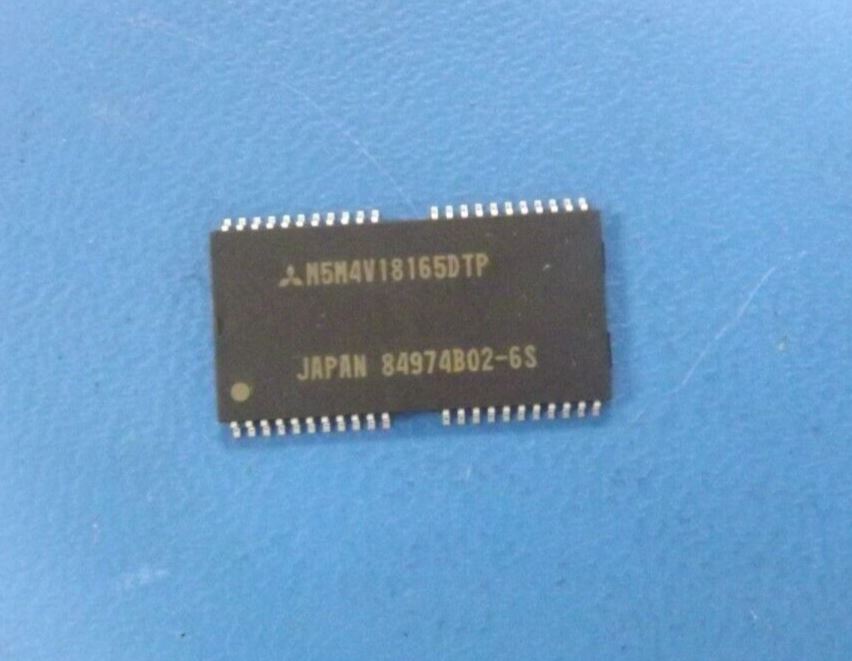

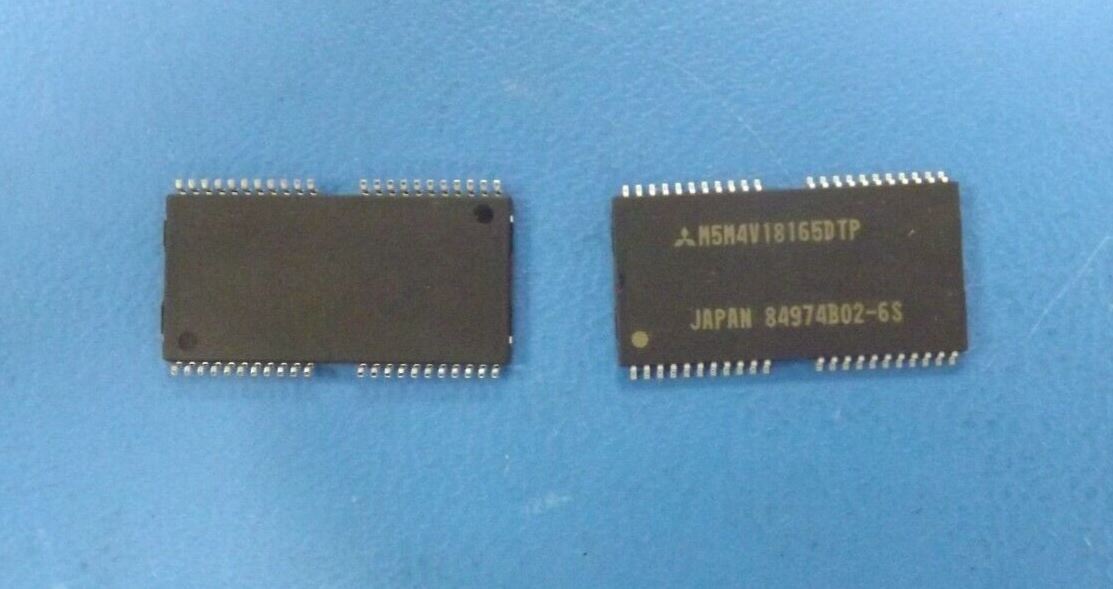

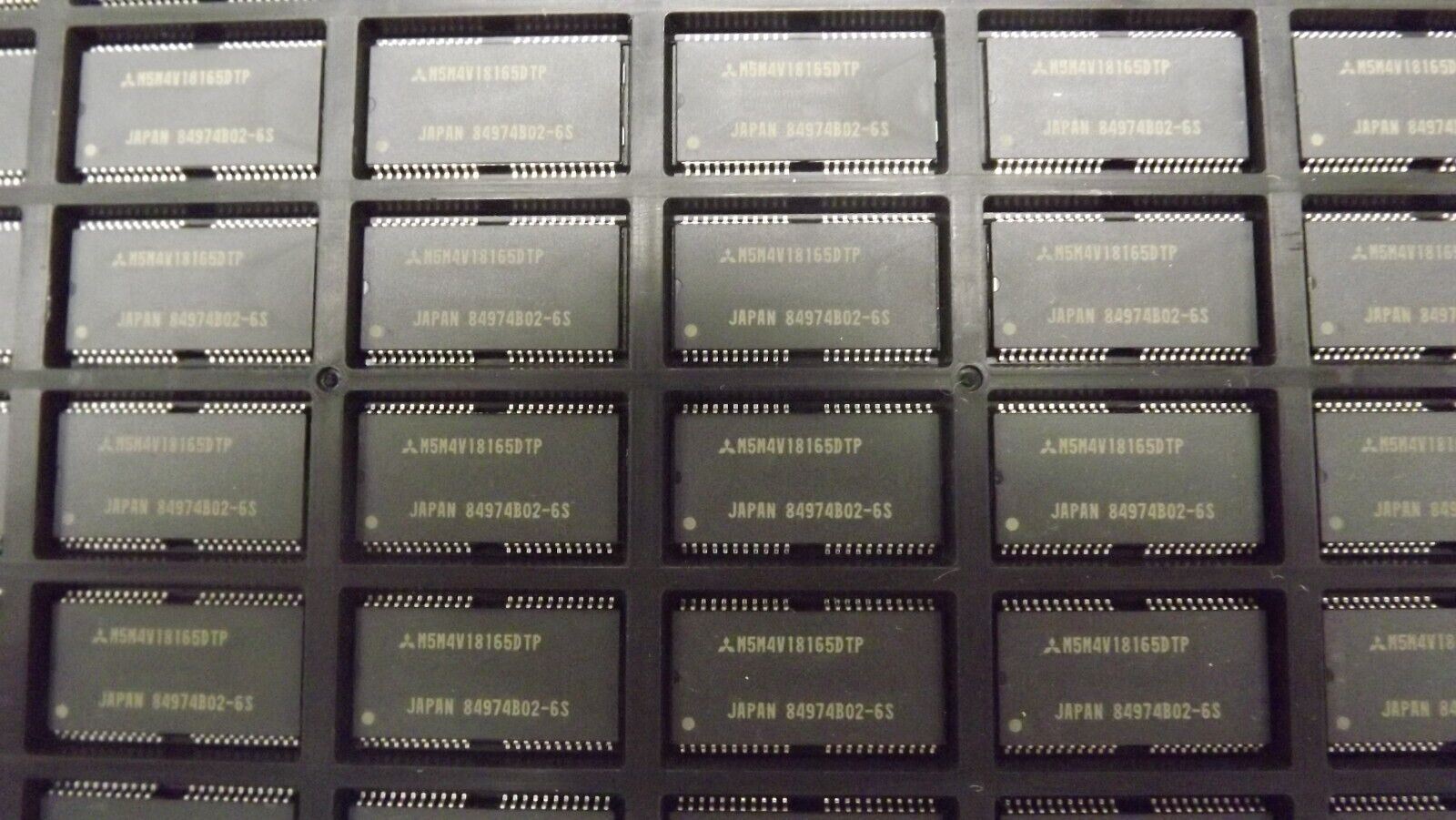

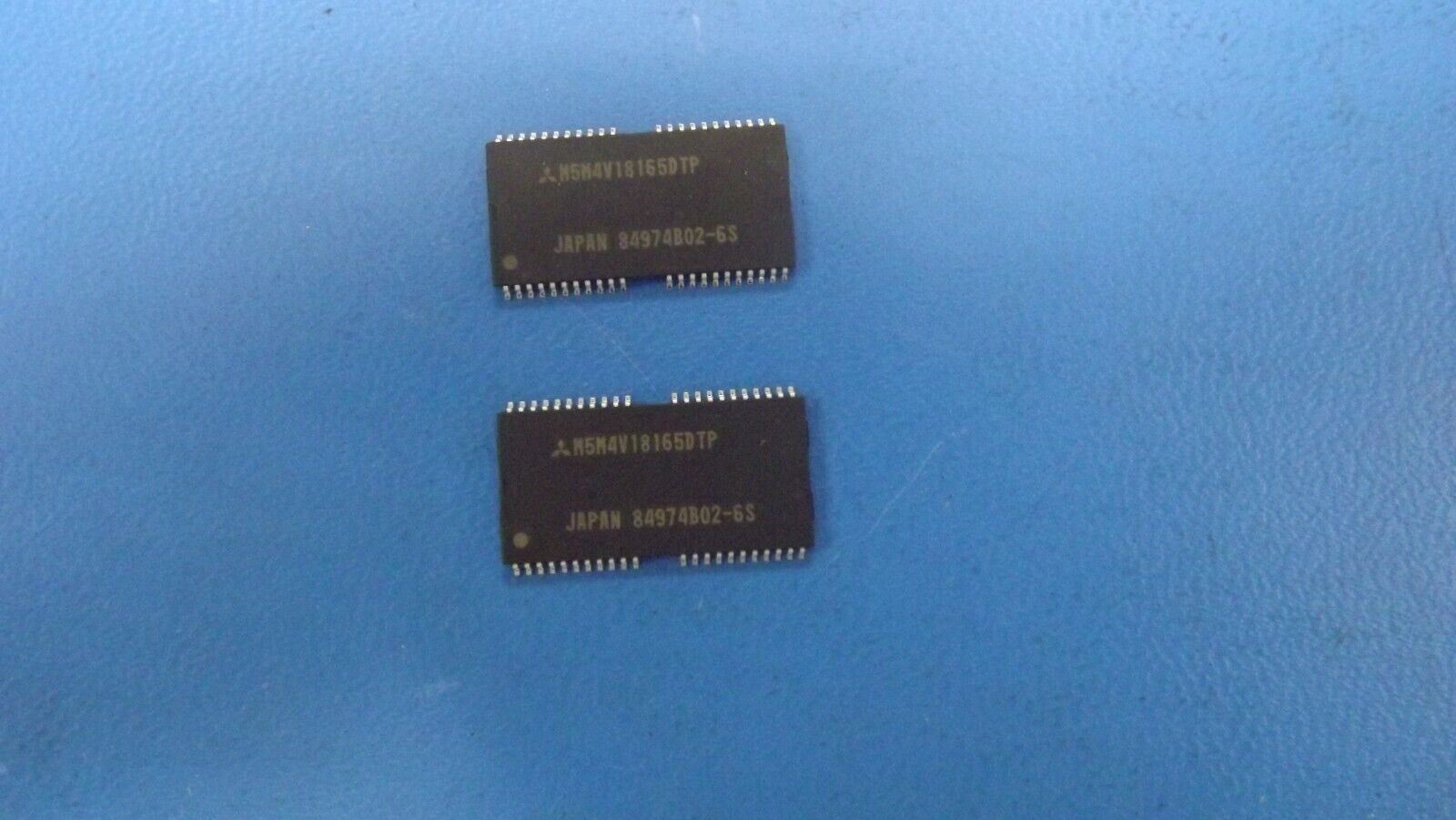

THIS LISTING IS FOR (1PC) OF M5M4V18165DTP6S BY MITSUBISHI
Status Discontinued
Sub Category DRAMs
Access Time-Max 60.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G44
JESD-609 Code e0
Memory Density 1.6777216E7 bit
Memory IC Type EDO DRAM
Memory Width 16
Number of Terminals 44
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1MX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP
Package Equivalence Code TSOP44/50,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Qualification Status Not Qualified
Refresh Cycles 1024.0
Self Refresh YES
Standby Current-Max 1.5E-4 Amp
Supply Current-Max 0.15 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position DUAL
