(1PC) M5286P Buffer/Inverter Based Peripheral Driver 4 Driver 1.5A BIPolar DIP16

$5.95
Unit price per

Tax included.

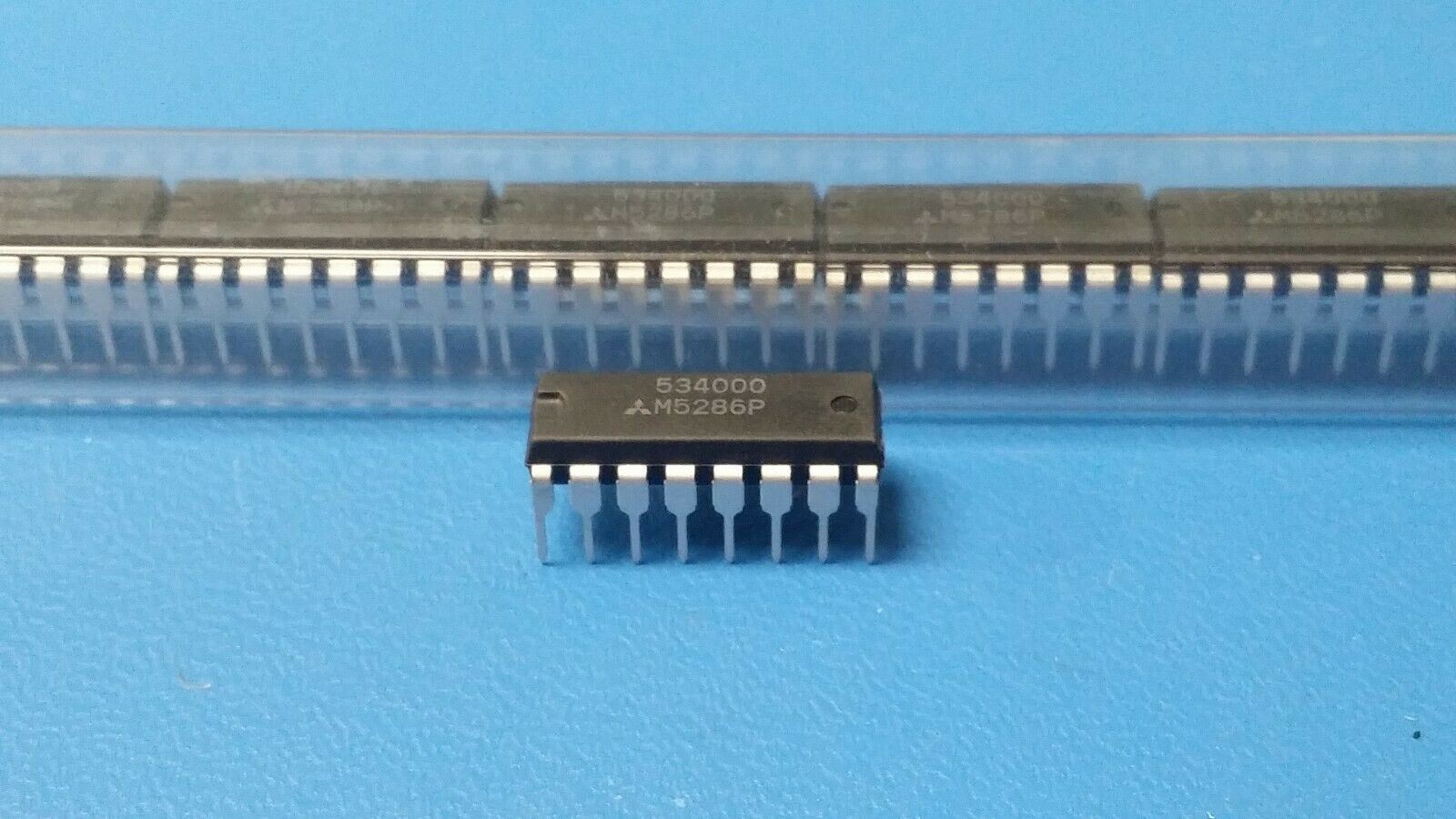

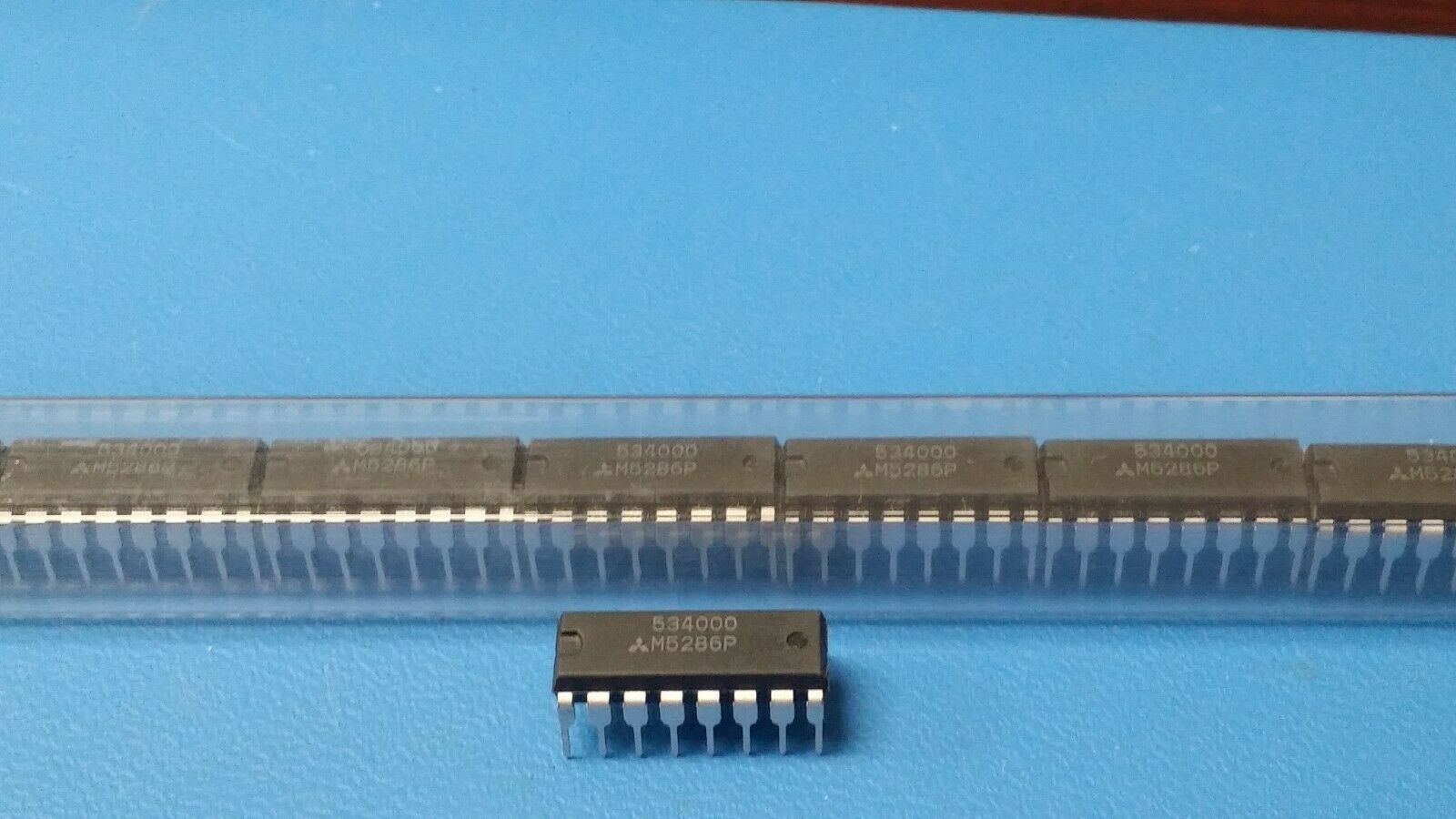

THIS IS FOR (1PC) OF M5286P BY MITSUBISHI

Buffer/Inverter Based Peripheral Driver 4 Driver 1.5A BIPolar DIP16

Part #: M5286P

Part Category: Interface ICs

Manufacturer: Mitsubishi Electric & Electronics USA, Inc.

Description: Buffer/Inverter Based Peripheral Driver, 4 Driver, 1.5A, BIPolar, PDIP16

Mfr Package Description 0.300 INCH, PLASTIC, DIP-16

Status Discontinued

Interface IC Type BUFFER OR INVERTER BASED PERIPHERAL DRIVER

Built-in Protections TRANSIENT

Driver Number of Bits 4.0

JESD-30 Code R-PDIP-T16

JESD-609 Code e0

Number of Functions 4

Number of Terminals 16

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Current Flow Direction SINK

Output Current-Max 1.25 Amp

Output Peak Current Limit-Nom 1.5 A

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Seated Height-Max 4.5 mm

Sub Category Peripheral Drivers

Supply Voltage-Nom 5.0 V

Surface Mount NO

Technology BIPOLAR

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 19.0 mm

Width 7.62 mm
