(1PC) LY1-AC110/120 OMRON Electromechanical Relay SPDT 15A 110/120VAC 4.43KOhm
Tax included.

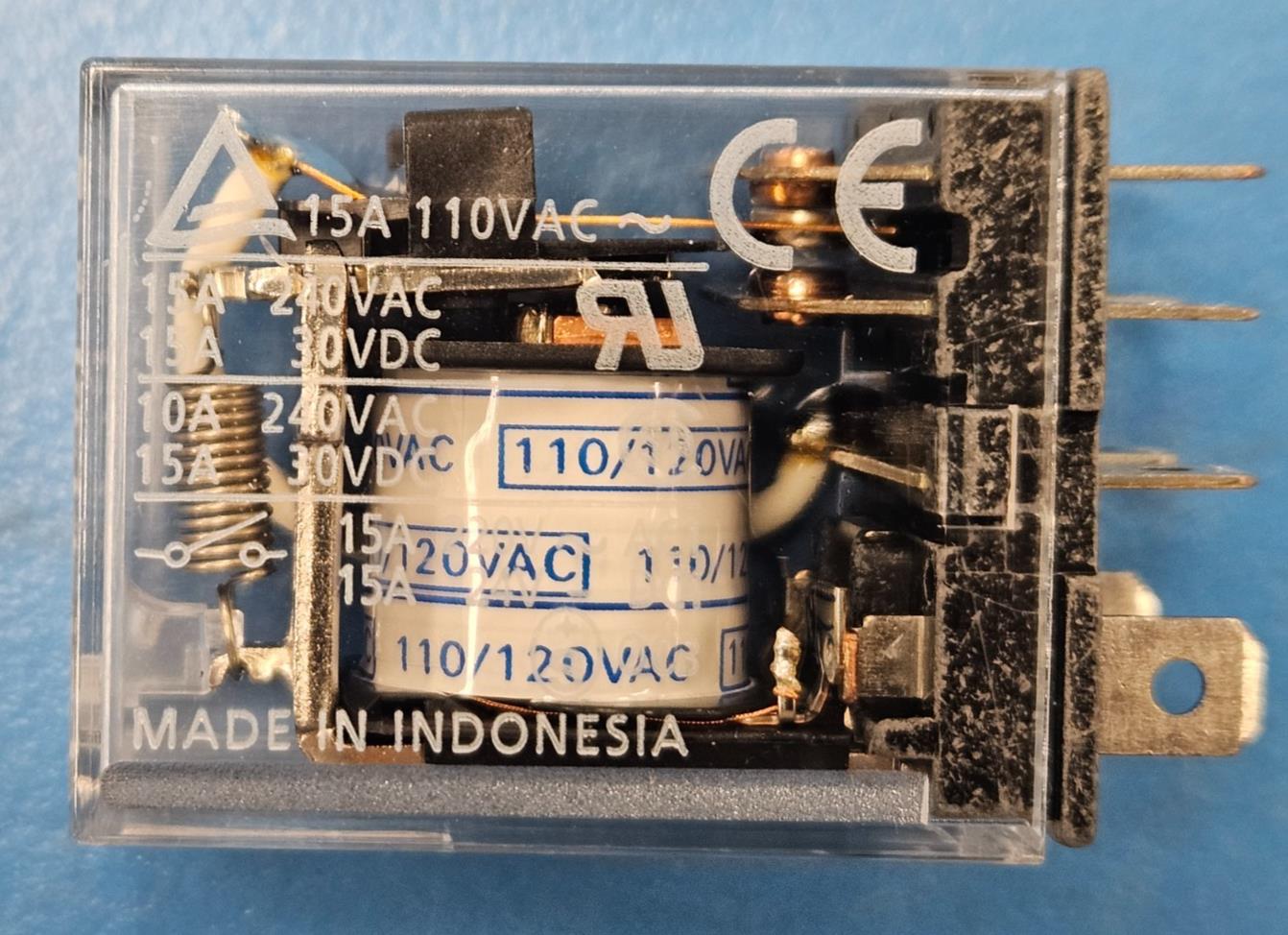

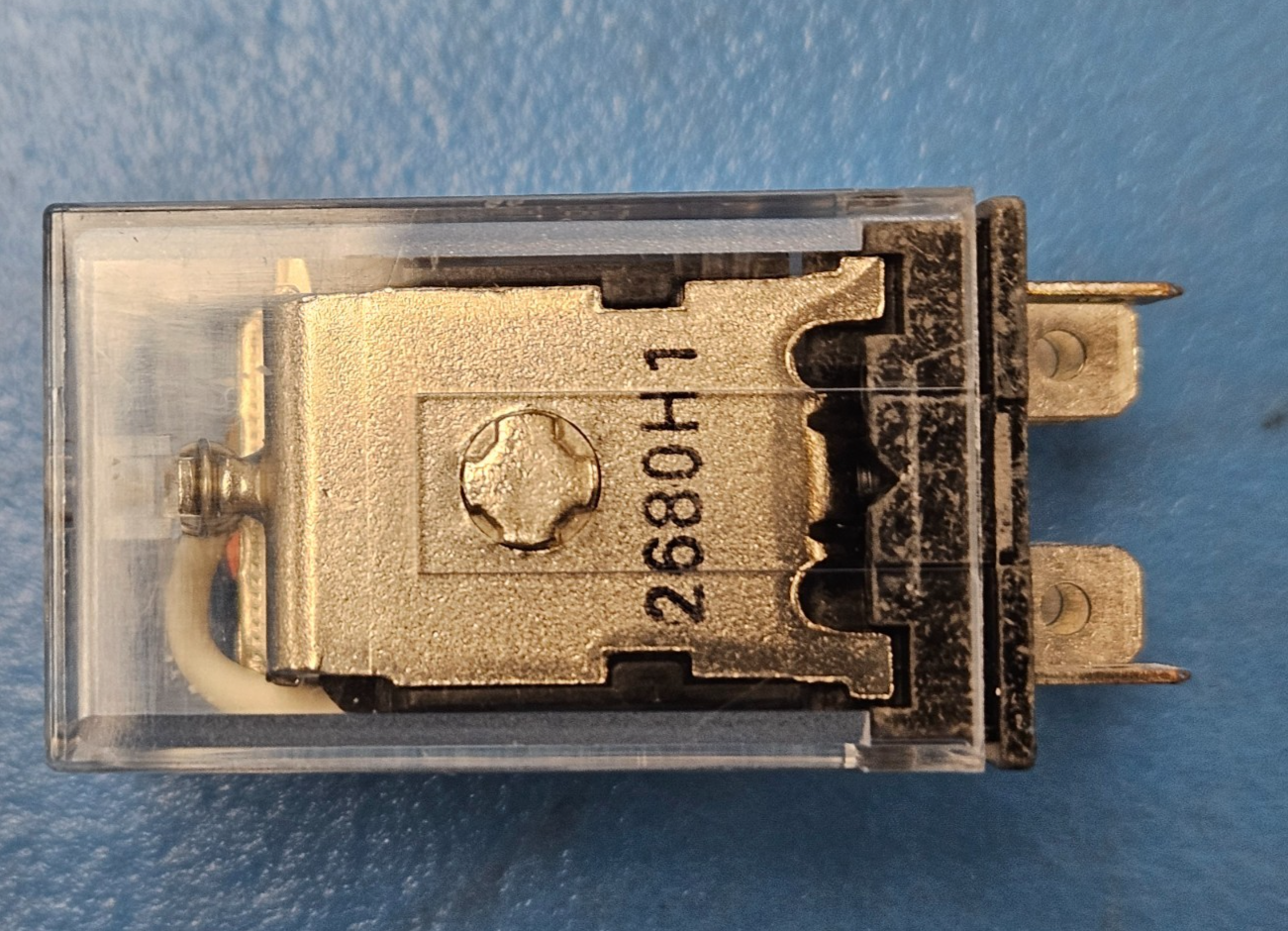

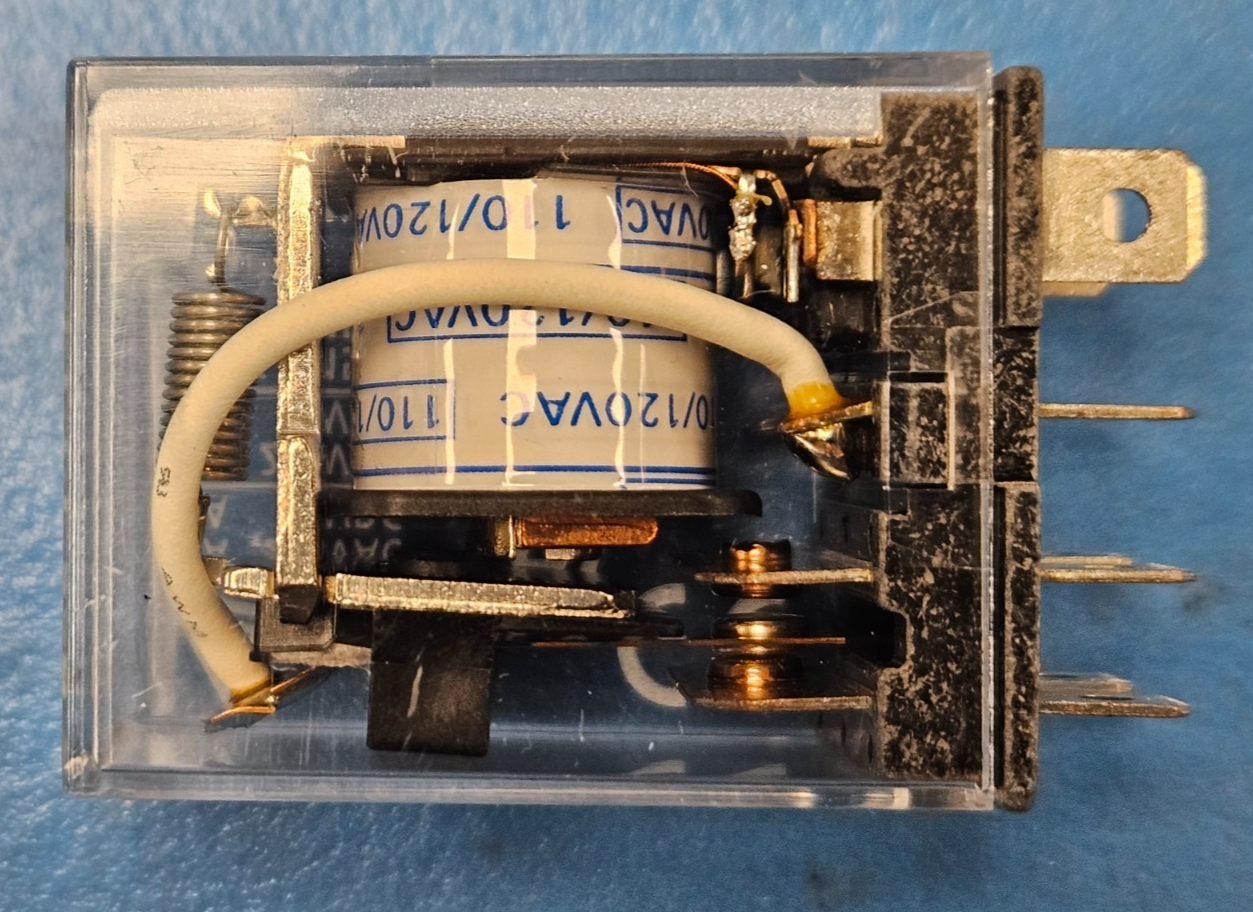

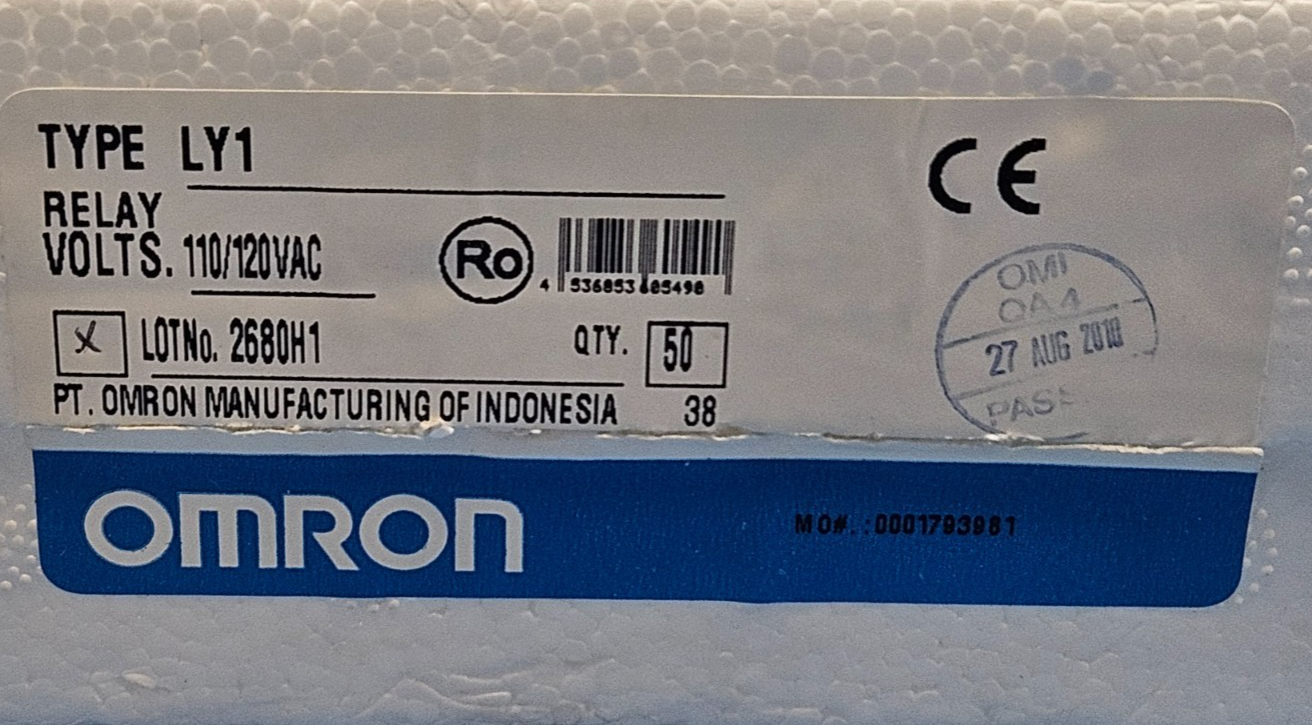

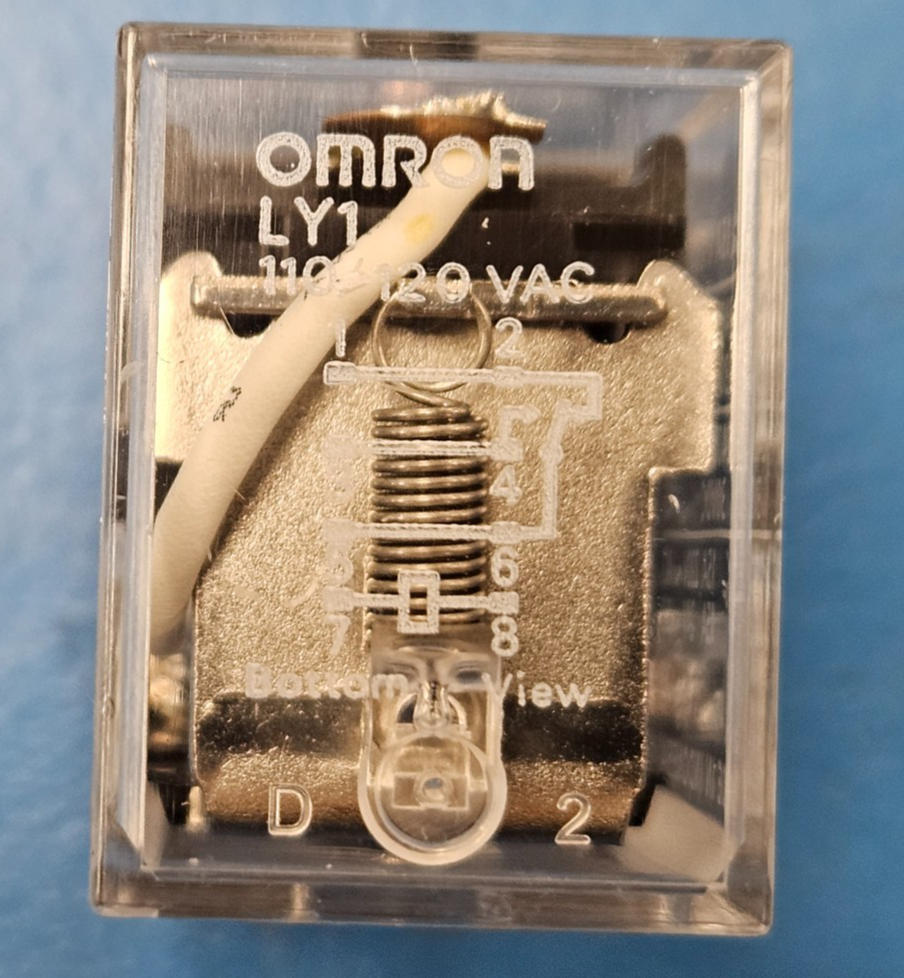

This listing is for (1PC) of LY1-AC110 by OMRON
Status Active
Additional Feature COIL OPERATE VOLTAGE(AC): 96 V, COIL RELEASE VOLTAGE(AC): 36 V
Body Breadth (mm) 21.5900
Body Height (mm) 36.0600
Body Length or Diameter (mm) 27.9400
Coil Current(AC)-Max (A) 0.01100000
Coil Power (mW) 1200
Coil Voltage(AC)-Max (V) 120.00000000
Coil/Input Supply Type AC
Contact AC Max Rating R Load 15A@110VAC
Contact Current(AC)-Max (A) 15.00000000
Contact Current(DC)-Max (A) 15.00000000
Contact DC Max Rating R Load 15A@24VDC
Contact Voltage(AC)-Max (V) 110.00000000
Contact Voltage(DC)-Max (V) 24.00000000
Contact/Output Supply Type AC/DC
Mounting Feature PANEL MOUNT
Operate Time (ms) 25.0000
Operating Temperature-Max (Cel) 55
Operating Temperature-Min (Cel) -25
Physical Dimension 27.94mm x 21.59mm x 36.06mm
Screening Level / Reference Standard CE; CSA; TUV; UL
Relay Action MOMENTARY
Relay Function SPDT
Relay Type POWER/SIGNAL RELAY
Release Time (ms) 25.0000
Termination Type SOLDER
