(1PC) LTM4600IV#PBF Non-Isolated PoL Module DC/DC Conv 1 Output 0.6~5V 10A 4.5V
Tax included.

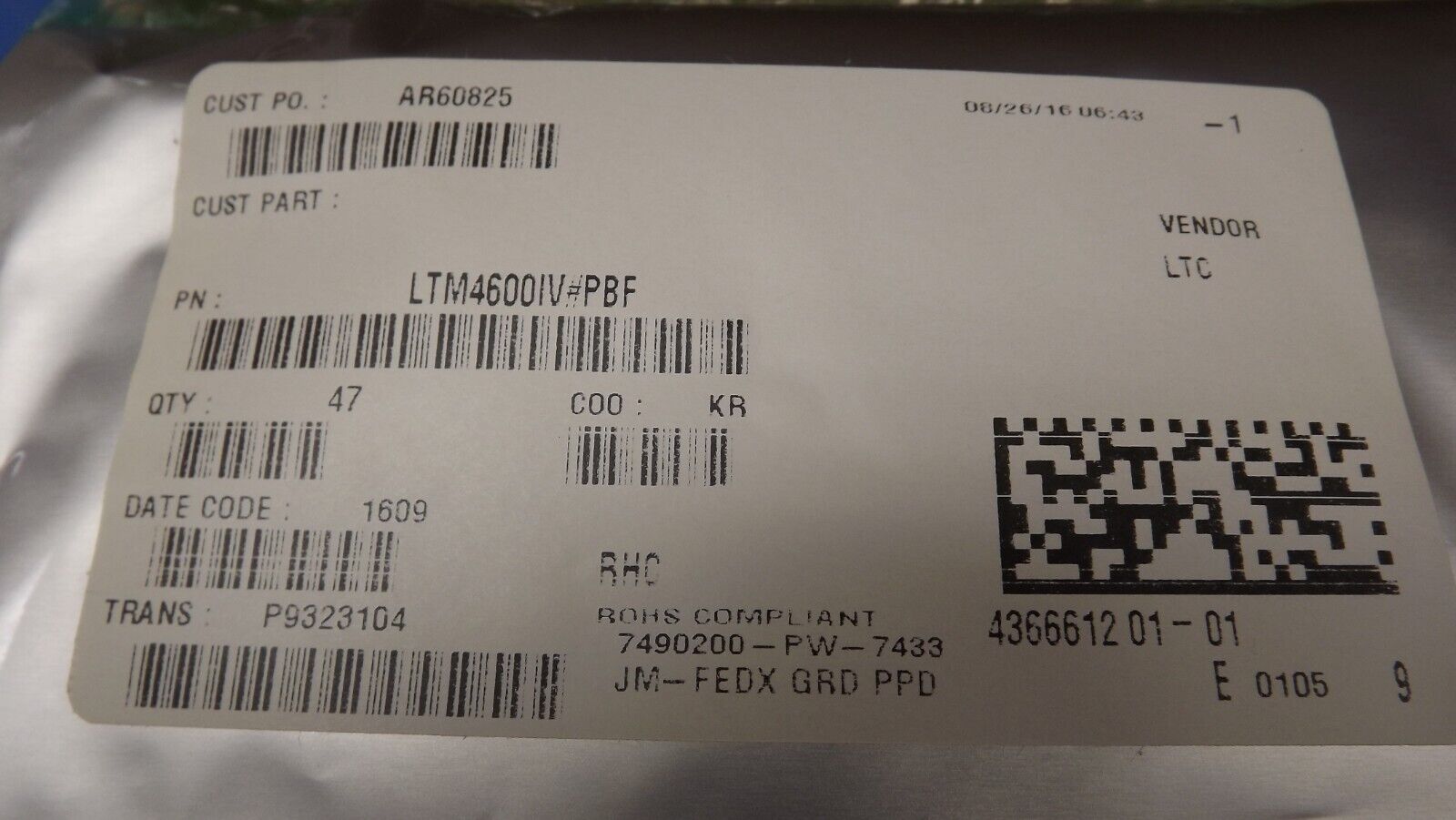

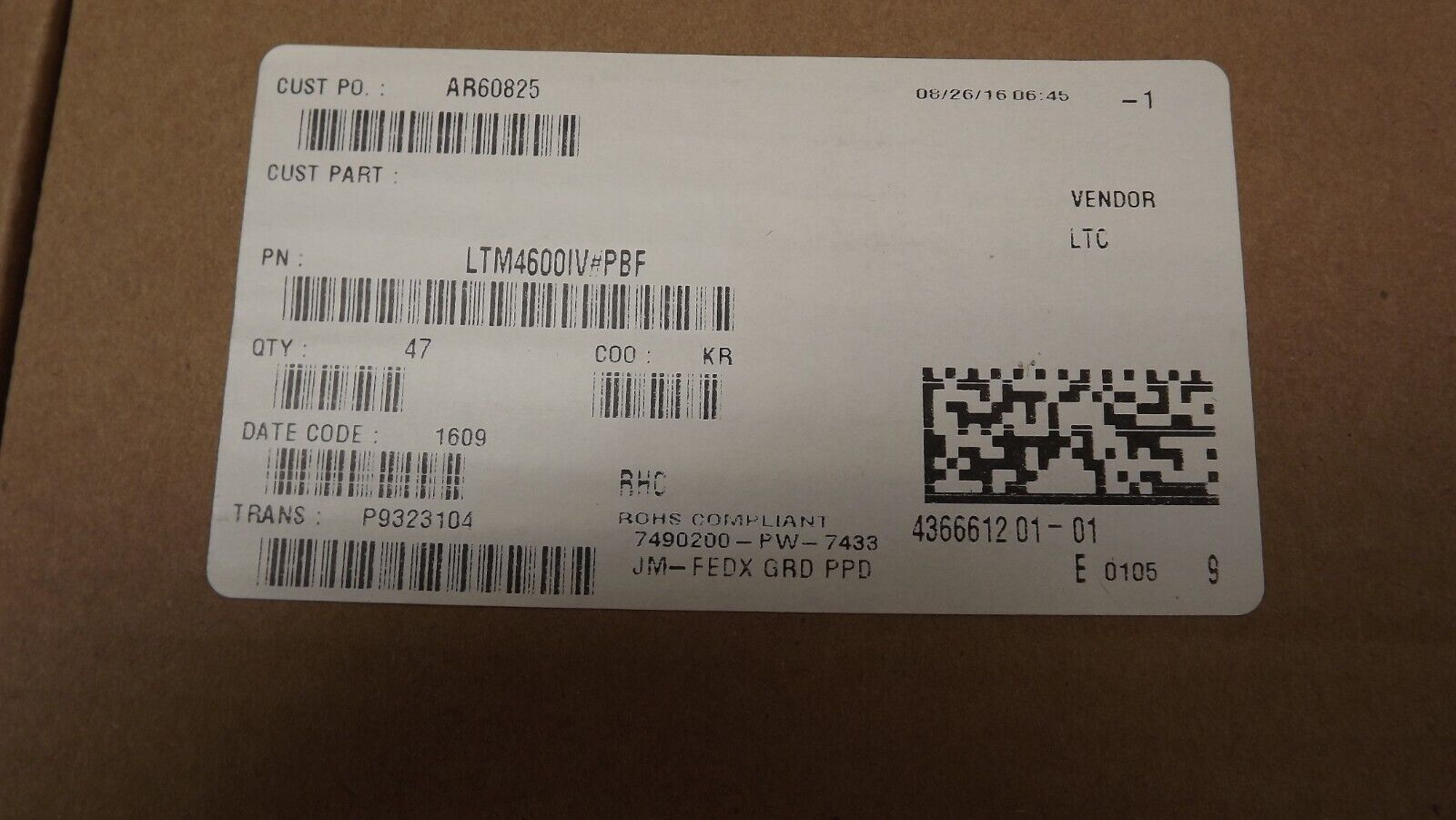

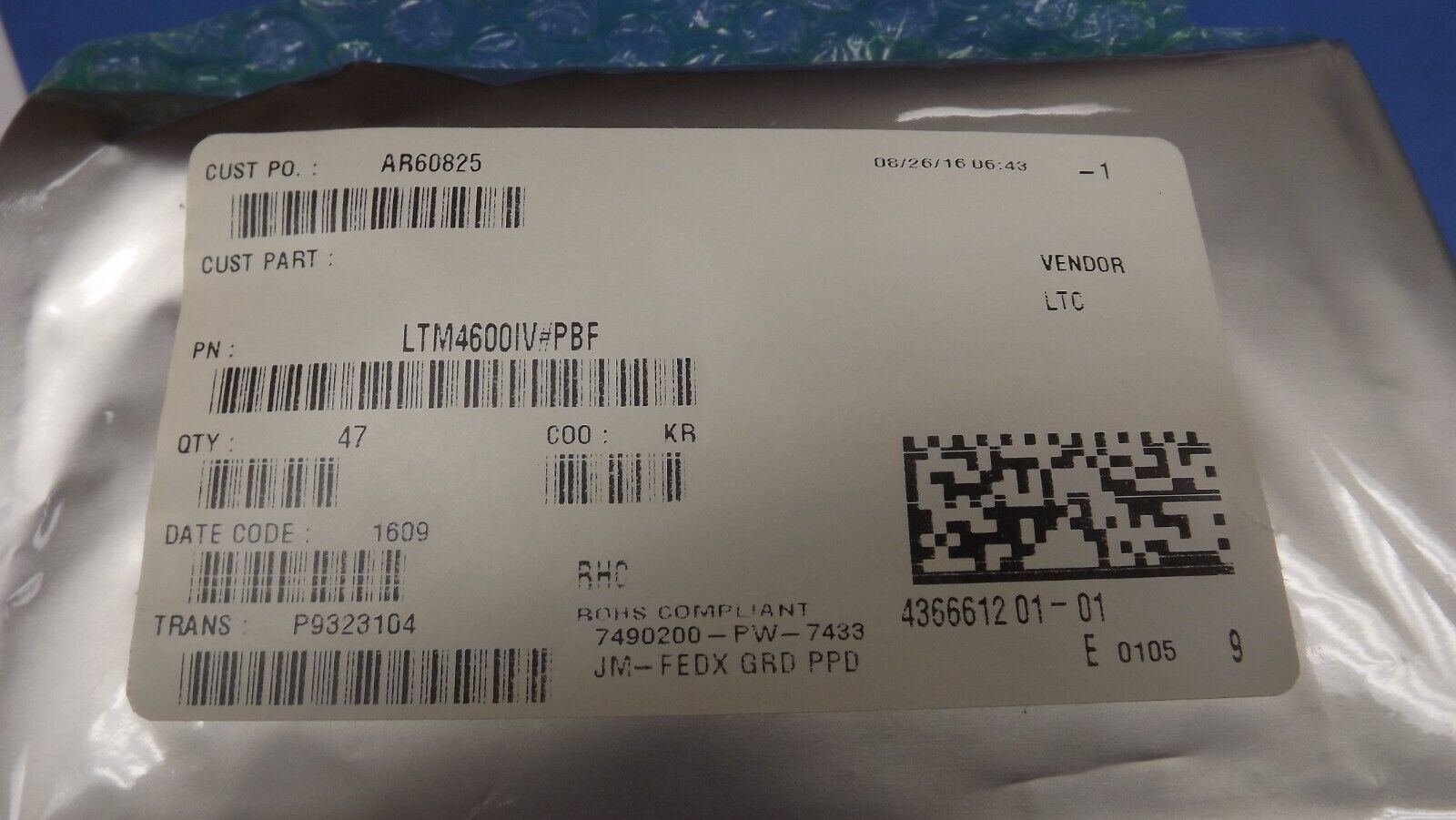

THIS LISTING IS FOR (1PC) OF LTM4600IV#PBF BY LINEAR TECHNOLOGY
*** ONLY 1 PIECE WILL BE SENT NOT ALL 47 ***
Mfr Package Description 15 X 15 MM, ROHS COMPLIANT, MO-222, LGA-104
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 12.0 V
Input Voltage-Min 4.5 V
Input Voltage-Max 20.0 V
JESD-30 Code S-XBGA-N104
JESD-609 Code e4
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 104
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Current-Max 14.0 A
Package Body Material UNSPECIFIED
Package Code LGA
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 2.92 mm
Surface Mount YES
Switcher Configuration BUCK
Switching Frequency-Max 850.0 kHz
Temperature Grade INDUSTRIAL
Terminal Finish GOLD
Terminal Form NO LEAD
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
