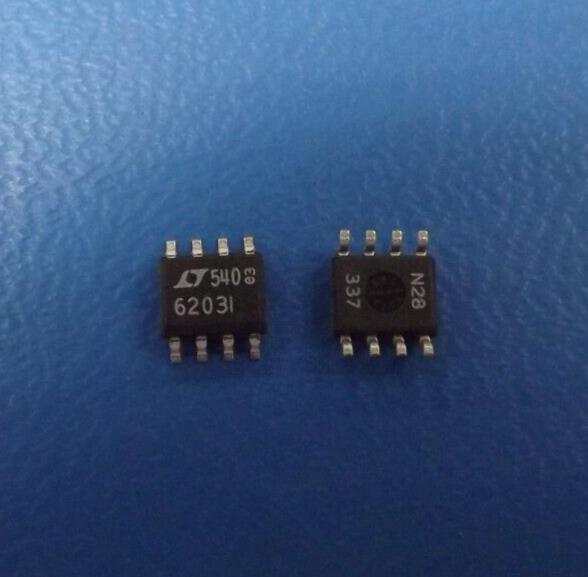

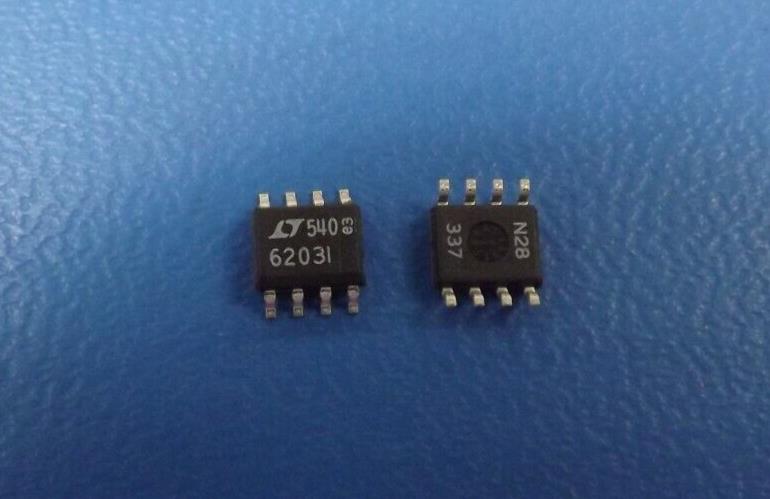

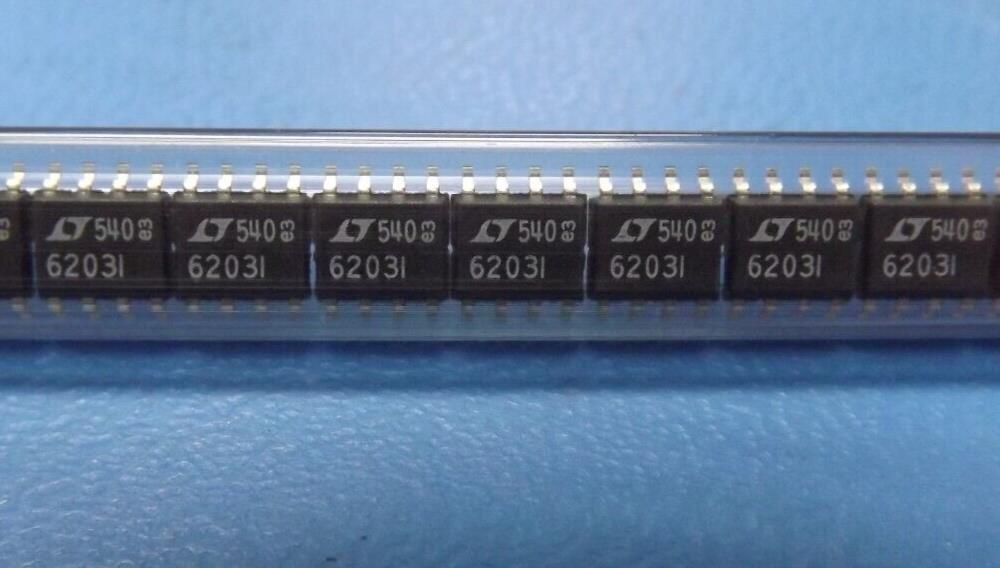

(1PC) LT6203IS8 Op Amp Dual Low Noise Amplifier R-R I/O ±6.3V/12.6V 8-Pin SOIC
Tax included.
THIS LISTING IS FOR (1PC) OF LT6203IS8#PFB BY LINEAR TECHNOLOGY
Mfr Package Description 0.150 INCH, PLASTIC, SOP-8
REACH Compliant Yes
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB) 3.6 µA
Common-mode Reject Ratio-Nom 84.0 dB
Input Offset Voltage-Max 7500.0 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -6.3 V
Neg Supply Voltage-Nom (Vsup) -5.0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 1.752 mm
Slew Rate-Nom 18.0 V/us
Sub Category Operational Amplifier
Supply Voltage Limit-Max 6.3 V
Supply Voltage-Nom (Vsup) 5.0 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
