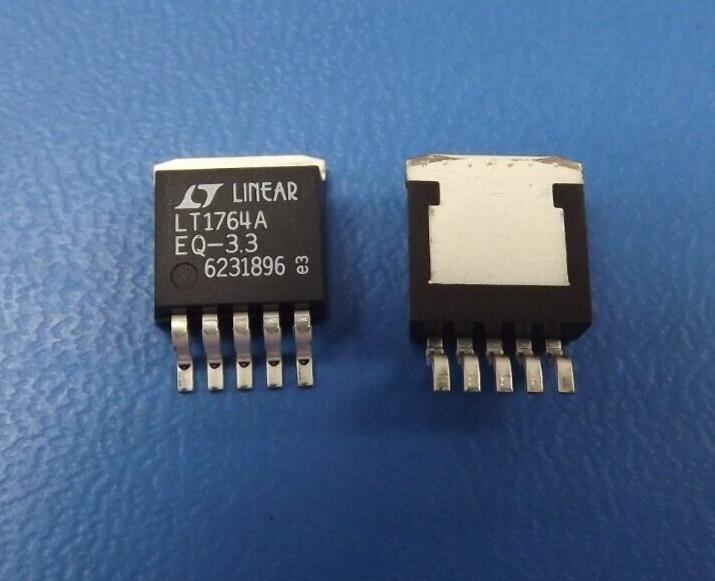

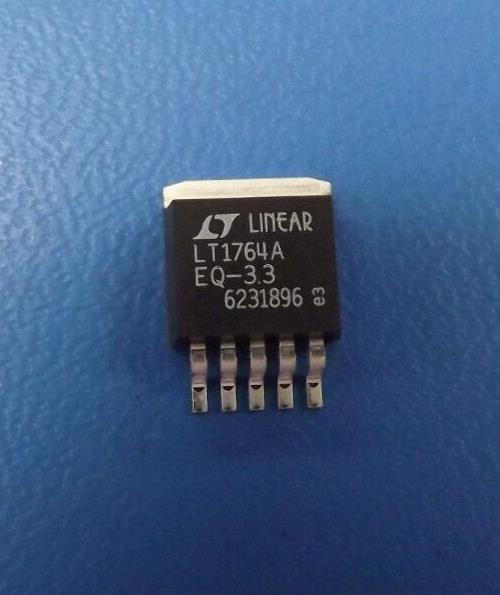

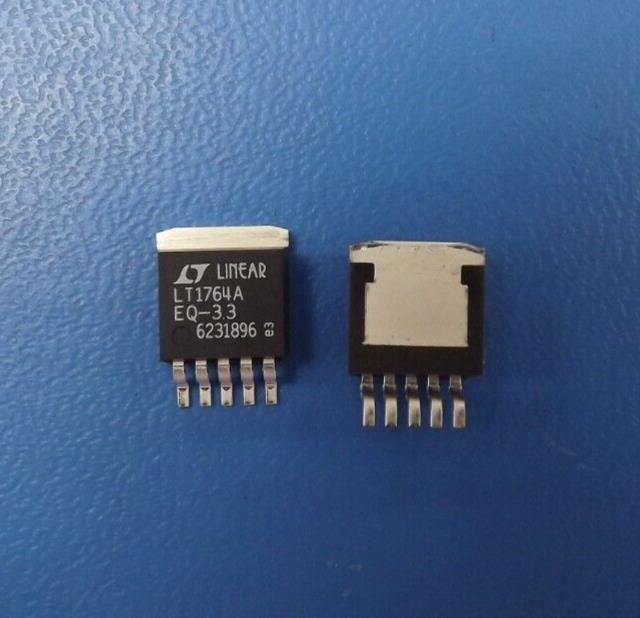

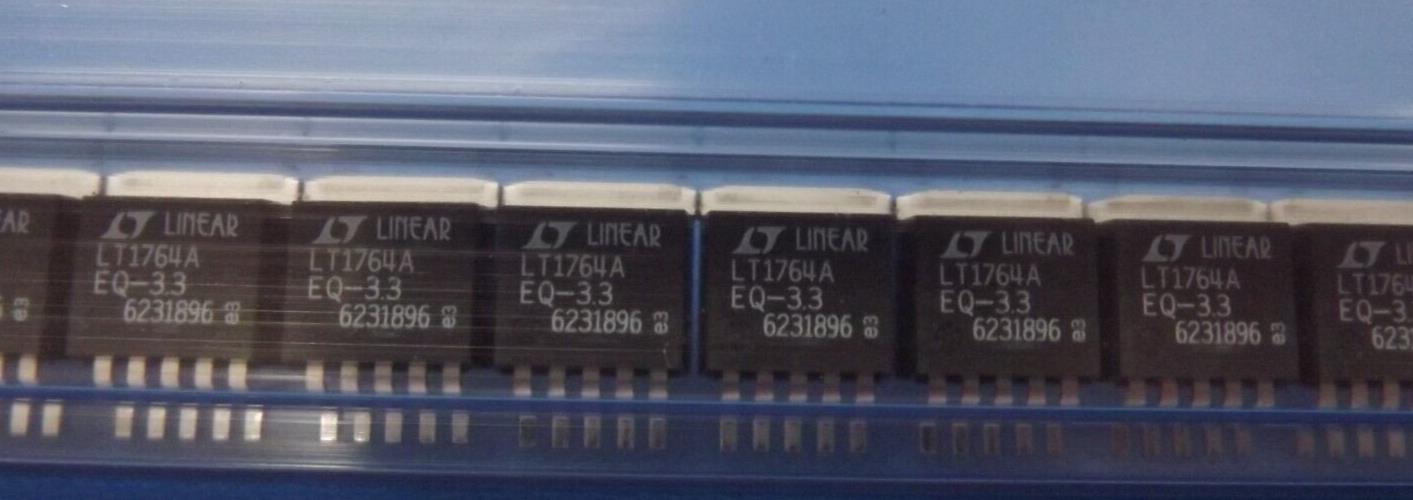

(1PC) LT1764AEQ-3.3 Linear Voltage Regulator Positive Fixed 1 Output 3A 5-DDPAK
Tax included.
THIS LISTING IS FOR (1PC) OF LT1764AEQ-3.3#PBF BY LINEAR TECHNOLOGY
Mfr Package Description LEAD FREE, PLASTIC, D2PAK-5
EU RoHS Compliant Yes
Status Active
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Dropout Voltage1-Max 0.66 V
Input Voltage-Min 2.7 V
Input Voltage-Max 20.0 V
JESD-30 Code R-PSSO-G5
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 5
Operating Temperature, TJ-Min -40.0 Cel
Operating Temperature, TJ-Max 125.0 Cel
Output Current1-Max 3.0 A
Output Voltage1-Nom 3.3 V
Output Voltage1-Min 3.183 V
Output Voltage1-Max 3.4 V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 4.572 mm
Surface Mount YES
Terminal Finish MATTE TIN OVER NICKEL
Terminal Form GULL WING
Terminal Pitch 1.7 mm
Terminal Position SINGLE
