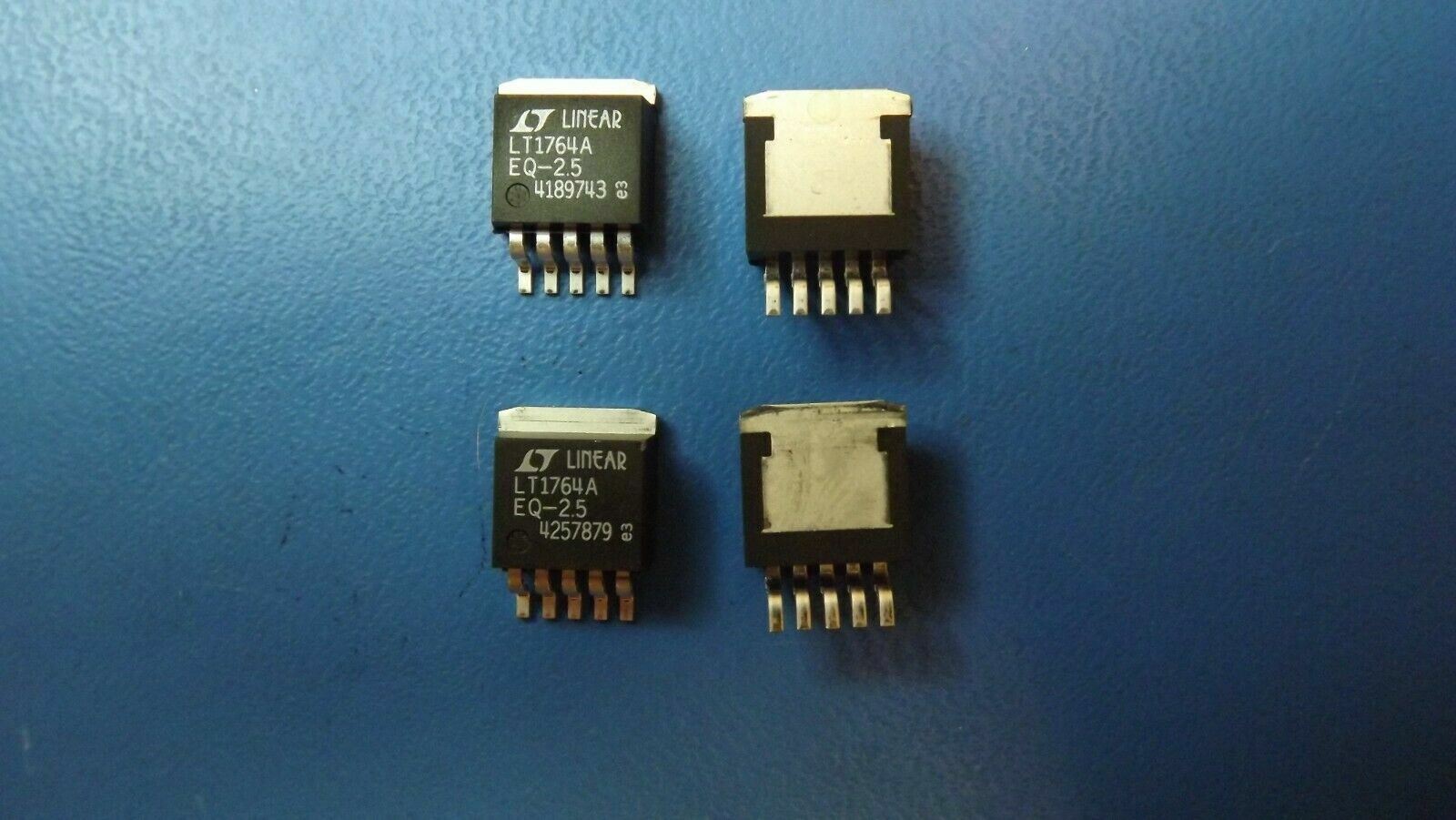

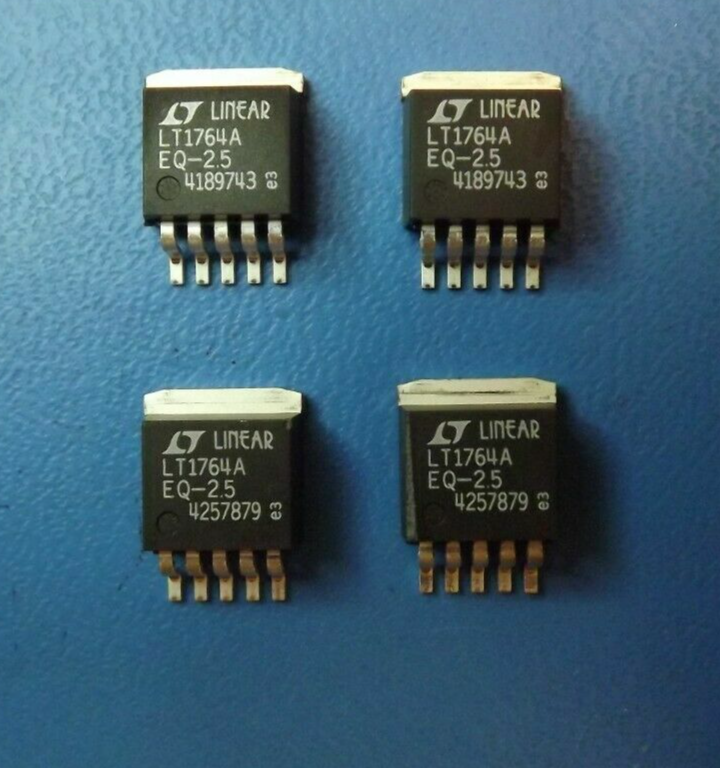

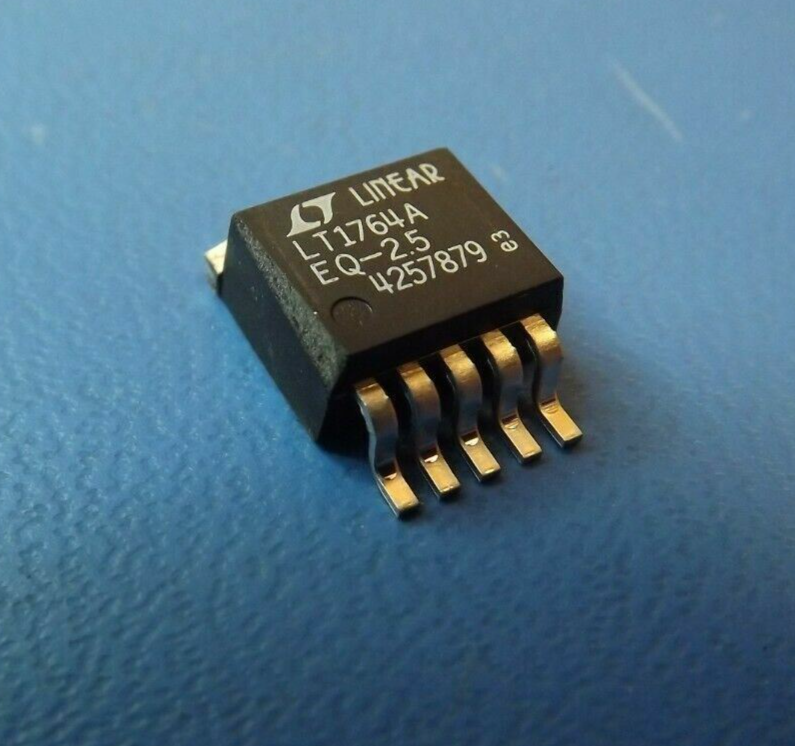

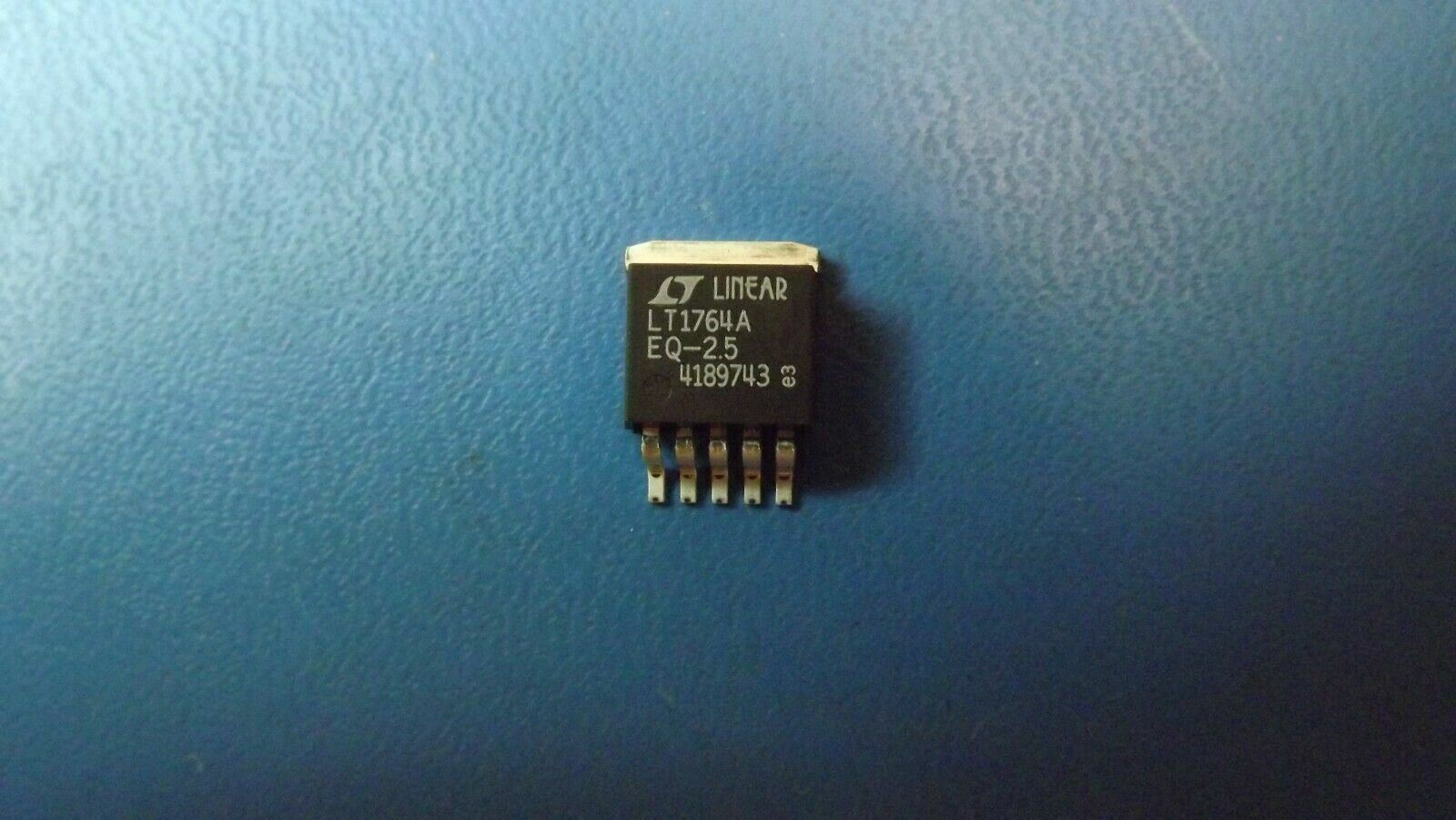

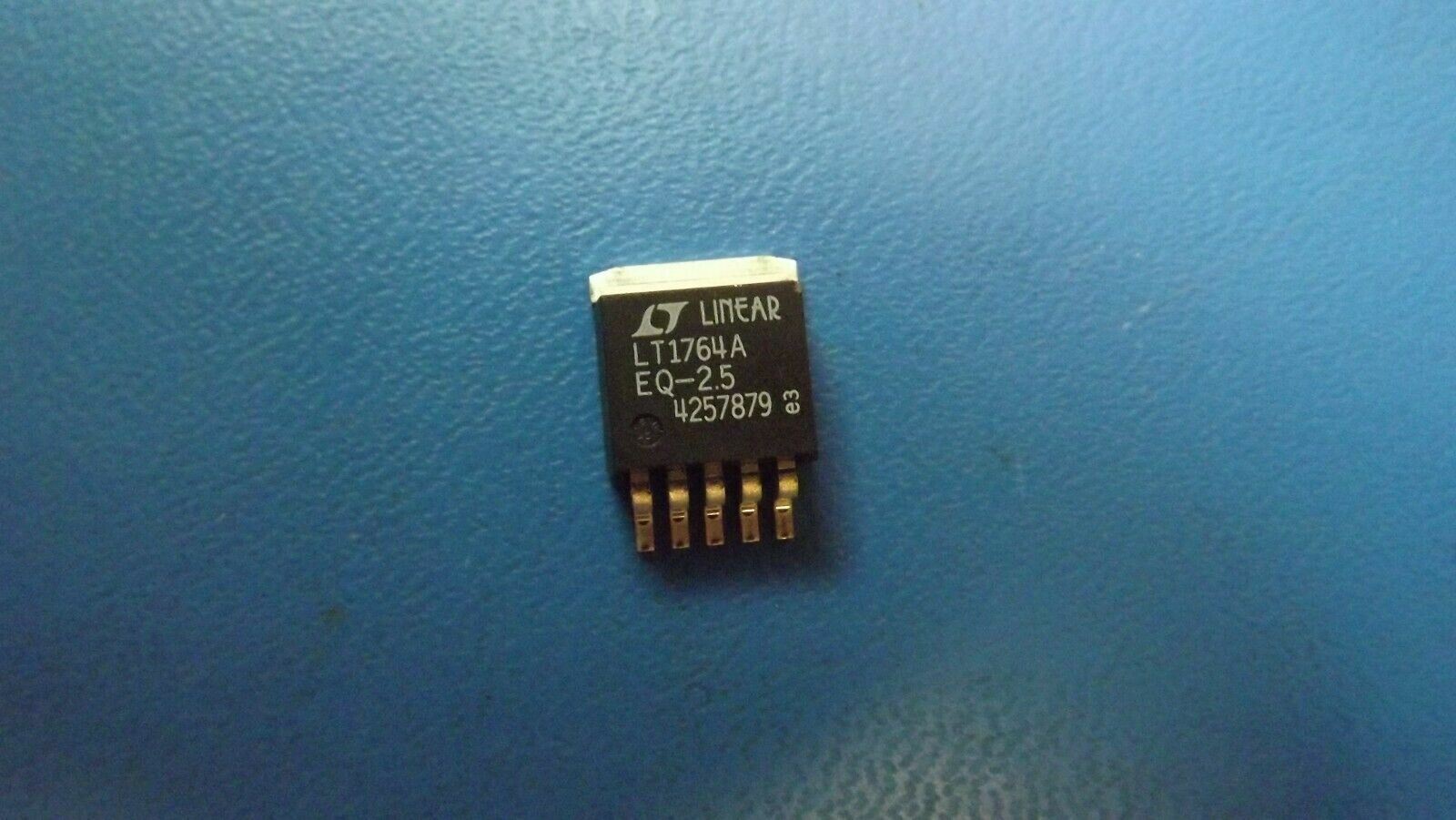

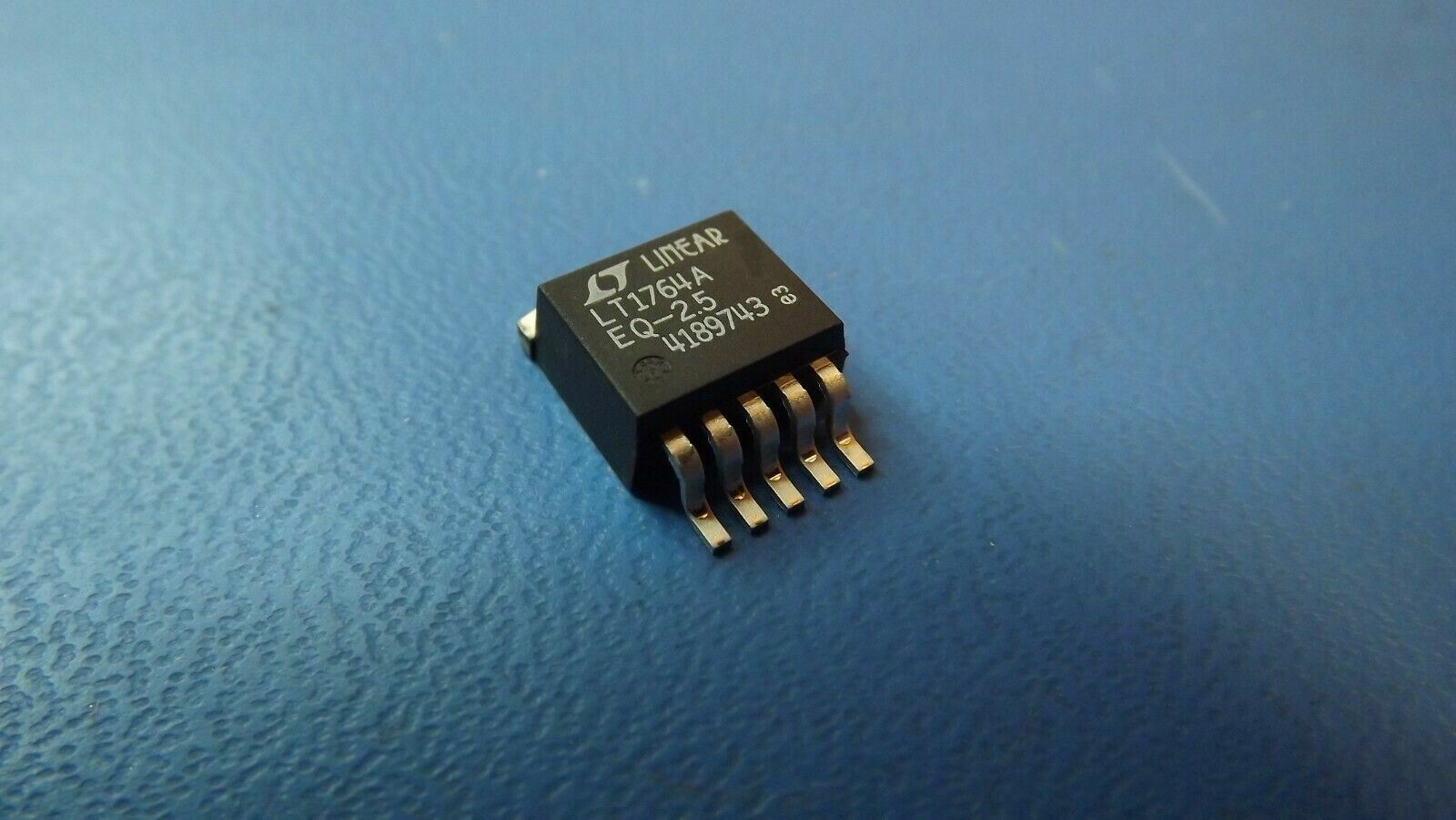

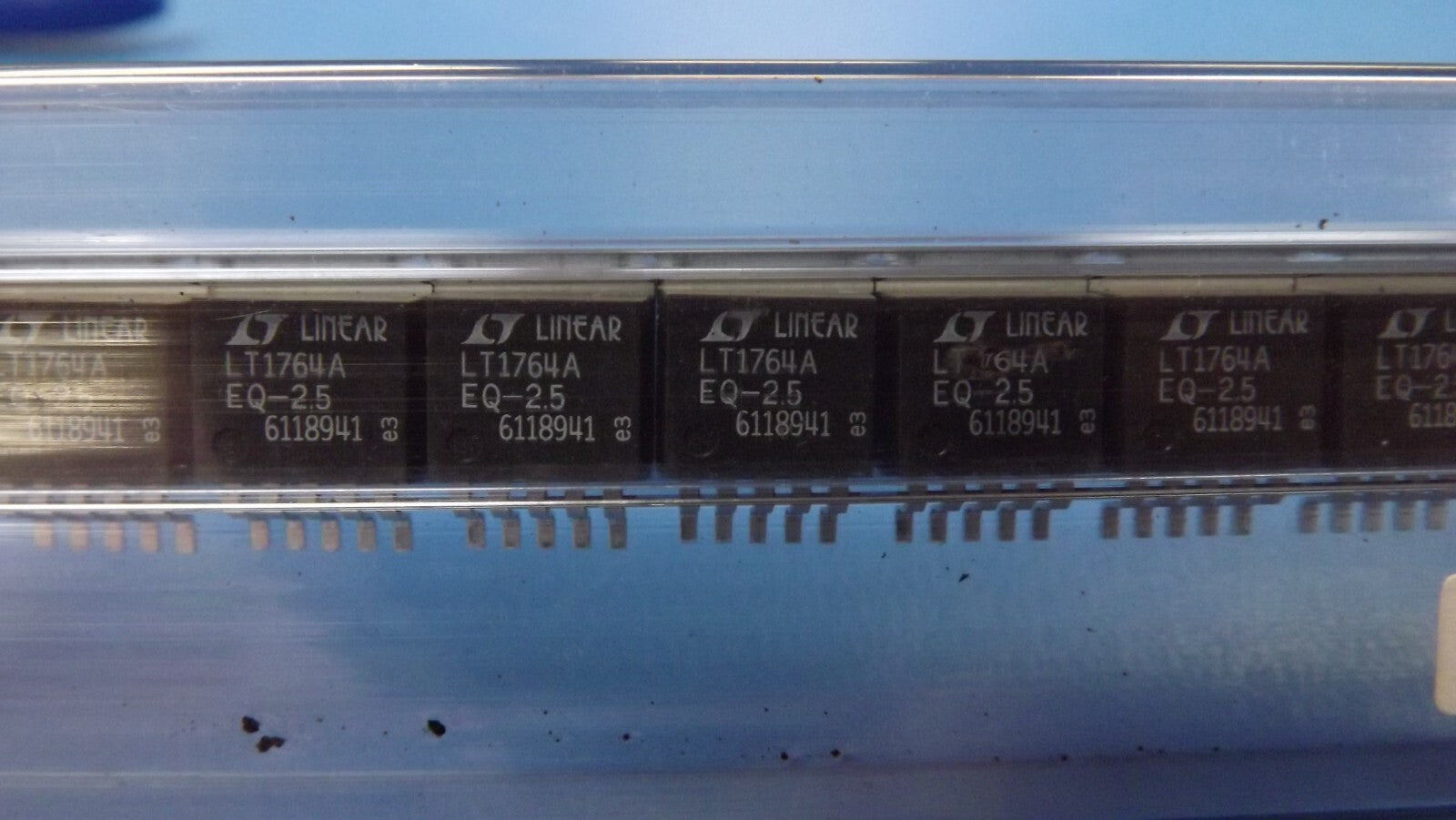

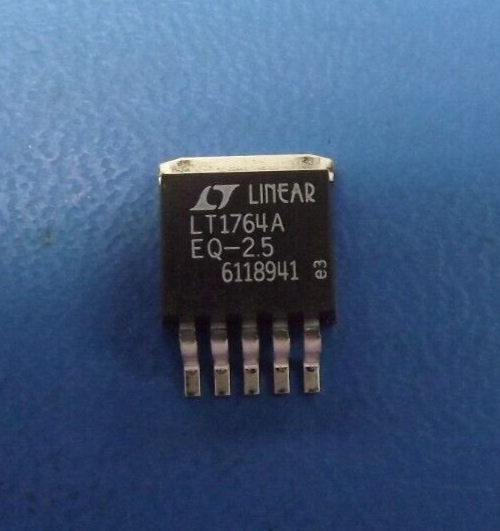

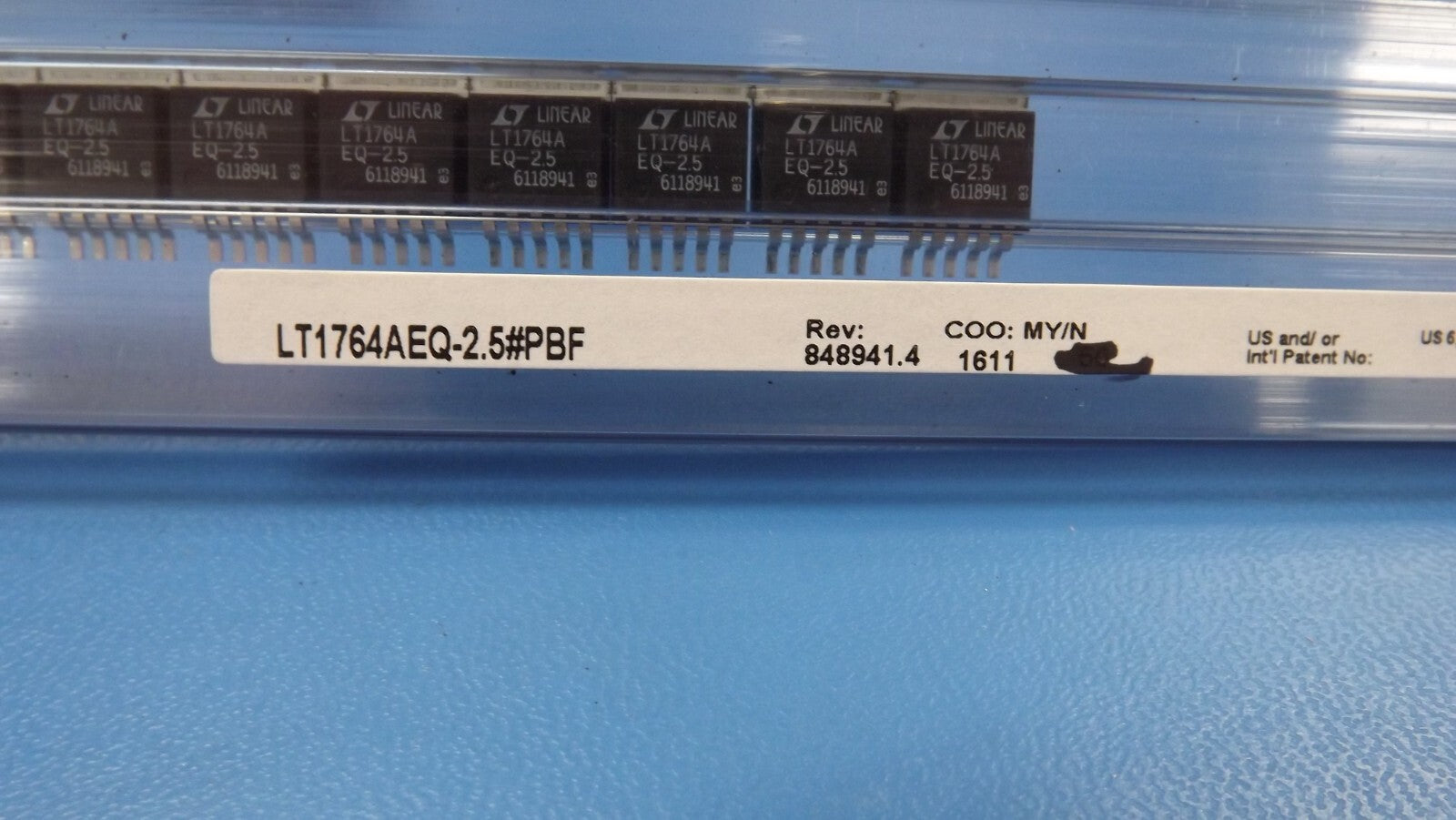

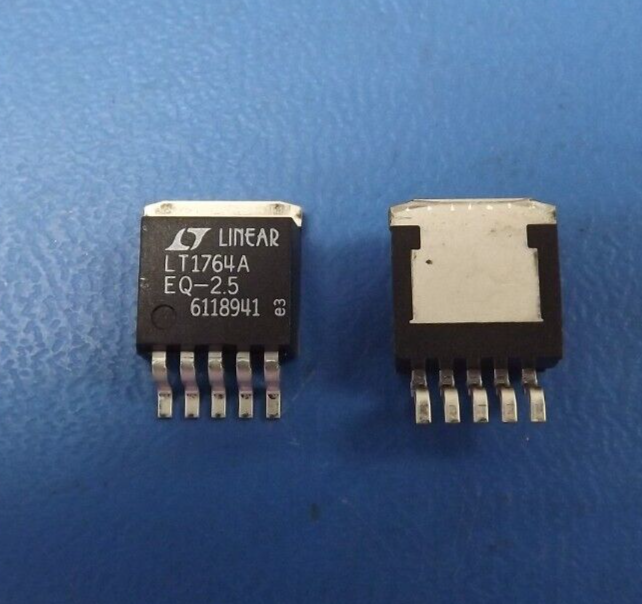

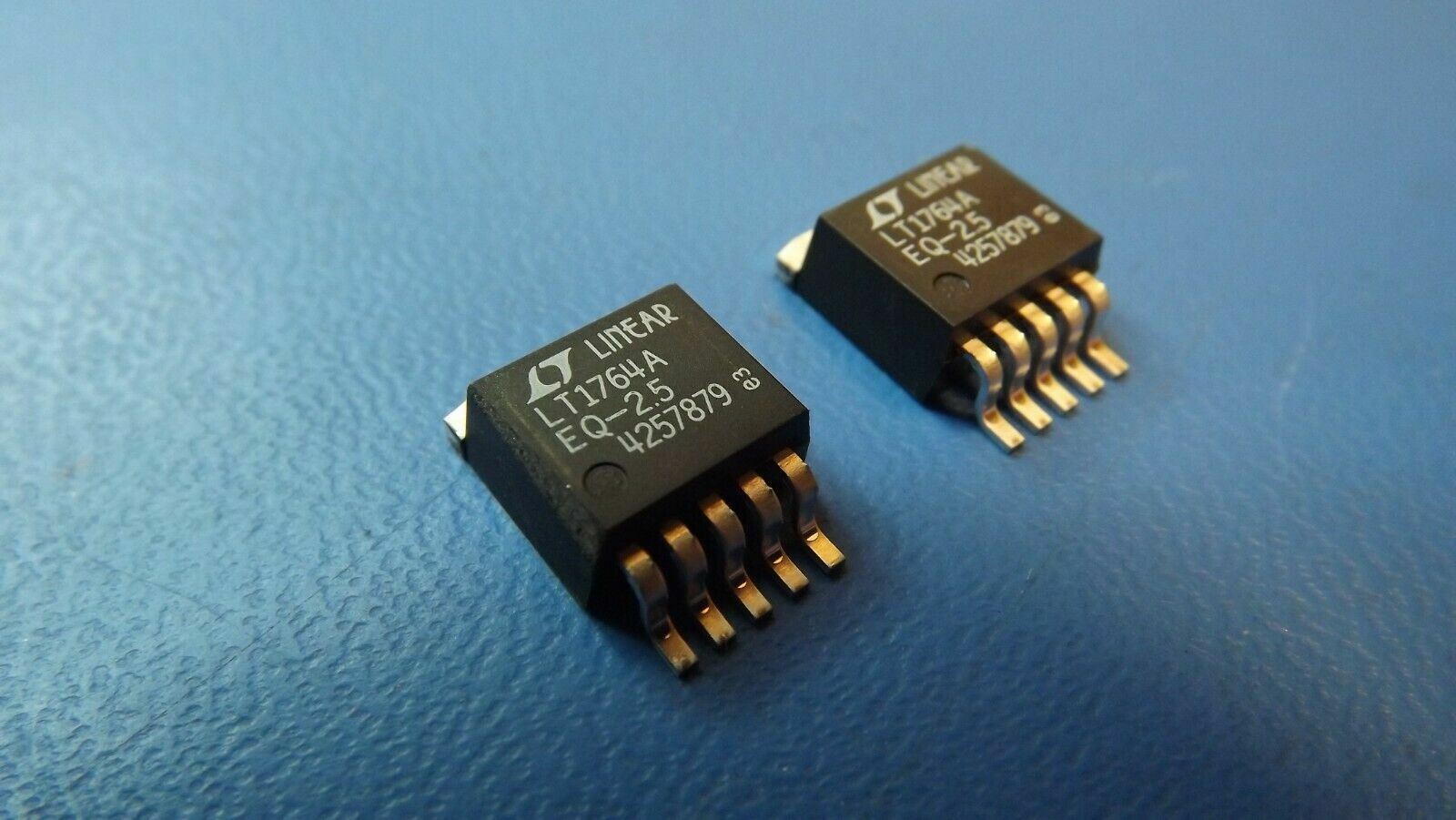

(1PC) LT1764AEQ-2.5#PBF LINEAR TECHNOLOGY IC REG LINEAR 2.5V 3A 5DDPAK

Tax included.
Only 47 left!
THIS LISTING IS FOR (1PC) OF LT1764AEQ-2.5#PBF BY LINEAR TECHNOLOGY


SPECIFICATIONS
Mfr Package Description LEAD FREE, PLASTIC, D2PAK-5
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability FIXED
Dropout Voltage1-Nom 0.34  V
Dropout Voltage1-Max 0.66  V
Input Voltage Absolute-Max 20.0  V
Input Voltage-Min 2.7  V
Input Voltage-Max 20.0  V
JESD-30 Code R-PSSO-G5
JESD-609 Code e3
Line Regulation-Max 0.01  V
Load Regulation-Max 0.03  V
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 5
Operating Temperature, TJ-Min -40.0  Cel
Operating Temperature, TJ-Max 125.0  Cel
Output Current1-Max 3.0  A
Output Voltage1-Nom 2.5  V
Output Voltage1-Min 2.412  V
Output Voltage1-Max 2.575  V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP5H,.6,67TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 4.572  mm
Sub Category Other Regulators
Surface Mount YES
Technology BIPOLAR
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form GULL WING
Terminal Pitch 1.7  mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 3.5  %
Length 10.2235  mm
Width 8.89  mm
