(1PC) LT1763CS8 Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-SOIC
Tax included.

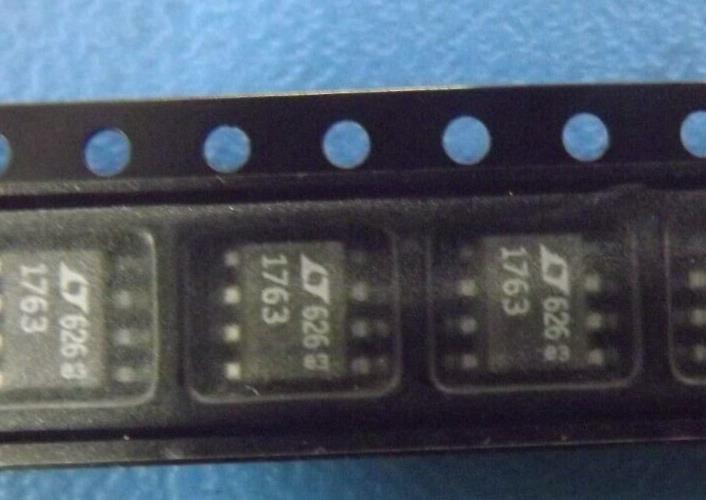

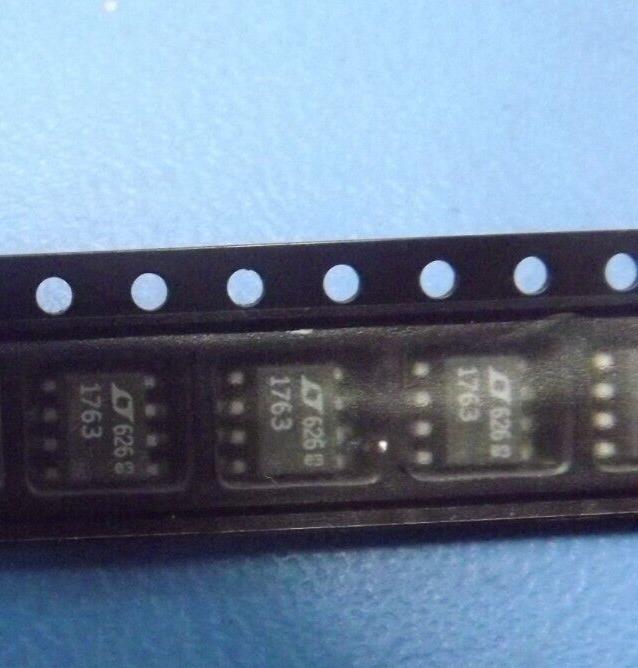

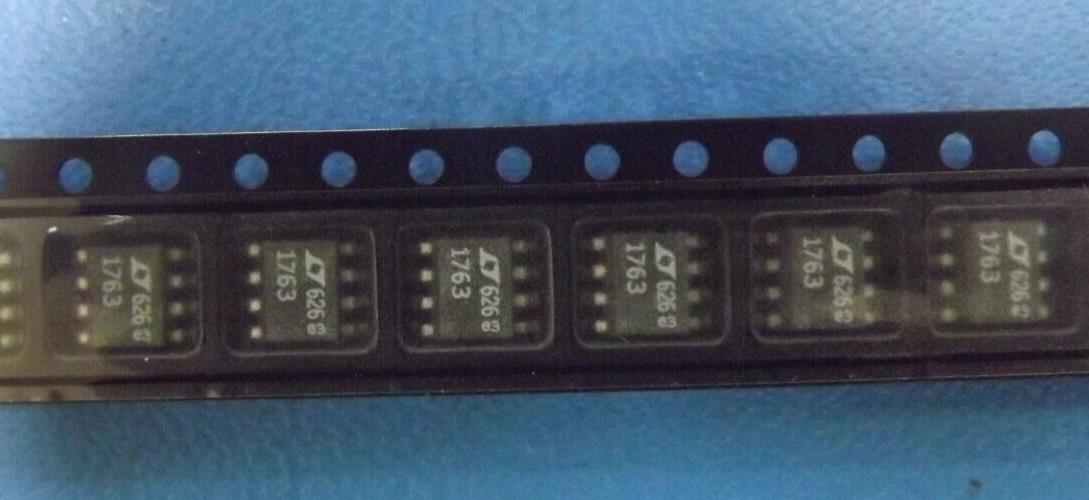

THIS LISTING IS FOR (1PC) OF LT1763CS8#PBF BY LINEAR TECHNOLOGY
Mfr Package Description 0.150 INCH, LEAD FREE, PLASTIC, SOP-8
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability ADJUSTABLE
Dropout Voltage1-Nom 0.3 V
Dropout Voltage1-Max 0.45 V
Input-Output Voltage Differential-Min 2.0 V
Input-Output Voltage Differential-Max 20.0 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Line Regulation-Max (%/V) 0.0228
Load Regulation-Max(%) 0.984 %
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature, TJ-Min -40.0 Cel
Operating Temperature, TJ-Max 125.0 Cel
Output Current1-Max 0.5 A
Output Voltage1-Min 1.22 V
Output Voltage1-Max 20.0 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.752 mm
Surface Mount YES
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 4.9 mm
Width 3.9 mm
