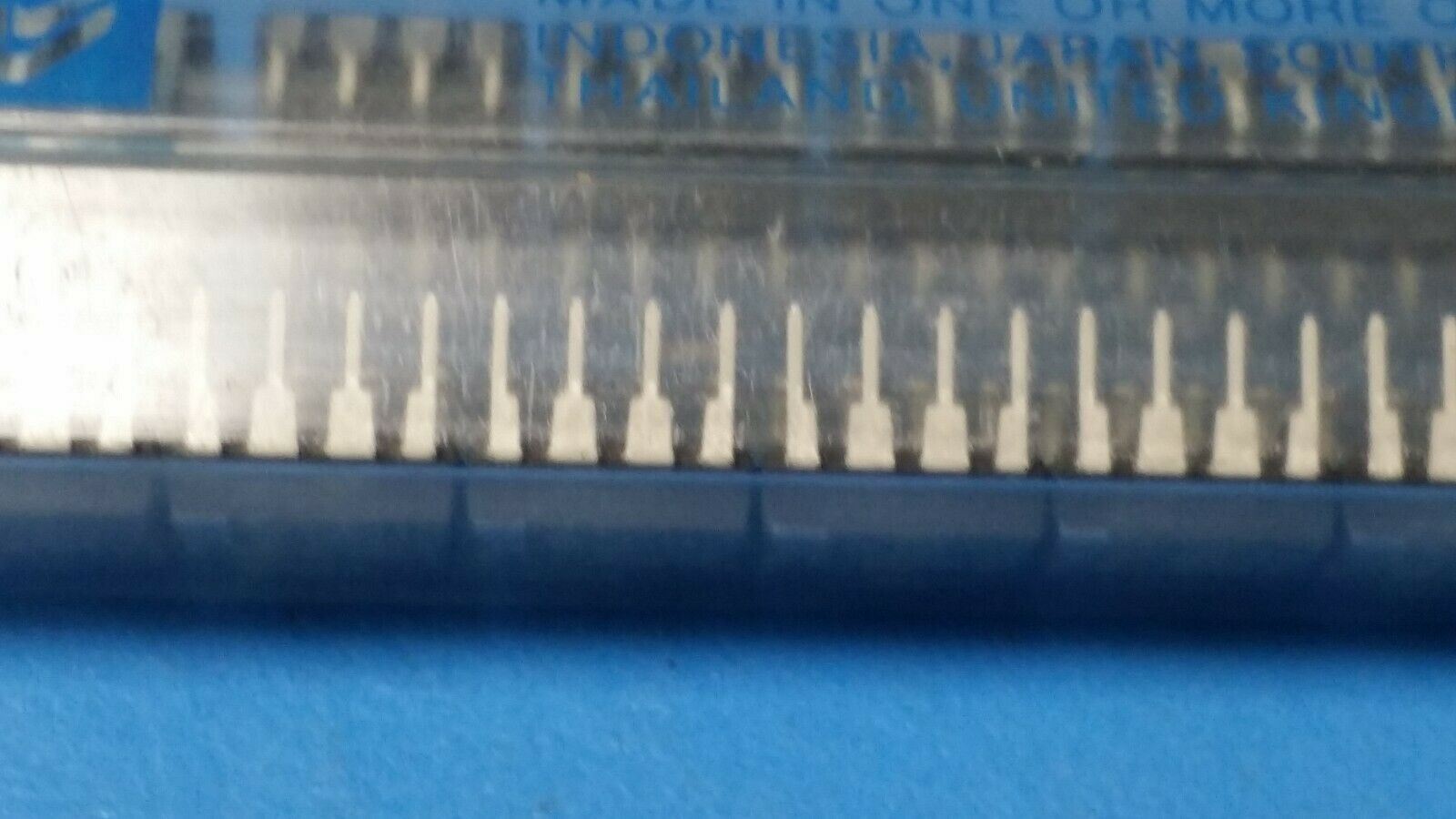

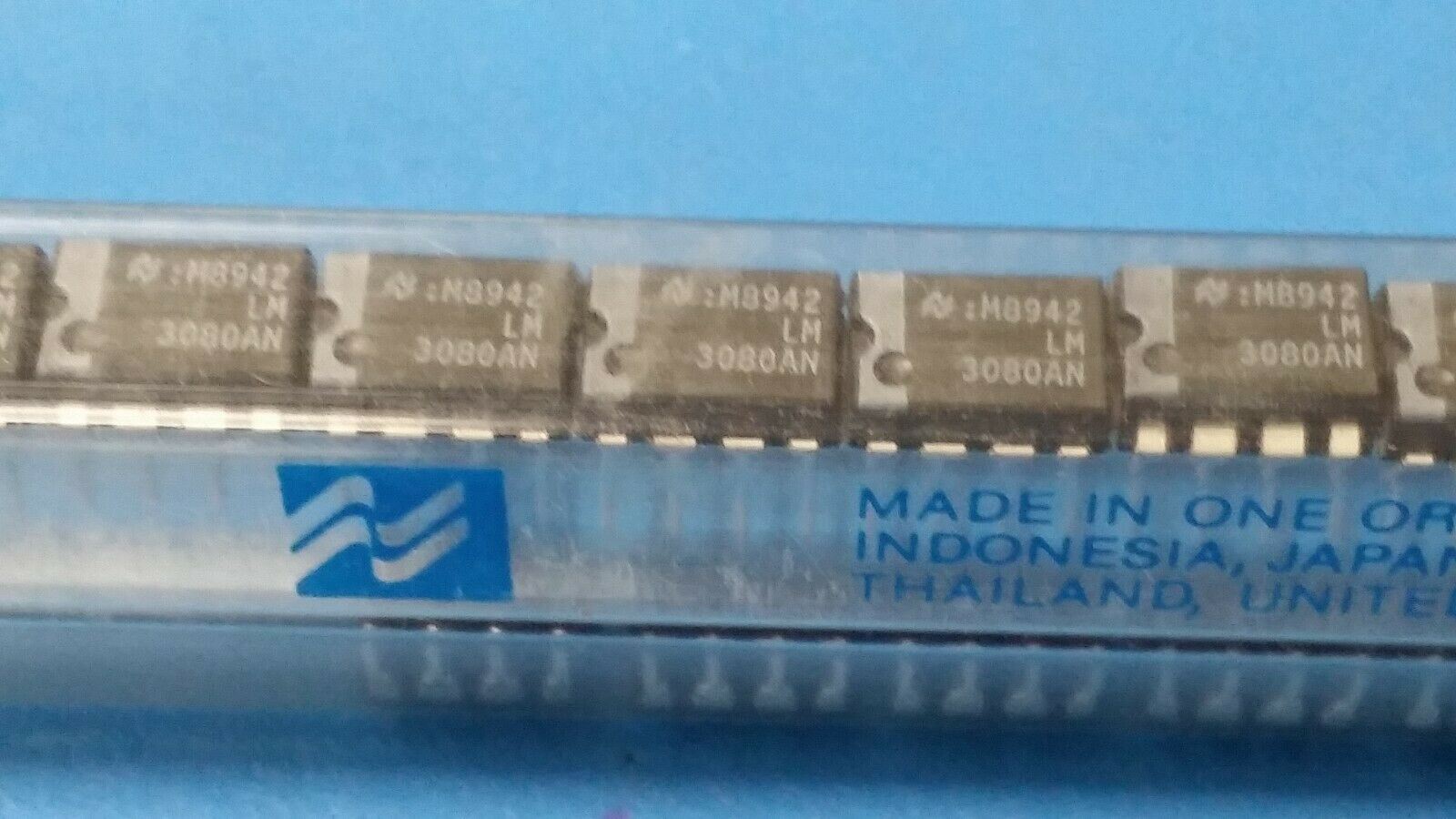

(1PC) LM3080AN NSC Operational Amplifier 1 Func 5000uV Offset-Max BIPolar PDIP8
Tax included.
THIS IS FOR (1PC) OF LM3080AN BY NSC
Operational Amplifier 1 Func 5000uV Offset-Max BIPolar PDIP8
Part #: LM3080AN
Part Category: Amplifiers
Manufacturer: (NSC) Texas Instruments High-Performance Analog
Description: Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDIP8
Mfr Package Description 0.300 INCH, PLASTIC, DIP-8
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture TRANSCONDUCTANCE
Average Bias Current-Max (IIB) 8.0 µA
Bias Current-Max (IIB) @25C 5.0 µA
Common-mode Reject Ratio-Nom 110.0 dB
Common-mode Reject Ratio-Min 80.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000.0 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Low-Offset NO
Neg Supply Voltage Limit-Max -22.0 V
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Programmable Power YES
Qualification Status Not Qualified
Slew Rate-Nom 50.0 V/us
Sub Category Operational Amplifier
Supply Voltage Limit-Max 22.0 V
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Unity Gain BW-Nom 2000.0 kHz
