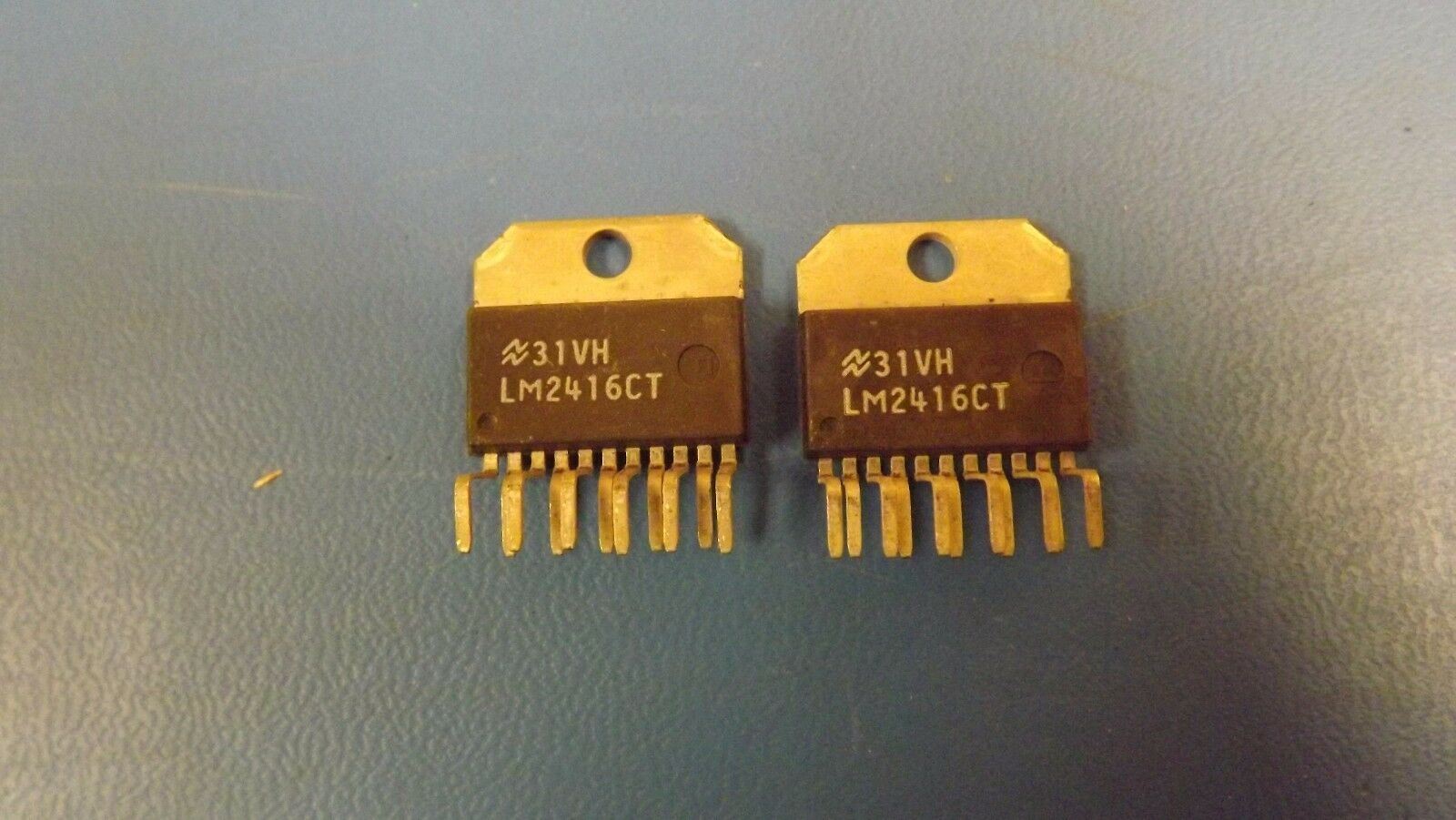

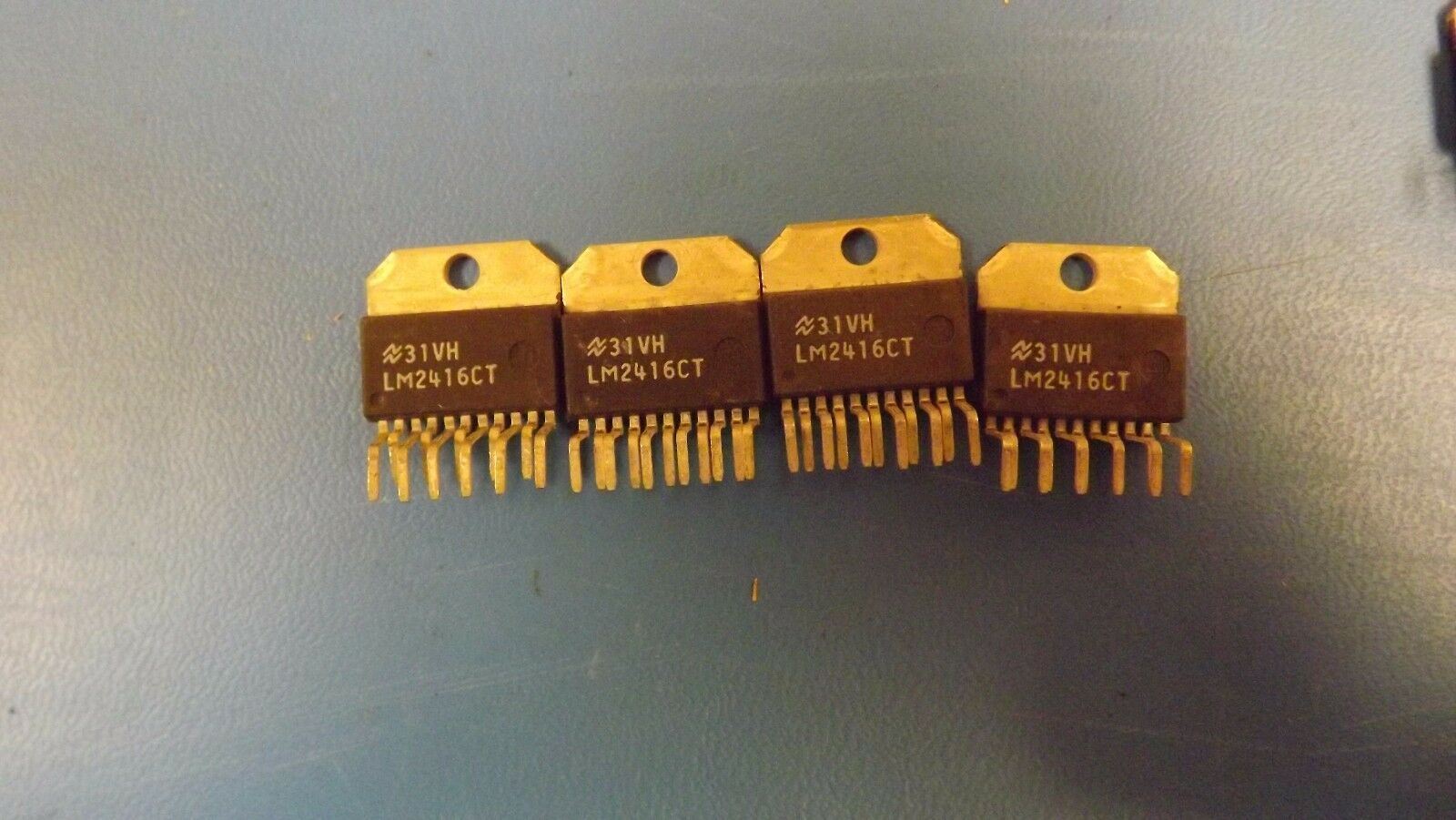

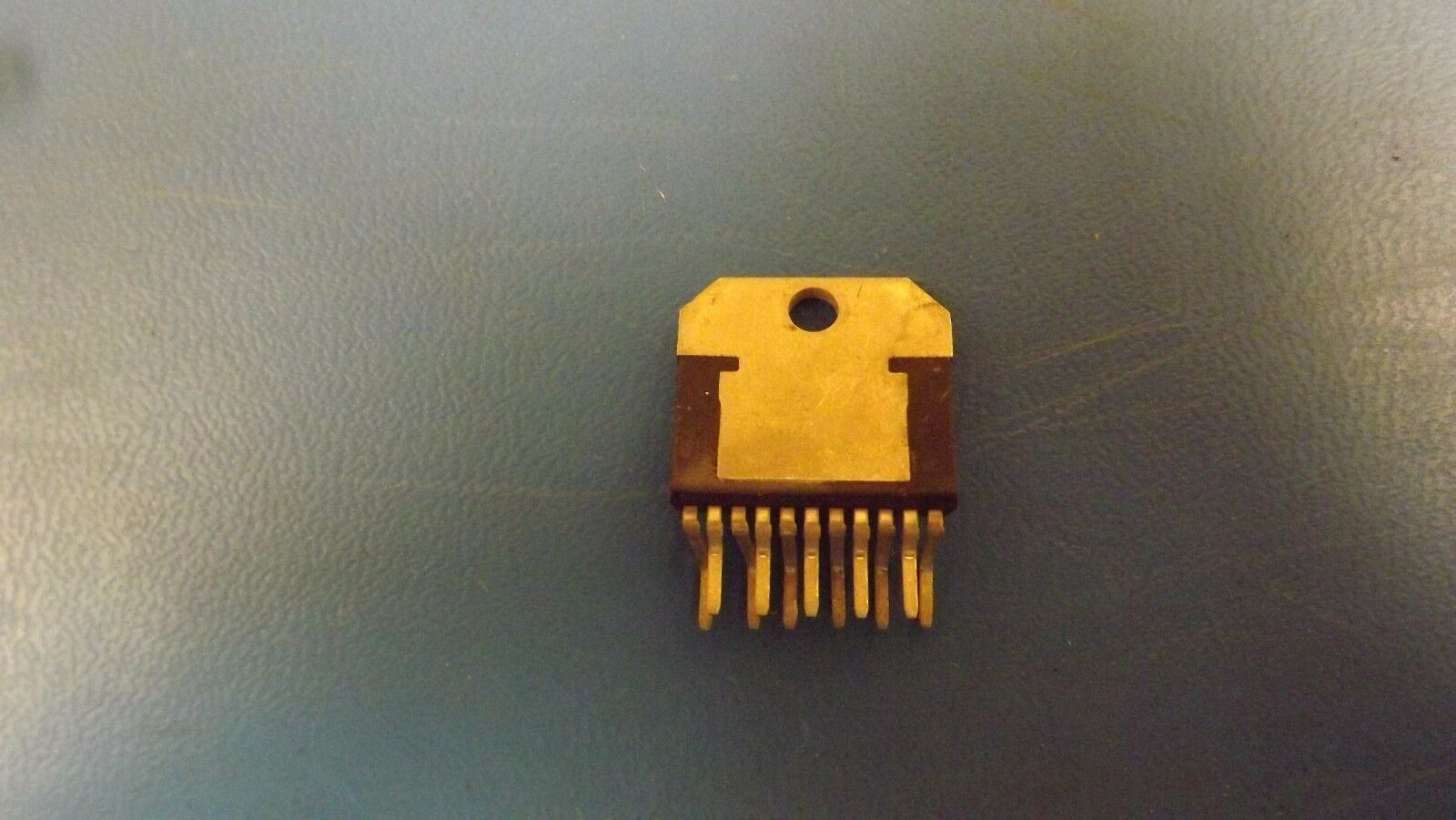

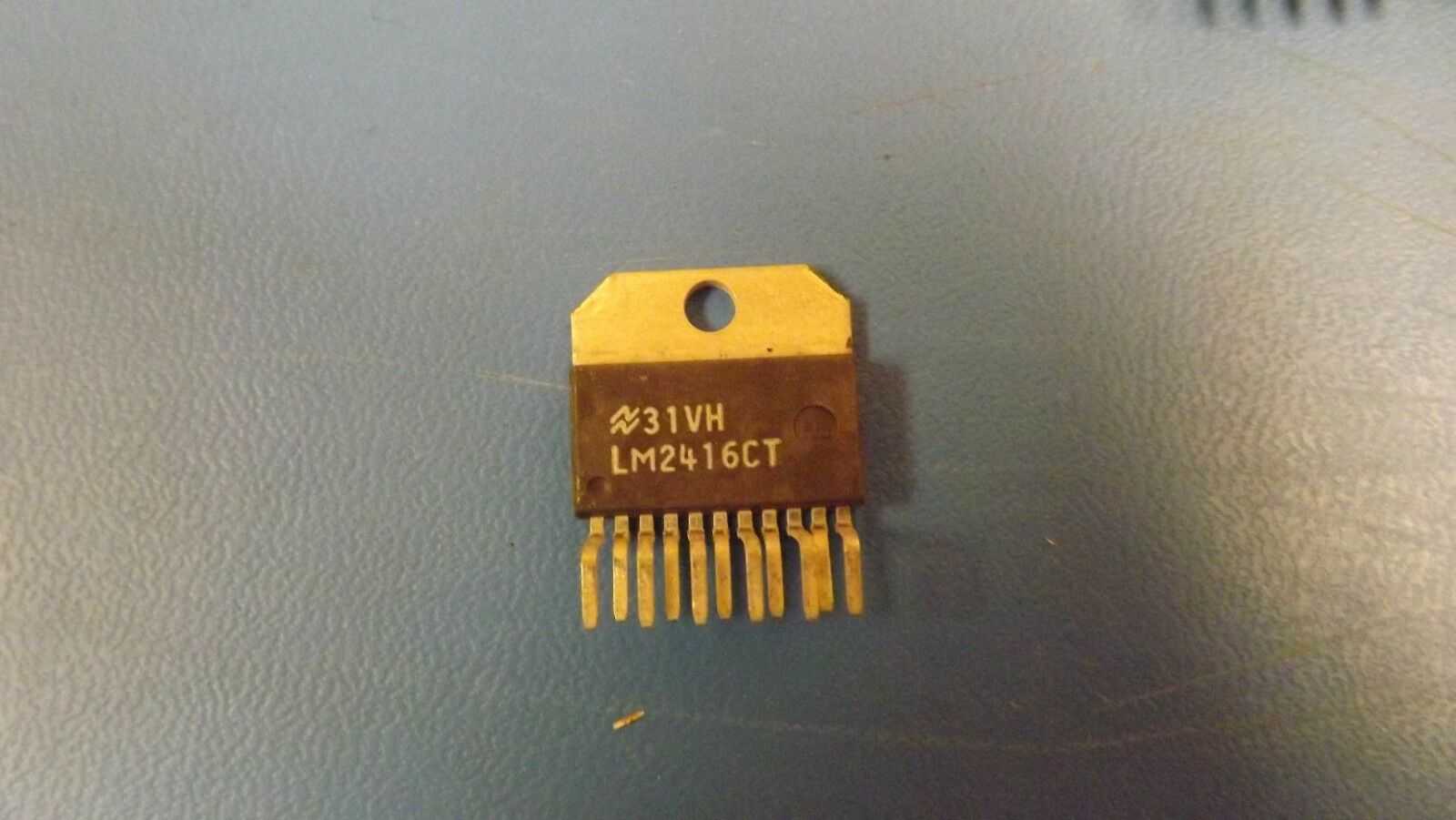

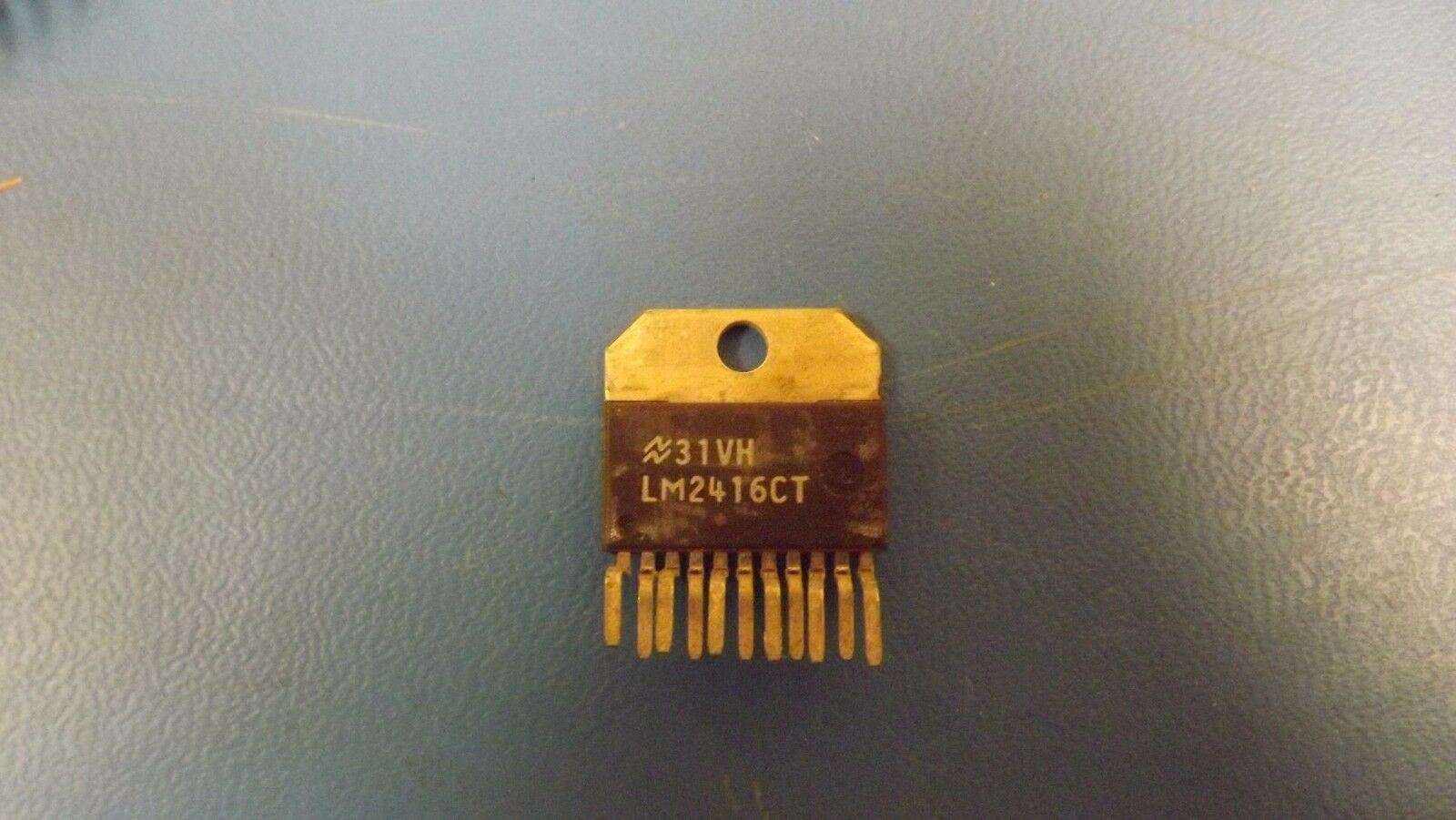

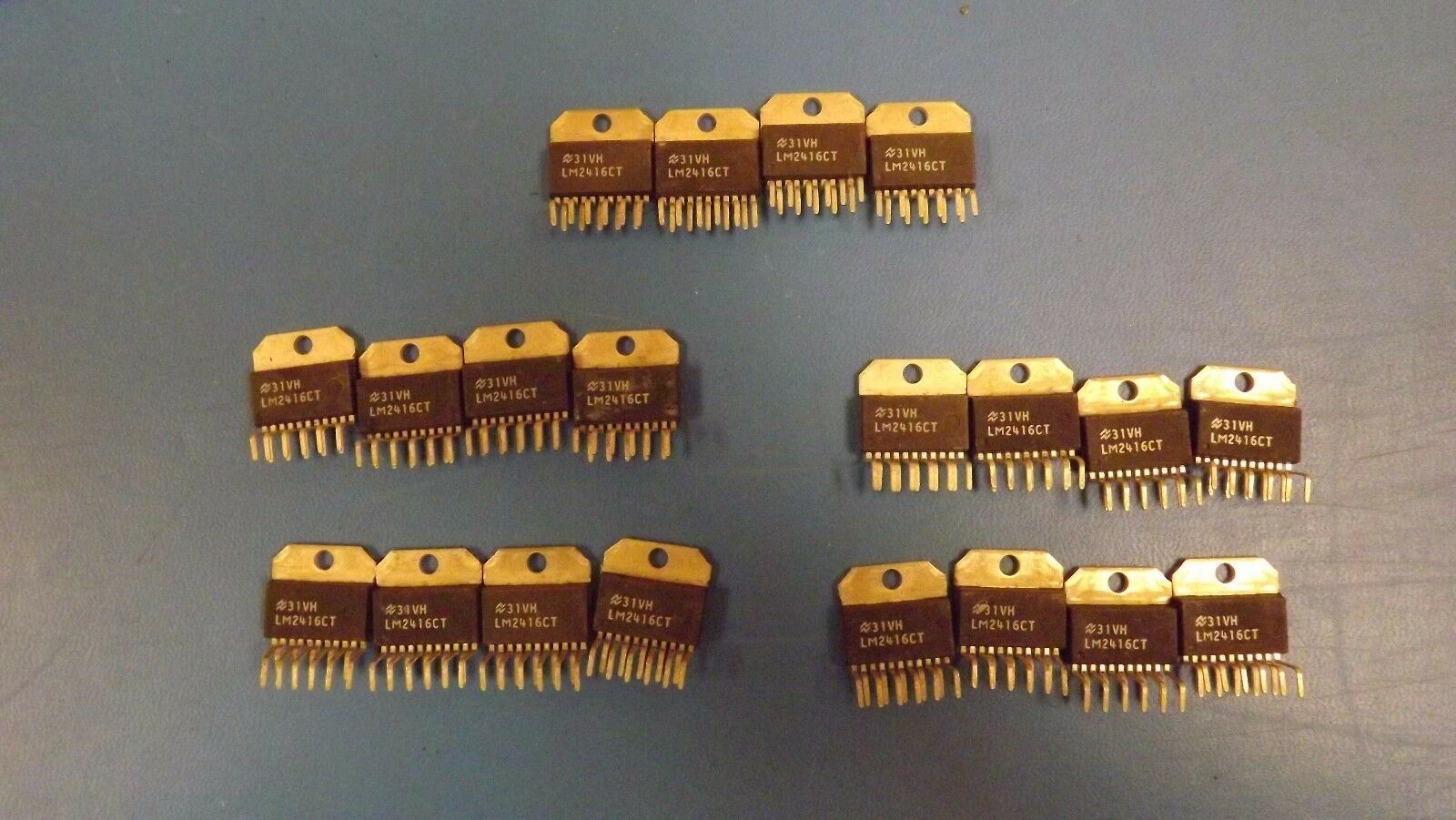

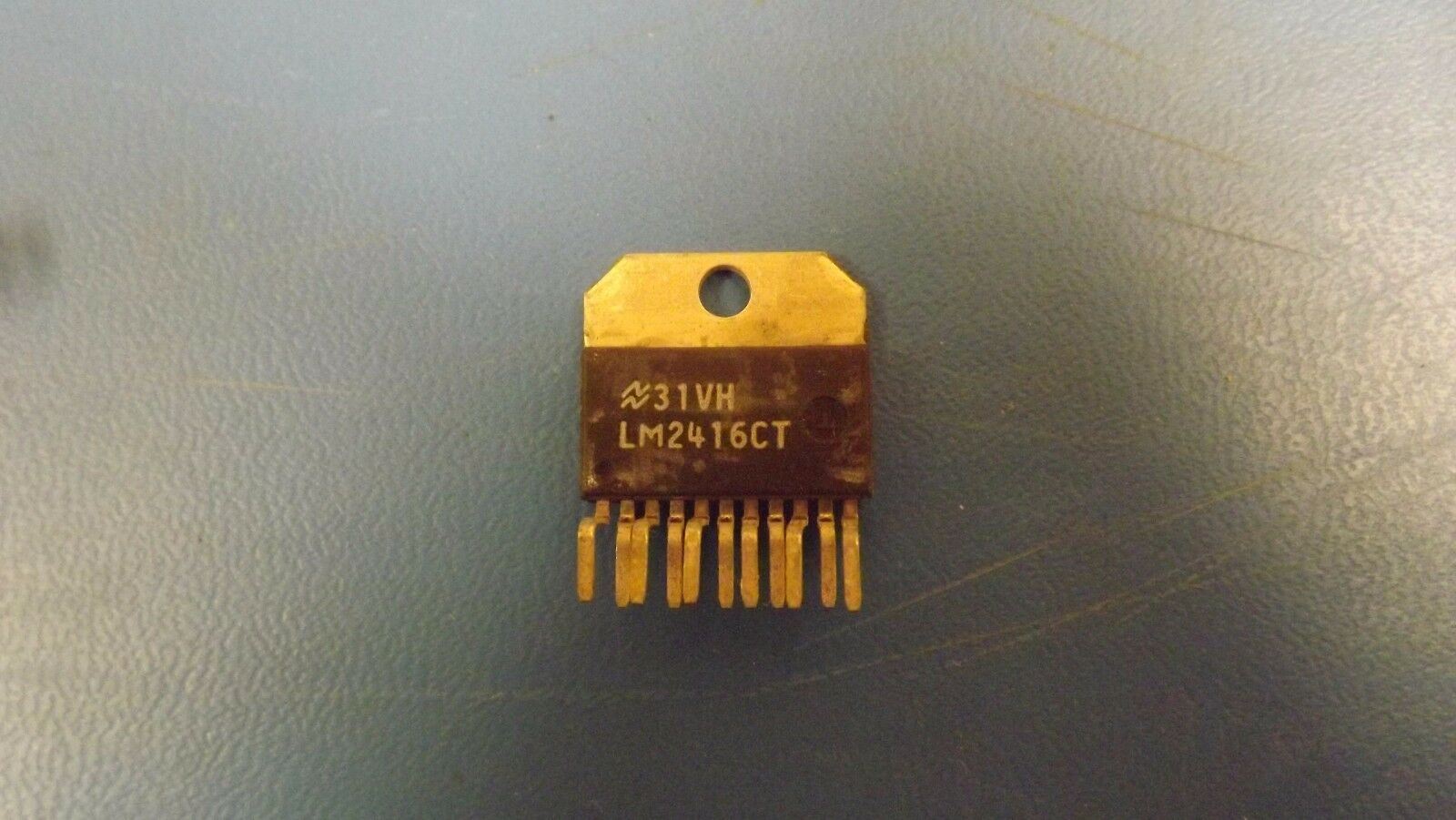

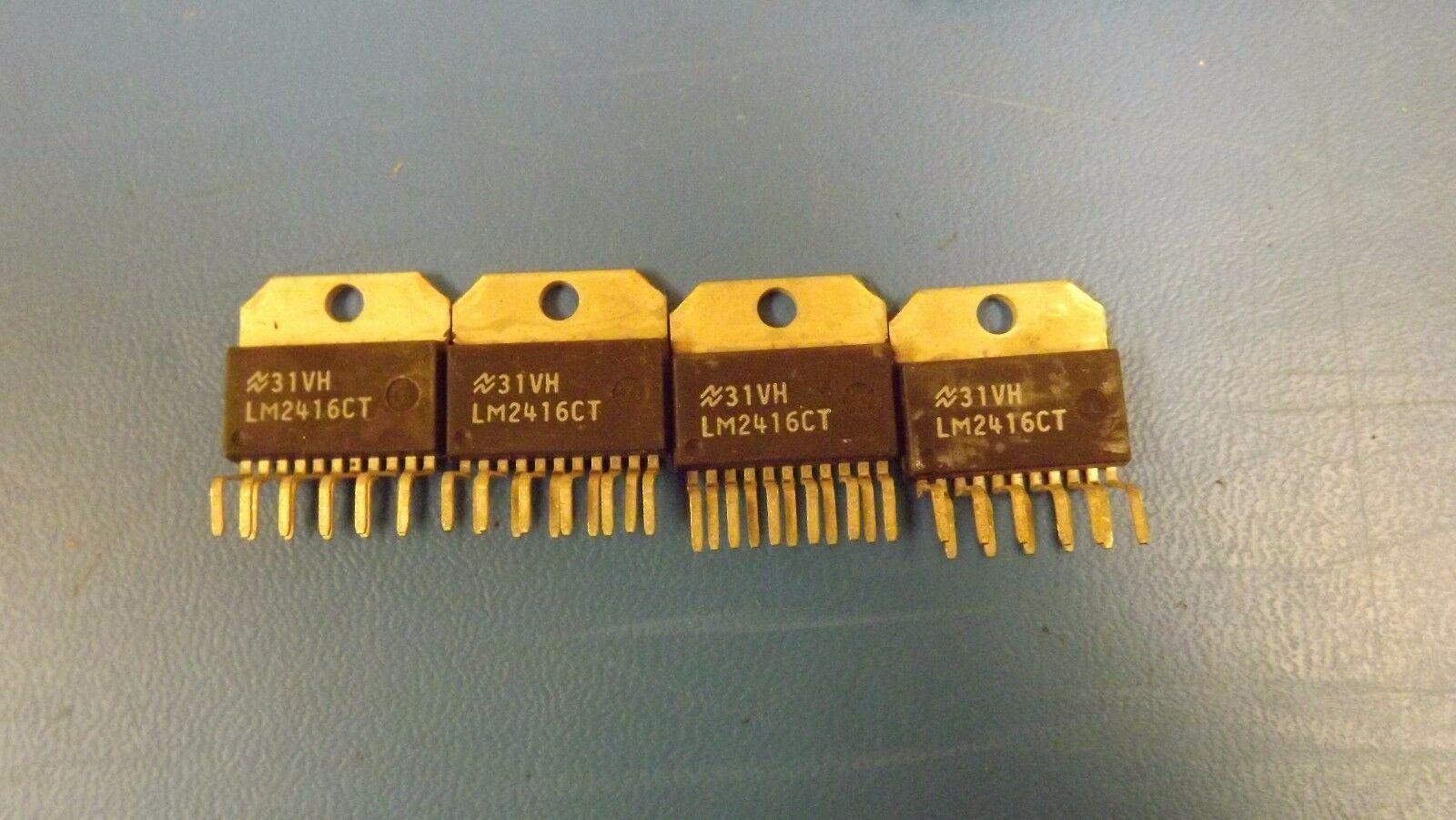

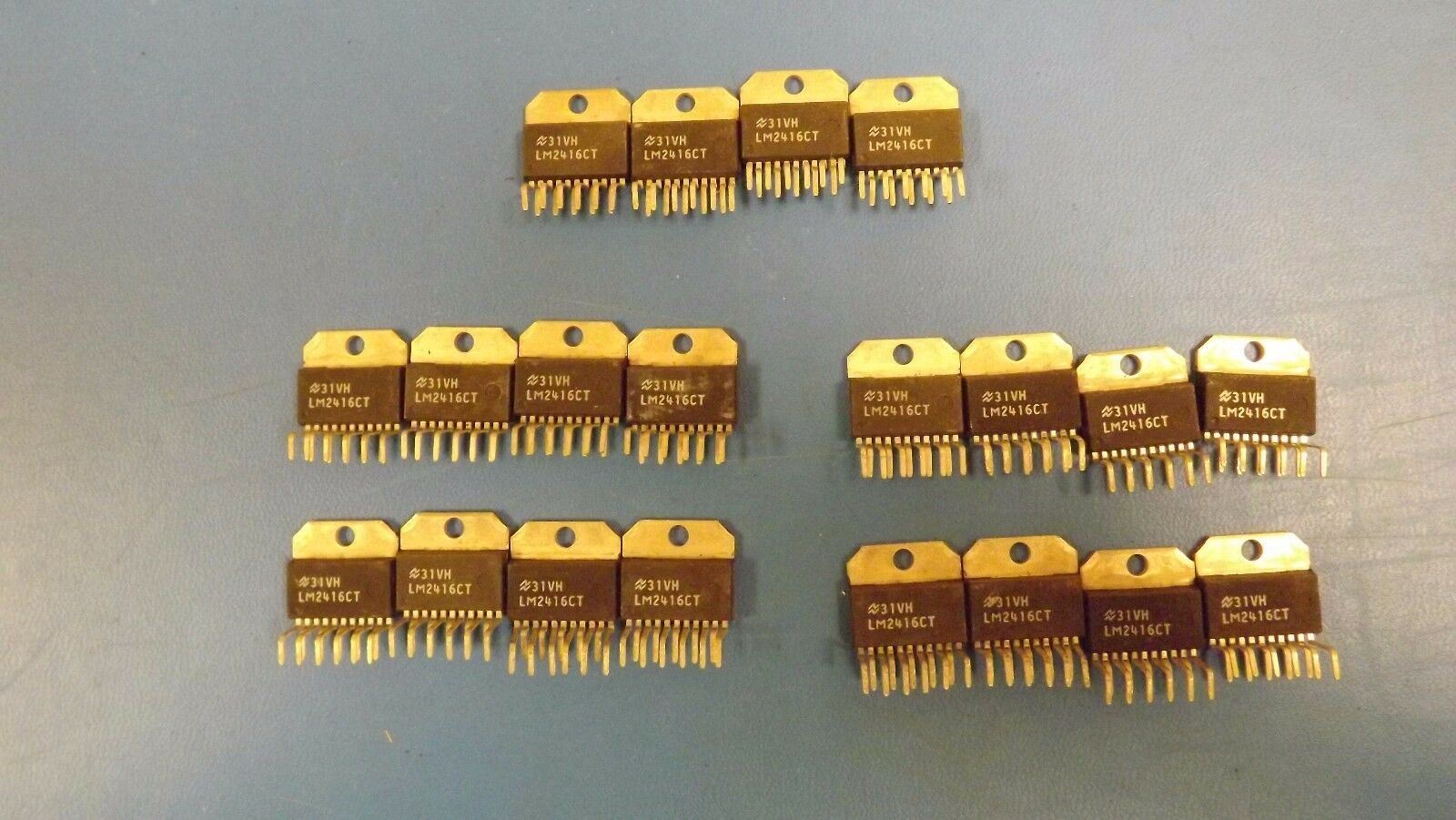

(1PC) LM2416CT NSC 3 CHANNEL, VIDEO AMPLIFIER, PSFM11
Tax included.
THIS LISTING IS FOR (1PC) OF LM2416CT BY NSC
SPECIFICATIONS
| Mfr Package Description | HEAT SINK, POWER, PLASTIC, TO-220, 11 PIN |
| Status | Discontinued |
| Consumer IC Type | VIDEO AMPLIFIER |
| Bandwidth-Nom | 35000.0 kHz |
| Gain | 22.0 dB |
| JESD-30 Code | R-PSFM-T11 |
| JESD-609 Code | e0 |
| Number of Channels | 3 |
| Number of Terminals | 11 |
| Operating Temperature-Min | -20.0 Cel |
| Operating Temperature-Max | 90.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TO-220 |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Supply Current-Max | 28.0 mA |
| Supply Voltage-Min (Vsup) | 80.0 V |
| Supply Voltage-Max (Vsup) | 80.0 V |
| Surface Mount | NO |
| Temperature Grade | OTHER |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
