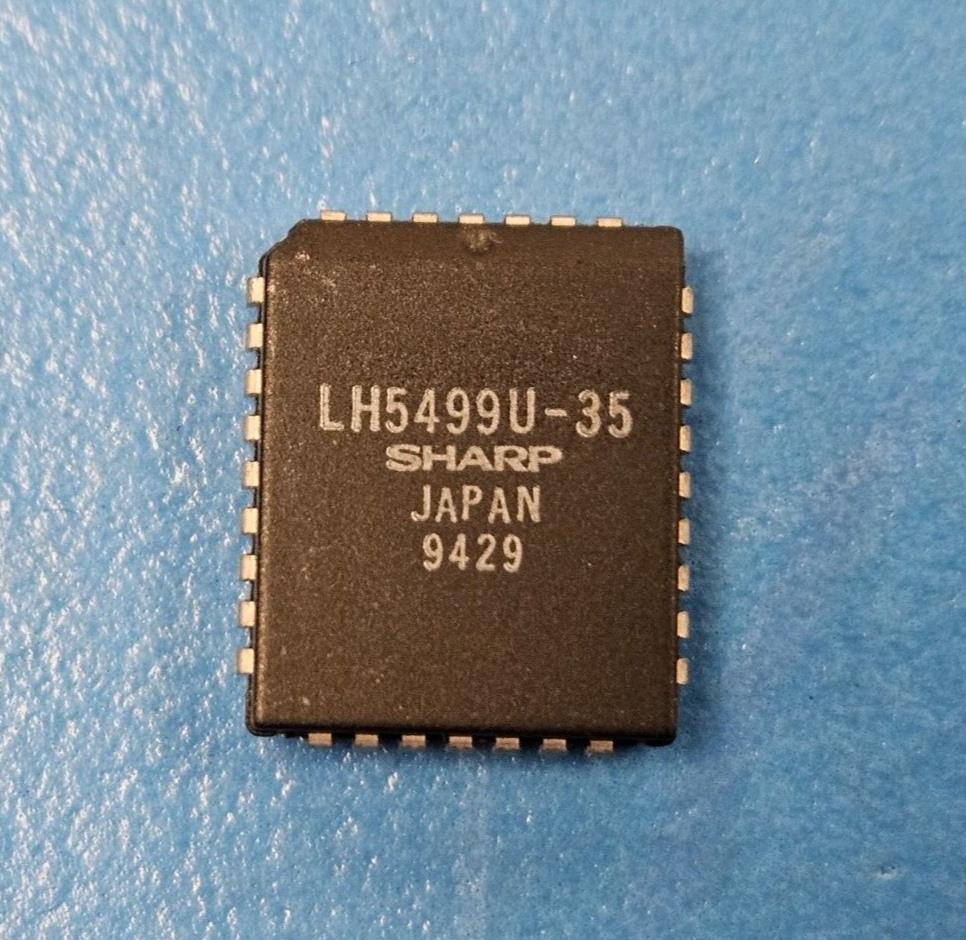

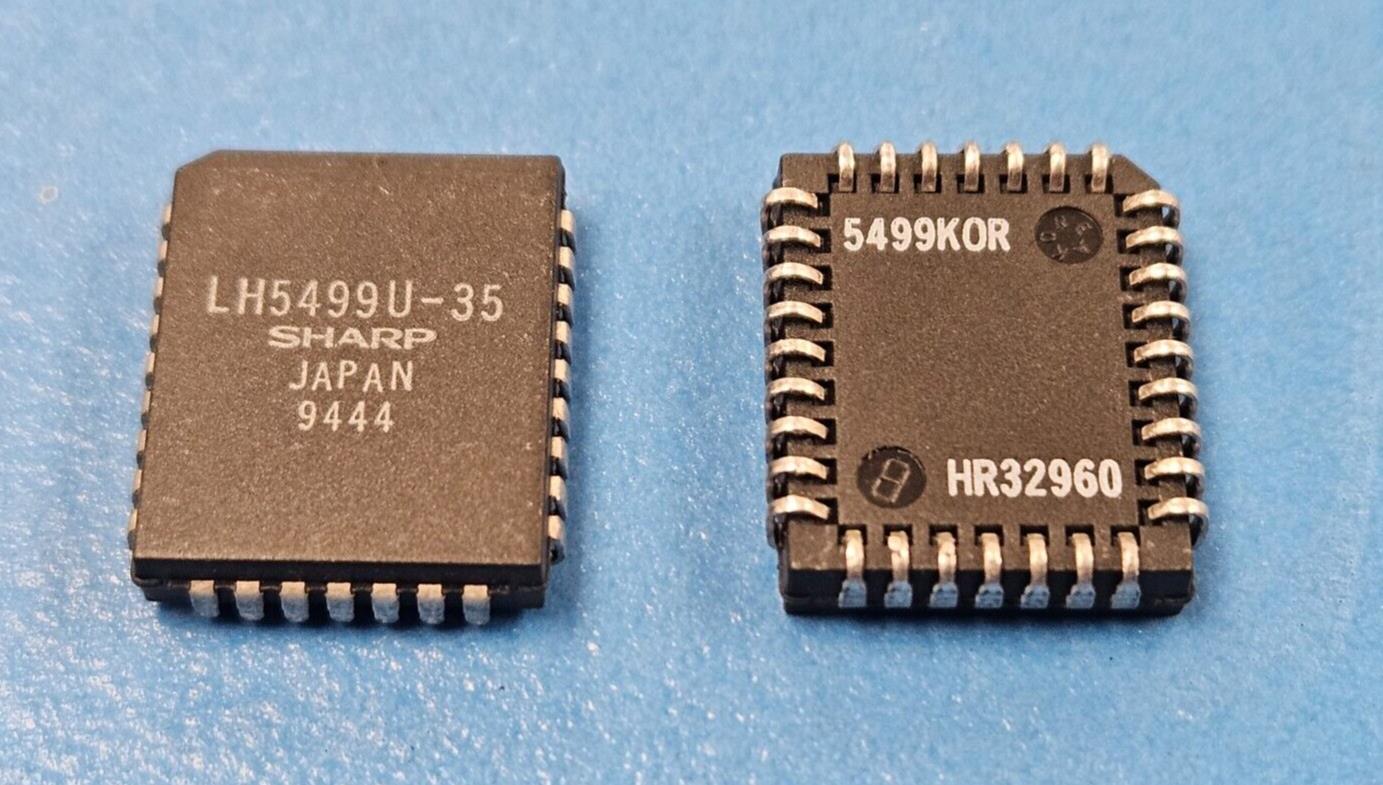

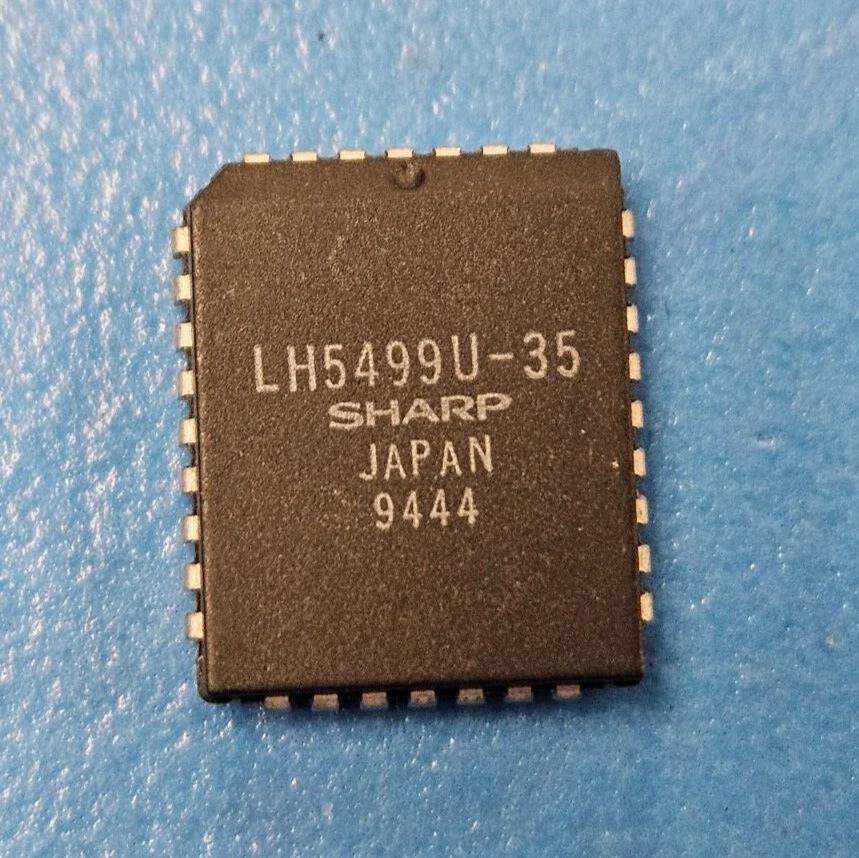

(1PC) LH5499U-35 Sharp FIFO, 4KX9, 35ns, Asynchronous, CMOS, 32P PLCC
Tax included.
This listing is for (1PC) of LH5499U-35 by Sharp
Mfr Package Description 0.450 INCH, PLASTIC, LCC-32
Status Discontinued
Access Time-Max 35.0 ns
Cycle Time 45.0 ns
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 36864.0 bit
Memory Width 9
Number of Functions 1
Number of Terminals 32
Number of Words 4096.0 words
Number of Words Code 4K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4KX9
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.56 mm
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 13.97 mm
Width 11.43 mm
Additional Feature RETRANSMIT
