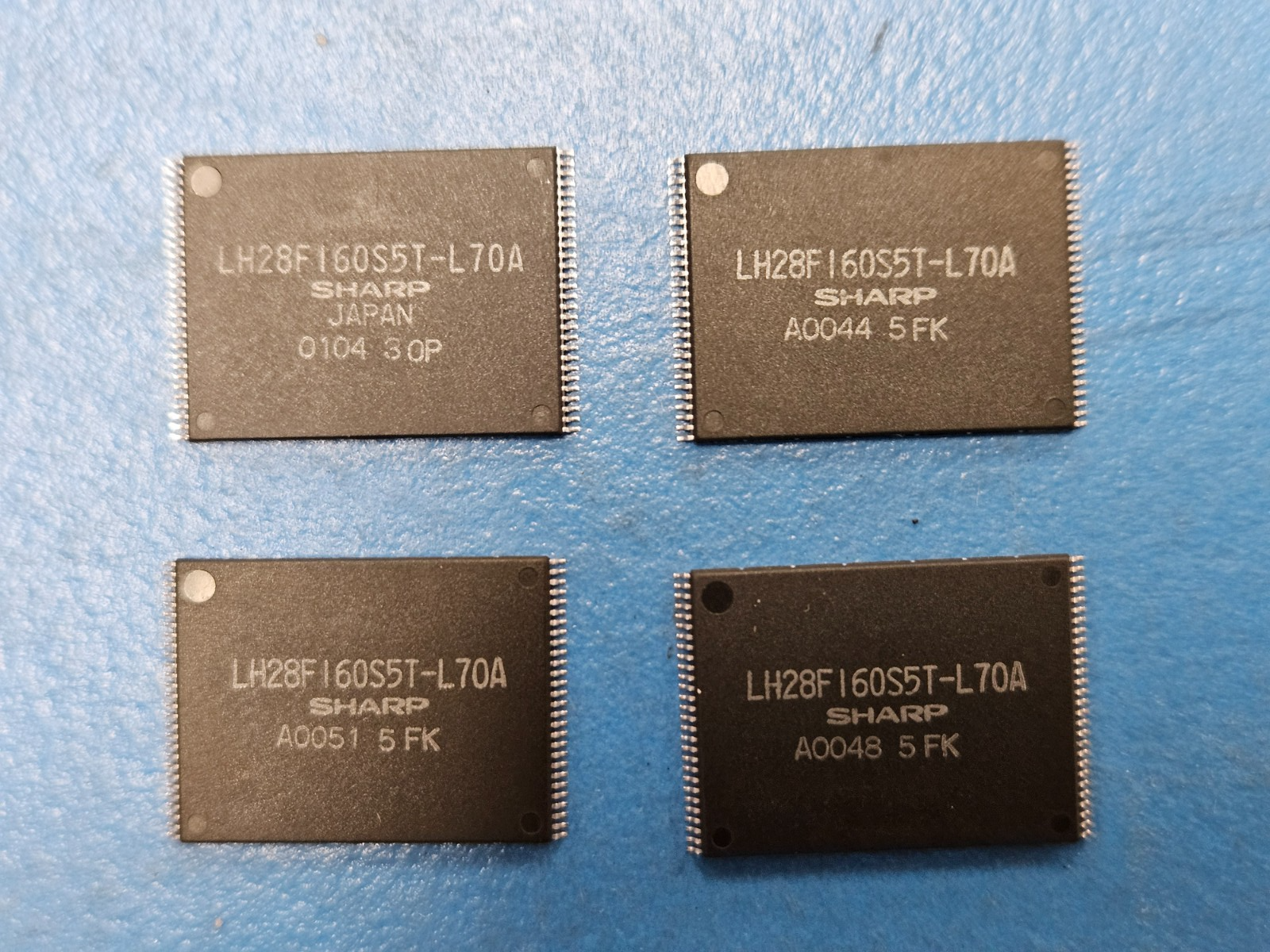

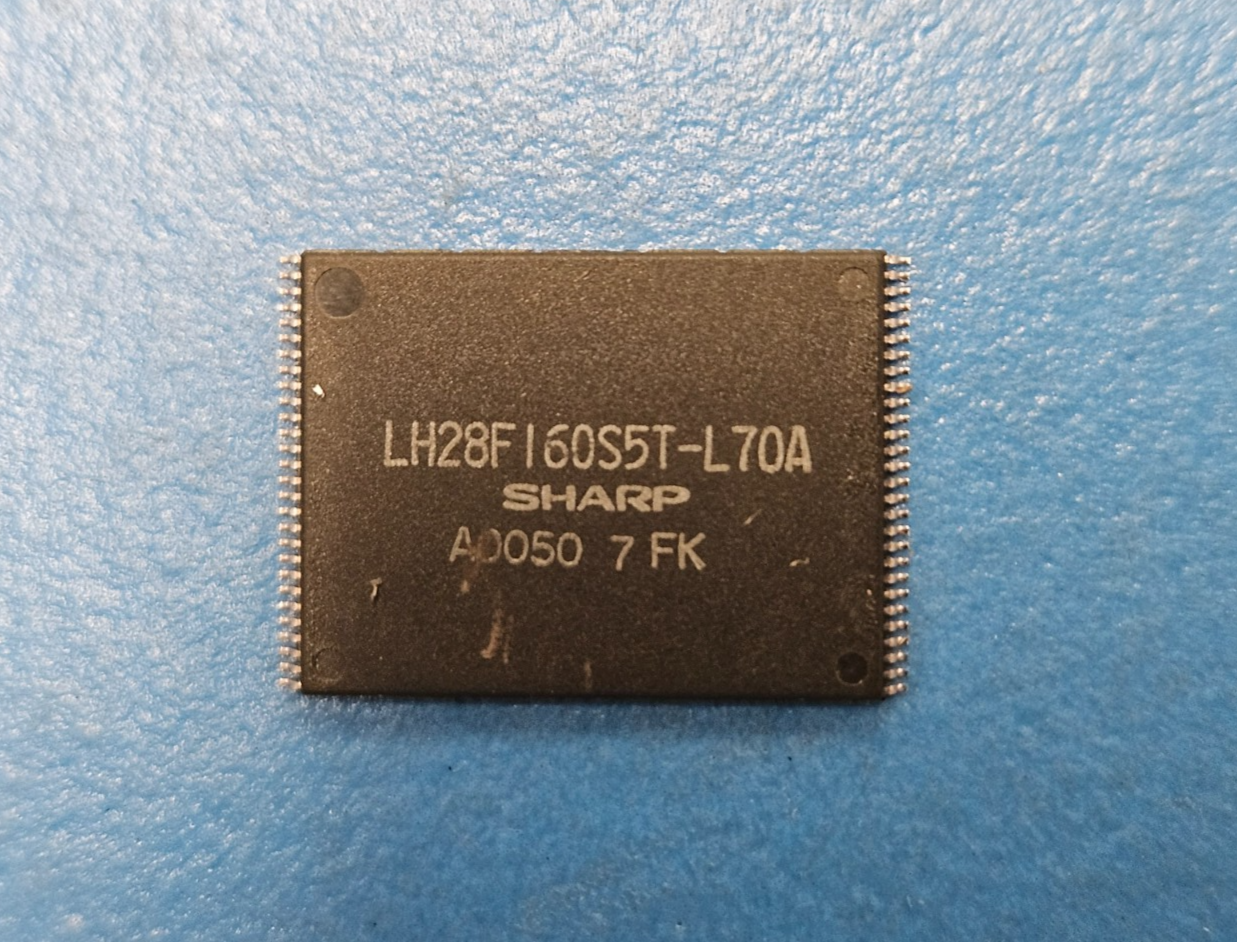

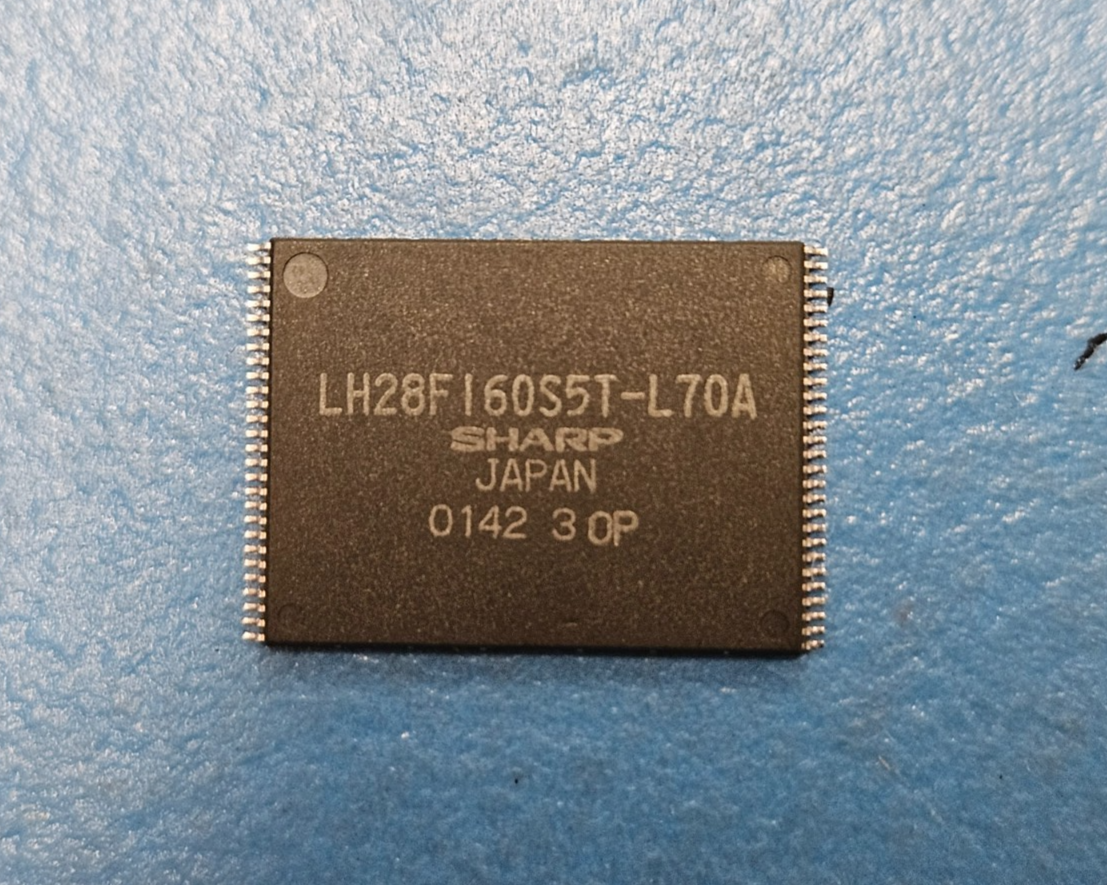

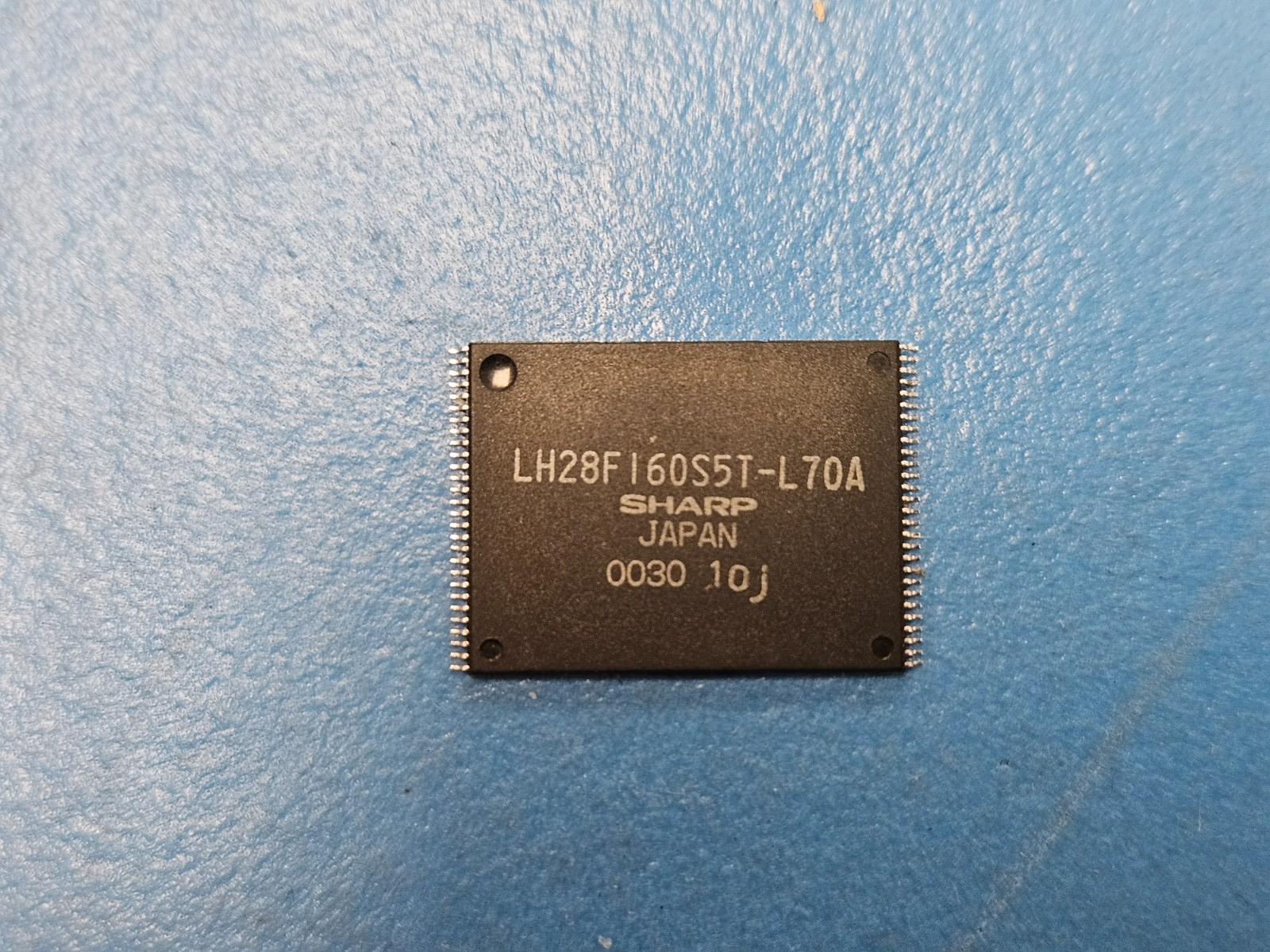

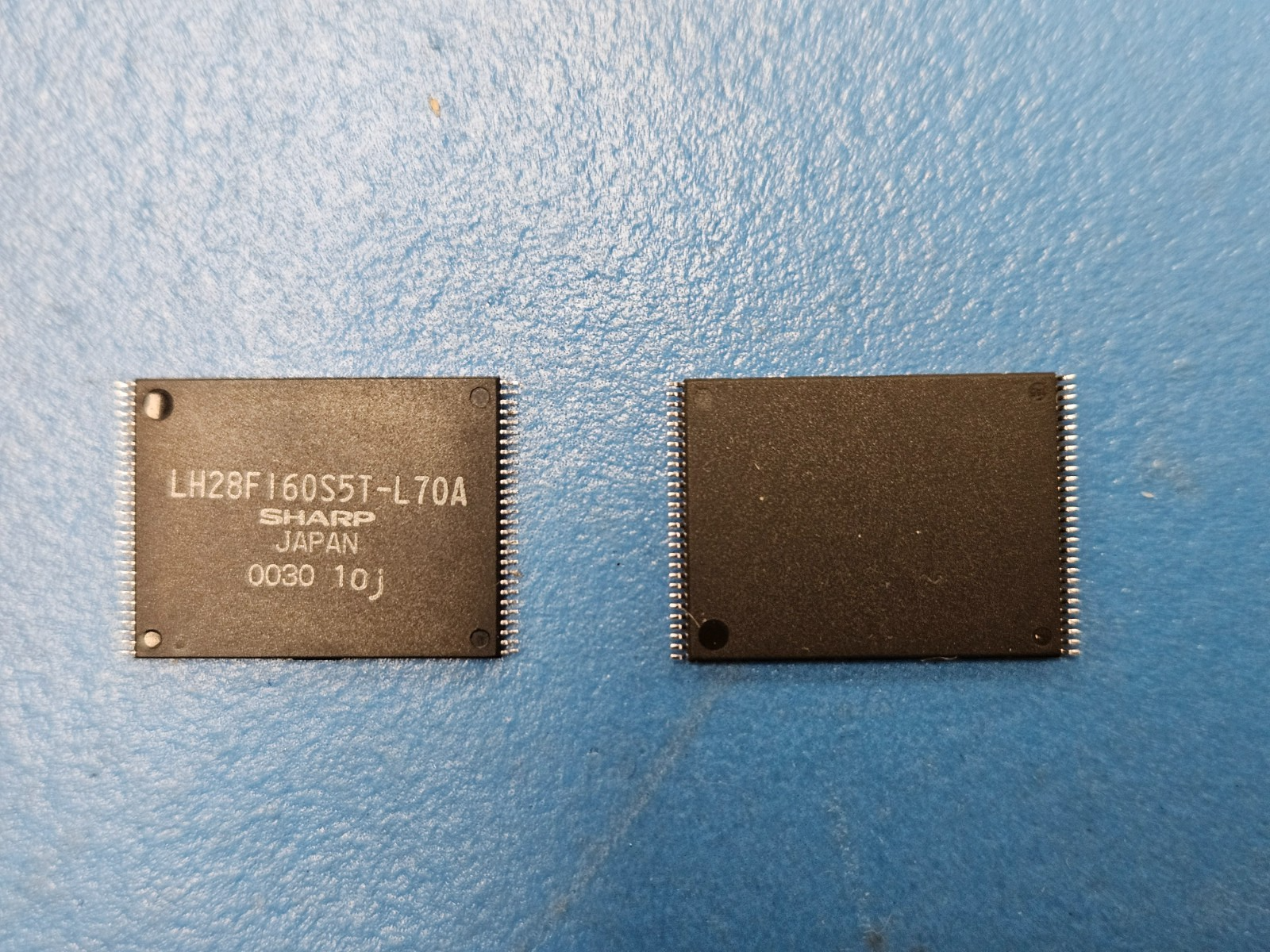

(1PC) LH28F160S5T-L70A Sharp Flash, 1MX16, 80ns, TSOP56
Tax included.
This listing is for (1PC) of LH28F160S5T-L70A by Sharp
Status Discontinued
Access Time-Max (ns) 80.0000000000000000
Additional Feature 100000 BLOCK ERASE CYCLES
Alternate Memory Width 8
JESD-30 Code R-PDSO-G56
Length (mm) 18.4000
Memory Density (bits) 16777216.0000000000000000
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Terminals 56
Number of Words (words) 1048576.0000000000000000
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 1MX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Programming Voltage (V) 5
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.2000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Type NOR TYPE
Width (mm) 14.0000
