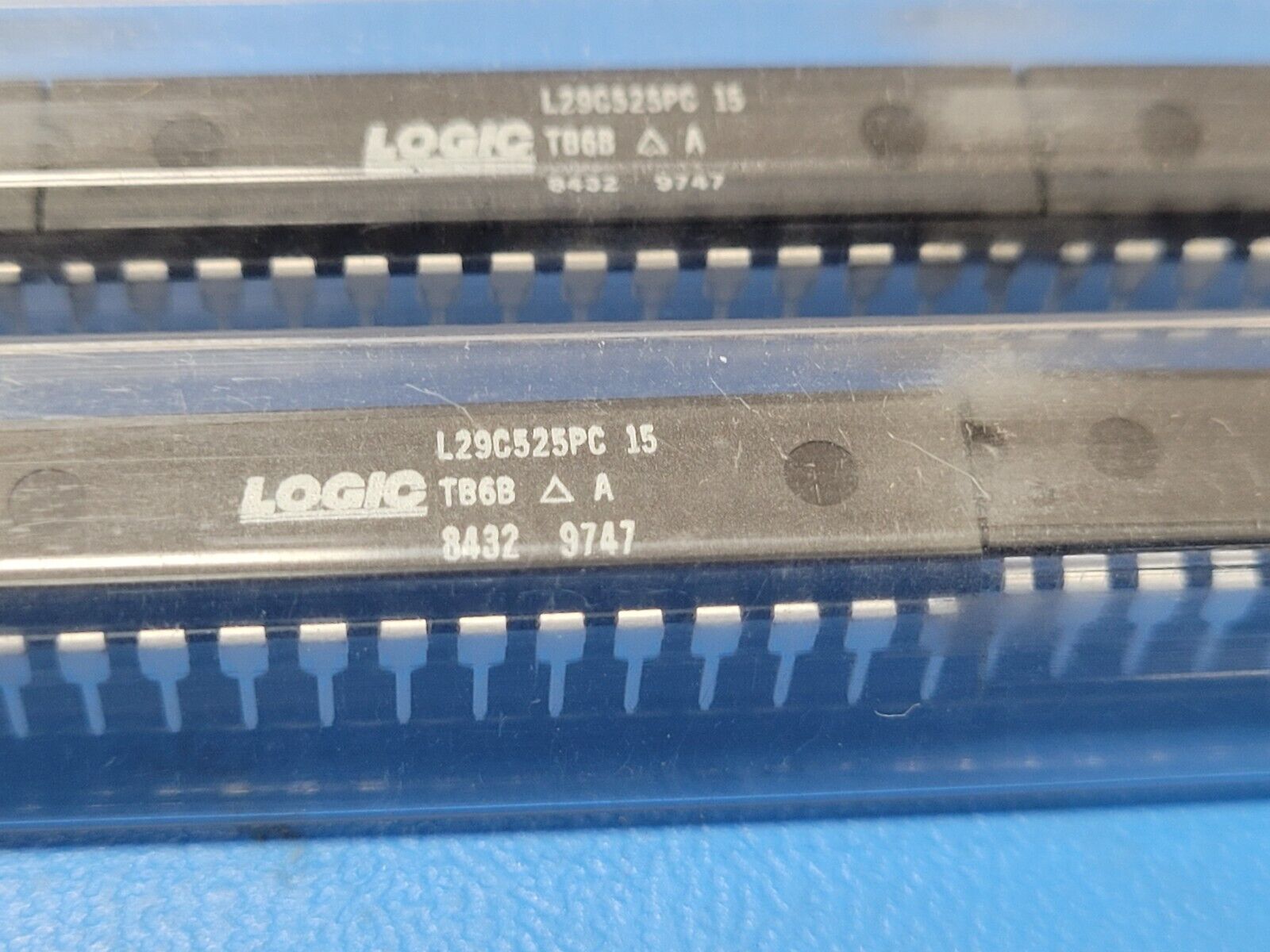

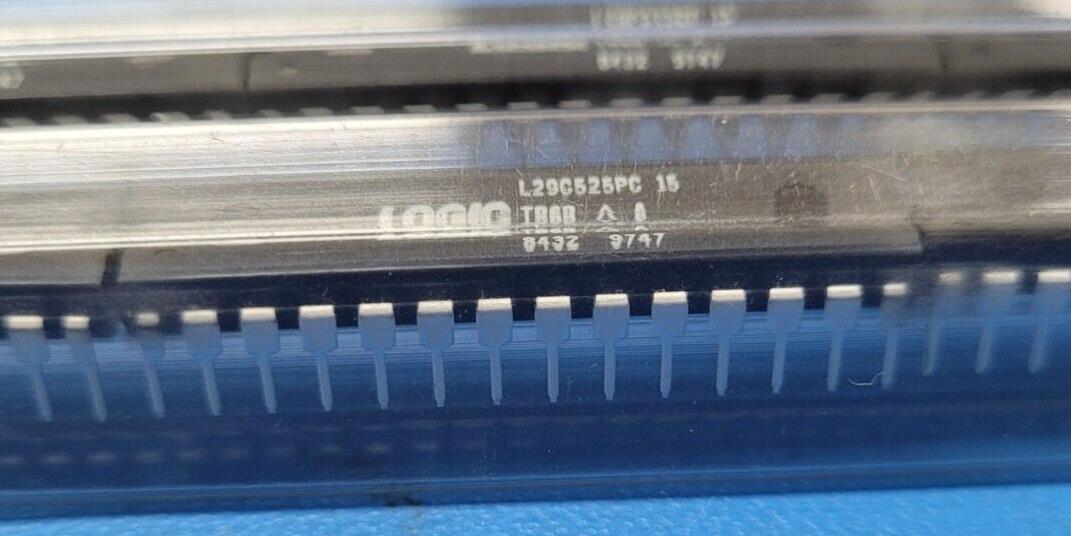

(1PC) L29C525PC15 Logic Devices Pipeline Register, 8-Bit, CMOS, PDIP28
Tax included.
THIS LISTING IS FOR (1PC) OF L29C525PC15 BY LOGIC DEVICES
Mfr Package Description 0.300 INCH, PLASTIC, DIP-28
REACH Compliant Yes
Status Contact Mfr
Boundary Scan NO
Clock Frequency-Max 66.66 MHz
External Data Bus Width 8.0
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Low Power Mode NO
Moisture Sensitivity Level 3
Number of Terminals 28
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Data Bus Width 8.0
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 4.572 mm
Sub Category DSP Peripherals
Supply Current-Max 35.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 35.052 mm
Width 7.62 mm
Additional Feature ICC SPECIFIED AT 5MHZ
